RC4WD 540 Crawler Børste motor 55T

PrisNOK195,00 inkl. mva.
Lagerstatus:
Utsolgt
Artikkelnr.:
Z-E0003
Produsent:
RC4WD
  • Produktinfo
  • Produktanmeldelser (0)

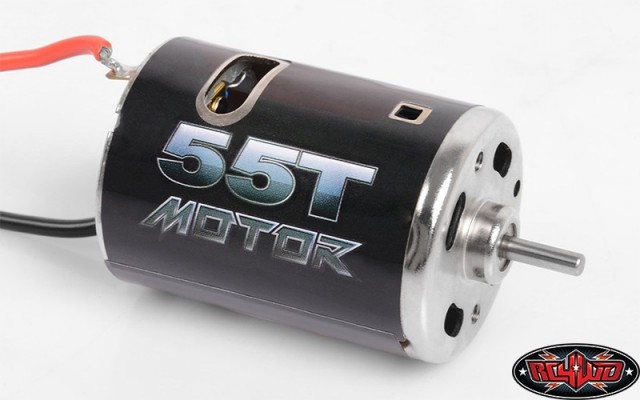

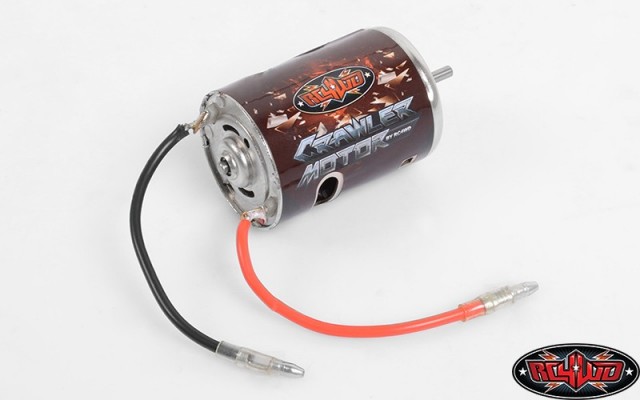

RC4WD 540 Crawler Brushed Motor (55T)

Custom made to fit all popular Truck such as Bully, AX10, Trail Finder!

Specifications:

  • Custom made 540 Steel case
  • Chrome plated case
  • Build in capacitor for minimizing glith
  • High torque magnet and rotor
  • Small footprint (50mm long)
  • Tuned for Rock Climbing and Scale Driving
  • Polished Bushings

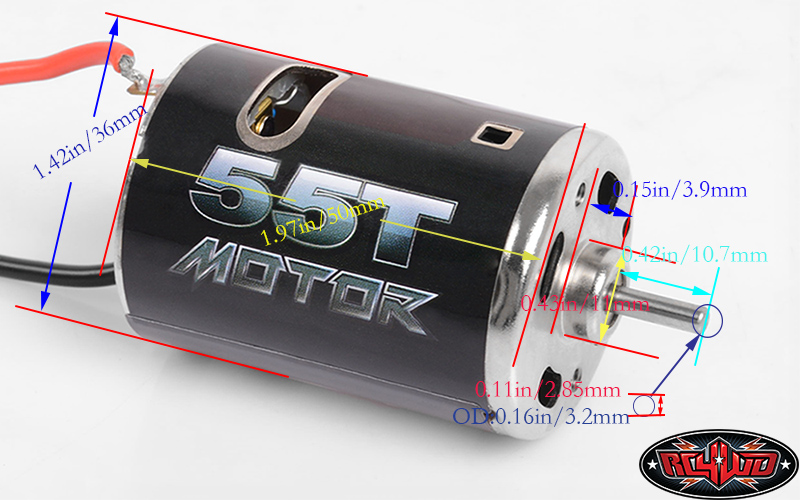

  • Body OD: 1.39in / 35.5mm
  • Output Shaft Length: 0.43in / 11mm
  • Output Shaft: 0.12in / 3.1mm
  • Min and Max Voltage Range: 2.4V-30V

Performance Specs:



  • (At no load) RPM @ 7.2V : 8000 (?10%), .75Amp Current
  • (Max Efficiency) RPM @ 7.2V : 6800 (?10%), 3.35Amp Current
  • Designed oprating temperature range: -30?C to +80?C
  • Motor end play : .50mm max
  • Noise level: < 60db



What´s Included:

  • 1x RC4WD 540 Crawler Brushed Motor (55T)
