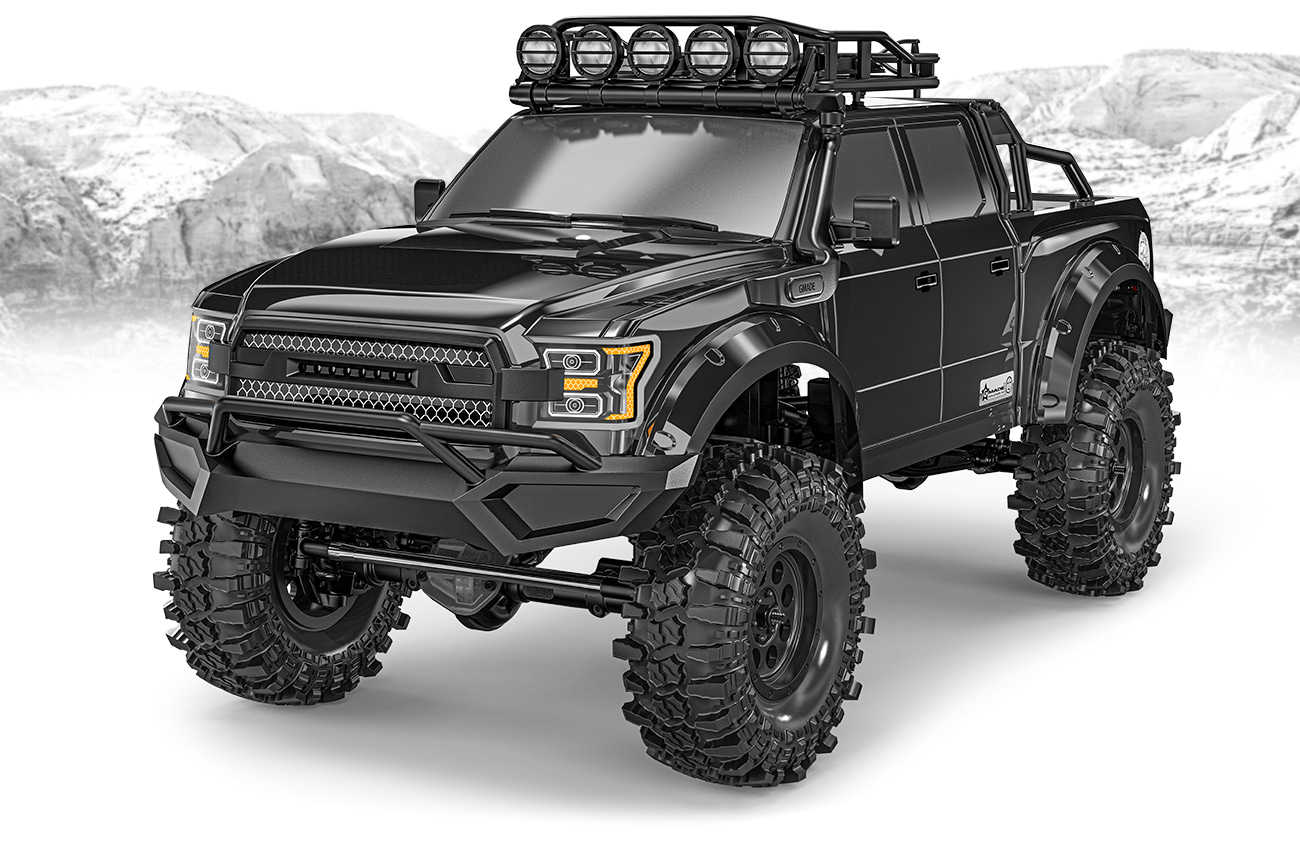

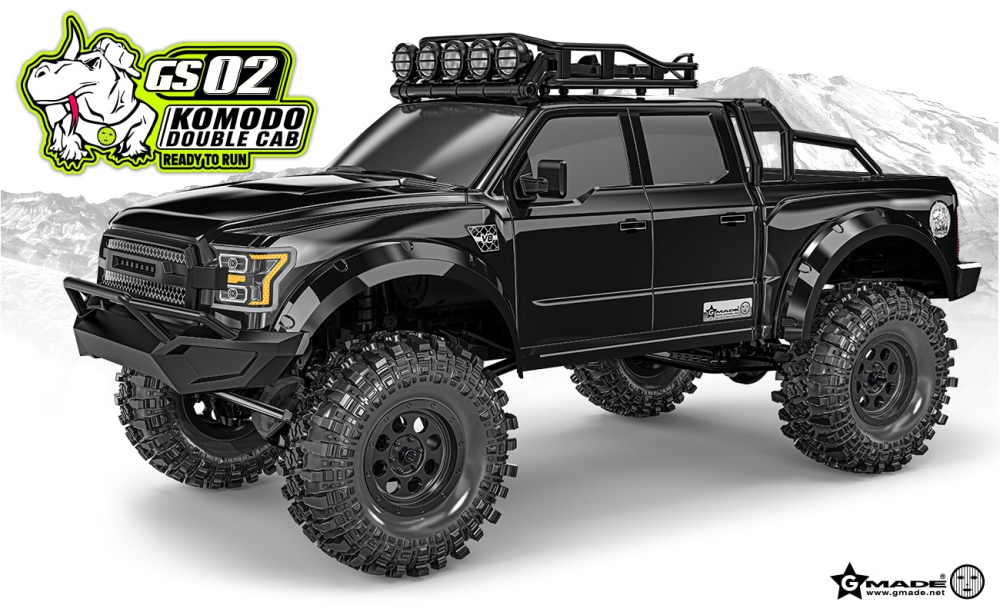

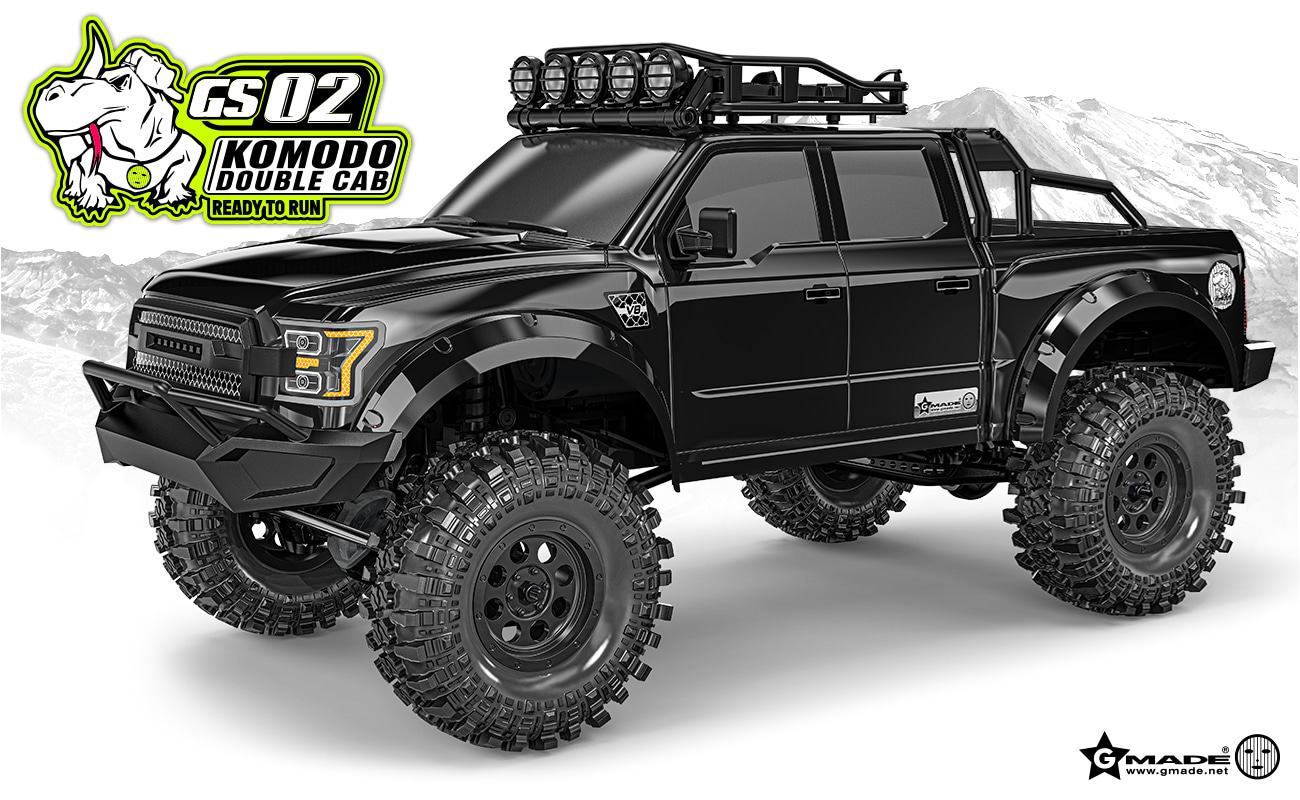

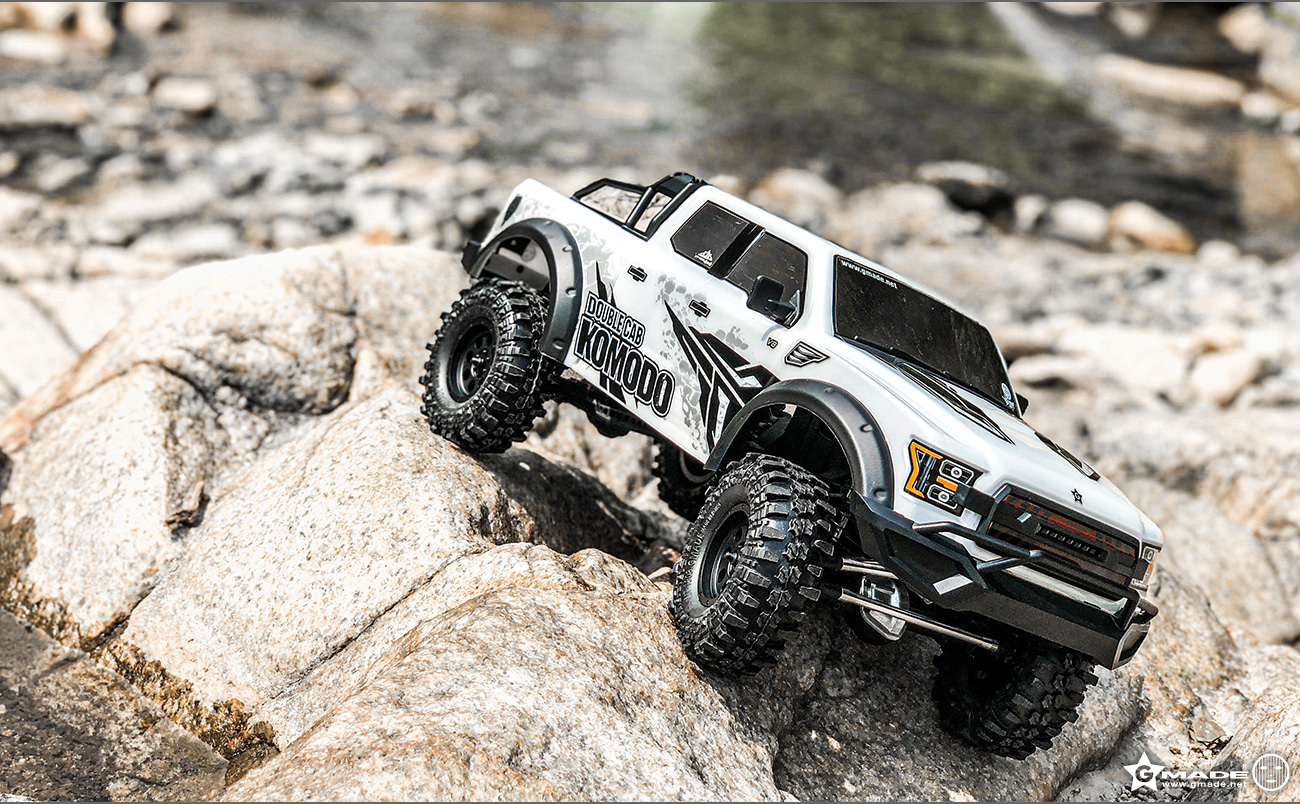

Gmade 1/10 GS02 KOMODO double cab TS ARTR

Produktet krever noe montering før bruk.

PrisNOK5 995,00 inkl. mva.
Utsolgt, ta kontakt for leveringstid
Ønskeliste
Lagerstatus:
Utsolgt
Artikkelnr.:
GM57005
Produsent:
GMade
  • Produktinfo
  • Produktanmeldelser (0)

Product Details

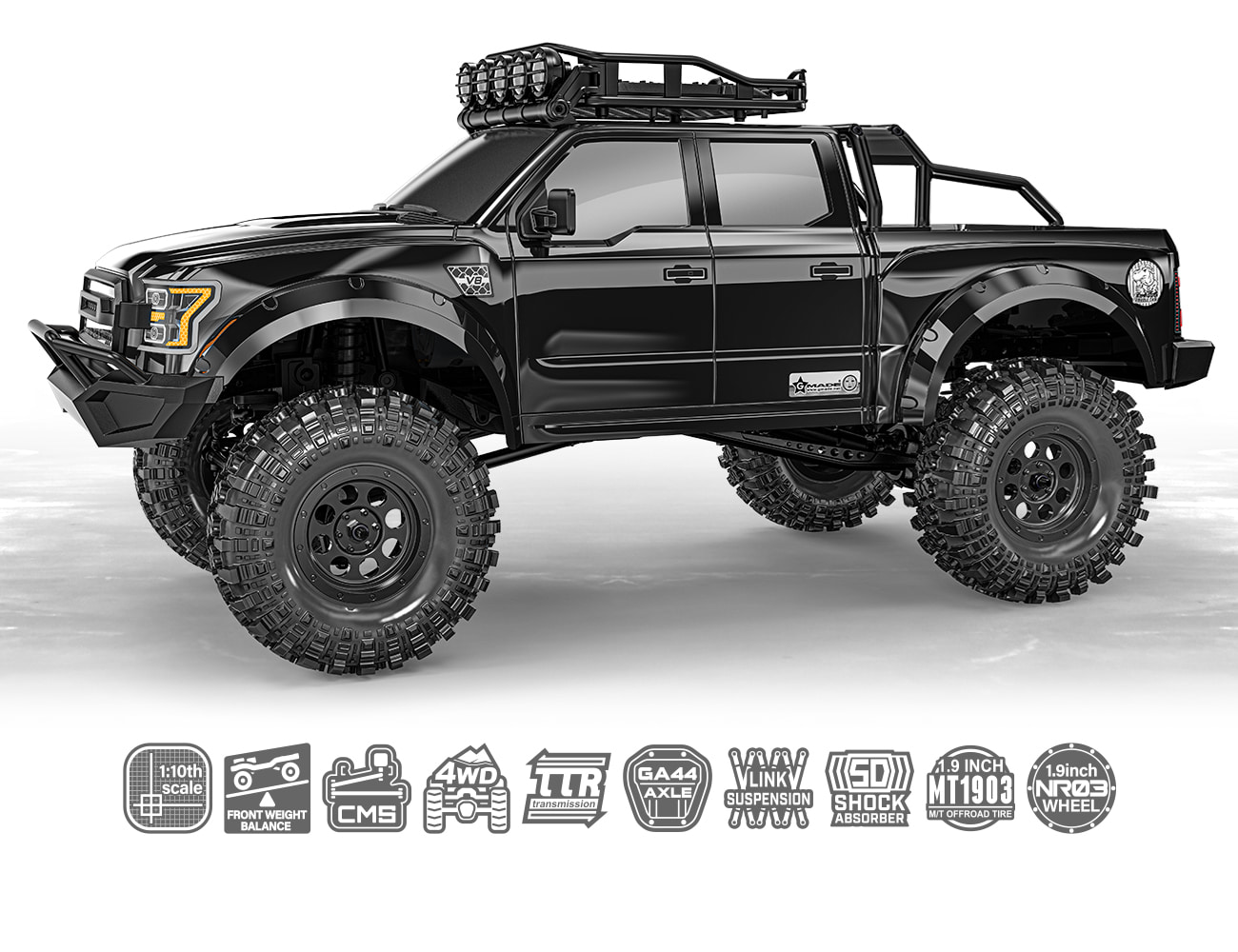

GM57005 - 1/10 GS02 KOMODO Double cab TS

READY TO RUN

Radio control / electric

    PERFORMANCE
  • 1:10th scale
    TTR transmission
    Front weight balance
    4 wheel drive
    CMS system
    INCLUDED

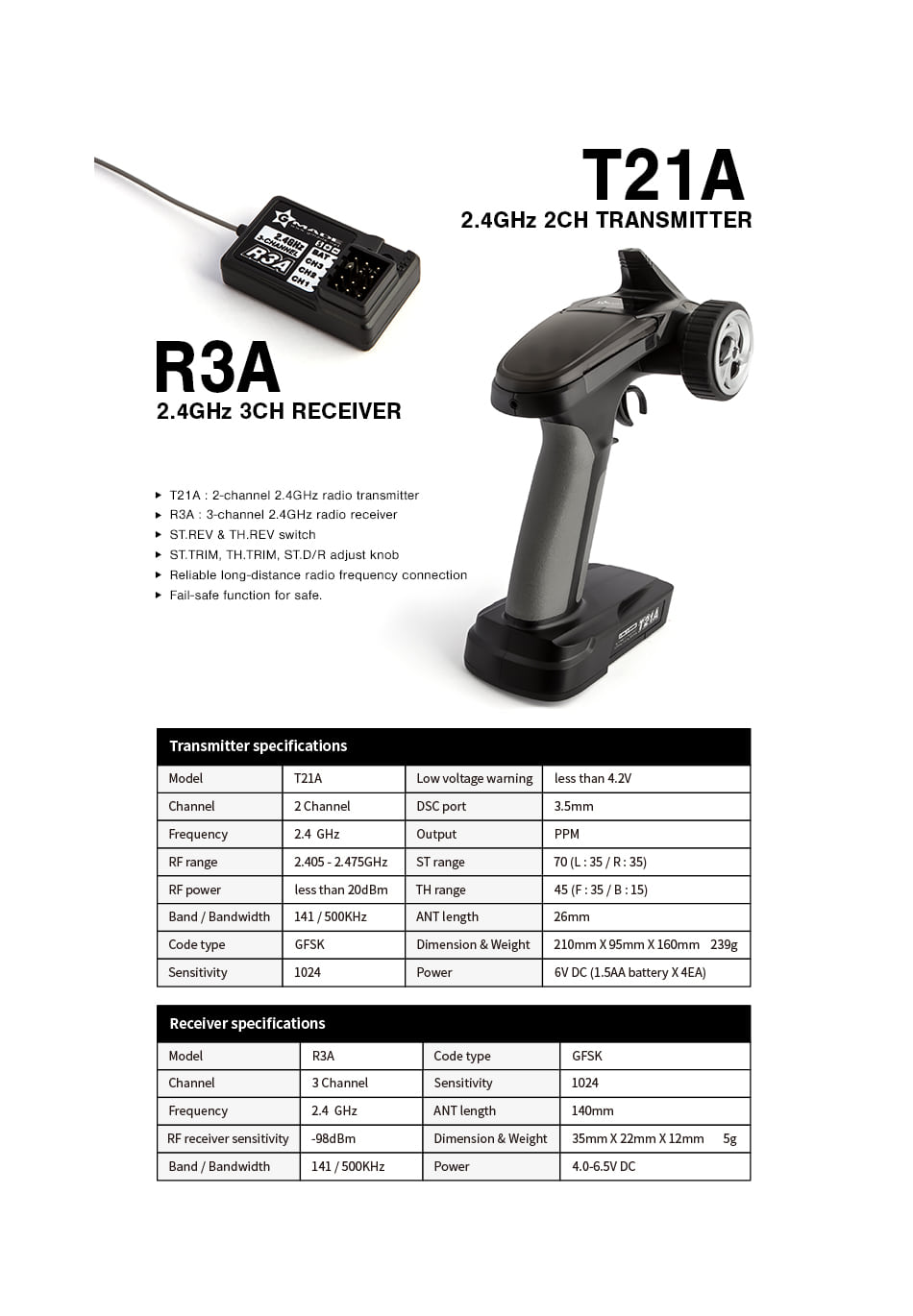

  • 2.4GHz Raido control system
    (transmitter & receiver)

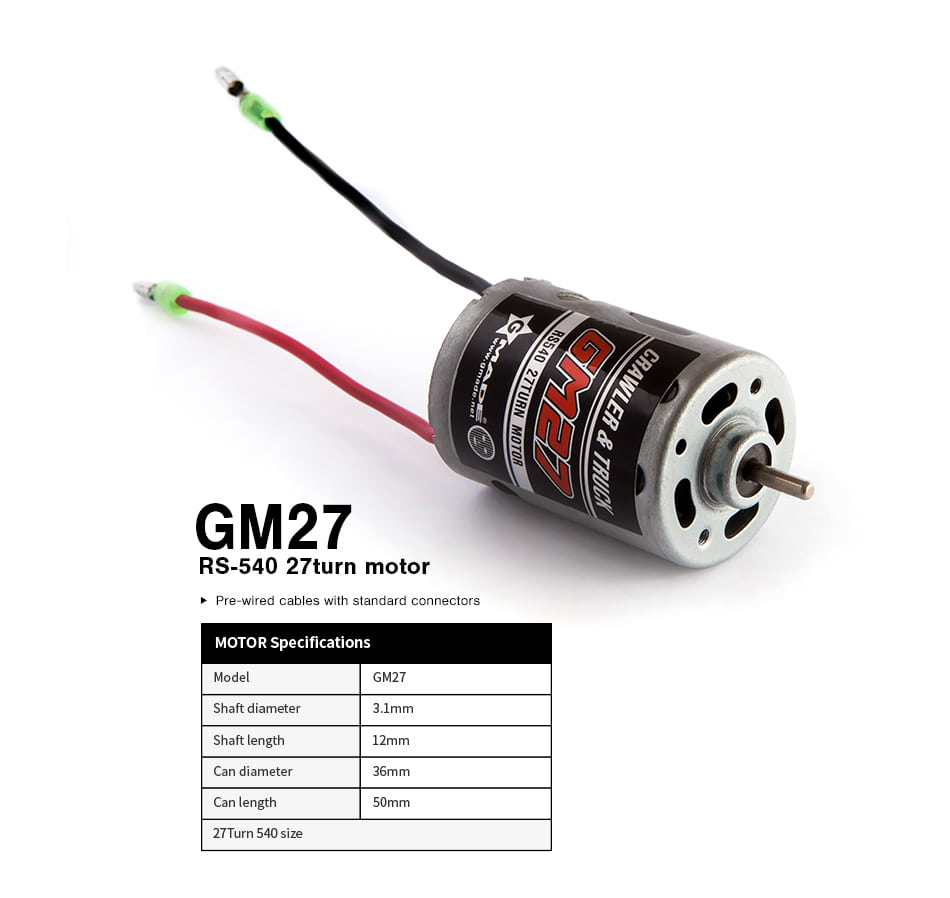

    RS-540 27turn motor

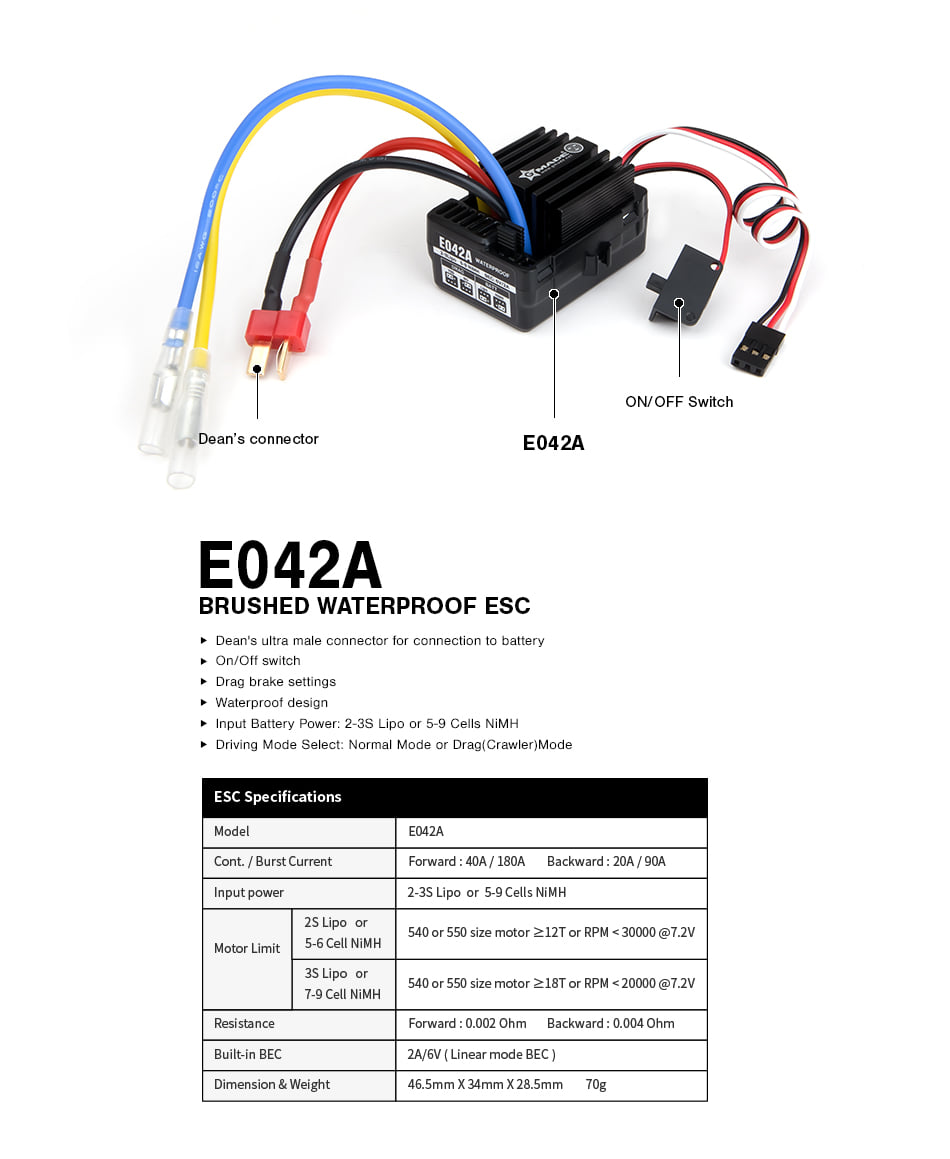

    Brushed electronic speed controller

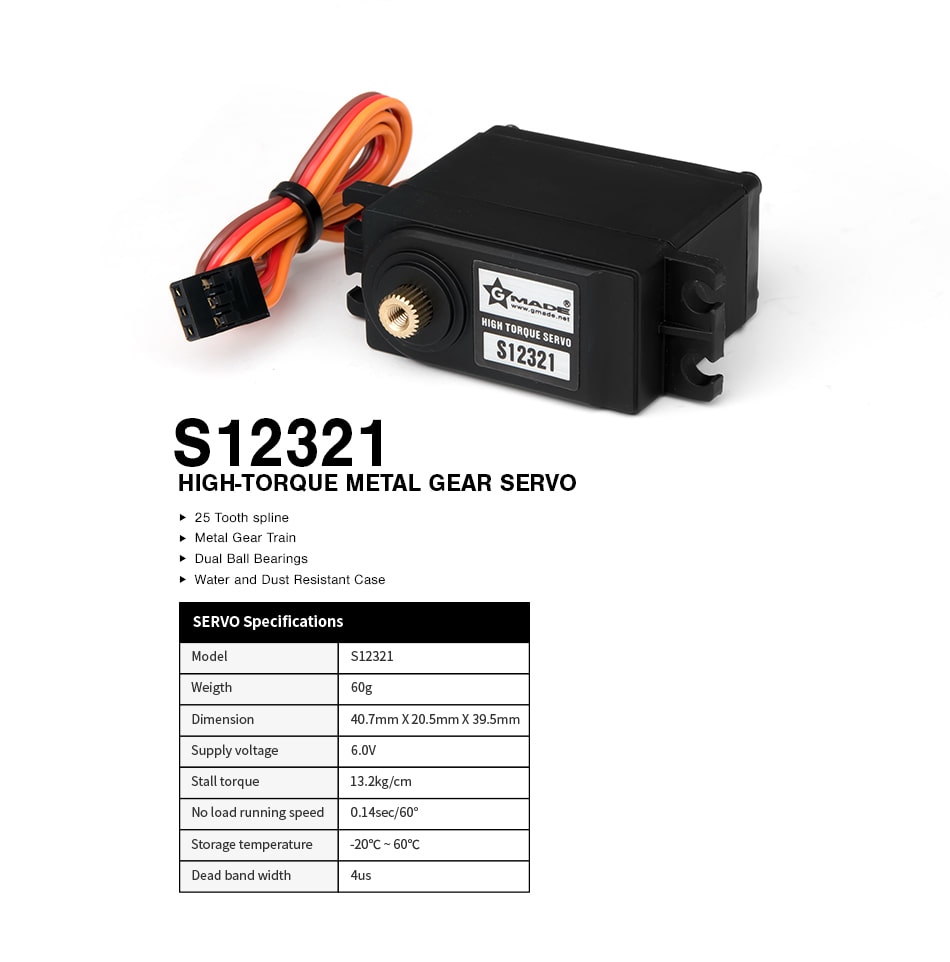

    High torque standard servo

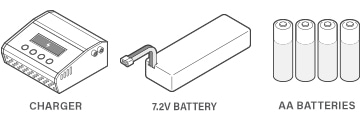

EQUIPMENT NEEDED (not included)

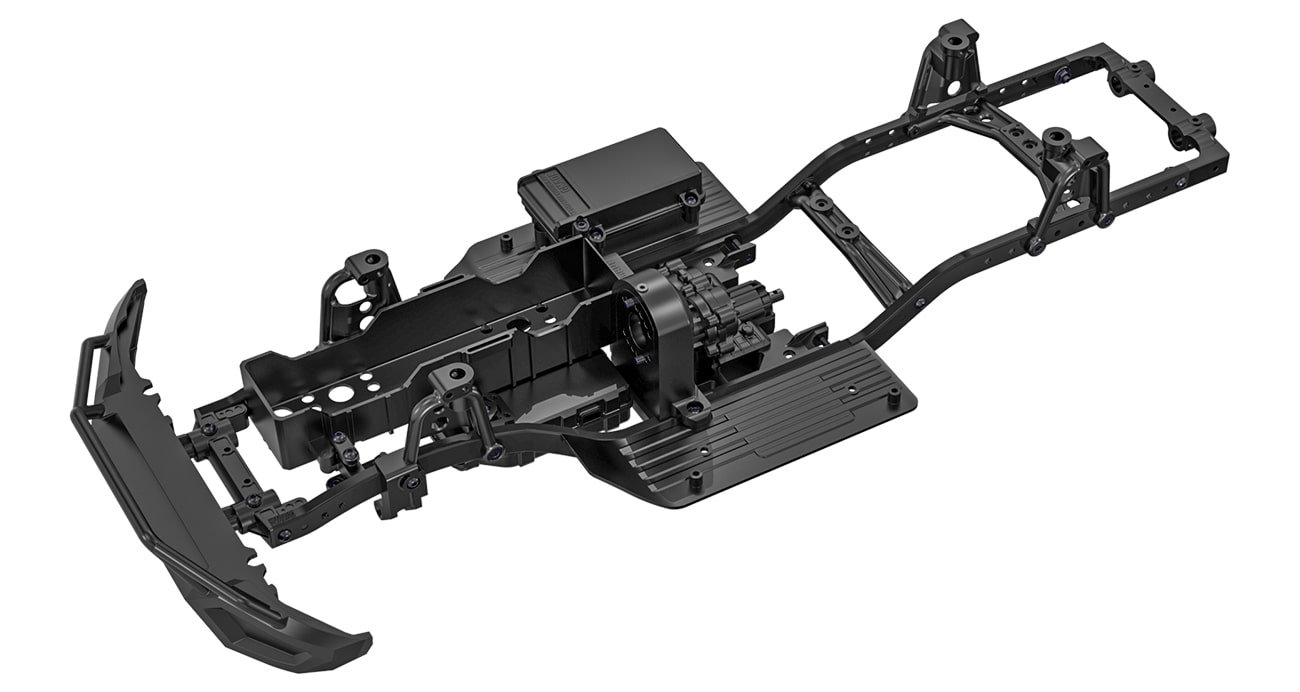

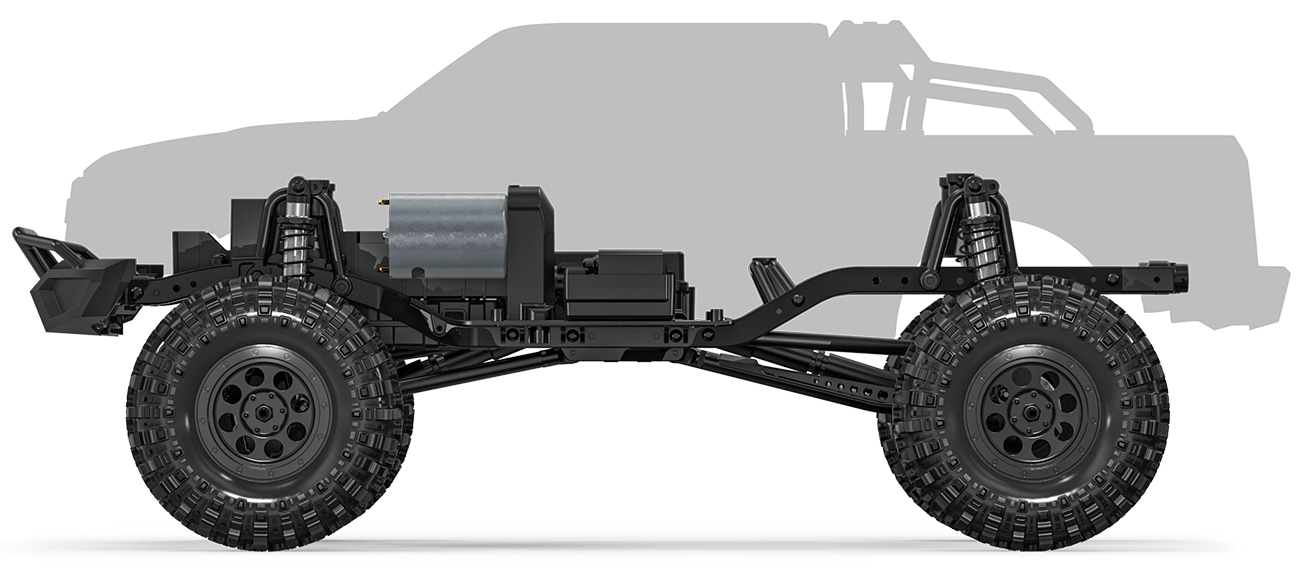

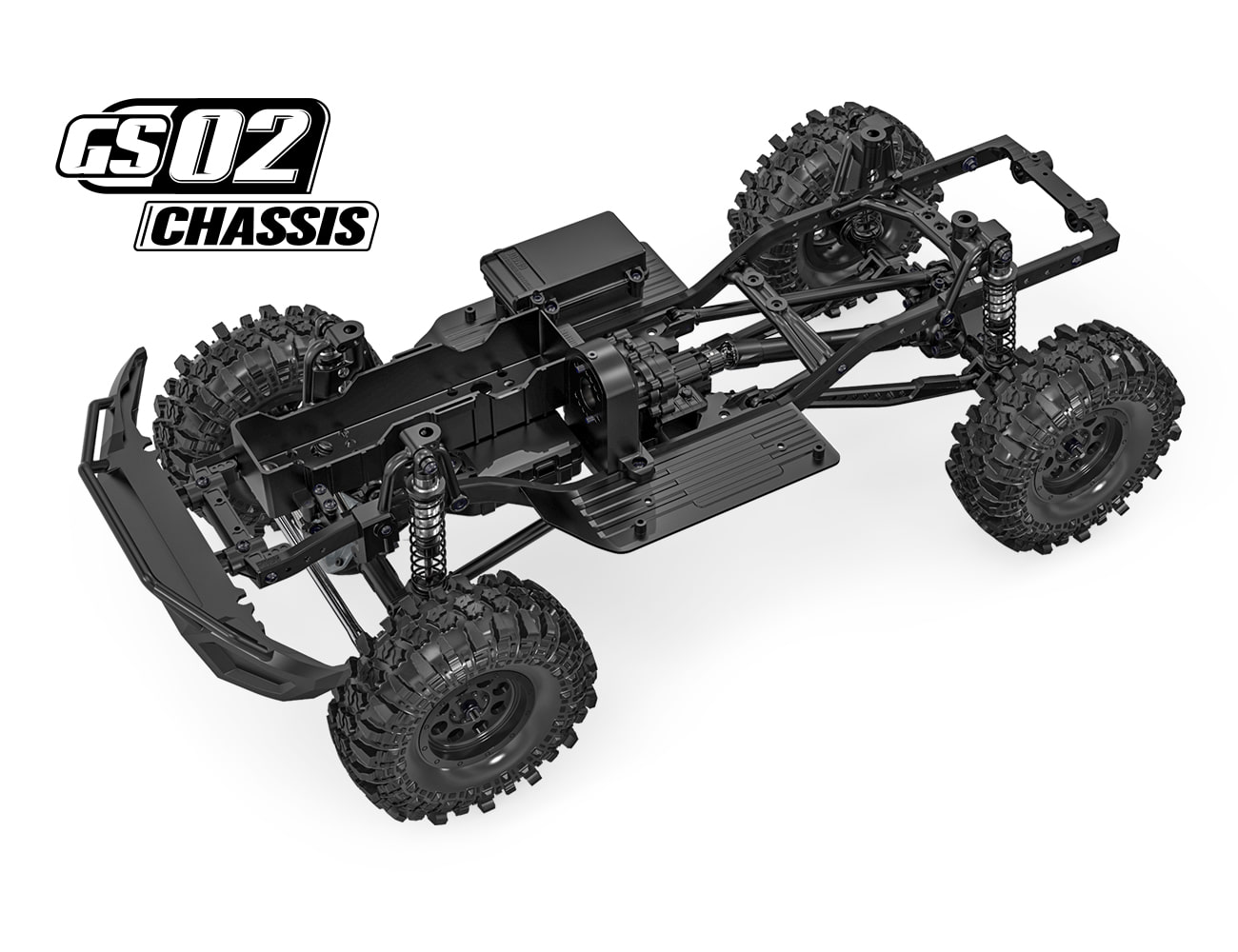

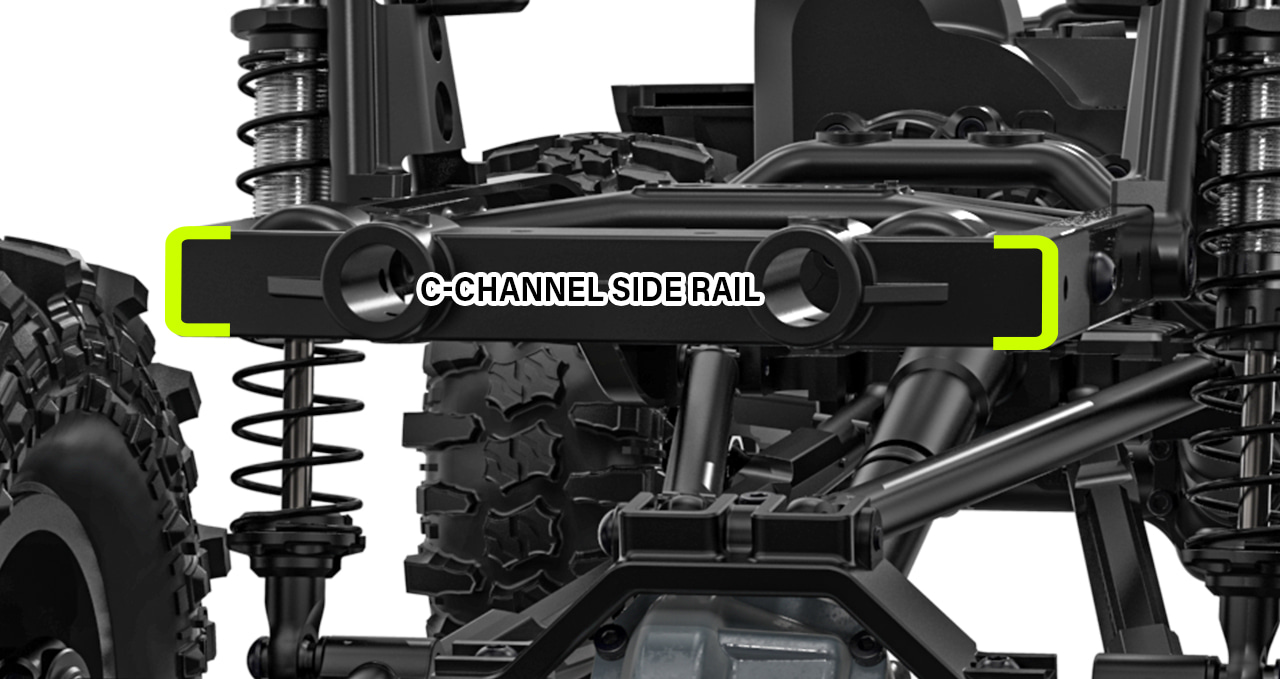

    STEEL LADDER FRAME
  • GS02 frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping. Also, steel parts are black powder coated finish to prevent rust.

    Adjustable wheelbase
  • GS02 chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 300, 313 and 324mm custom bodies. (optional link kits are sold separately)

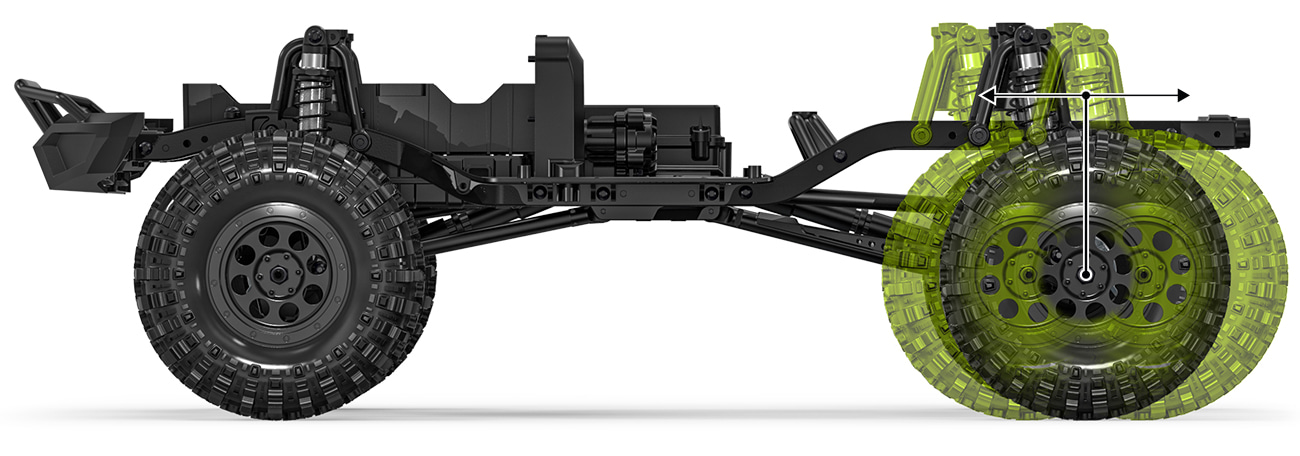

    Front weight balance
  • Komodo double cab´s weight balance designed to be placed on the forward of the car. This will increase the tire tracktion to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle´s rolling over when climbing.

    Chassis Mounted Servo system with panhard bar
  • Komodo double cab´s steering system has a steering servo on the frame just like a 1:1 real car. It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle. In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.

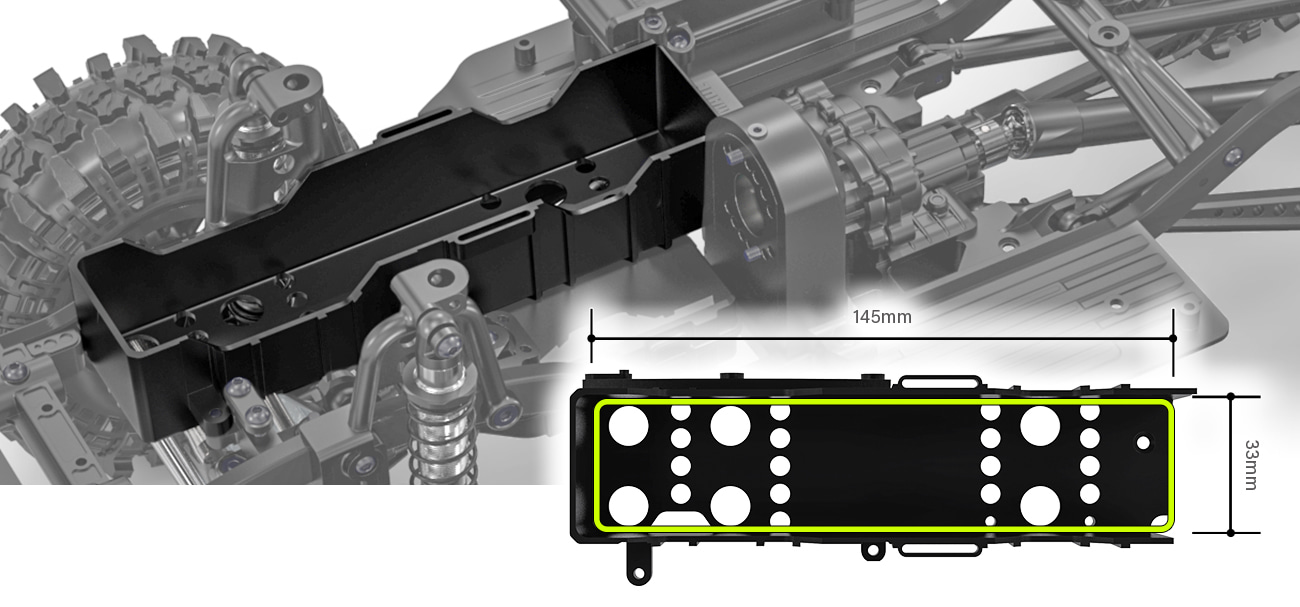

    Battery tray
  • The battery can be easily replaced and can accommodate up to 7,600mAh 2-cell Lipo batteries or 5,000mAh 3-cell Lipo batteries. (7,600mAh 2-cell LiPo or 5,000mAh 3-cell LiPo)

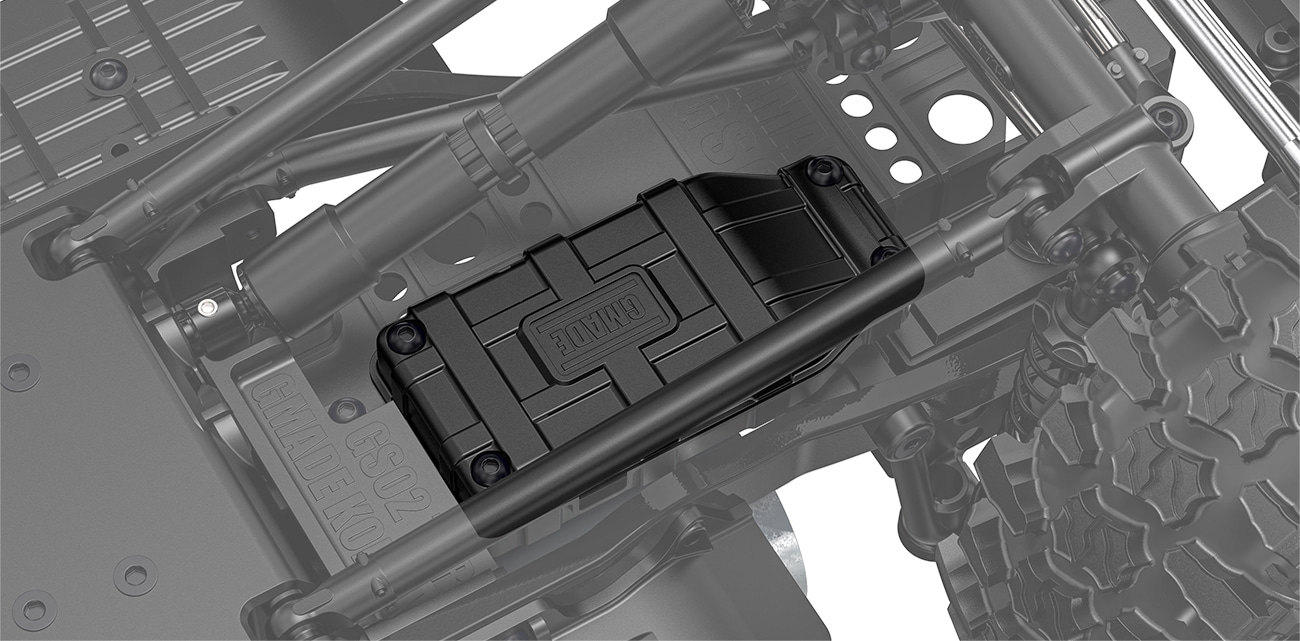

    Dust proof electronics box
  • It protects electronic equipments such as winch controllers and BEC, which are often used for scale trucks, from foreign substances.

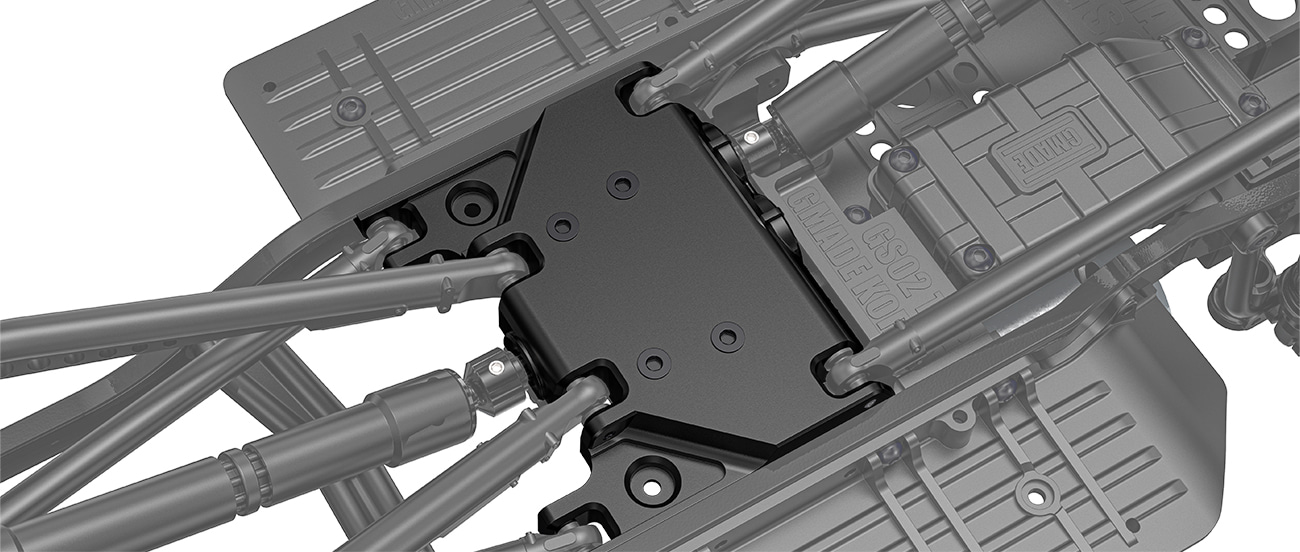

    Skid plate
  • The skid plate protects the transmission and other critical components by the flat surface that allows the Komodo double cab to slip and ride on rocks and other obstacles easily.

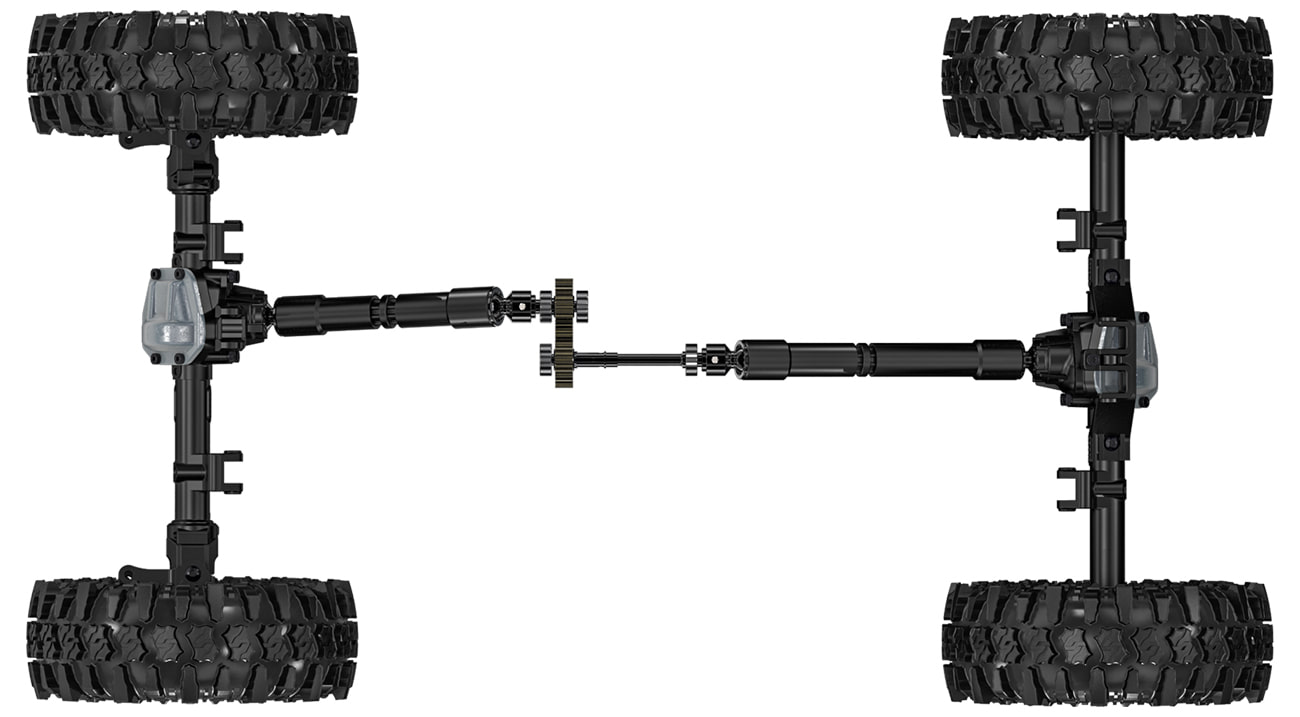

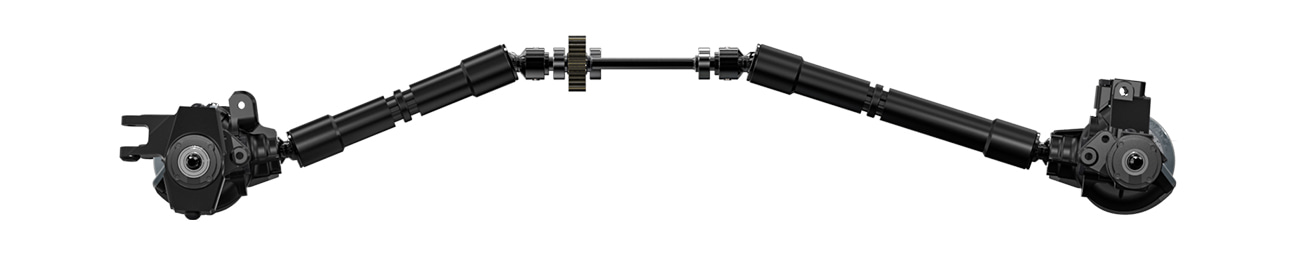

    Drivelines
  • The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.

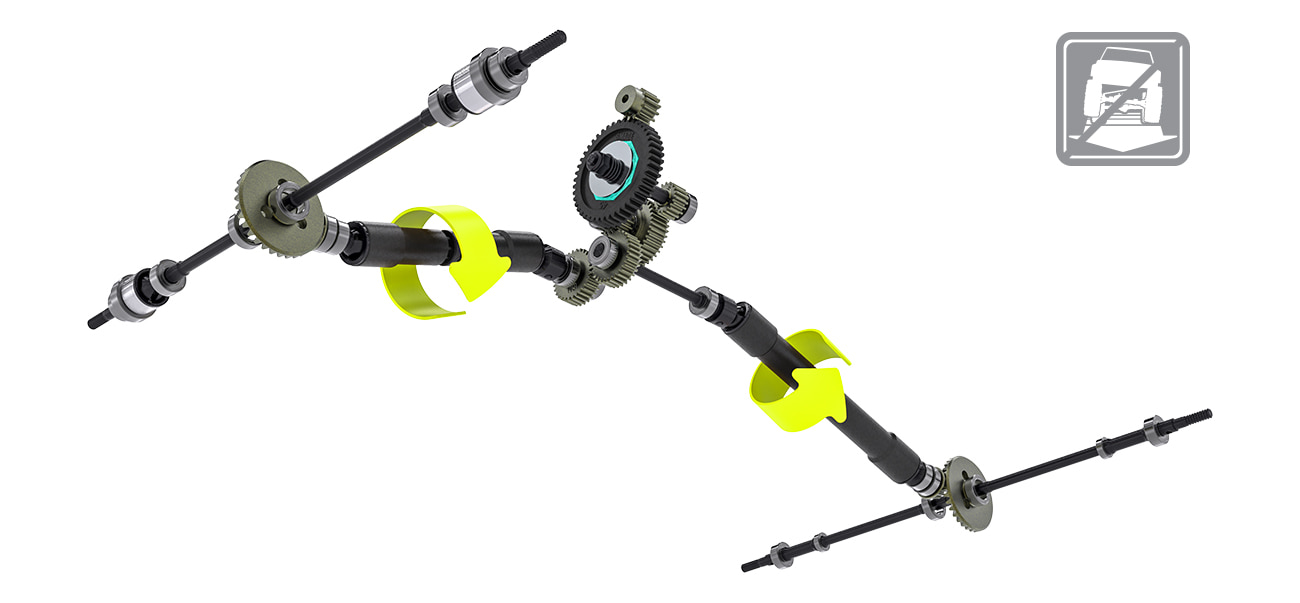

    torque Twist Reduce transmission
  • The TTR transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle. The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions.

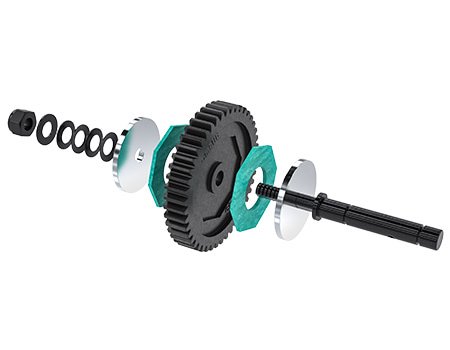

Dual slipper clutch

The slipper pads are designed to hold the spur gears evenly to allow more precise setting.

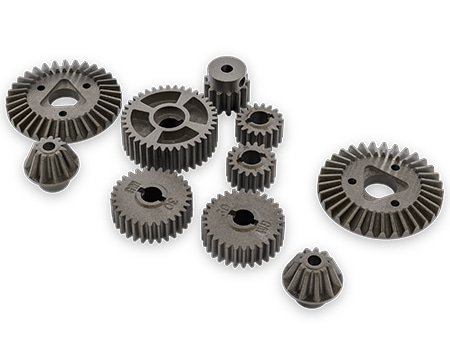

All metal internal gears

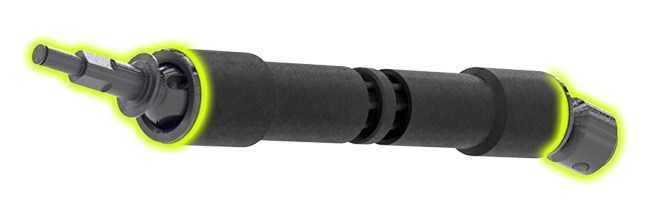

Hardened carbon steel universal joints

The front and rear universal shafts of the steel joints provides smooth and stable power train. The kit also includes the spare parts that allows you to adjust the length of the universal shaft.



OPTION PARTS

Not included in stock kit

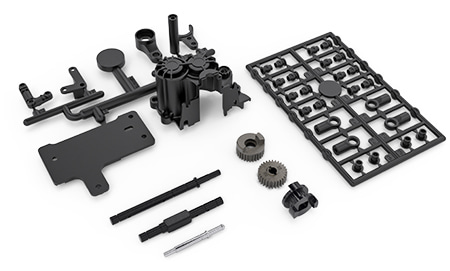

2-speed HI/LO parts (GM30099)

The first gear is capable of hardcore rock crawling, while the second gear allows you to move quickly to your next crawling and hill climb places.


    Easy adjust motor mount
  • You can easily replace and install the motor pinion gear to changing the gear ratio.

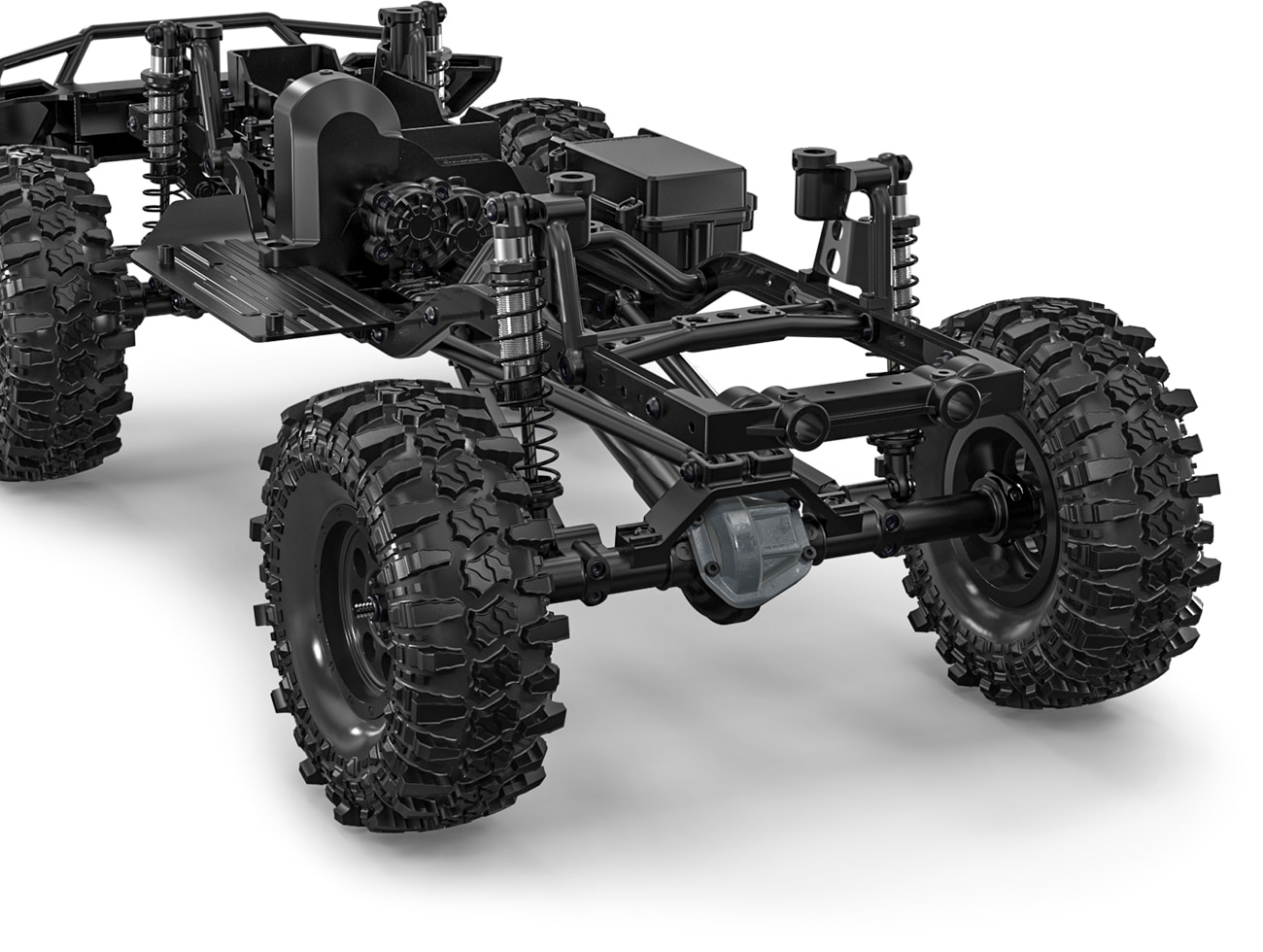

    GA44 Axle
  • GA44 axle is designed with the hardcore rock crawler in mind. Axles are made of high-strength meterials, and it will look and perform optimum off-road perfermance as real 1:1 vehicle when 4-Link suspensions added.
    The GA44 axle housing is a durable one-piece type. The angle of the differential cover is designed to reduce the risk of damage due to frontal impact and is therefore very suitable for off-road driving.

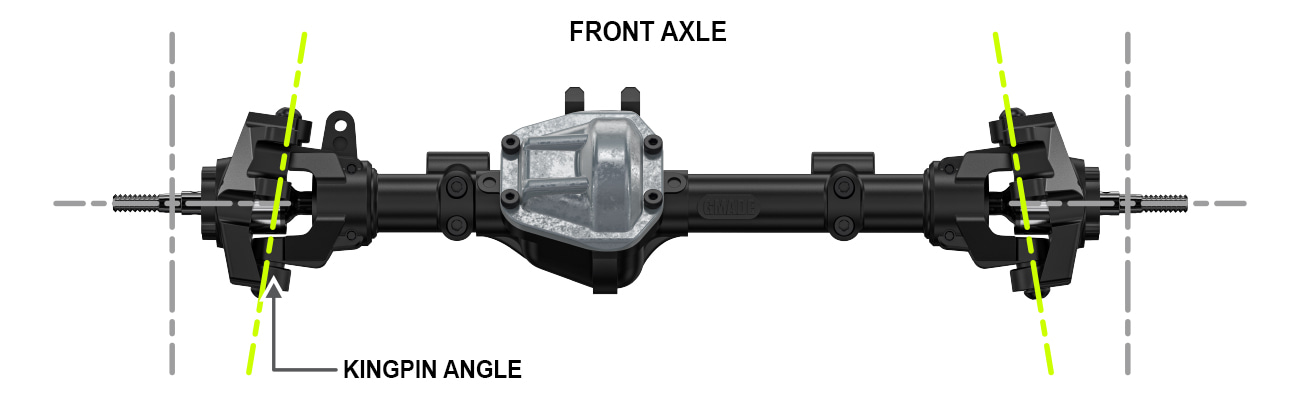

Front axle

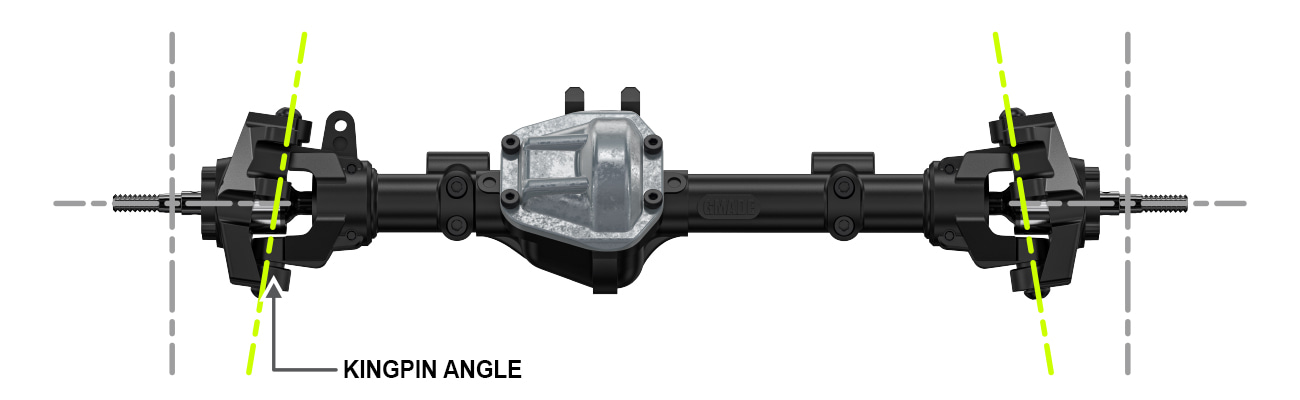

    Kingpin angle
  • Keeping the scrub radius to a minimum to let your steering servo work at it´s full potential and increases the steering efficiency.


Rear axle

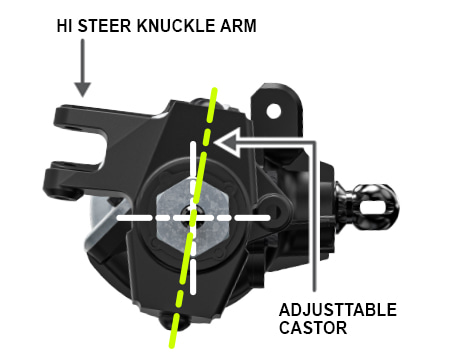

    Hi steer knuckle arm
  • By increasing the approach angle, you can over climb the obstacles more easily than a typical trial trucks.



    adjustable castor
  • The GA44 front axle can be adjusted to the steering style to have a smooth and short turn angle depending on the driving style or to adjust to improve straight stability by changing the caster angle.

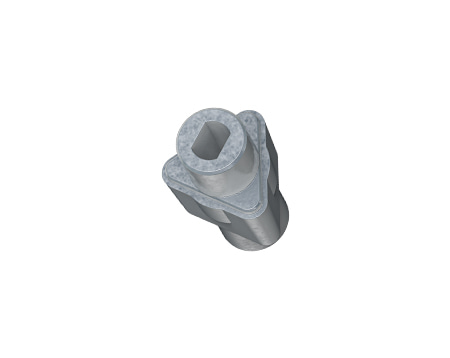

Metal diff locker

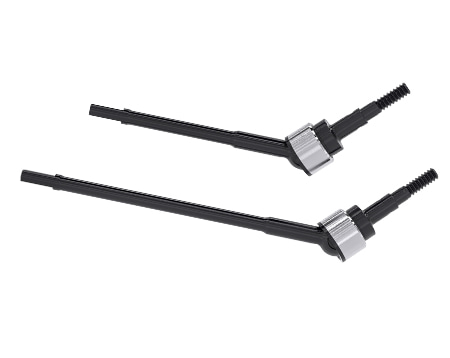

Hardened carbon steel CVA kit

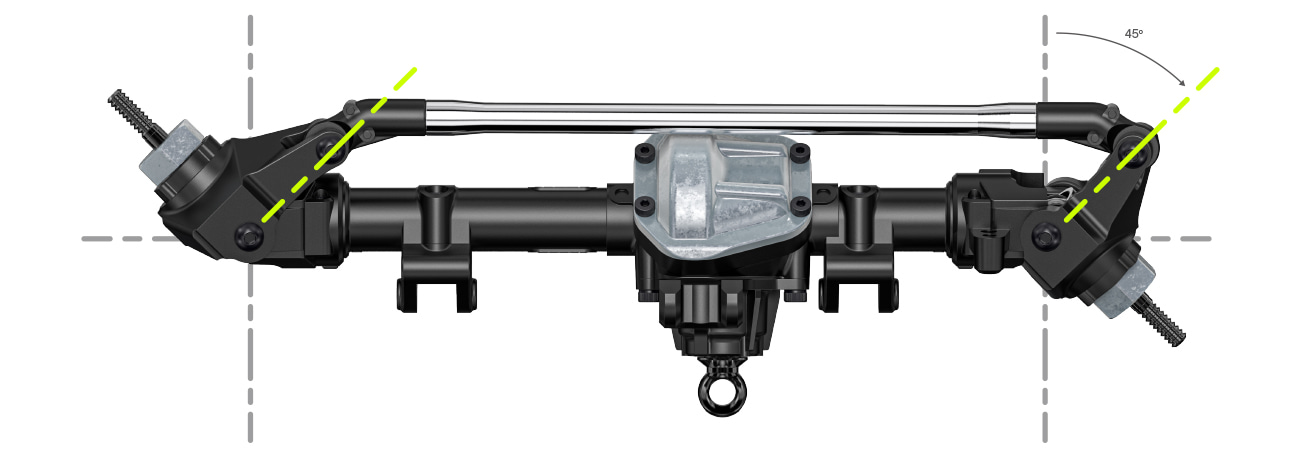

    Zero ackerman steering
  • The GA44 axle is using Zero-ackerman steering system with CVA to ensure maximum performance with a short turn radius and smooth motion even on rough off-road terrain.

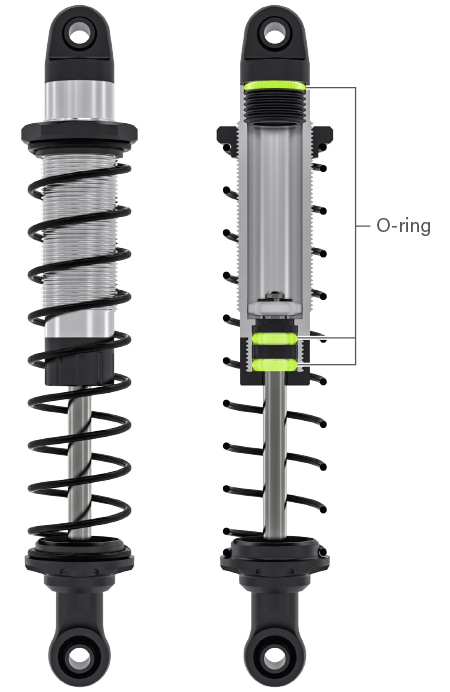

    SD scaler shock absorber
  • SD Scaler Shock is a Coil-over styled oil shock absorber optimized for the scale trucks. The oil filled inside the shock minimizes splash when the vehicle is driven, and provides a high-durability aluminum shock body with 3.5mm heavy duty shock shafts are added, these will help you to drive roughly on rough surfaces. Beginners also can easily assemble this shock and change setups, and the adjustable nut makes it easy to adjust the ride-hight so you can quickly change your car setup even when driving condition changes.

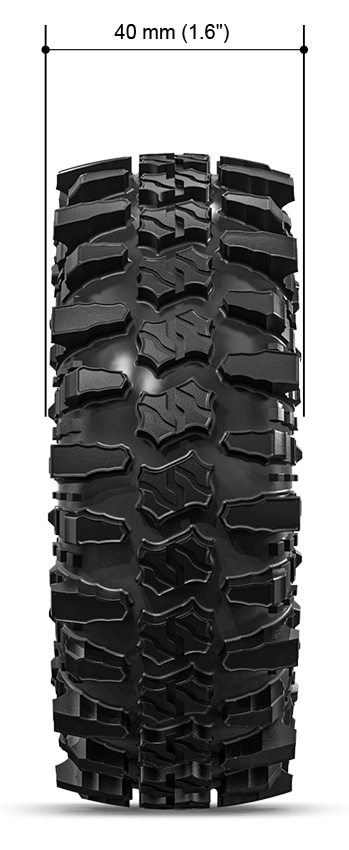

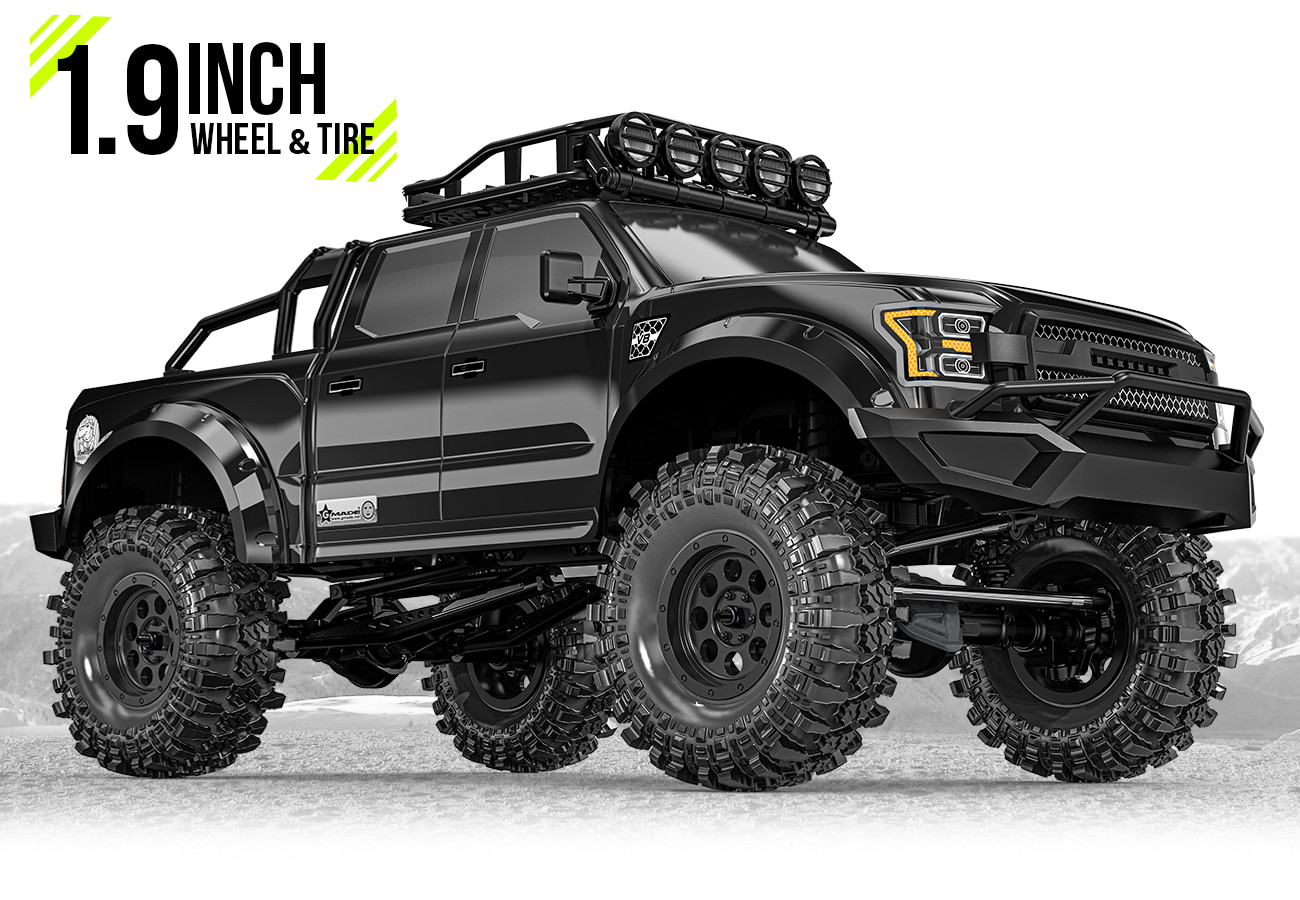

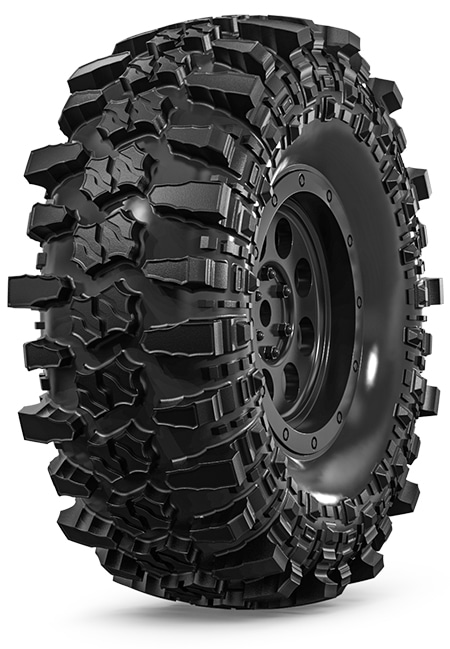

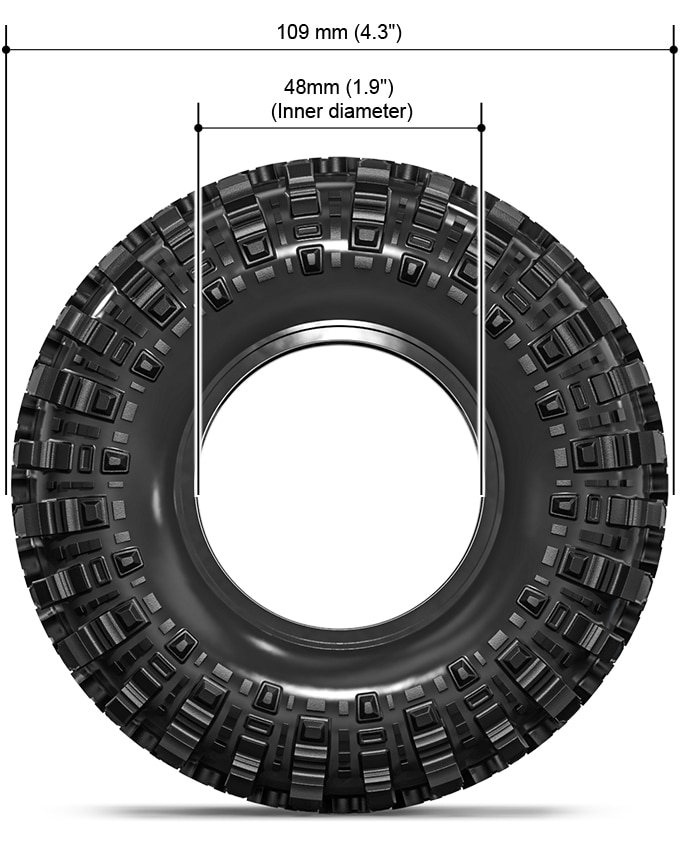

    MT-1903 1.9 INCH M/T OFF-ROAD TIRE
  • MT 1903 off-road tire made of super soft compound material provides high traction to the surface. The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any uneven road surface.



    SPEC
  • Tire Height: 109mm (4.3")
    Tire Width: 40mm (1.6")
    Inner Diameter: 48mm (1.9")

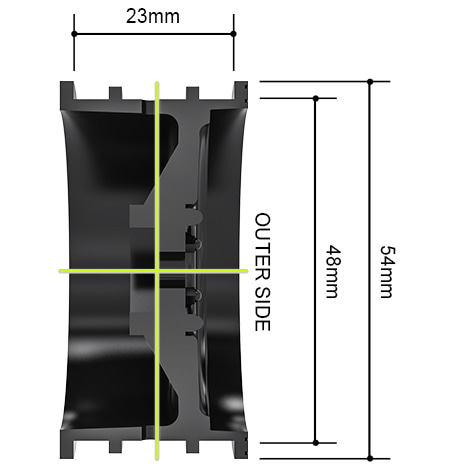

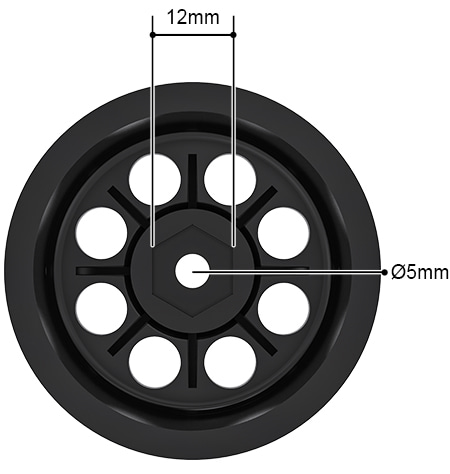

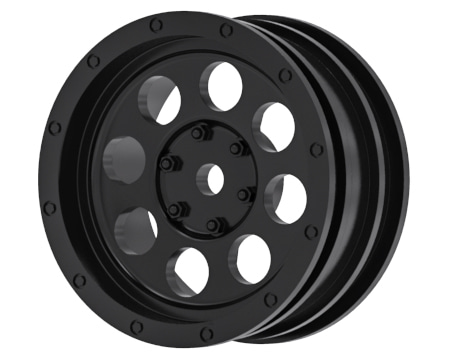

    1.9inch NR03 wheel
  • Width : 23mm
    Diameter : 48mm (1.9 inch)
    Offset : 0.5mm positive offset
    Hex mount : 12mm

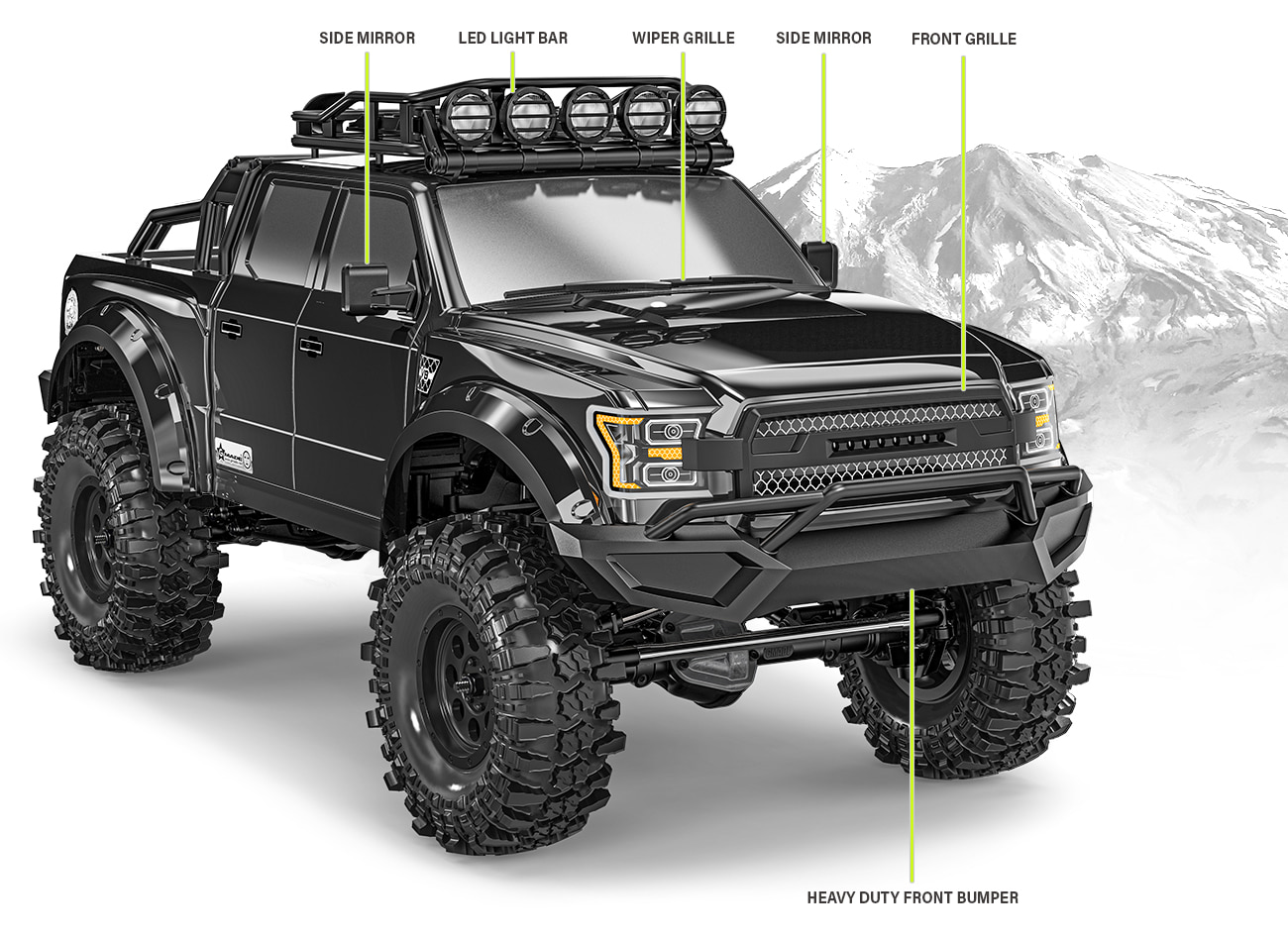

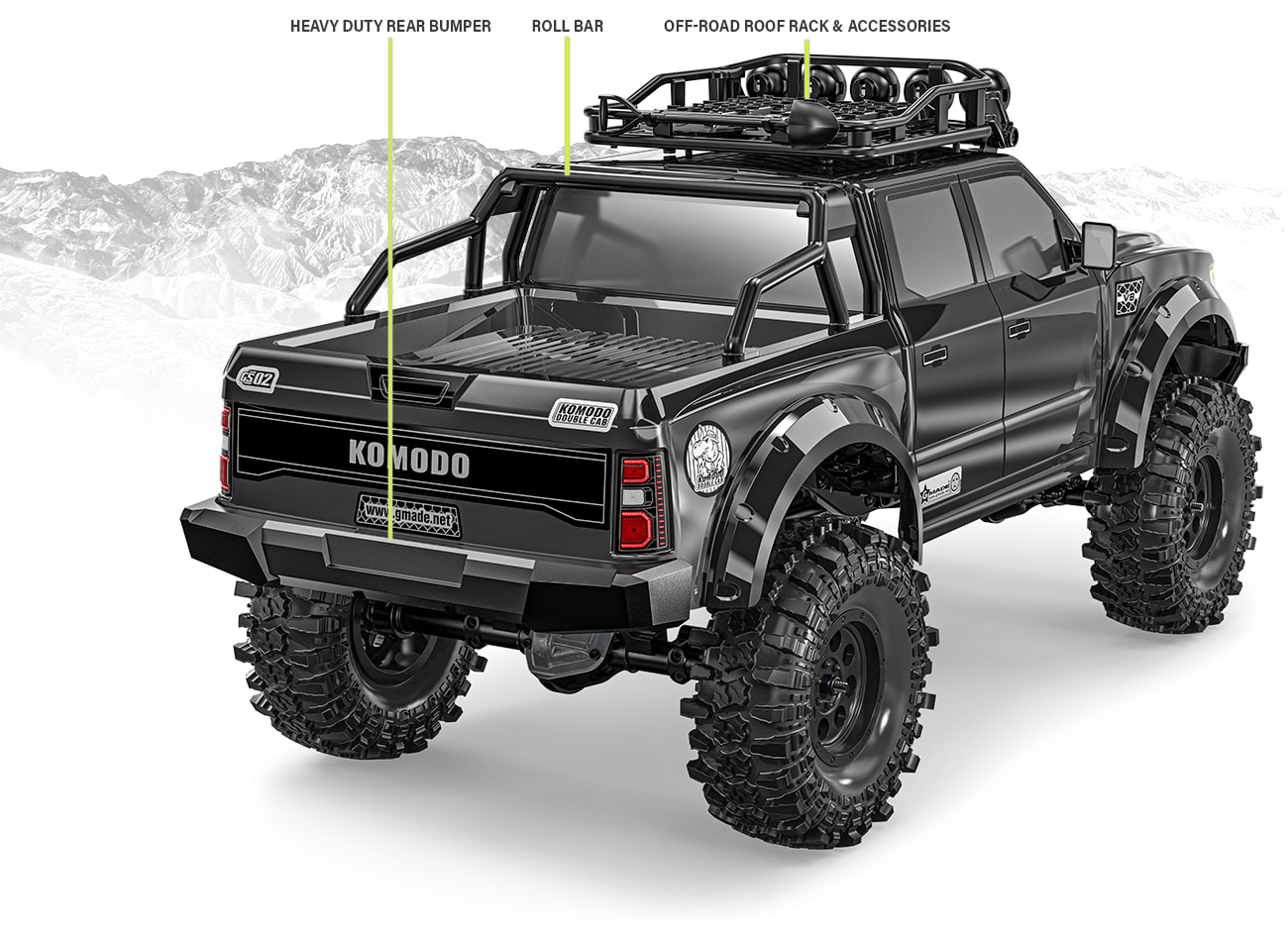

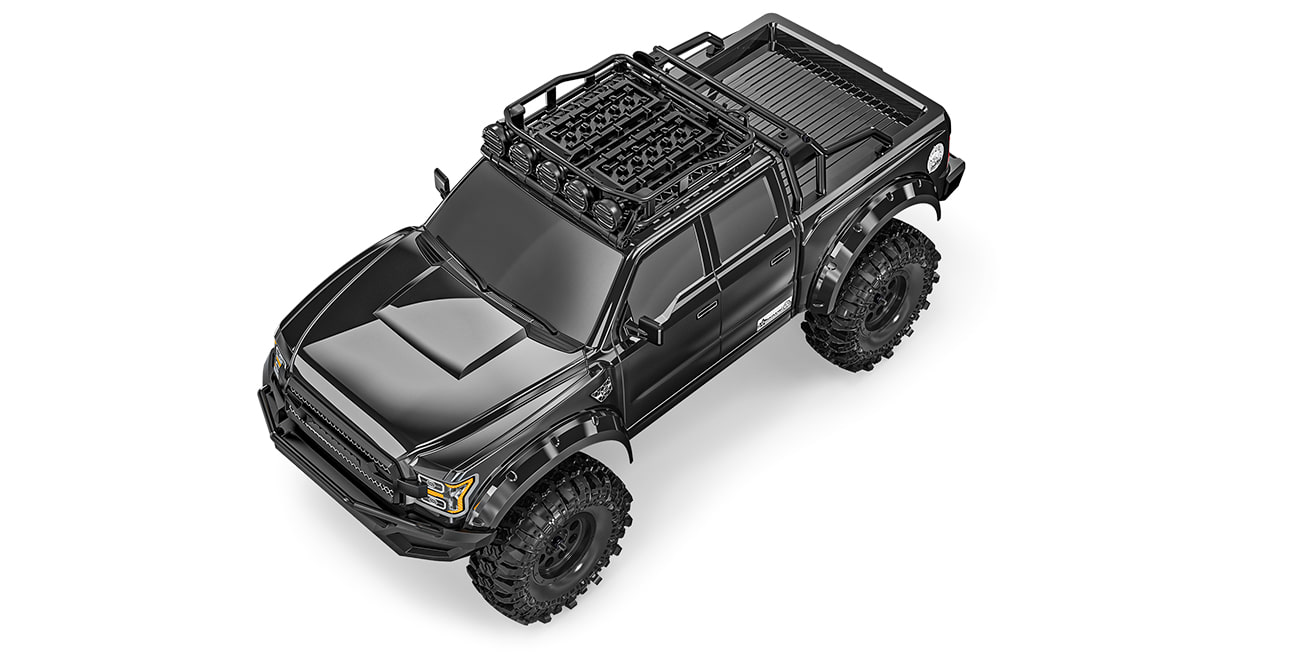

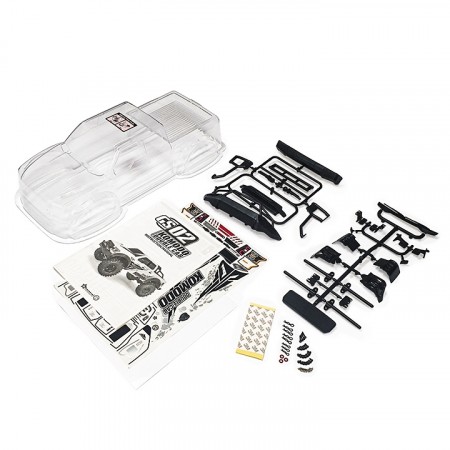

    Komodo double cab lexan body
  • Komodo double cab body is made of 1.5mm thick high quality lexan and designed in pickup truck platform came out with strong and stylish detail body. Includes a grille, light bucket, side mirror, wiper grille and bumper and roll bars for off-road adventure concepts that add body detail, allowing you to tune to the look of a real off-road truck. Accessory parts are made of high-strength plastic and are extremely strong in impact and includes decals with realistic details.



OPTION PARTS

Not included in stock kit

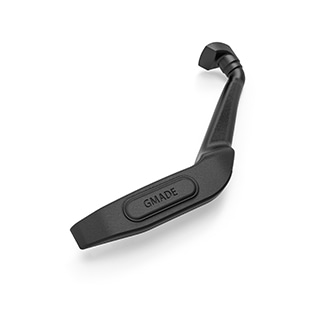

KOMODO snorkel (GM60195)

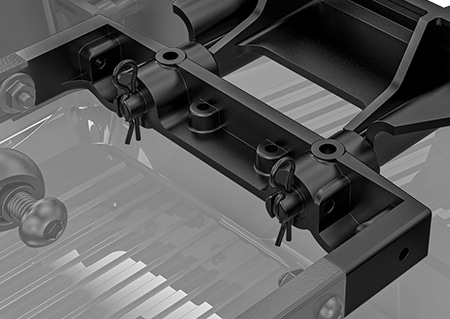

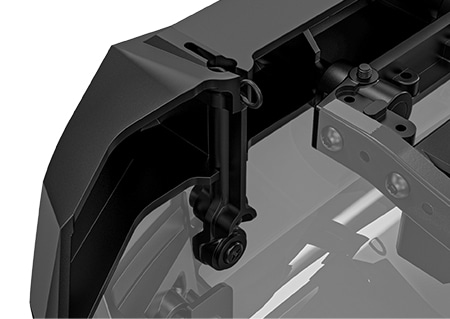

    Stealth body mount
  • This mount allows the body to be secured to the chassis without drilling unnecessary holes in the body, increase the realistic scale of the vehicle.

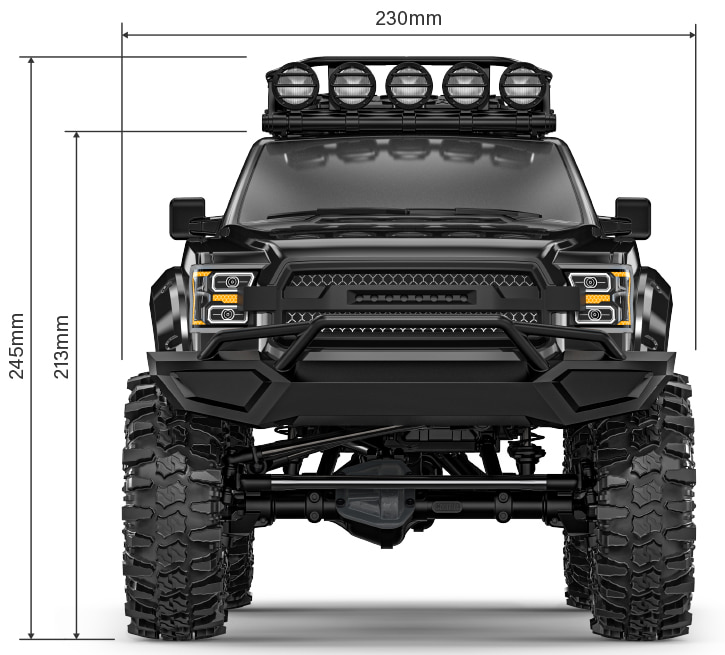

Front

Rear

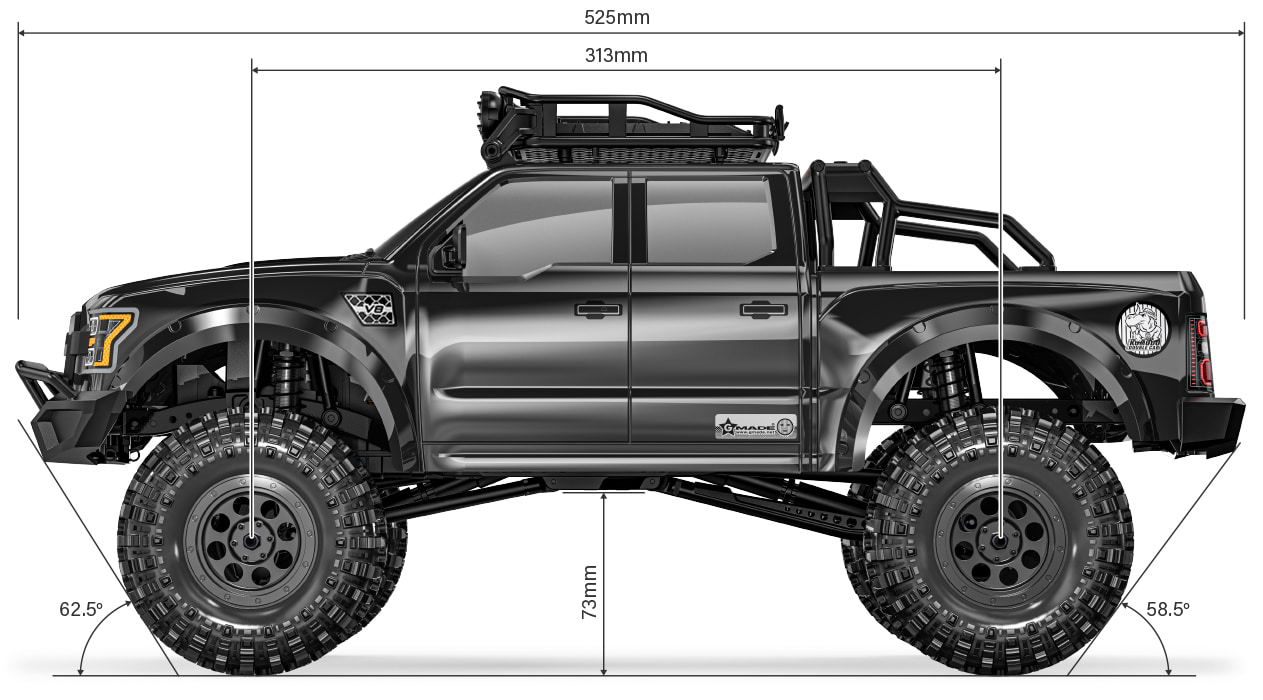

  • Width : 230mm
    Height : 245mm
    Height(with out roof rack) : 213mm
    Length : 525mm

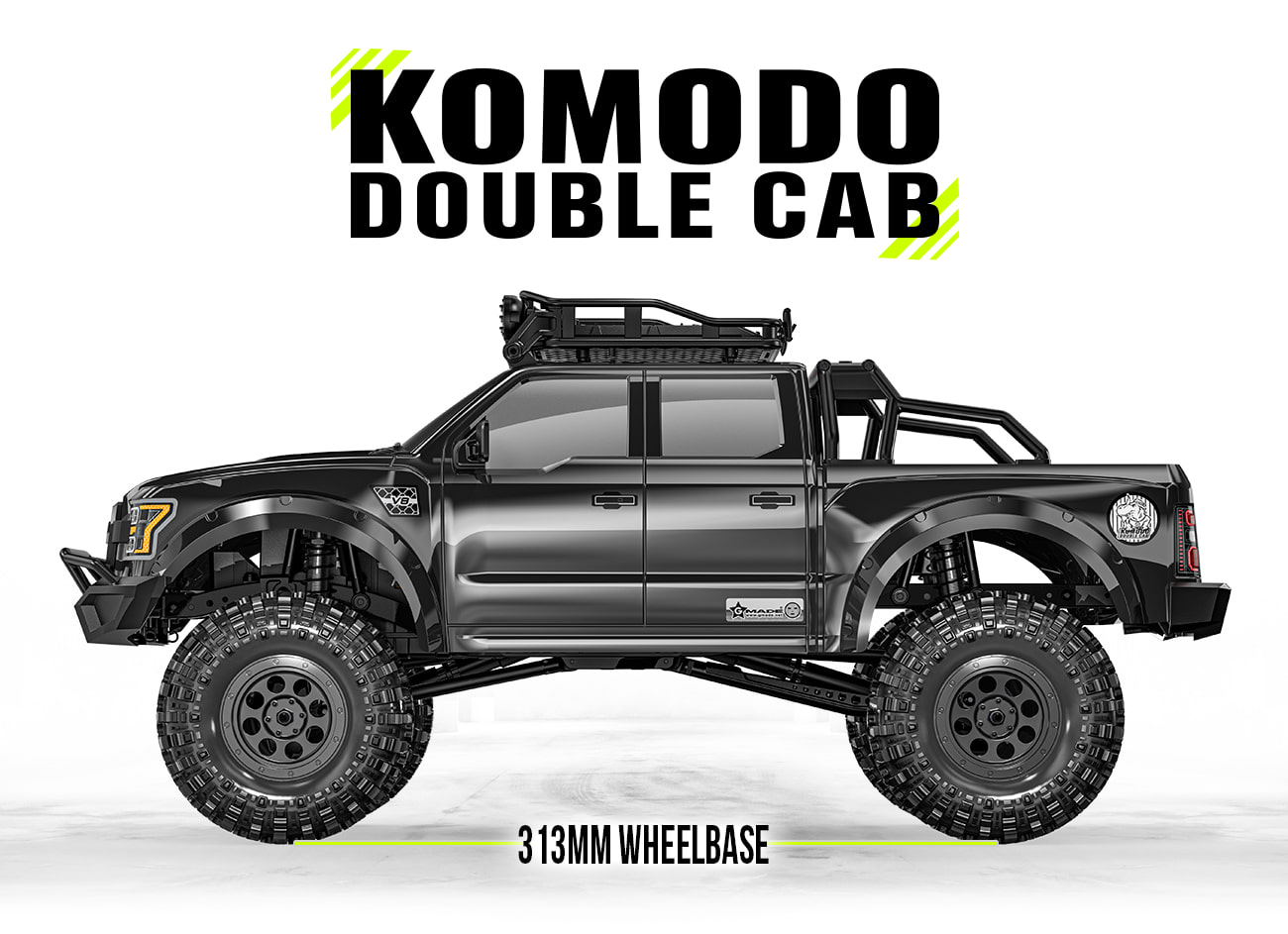

    Wheel base : 313mm

    Ground clearance : 73mm
    Weight (no electronics) : 1.96kg
