RC4WD K44 Ultimate Scale Cast Rear Axle

PrisNOK955,00 inkl. mva.
Lagerstatus:
Utsolgt
Artikkelnr.:
Z-A0096
Produsent:
RC4WD

E-postvarsling Vi beklager, men produktet er midlertidig utsolgt. Legg igjen din e-postadresse og vi vil sende deg en melding så snart varen kommer tilbake på lager igjen.
vilkårene
  • Produktinfo
  • Produktanmeldelser (0)

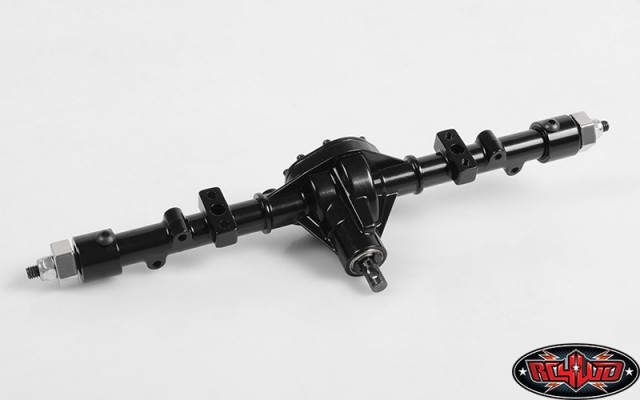

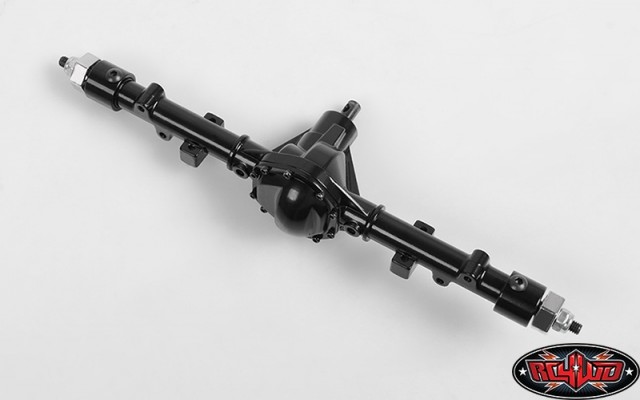

K44 Ultimate Scale Cast Rear Axle

This is the best reproduction to date on a scale axle. The K44 Axles have been designed from the ground up with input from some of the top scale builders in the world! With smaller axle tubes and many more features never before found on a set of radio control scale axles. RC4WD continues to push the limits on scale items and this new axle is a perfect example.

Specifications:

  • Die Cast Light Weight Metal Housing
  • Hex Thickness: 6mm
  • 12mm Wheel Hex
  • 5mm Axle Output Shaft
  • Hardened Steel Spool Gears
  • Gear Ratio: 2.67 : 1
  • Designed and Manufactured by RC4WD
  • Designed for 1/10 Trucks
  • Weight: 6.77oz / 192g

What´s Included:

  • 1x K44 Ultimate Scale Cast Rear Axle


Front K44 Axles:

  • K44 Ultimate Scale Cast Front Axle (Z-A0101)


Replacement Hardware:

  • 10x M1.6 x 4mm SHCS (Black) (Z-S1232)
  • 4x M3 x 4mm BHCS (Black) (Z-S0745)
  • 4x Metal Shield Bearing 5x11x4mm
  • 2x RC4WD 12mm Axle Wheel Hexes (Z-S0239)
  • 2x Nylock Nuts M4 (Silver) (Z-S1265)
  • 1x M4 E-clip (Black) (Z-S0919)


Optional Parts:

  • Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
  • Ultimate Axle 4 Link Mount (Z-S0133)
  • RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
  • Helical Gear Set for 1/10 Yota Axle (Z-G0059)
  • RC4WD ARB Diff Cover for K44 Cast Axle  (Z-S1839)
  • RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
  • 4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)

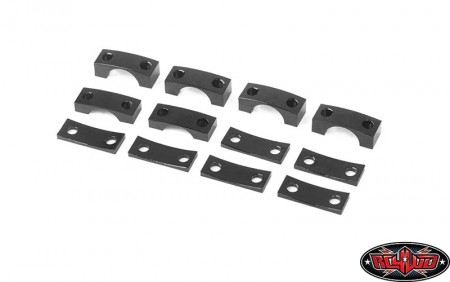

  • Leaf Under Mounts for Yota 2 / K44 Axles (Z-S2135)

Notes:

  • Fits RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler (Z-RTR0034)
  • Fits RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035)
  • Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
  • Fits RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base (Z-K0059)
  • Fits RC4WD Trail Finder 2 Truck Kit (Z-K0054)
  • Fits Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) (Rear)
  • Fits RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045) (Rear)
  • Fits Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) (Rear)
  • Fits RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045)
