Gelande II Leaf Spring Kit


Specifications:
  • Super Durable Steel Leaf Springs
  • Stiff Spring Increases Payload Capacity
  • Leaf Springs Length: 4.171in / 106mm
  • Leaf Springs Width: 0.27in / 7mm
  • Leaf Springs Weight: 0.51oz / 13g
  • Total Weight: 3.42oz / 97g

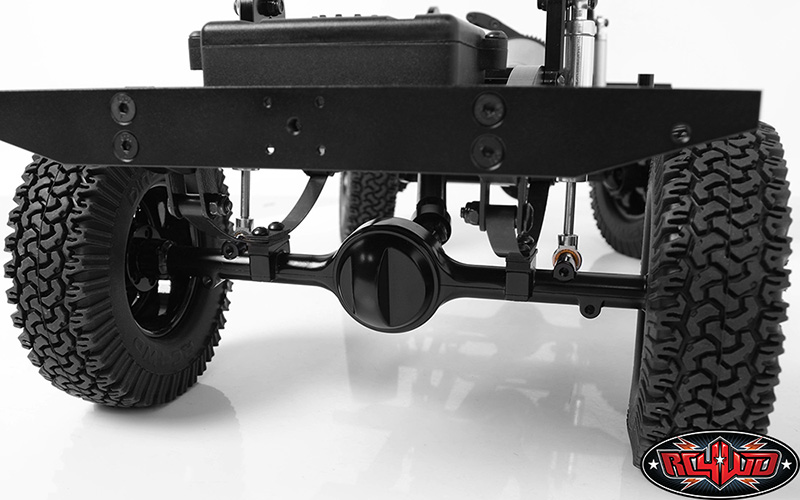

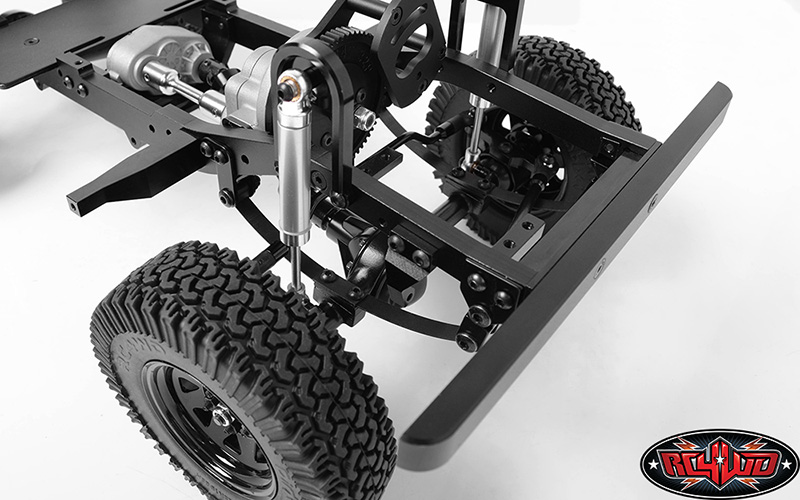

Shown installed on Gelande II Truck Kit with The Ultimate Scale Shocks 80mm (Silver) for example (Not Included)

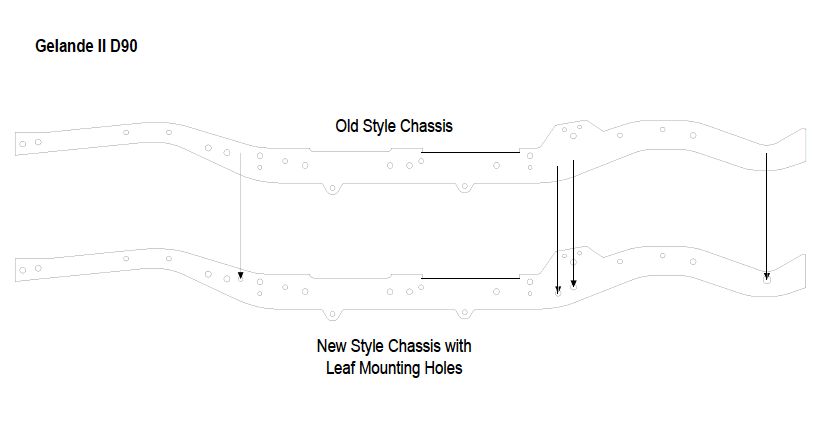

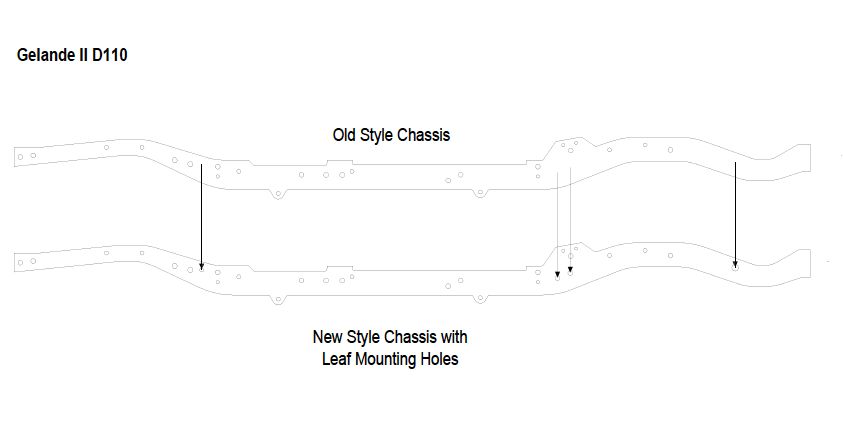

To check for compatible, take a look at your current chassis. This Gelande II Leaf Spring Kit will only work with the new style chassis which include the Leaf Mounting Holes as seen below:

If you have an older chassis, we recommend you purchase the chassis update, Gelande 2 Chassis Set (Z-C0040) or the Gelande II "LWB" Chassis Set (Z-C0043).

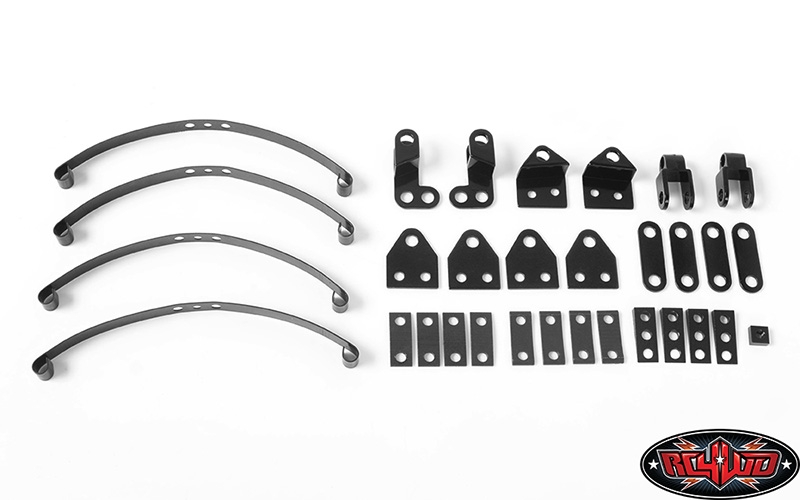

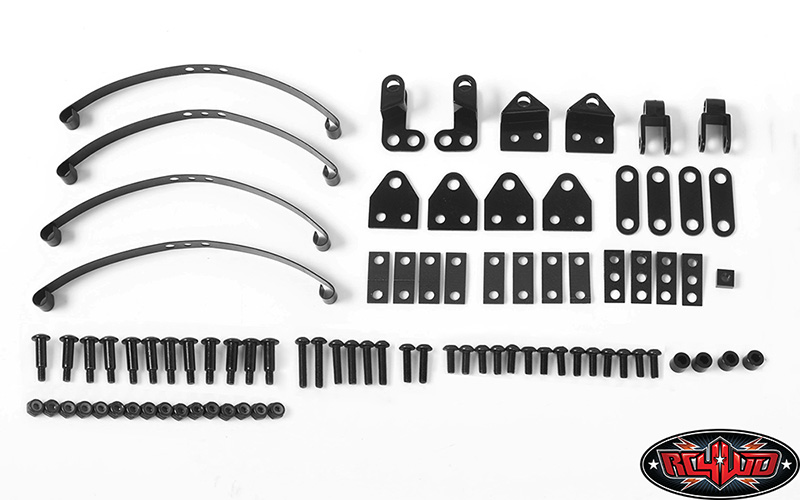

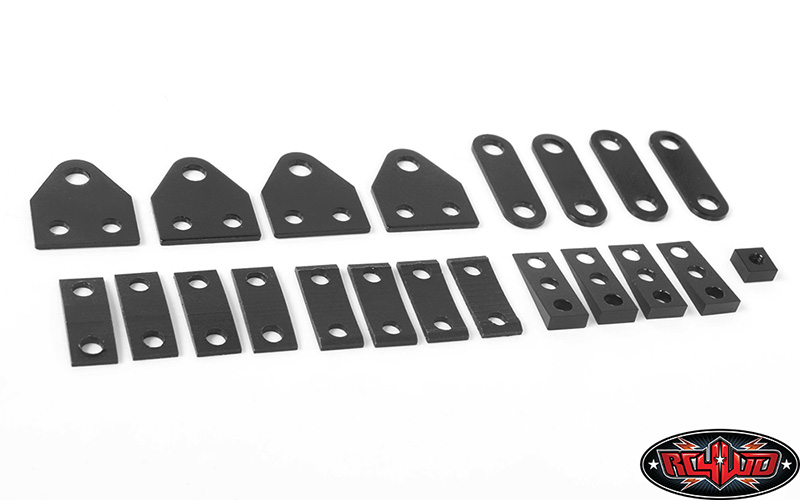

What's Included:

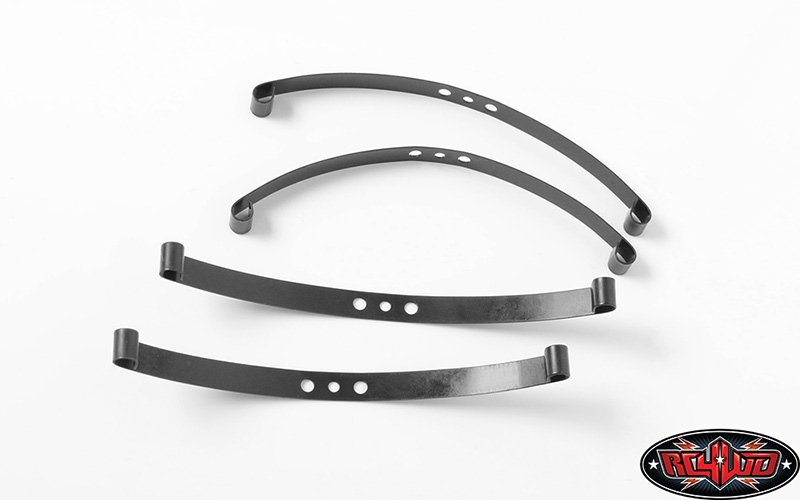

  • 1x Replacement Leaf Springs for TF2 SWB (Z-S1717)

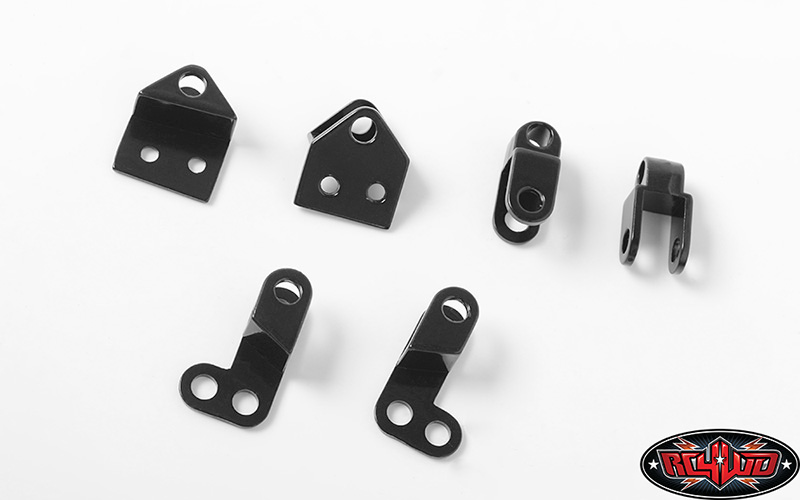

  • 4x Left Leaf Spring Mount Parts
  • 4x Right Leaf Spring Mount Parts
  • 8x Leaf Spring Holder
  • 14x M3 x 8mm BHCS (Black) (Z-S0652)
  • 2x M3 x 12mm BHCS (Black) (Z-S0654)
  • 4x M3 x 14mm BHCS (Black) (Z-S0655)
  • 12x Shoulder Screws (Z-S0275)
  • 16x M3 Nylock Nuts (Black) (Z-S0629)
  • 4x 5mm Black Spacers (Z-S0821)
  • 2x M3 x 16 BHCS (Black) (Z-S0656)
  • 4x 8 Degree Shims

Replacement Parts:
  • Replacement Leaf Springs for TF2 SWB (Z-S1717)

Instruction Manual:

This product has been tested and approved by the Recon G6. It is Recon G6 Certified.
