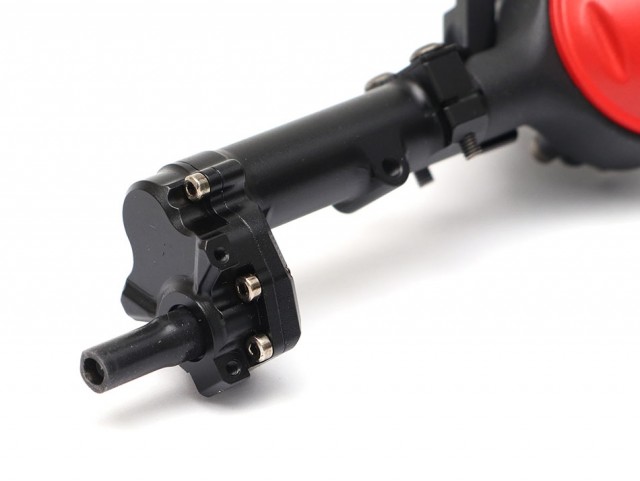

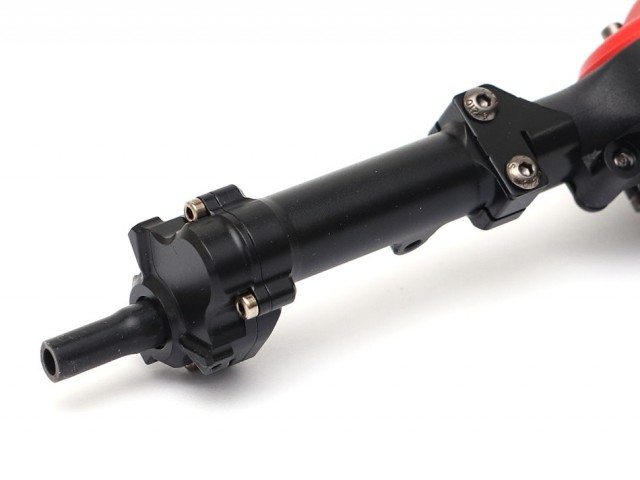

This is a set of rear portal axle conversion kit for the BRX90 PHAT™ axle. The portal gearbox has four heavy-duty steel gears each with a 1:1 output ratio.

Features:

• Additional 15mm / 0.59" ground clearance at the pumpkin
• CNC aluminum portal knuckle & cover
• BADASS™ heavy-duty steel front universal driveshafts
• BADASS™ heavy-duty steel front portal driveshafts

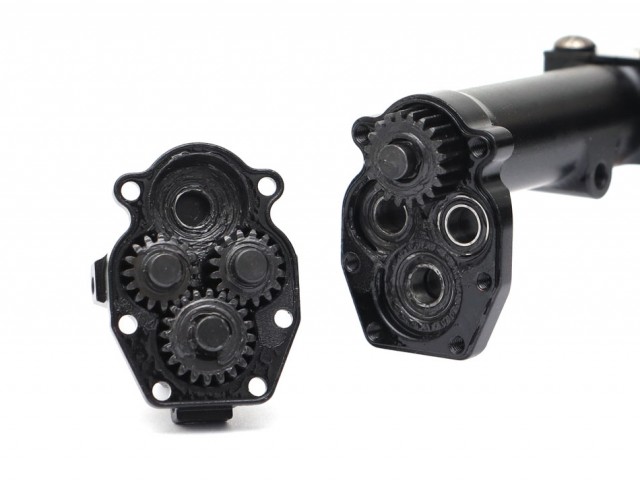

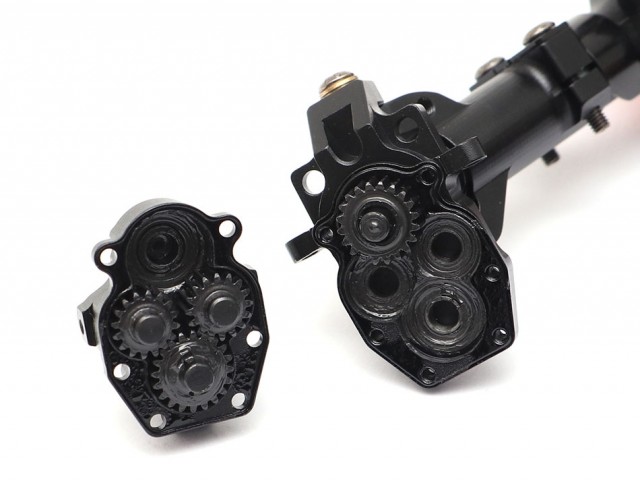

• Four heavy-duty hardened steel metal gears in each portal gearbox
• Anti-twist steel brackets to prevent axle twist
• Full rubber sealed bearings
• Full 12.9-grade hardware
• Compatible with PHAT™ Axle brake disc and caliper (requires optional adapter)

Specification:

• Width: 188.3mm / 7.41" (pin-to-pin)
• Requires 44mm / 1.73" wheel barrel clearance (to clear the entire portal gearbox)
• Portal gearbox ratio: 1:1

Fits:

• BRX90 Rear PHAT™ Axle
• 1.55" / 1.9 / 2.2" wheels (will fit 1.55" wheels depending on offset)

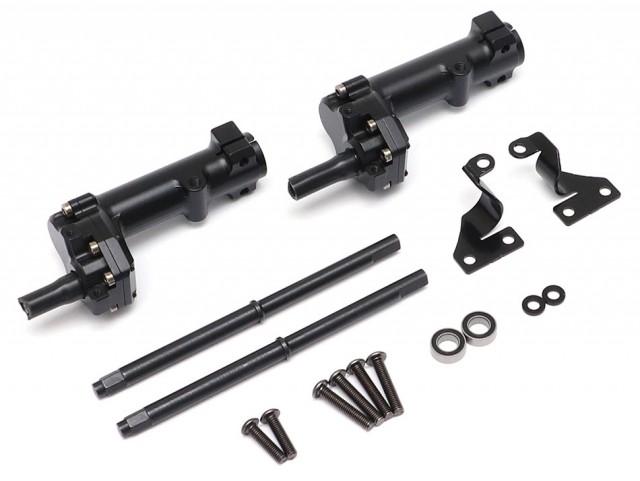

Includes:

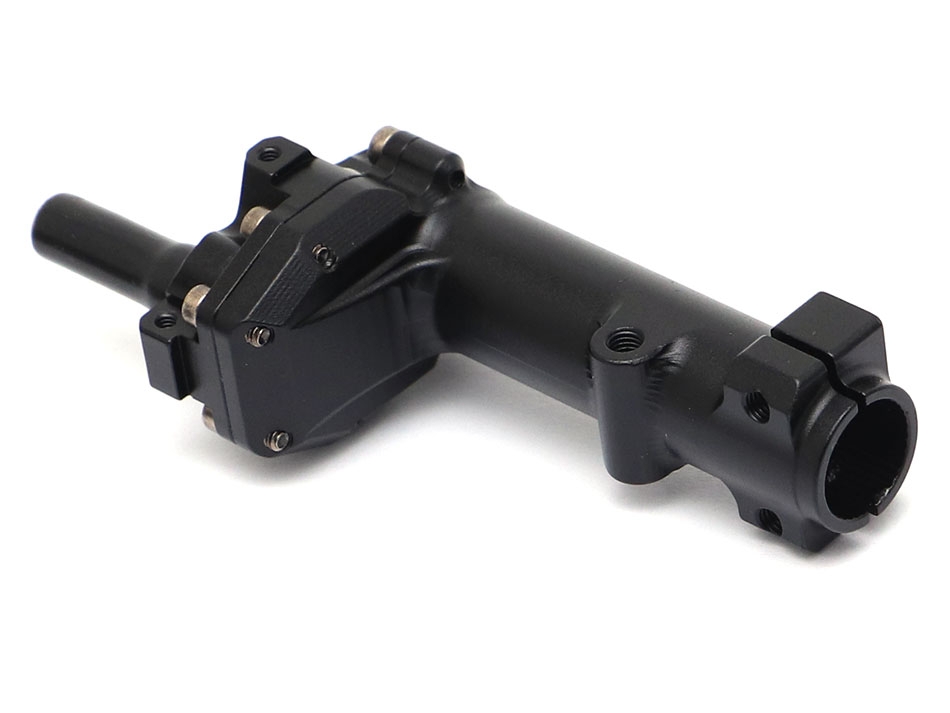

• 1x Left Side Portal Conversion Unit
• 1x Right Side Portal Conversion Unit

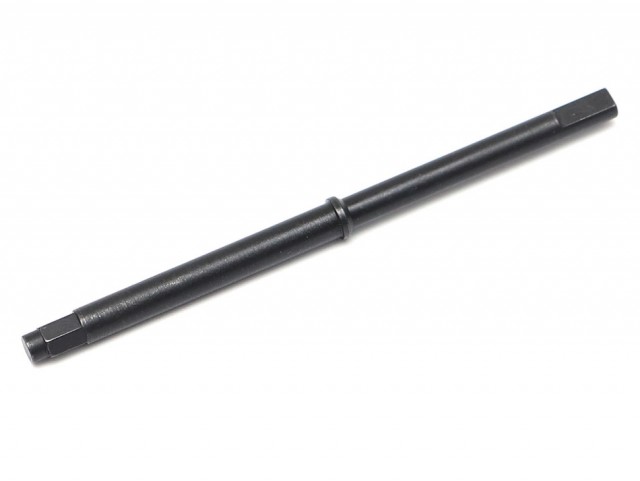

• 2x BADASS Rear Driveshaft for BRX90 Portal PHAT™ Axle
• 1x Left Side Steel Anti-Twist Bracket
• 1x Right Side Steel Anti-Twist Bracket
• 2x Spacer
• Full Rubber Sealed Bearings
• Full 12.9-Grade Hardware

Requires:

• BRX90 Rear PHAT™ Axle
