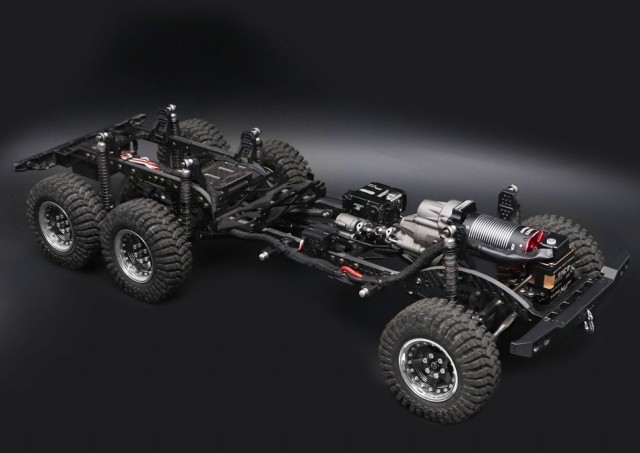

If you're looking for more traction for your BRX02, why not convert it to a 6x6 truck for more performance? Own the ultimate 6x6 crawler today.
This is a full conversion kit to build a BRX02 6x6 ultimate crawler truck. This is based on the 1/10 BRX02 Link chassis #BR8004 and designed for the Team Raffee Co. D110 6x6 Pickup hard body #TRC/302331.

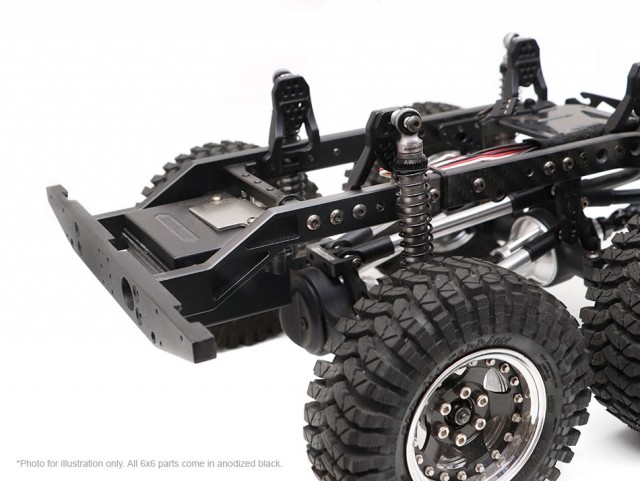

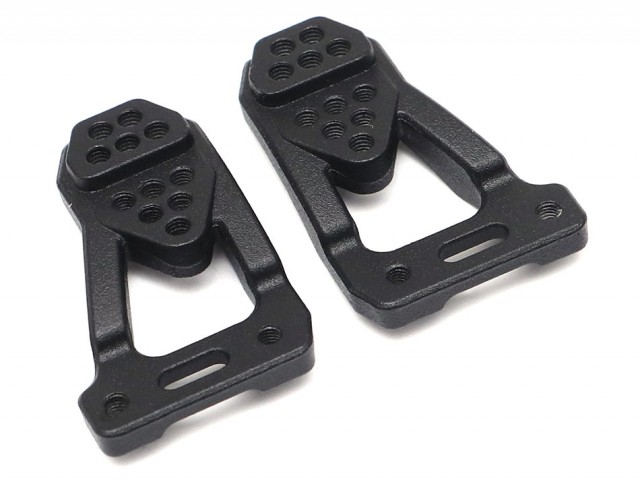

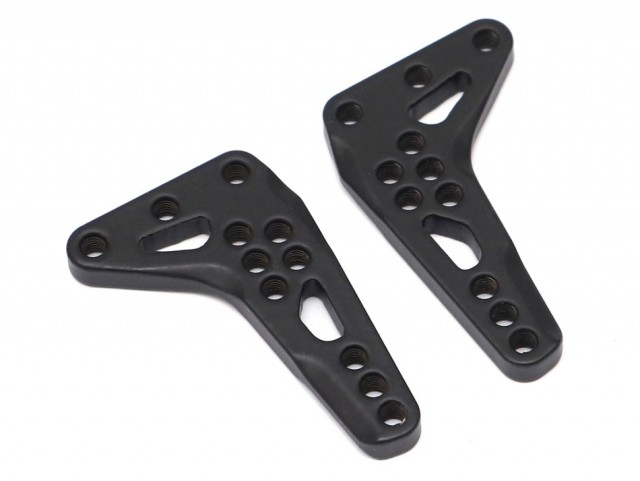

This 6x6 Conversion Kit features an assembled BRX90 Pass-Thru PHAT Axle. This axle replaces the original BRX02 rear axle as the pass-through axle in the middle. The chassis rails are extended with two aluminum rail extensions. Two aluminum shock towers are included for the two additional KUDU™ 90mm coil-over shocks. Two new aluminum lower link mounts connects the four rear lower aluminum links.

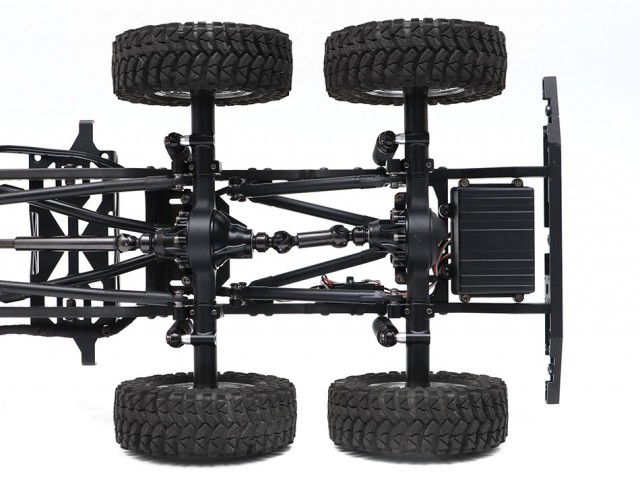

The original BRX02 rear axle is moved to the back of the 6x6 becoming the third axle. A new third member, together with a new ring and pinion gear replaces the original rear axle components. A KUDU™ CVD driveshaft connects the pass-thru axle with the rear axle.
The Boom Racing PHAT™ axle is the go-to scale truck axle combining high-performance features with precision-made scale realism. It is an ultra-scale, heavy-duty axle set designed for top performance for any truck builds. The beefy housing keeps the vehicle nicely planted on the ground.
BRX90 Pass-Thru PHAT™ Axle Features:
- High mass heavy-duty performance axle for crawler and truck projects
- Straightforward solid-axle design for easy installation
- New keyed HD helical bevel gear set specifically designed for the pass-thru axle. Bevel gears are keyed for extra durability and strength.
- Reversible axle bevel gear positions for standard or counter rotation setups (swap gear to the opposite side for counter rotation center drivetrain setup)
- Detachable CNC aluminum truss
- Leaf spring ready for over or under the axle leaf spring setup
- BADASS™ HD Steel wheel shaft for ultimate durability and strength for the axle drivetrain
- 12.9-grade hardware
- Full ball bearings
BRX90 Pass-Thru PHAT™ Axle Specs:
- Weight: 200.1 grams (fully assembled)
- 176mm / 6.93 inch pin to pin (front and rear)
- Ring Gear: 30T
- Pinion Gear: 8T
Replacement Parts:
- Complete Assembled BRX90 Pass-Thru PHAT™ Axle for 6x6 / 8x8 #BRX026623
- 6X6 Axle Gear Set for BRX70/BRX80/BRX90 PHAT™ Axle for the connecting axle #BRX026615KIT
Fits:
- Boom Racing 1/10 BRX02™ Link chassis #BR8004
- Team Raffee Co. 1/10 D110 6x6 Pickup hard body #TRC/302331

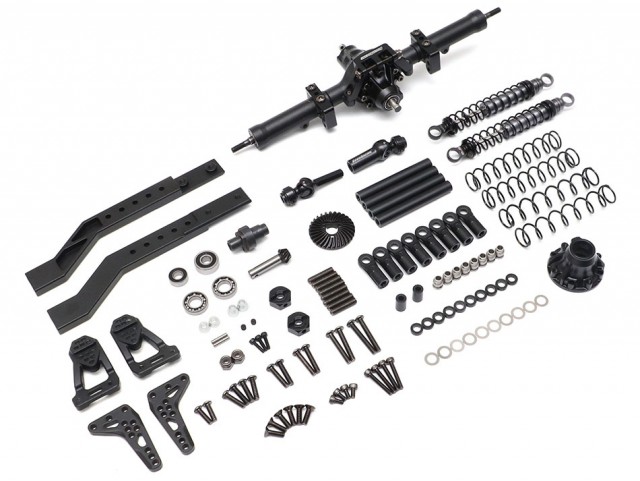

Includes:
- BRX90 Pass-Thru PHAT™ Axle #BRX026623 x1
- KUDU™ 52-58mm Final Driveshaft #BRX026608 x1
- KUDU™ 90mm Coilover Scale Shock Absorbers #BRSH0090-SP x2

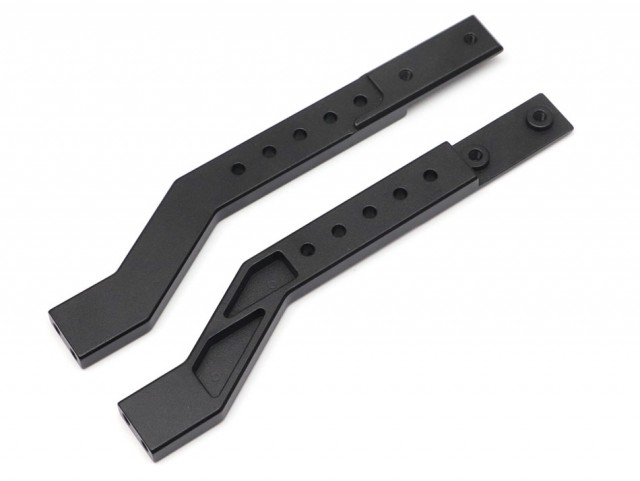

- BRX02™ 6X6 Extension Rail L #BRX026601L x1
- BRX02™ 6X6 Extension Rail R #BRX026601R x1
- Shock Mount Rear L #BRX020018R x1
- Shock Mount Rear R #BRX020018R x1

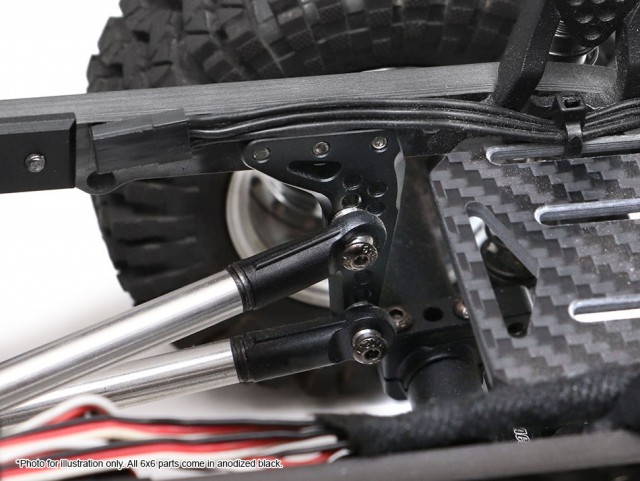

- Lower Link Mount #BRX026602 x2

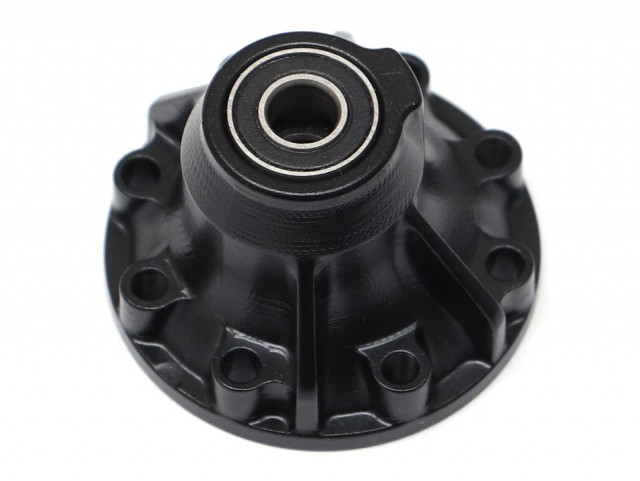

- Third Member (A) #BRX026604 x2
- Helical Bevel Gear 8T #BRX026607 x1

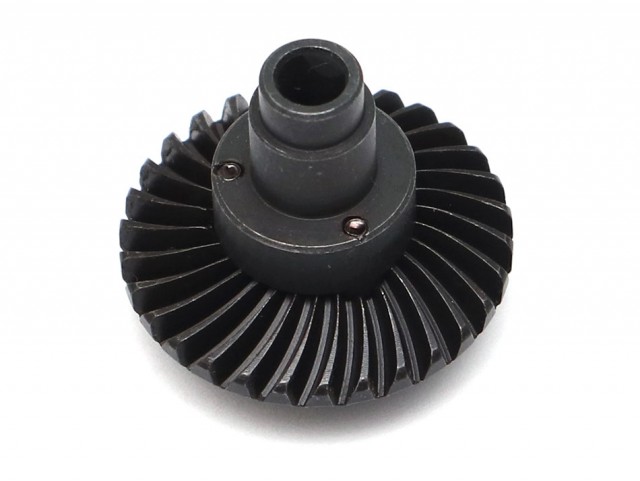

- 6x6 Bevel Spur Gear -Reverse #BRX026606 x1
- Tapper Spacer D3 x 6 x 3mm #BRLC7041 x2
- Tapper Spacer D3 x 6 x 5mm #BRLC7041 x2
- M3 x 10 CSS Screw #BRASFH3010 x6
- M3 x 10 RS Screw #BRASBH3010 x2
- M3 x 16 RS Screw #BRASBH3016 x2
- Link 51.5mm #BRX026603 x4
- D4 x 7 x 2 Spacer #BRASSPD427/N x10
- M4 x 16 SS Screw #BRASST4016 x8
- KUDU™ M4 Straight Nylon Rod End 18.5mm #BRW750306A x8
- BADASS™ Pivot Ball #BRW750300 x8
- M3 x 12 RS Screw #BRASBH3012 x4
- M3 x 14 RS Screw #BRASBH3014 x2
- Ball Bearing 7 x 14 x 3.5mm #BBZ687OPEN x2
- Ball Bearing 5 x 14 x 5mm #BBZ6052RS x1
- Ball Bearing 5 x 11 x 4mm #BBZMR1152RS x1
- M2.5 x 5 SC Screw #BRASCH2505 x4
- M2.5 x 16 SC Screw #BRASCH2516 x4
- M3 x 20 RS Screw #BRASBH3020 x2
- Spacer D3 x D6 x 9mm #BRX026609 x2
- M3 x 22 RS Screw #BRASBH3022 x2
Requires:
- Boom Racing 1/10 BRX02™ Link chassis #BR8004
- Team Raffee Co. 1/10 D110 6x6 Pickup hard body #TRC/302331
- 1.9" 5-Lug 16-Hole Beadlock Steelie Wheels #BRW780919RGM
- 1.9" Maxgrappler Gekko Compound Crawler Tires #BRTR19397
