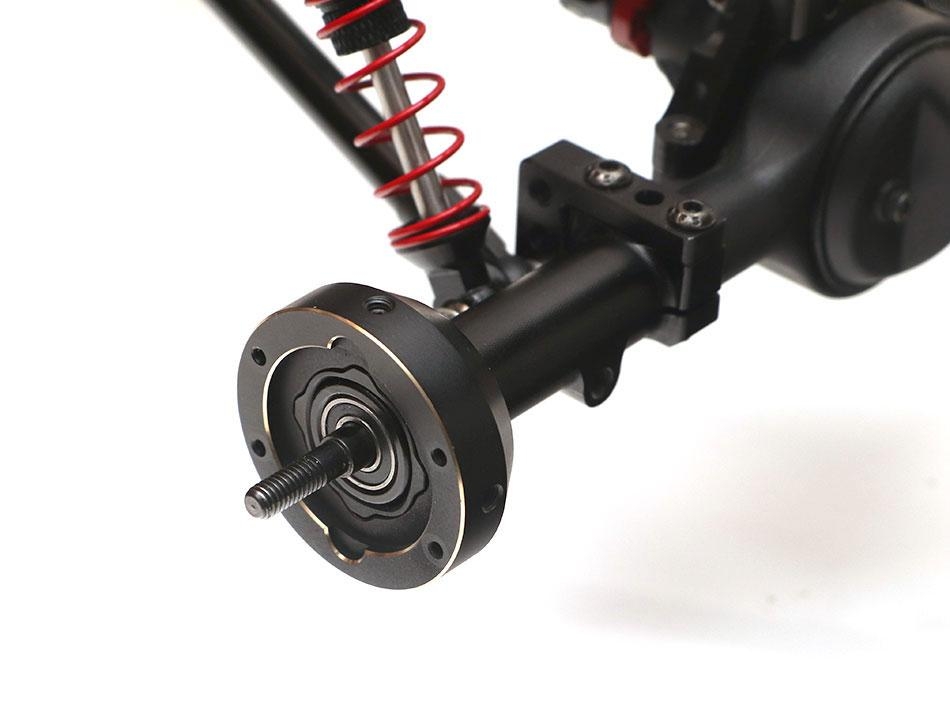

• This is a set of rear brass knuckle base weights for the BRX70 PHAT Axles. Made from high-grade brass and anodized in black color with machined edges.

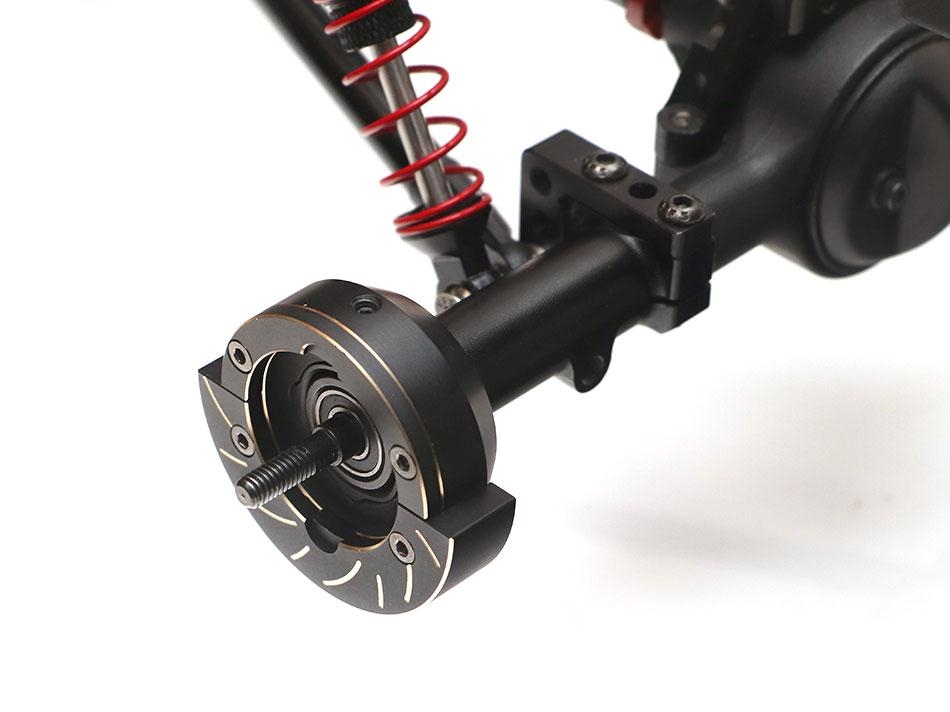

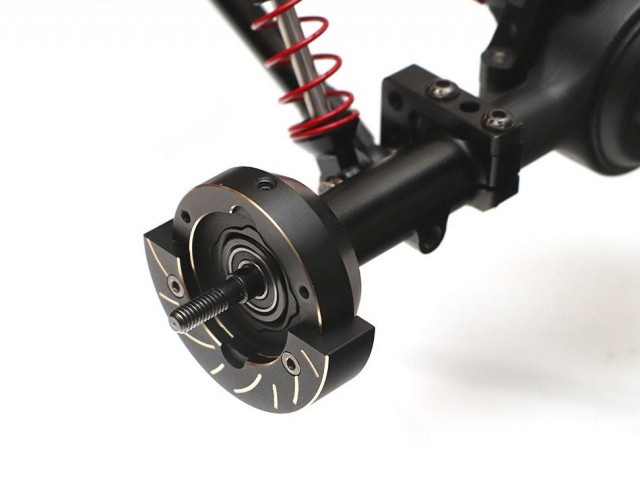

  The knuckle weight also acts as a base for more brass weights to be added. There are two sets of additional weights available; including large brass weight blocks (2pcs) and small brass weight blocks (6pcs).

  Add non-rotational weight mass onto the axle for better stability and traction control. The lower the weight, the lower the center of gravity (CG). Adding additional weight to the lower portion of the vehicle helps lower CG.

  Adding this Knuckle Base Weight will not increase track width offset.

  Specification:

  • Weight: 44g each
  • Fits: BRX70 PHAT Axle (Rear)
  • Will fit:

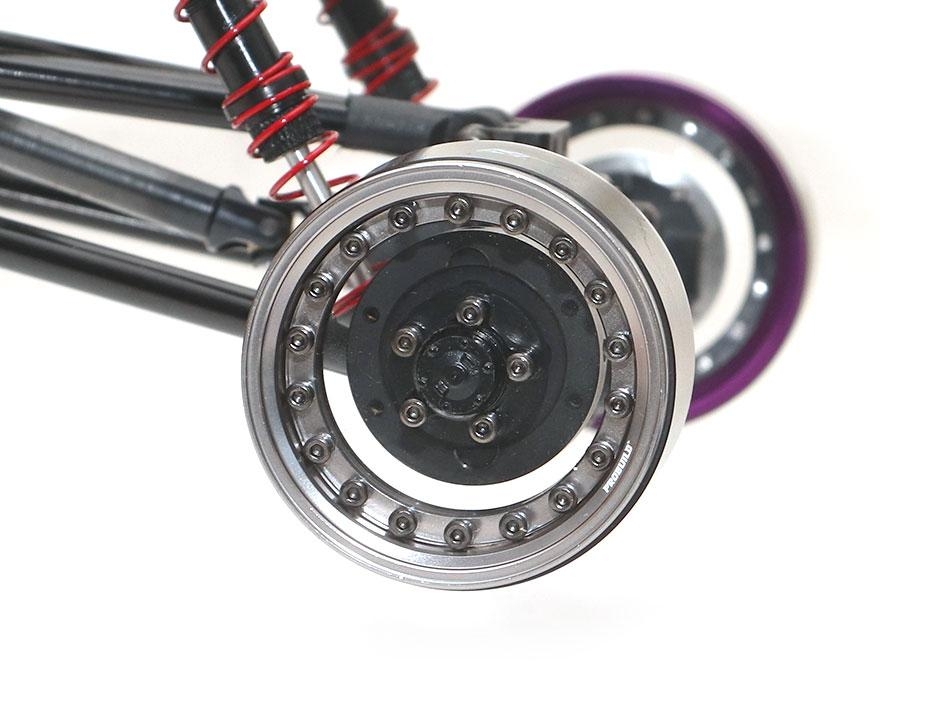

    • 1.55" wheels and any larger sized wheels

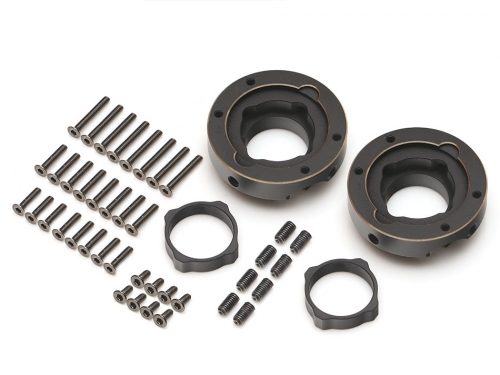

  Includes:

  • 2x Knuckle Base Weight (44g each)
  • 2x Lock Ring
  • 8x M Set Screws
  • 8x M2x14 CSS Screw for optional Brass Weight Blocks
  • 8x M2x10 CSS Screw for optional Brass Weight Blocks
  • 8x M2x8 CSS Screw for optional Brass Weight Blocks
  • 8x M2x5 CSS Screw for optional Brass Weight Blocks

  Optional parts:

  • Large Brass Weight Blocks (2pcs) #BRLC7091
  • Small Brass Weight Blocks (6pcs) #BRLC7092

  Note:
  • This Knuckle Weight set fits BRX90 Axle (Rear) but #BRD9024 is recommended as they are heavier.
• Package total weight: 110.00 grams (incl. packaging)
• Factory description: Boom Racing BRX01 Brass Rear Knuckle Base Weights for BRX70 PHAT Axle (2)
• Manufactured by Boom Racing
• Manufacturer number: BRLC7090

Instruction Manual - Knukcle Weight System for BRX70 BRX90 Axle_1608868460
