DESCRIPTION

Part No. SSD00207

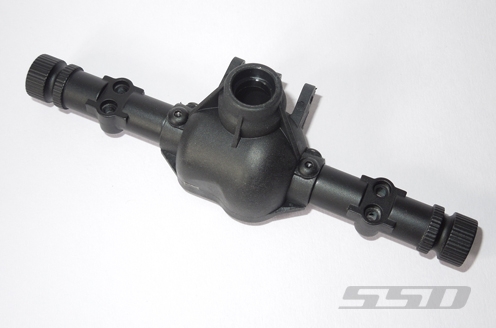

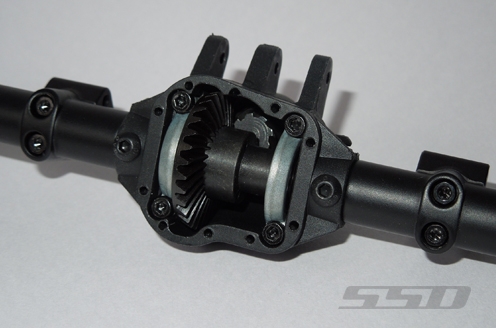

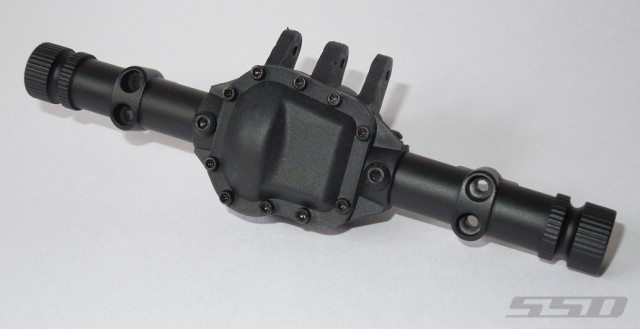

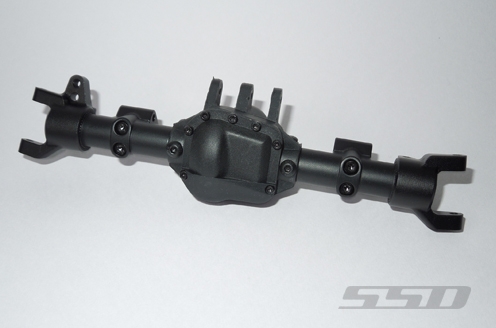

Pro44 Axle Case for SCX10 II

FEATURES

Scale design and assembly

Injection molded nylon main axle housing

Removable heavy metal axle tubes

Removable diff cover

Metal bearing holders

Same size as stock SCX10 II AR44 axle

Same link mount locations as stock SCX10 II axle

Compatible with stock SCX10 II axle gears, bearings and shafts

Fit stock SCX10 II AR44 axle lower link mounts, C hubs and rear axle lockouts

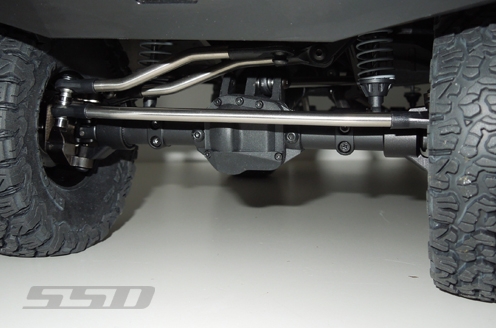

Direct fit onto SCX10 II chassis

SPECIFICATION

Weight:  75g (with no internals, C hubs & knuckles)

Stock AR44 axle 25g

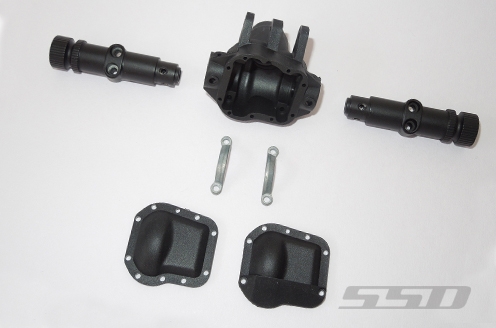

WHAT'S INCLUDED

Main axle case

2 X  Axle tubes

2 X  Bearing holders

2 X  Diff covers

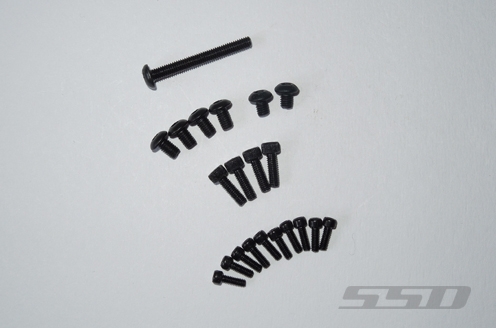

HARDWARE

10 * M2 x 5mm cap head

4 * M2.5 x 8mm cap head

4 * M3 x 5mm button head

2 * M3 x 4mm button head

1 * M3 x 25mm button head

Note:

Matching rear axle is available (SSD00209)

Aluminum link mounts are available (SSD00159)

Aluminum C hubs are available (SSD00145)

Installation instructions can be downloaded here.

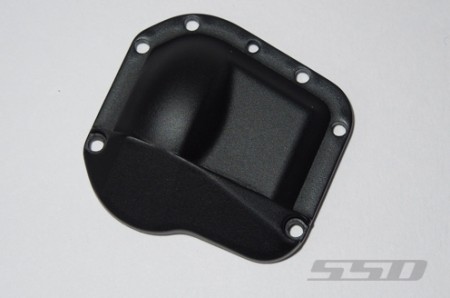

Heavy metal diff covers are available black(SSD00227),silver(SSD00214) & red(SSD00216)
