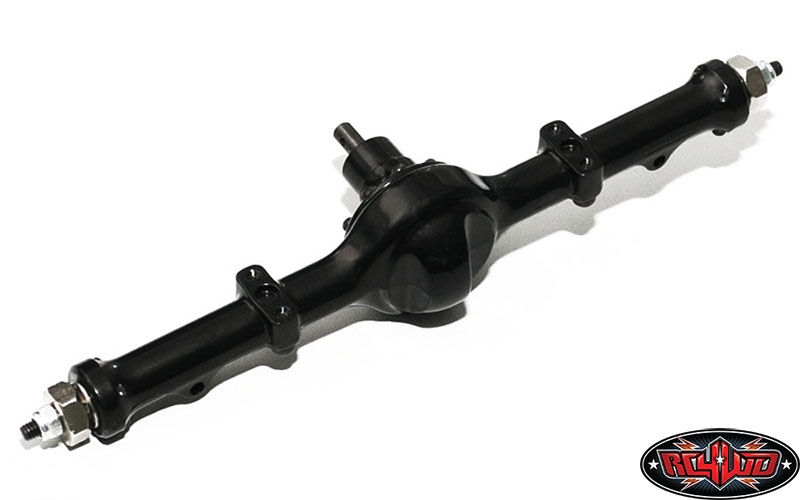

The Ultimate Scale 1.9 Yota Cast Straight Rear Axles
The most Scale and complex Axle on the market! Extremly Scale to the smallest details, such as removable center cap and diff housing, lower mounts (let shocks be mounted front or back) and compact offset pumpkin.
Specifications:
- Die Cast light Weight Metal Housing
- Hardened Steel Spool Gears
- 5mm Axle Output Shaft
- Full Ball Bearings
- Powdercated in black

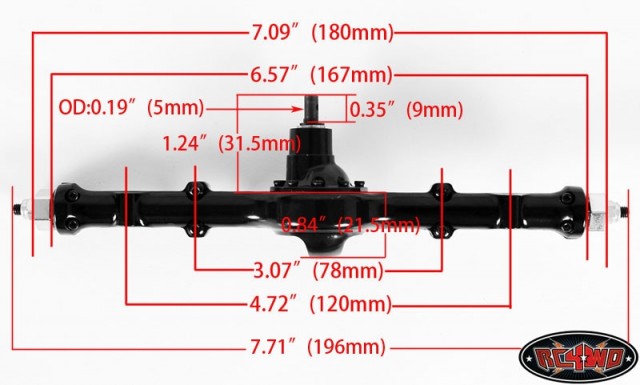

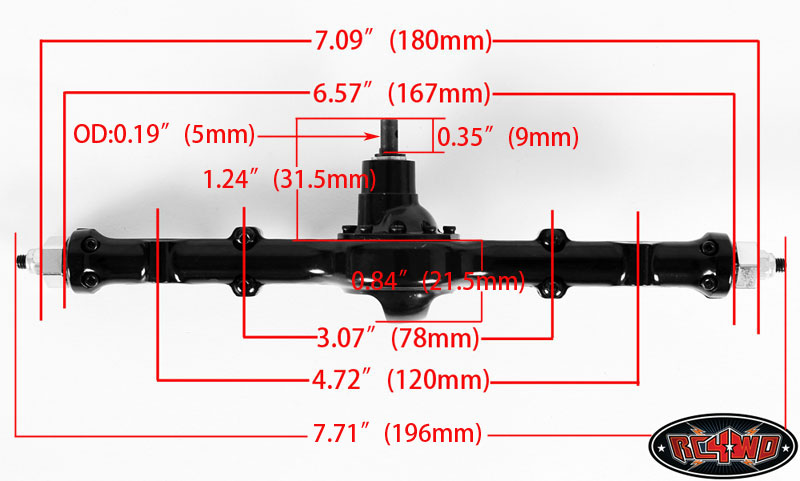

- Width: 180mm / 7.09inch
- Engineered by Fracture in New Zealand
- Manufactured by RC4WD
- >Designed for 1:10 Scale Truck!
- Hex to Hex Width: 179 mm / 7.04"
- Pin to Pin Width: 168mm / 6.61"
- Pumpkin Height: 35.8mm / 1.4"
- Leaf Mount Width: 78mm / 3.07"
- Gear Ratio: 2.67 : 1
- Output Shaft OD: 5mm / 0.19"
- 12mm Steel Wheel Hex
- Weight:1441g / 4.95oz
What's Included:
- 1x The Ultimate Scale Yota Cast Axle Housing (Rear)
- 1x Steel Axle
- 1x Tracgear yota Spool Gear
- 2x 12mm Steel Wheel Hex
- Complete hardwares and Bearings
Replacement Parts:
- RC4WD Ring and Pinion Gear Set for Yota II and K44 Axles (Z-S0027)
- Rear Replacement Case Housing for Cast Yota Axle (Z-A0079)
Optional Parts & Upgrade:
- Ultimate Axle 4 Link Mount (Part # Z-S0133) (4mm spacer needed)
- RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
- U-Bolts Kit for Yota Axle (Part # Z-S0068)
- Soft Steel Leaf Springs for Trail Finder 2 (Part # Z-S0518)
- Yota Steel Straight Axle Shaft (Rear) (Part # Z-S0061)
- Yota Front Steel Axle Shaft (Part # Z-S0060)
- 5mm x 9mm x 0.3mm Axle Shims (Z-S1559)
- RC4WD Baer Brake System Rotor Set (1.7"/1.55") (Z-S1962)
- RC4WD Baer Brake System Rotor Set (2.2"/1.9") (Z-S1963)
- RC4WD Baer Brake System Caliper Set (2.2"/1.9") (Z-S2057)
- RC4WD Baer Brake System Caliper Set (1.7"/1.55") (Z-S2058)
- Yota Axle Mounts for Baer Brake Systems Rotors and Calipers (Rear) (Z-S1971)
- 4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
- Helical Gear Set for 1/10 Yota and K44 Axles (Z-G0059)
What is the difference between this and billet Yota axles?
In terms of strength, cast version is about 85% in terms of strength of the billet version. All internals parts are the same as well.
Notes:
- While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
Axle Shimming Video:Click Here
