SAVÖX SV-1257MG Servo 4,0Kg 0,055s HV Alu Coreless Metal Gear Mini

PrisNOK925,00 inkl. mva.
På lager: 4 stk.
Ønskeliste
Lagerstatus:
På lager: 4 stk.
Artikkelnr.:
SV-1257MG
Produsent:
Savöx
  • Produktinfo
  • Produktanmeldelser (0)

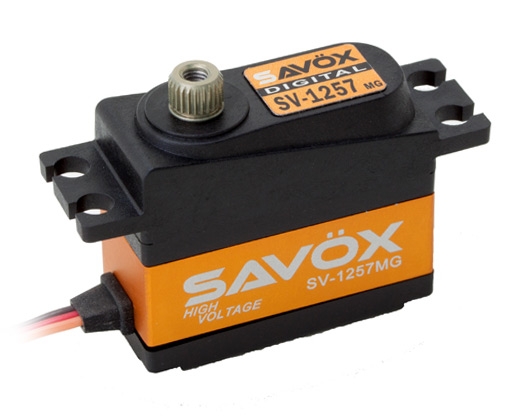

SAVÖX SV-1257MG - Metal-Geared High Voltage Mini Servo


The SV-1257MG mini-sized, metal-geared, digital servo is ideal for those that need a fast mini servo, but prefer to operate it using a higher voltage such as a LiPo receiver battery as a power source.

Features:
  • High Voltage

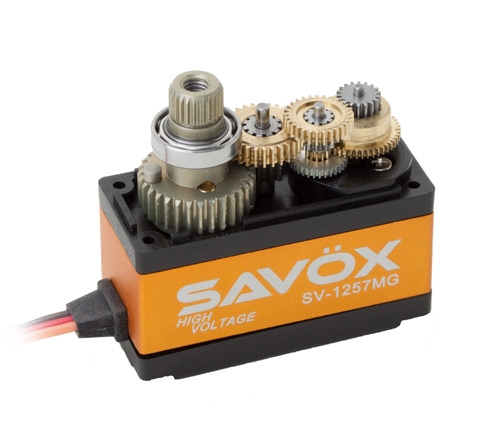

  • Steel gear train provide durability against heavy use
  • Aluminum middle case allows for cooler operating temperatures

Specifications:
  • Torque @6V: 2.5kg/cm
  • Torque @7.4V: 4kg/cm
  • Speed @6V: 0.07 sec/60 deg
  • Speed @7.4V: 0.055 sec/60 deg
  • Dimensions L x W x H: 35.0 x 15.0 x 29.2mm
  • Weight: 29.5g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 154° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
