SC-1268SG

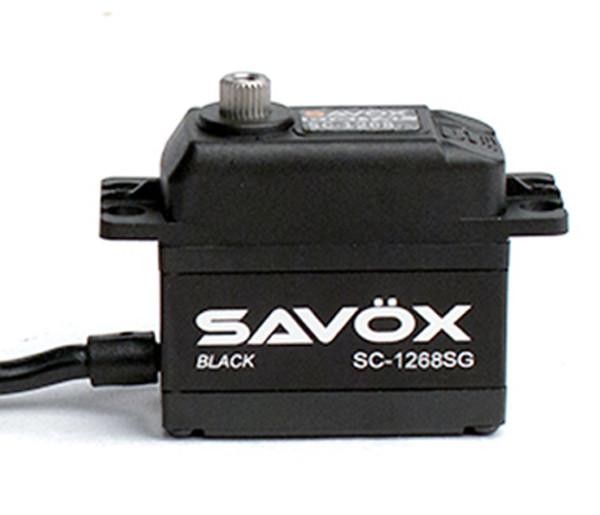

Savox - SC-1268SG Digital High Voltage Coreless Motor Servo, Steel Gears

Features:
- Leading edge digital servo technology
- High efficiency Coreless motor
- Accurate and fast response
- Super high resolution
- Aluminium center case for improved motor cooling and total strength
- Ball beared
- Precision all Steel gears

Technical specifications:
Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V - 7.4V
Servo Type / Size: Standard
Motor Type: Coreless Motor
Gear Material: All Steel Gears
Ball Beared: Ball Beared
Servo Case: Aluminium - Composite
Speed 60°/Sec @ 7.4V: 0.11 Sec/60°
Torque kg/cm @ 7.4V: 26.0 Kg/cm
Length (mm): 40.3 mm
Width (mm): 20.0 mm
Height (mm): 37.2 mm
Weight (g): 62.0 g
Connector type: JR
Spline size: 25T Spline
