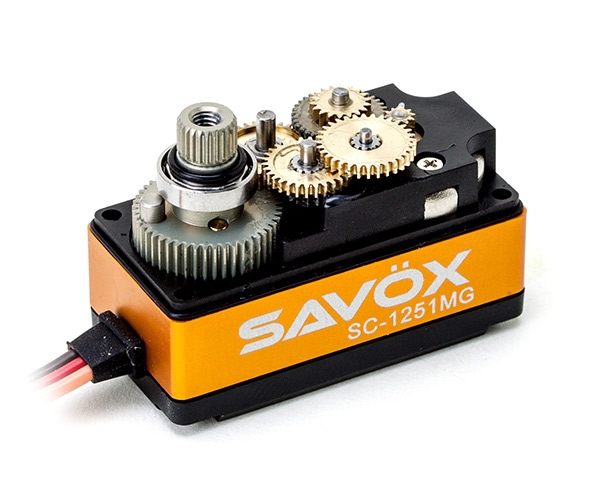

SAVÖX SC-1251MG - Metal-Geared Digital Low-Profile Servo - PLUS/V2

The SC-1251MG is now updated with new software and is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:

• NEW! Softstart Function
• NEW! Sanwa SSR compatible
• Metal gear train ensures durability under harsh situations
• Ideal for 1/10 on road vehicles and some boat applications
• Aluminum case provides cooler operating temperatures

Specifications:

• Torque @ 4.8V: 7kg/cm
• Torque @ 6V: 9kg/cm
• Speed @ 4.8V: 0.10 sec/60 deg
• Speed @ 6V: 0.09 sec/60 deg
• Dimensions L x W x H: 40.3 x 20.2 x 25.4mm
• Weight: 44.5g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 950 → 2050 µ second
• Maximum Travel: Aprox. 160° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Coreless
