Hobbywing QuicRun Fusion 8IGHT SE – Integrated Power System for 1/8 Scale Crawlers

Overview

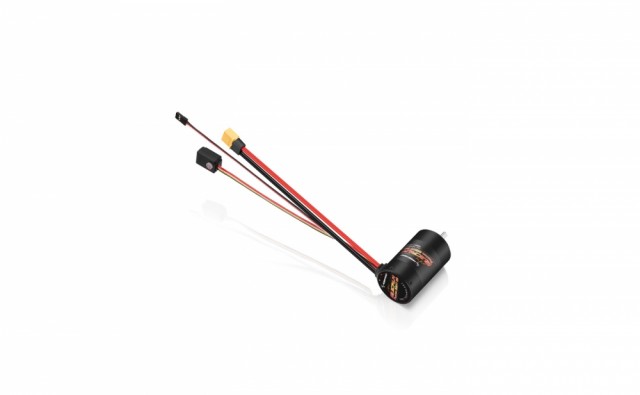

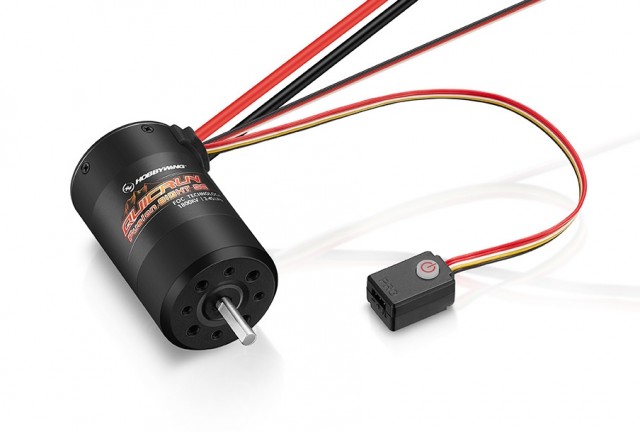

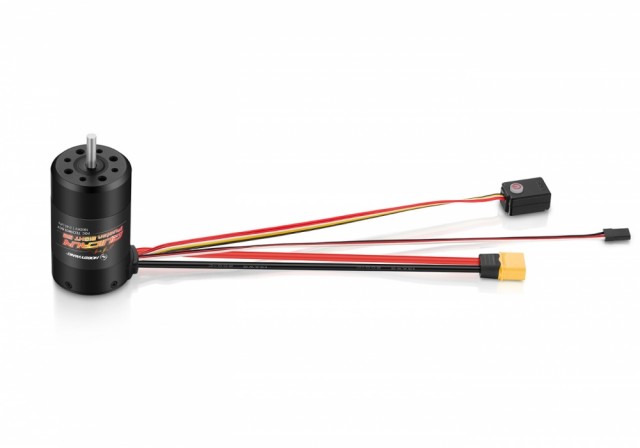

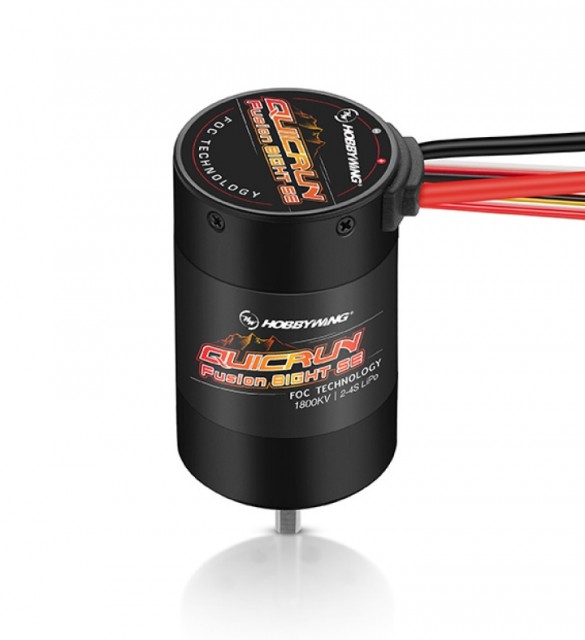

The QuicRun Fusion 8IGHT SE is an integrated brushless power system that combines ESC and motor into one compact unit. Designed specifically for 1/8 scale crawlers, it features advanced FOC (Field Oriented Control) technology for ultra-smooth throttle response, high torque at low speed, and extremely quiet operation. Its integrated design simplifies wiring and installation while improving reliability and space efficiency.

Key Features

• Integrated ESC + motor design for easy installation and compact layout.

• FOC technology delivers precise control, powerful low-speed torque, and smooth operation.

• IP67 waterproof and dustproof rating ensures reliability in all weather and terrain conditions.

• Supports 2–4 S LiPo or 6–12 cell NiMH batteries.

• Built-in BEC with selectable output voltage (6 V / 7.4 V) and continuous 4 A current.

• Three running modes available: Forward / Brake / Reverse, Forward / Reverse, and Forward / Brake.

• Programmable via SET button, LED Program Box or LCD Program Box.

• Eleven adjustable parameters, including running mode, cutoff voltage, thermal protection, BEC voltage, motor rotation, drag brake force, drag brake rate, max reverse force, and RPM reduction rate.

• Continuous current: 60 A
• Peak current: 200 A
• Input voltage: 2–4 S LiPo / 6–12 cells NiMH
• Motor type: Sensored brushless
• Motor KV: 1800 KV
• Motor poles: 4
• Built-in BEC output: 6 V / 7.4 V adjustable, 4 A continuous
• Waterproof rating: IP67
• Size (motor diameter × length): 41 × 69 mm
• Shaft diameter / length: 5 mm / 18.5 mm
• Weight: 326.5 g (including wires and connectors)
• Application: 1/8 scale crawler vehicles
