Produktinfo

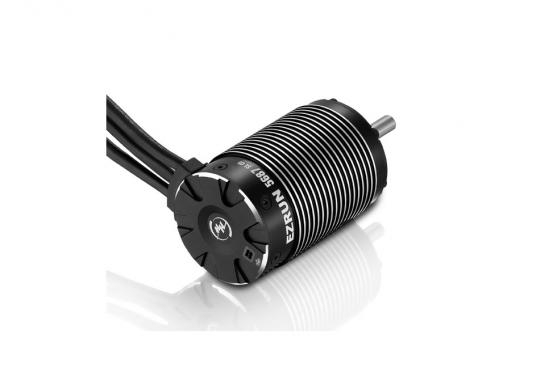

Hobbywing EzRun 5687SL Brushless Motor 1100KV er en motor beregnet for 1/5-skala biler med 3-6S LiPo. Leveres med påloddede 6.5mm gullkontakter som passer rett inn i f.eks Hobbywing Max5 eller Max6 ESC.
Spesifikasjoner
Akseldiameter 8mm
Motordiameter 56mm
Lengde 87mm
Vekt 916g
KV 1100
LiPo 3-8S
Spesifikasjoner
Akseldiameter 8mm
Motordiameter 56mm
Lengde 87mm
Vekt 916g
KV 1100
LiPo 3-8S
For utfyllende detaljer besøk Hobbywing sin produktside.
| Product Name | EzRun-56113SL-800KV | EZRUN-5687SL-1100KV | EZRUN-4985SL-1250KV | EZRUN-4985SL-1650KV | |
| Product Number | 30402900 | 30402550 | 30402951 | 30402950 | |
| Type | Scale Brushed/Brushless Sensored/Sensorless Pole Count |
1/5th BL SL 4 |
1/5th BL SL 4 |
1/6th&1/7th BL SL 4 |
1/6th BL SL 4 |
| Relevant Parameters | KV Rating LiPo Cells No-load Current(A) |
800 3-8S 3.2 |
1100 3-8S 4.1 |
1250 3-8S 5.2 |
1650 3-6S 5.4 |
| Size & Weight | O.D.(mm) Length (mm) Shaft Diameter (mm) Connectors (mm) Weight (g) Front Bearing Rear Bearing |
56(2.20in) 113(4.45in) 8.0(0.31in) 6.5(male) 1210(42.68oz) D8*D22*t7(608DD/608ZZ) D8*D22*t7 |
56(2.20in) 87(3.43in) 8.0(0.31in) 6.5(male) 916(32.31oz) D8*D22*t7(608DD/608ZZ) D8*D22*t7 |
49(1.92in) 86.5(3.41in) 5.0(0.20in) 6.5(male) 636(20.71oz) D19*D6*T6 |
49(1.92in) 86.5(3.41in) 5.0(0.20in) 6.5(male) 587(20.71oz) D19*D6*T6 |
| Other Parameters | Timing Applications |
0 1/5th RC Vehicles |
0 1/5th Light-duty & 1/6th RC Vehicles |
0 1/6th & 1/7th RC Vehicles |
0 1/6th & 1/7th RC Vehicles |
