This R/C assembly kit model recreates the 4th generation of the Mazda MX-5 (also known as the Roadster in Japan and the Miata MX-5 in the U.S.), the iconic car with a heritage dating back to 1989 and total sales in excess of 950,000. The dynamic and lightweight car was made to amplify the thrill of driving, with a punchy 1.5-liter (2.0-liter in North American market cars) inline 4-engine and 6-speed transmission, while including modern must-haves such as advanced safety equipment.The Tamiya R/C model faithfully captures the fun and maneuverability of the real life subject as it comes on the proven M-05 M-chassis platform. The M-05 is a simple to build FWD (front wheel drive) machine, which allows for plenty of after-market parts to be outfitted as you grow with your skill. The lightweight, narrow semi-monocoque frame offers an optimized weight distribution and a low center of gravity. A ground-hugging 4-wheel independent double wishbone suspension and a 3-piece steering linkage ensure excellent stability duri
The New Generation of a Legend

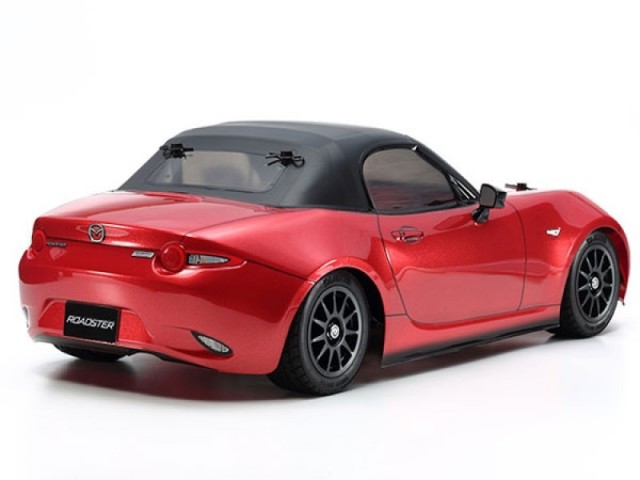

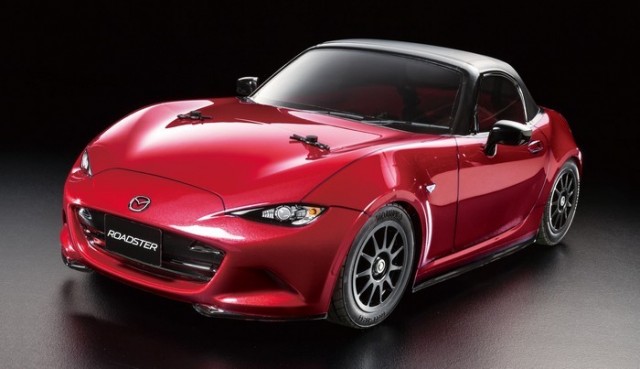

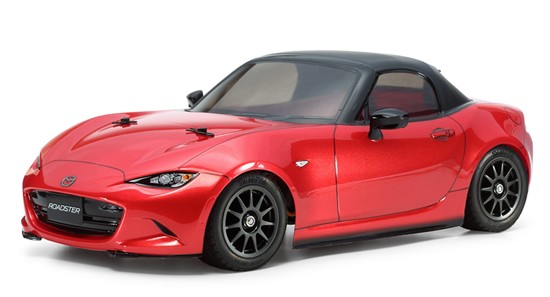

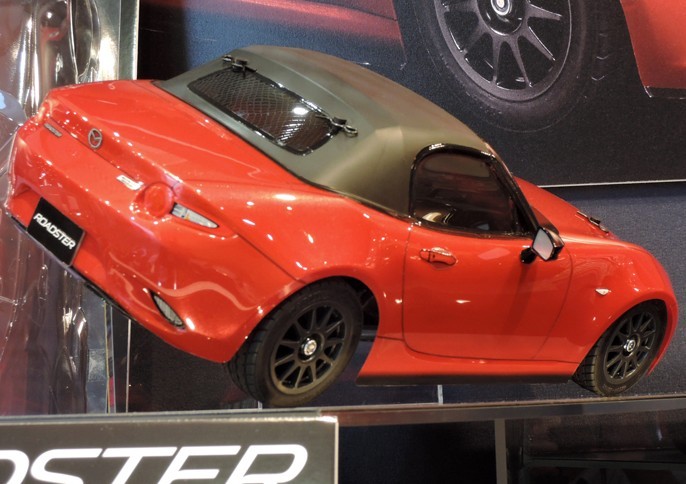

The 4th Generation ND model of the dynamic and lightweight 2-seater Mazda Roadster (MX-5 outside of Japan) thrilled sports car fans around the world upon its release in 2015. This is an R/C model assembly kit depicting the car. From the powerful-looking front fenders to the slimline rear, the MX-5 body is captured breathtakingly in 1/10 scale lightweight polycarbonate. Side mirrors are provided as separately molded parts, while window frames are depicted using included marking stickers. Masking stickers are also included to help when giving your model its paint job.
M-05: Low Center of Gravity, High Performance!
The front wheel drive M-05 chassis features a lightweight, narrow, durable, and easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provide stable high-speed cornering. Gun metal color 11-spoke wheels are matched with tread-patterned radial tires and feature tire inserts.
Tread (Front & Rear): 138mm
Tire Width/Diameter (Front & Rear): 25/59mm
3-Bevel Differential Gir
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
Front & Rear Friction Dampers
Gear Ratio = 5.8:1
Type 540 Motor
ESC TBLE-02S included
Speed Controller kan brukes både på børste og børste løse motorer.

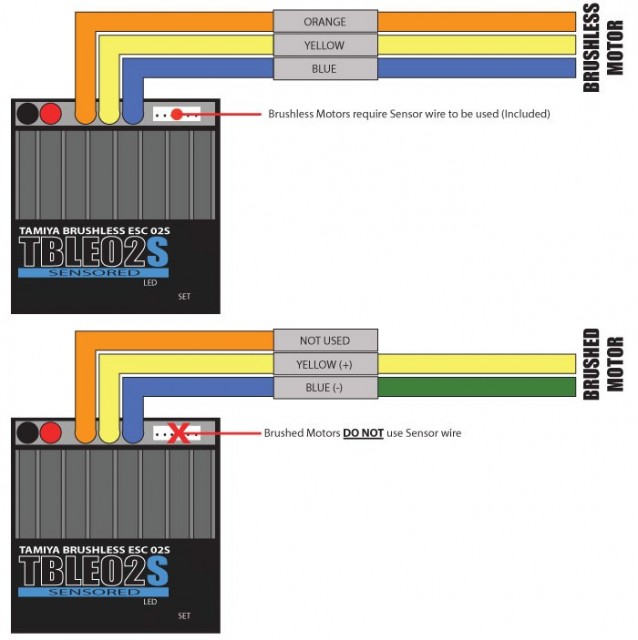

This ESC is especially designed for use with the TBLM series of Tamiya Brushless Motors (Sensored-Type, 10.5T, 12.5T, 14.5T, 16.5T). Brake and neutral brake settings can be adjusted independently, and it features 3 protection systems against overheating, overloading and low voltage. It is also compatible with brushed motors (Normal Type 540 and Sports-Tuned Motors 25 Turn or higher). Note: When using servos with a current exceeding 1.5A, BEC output may be shut down.
Ved bruk av LIPO trenger du ekstern LIPO CUP.
ESC: FORWARD / BRAKE / REVERSE
MAX CONTINUOUS AMPERE: 60A
INPUT VOLTAGE 6.6 – 7.2V
OUTPUT: FORWARD 100% – REVERSE 50%
DIMENTION: 45 X 34 X 25mm
Receiver output: 6.0V / 1.5A
Kan brukes med Tamiya sine BLS motorerserie TBLM-01 (BØRSTELØS)
Sport tuned motor eller motorer over 25 Turn
