Produktinfo
1/10 R/C Suzuki Swift sport byggesett.
Suzuki Swift produksjonen startet i 2004. I 2017 gikk Suzuki Swift igjennom en del forandringer. Blant annet fikk den en 140hk 1.4L motor med turbo. Det er den utgaven av Swift denne modellen er basert på.
540 motor medfølger. Må kompletteres med:
- Radio og mottaker
- 4.8 ~ 7.4kg servo eller sterkere
- NiMH eller LiPO batteri
- ESC (fartskontroller)
- Batterilader
Anbefales:
- Kulelagre
Anbefalte farger:
PS-5 Black
PS-6 Yellow
PS-31 Smoke
PS-48 Semi-Gloss Silver Anodized Aluminum
TS-16 Yellow
TS-29 Semi Gloss Black (alternativ X-18)
Fra produsenten:
Length: 381mm. Image shows painted and assembled kit.
| The Hottest Hatch? Suzuki’s popular hot hatch underwent a model change in 2017, receiving a revamped body and a 140hp 1.4-liter turbocharged engine driving the front wheels. This R/C model assembly kit depicts that car, with a polycarbonate body to recreate the stylish Swift sport form. A full set of stickers is included to recreate details across the body, and the model is based upon the proven M-05 chassis. |
 |
 |
★Left: The muscular Swift sport body with twin exhausts is molded artfully in lightweight polycarbonate.
★Right: Polycarbonate light cases are separate parts, and provide a detailed accent at the front. |
 |
 |
★Left: Separately molded side mirrors with integrated turn signals are dedicated parts for this model.
★Right: Black 5-spoke wheels are a perfect foil for the brightly colored body. Tires have inner sponges. |

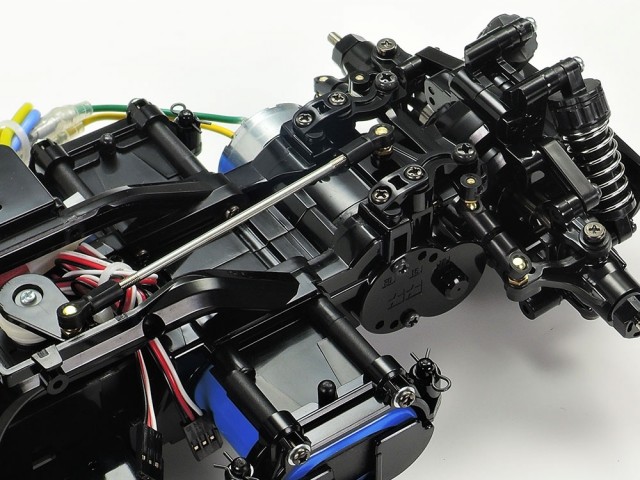

| M-05: Low Center of Gravity, High Performance! The front wheel drive M-05 chassis features a lightweight, narrow, durable, and easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provide stable high-speed cornering. 5-spoke wheels are molded in black and have tires with realistic tread patterns and inner sponge. In this kit, the chassis is setup with the 239mm L wheelbase. |
 |
 |

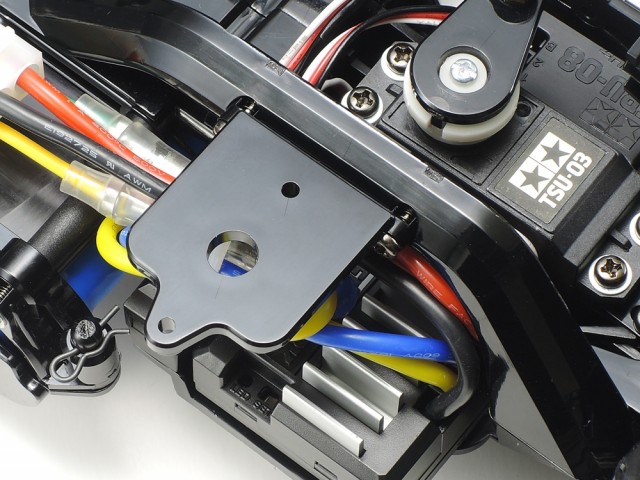

★Left: A centerline steering servo is at the heart of the 3-piece steering tie-rod for superb response.

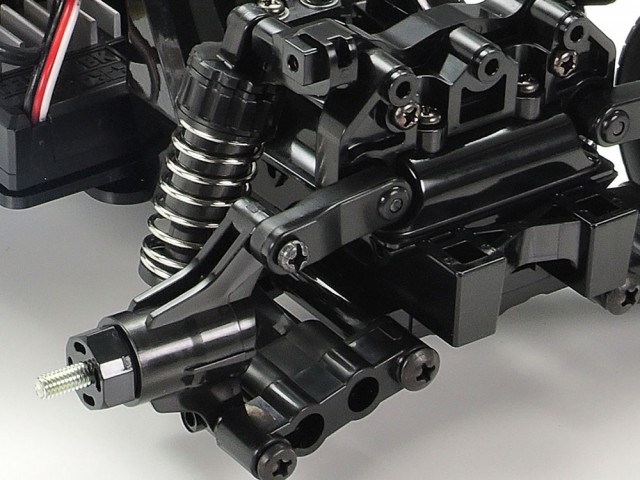

★Right: This image gives a closer look at the front double-wishbone suspension with friction dampers. |
 |
 |
★Left: The kit includes a transponder stay component, which is a must for those who want to race.
★Right: The rear section can be re-configured for three different wheelbases (this model: 239mm). |
| Specifications ★Length: 381mm, Width: 167mm, Height: 145mm ★Wheelbase: 239mm ★Tread (Front & Rear): 138mm ★Tire Width/Diameter (Front & Rear): 25/59mm ★Monocoque Frame ★3-Bevel Differential Gear ★Front-Wheel 2WD ★3-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★;Front & Rear Friction Dampers ★Gear Ratio = 5.8:1 ★Type 540 Motor ★Requires an Electronic Speed Controller (sold separately) |
| Separately Required Items ★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery Pack & Charger |
Information is current as of June 24, 2020. Specifications are subject to change without notice.
| Chassis |
M-05 |
|---|---|
| Drift |
2WD |
| Drivkraft |
ELEKTRO |
| Leveres som |
KIT |
| Merke |
TAMIYA |
| Motor |
BØRSTE |
| Publiseringsdato |
August 2020 |
