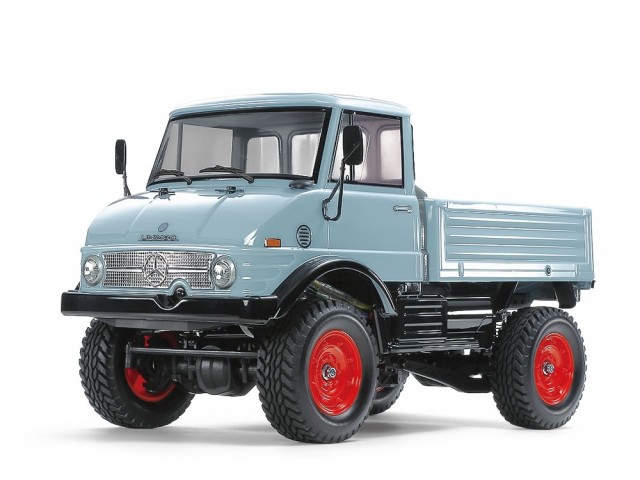

Length: 384mm. Image shows assembled kit.
Body is pre-cut and pre-painted, with body mount holes made.
| A pre-painted faithful friend The Mercedes-Benz Unimog name is an acronym of the German “Universal-Motor-Gerat”; this R/C model assembly kit recreates the 406 Series vehicle that was a hit since its debut in 1963. A polycarbonate body recreates the distinctive form with curved hood and round headlights, with a separate metal-plated depiction of the front grille for extra realism, plus separately molded side mirrors and air intake. This product features the body pre-painted in blue gray with black lower sections. |
 |
 |

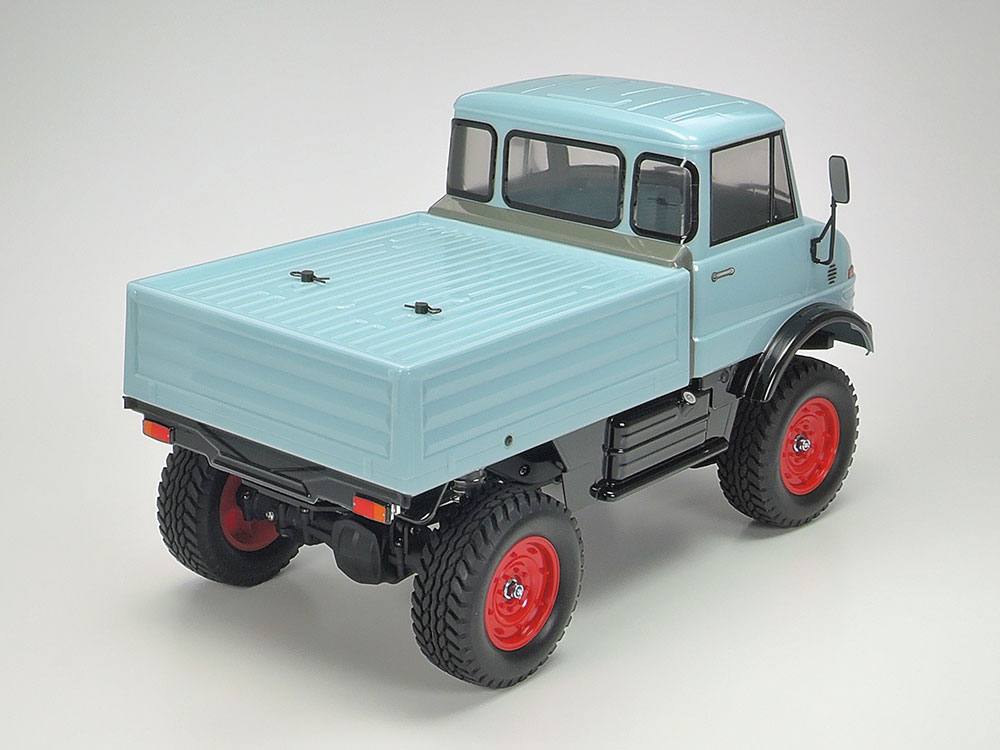

★Left: The realistic polycarbonate body (shown here from the rear) is conveniently pre-painted.

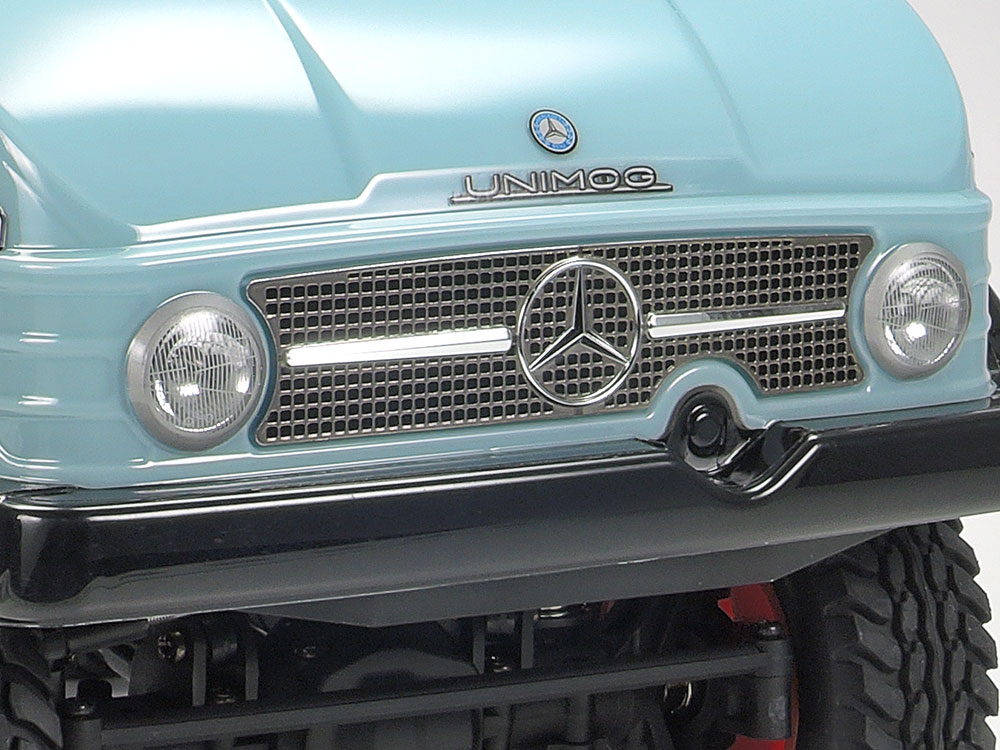

★Right: A metal-plated grille ensures that the front of the body also has a highly realistic appearance. |
 |
 |

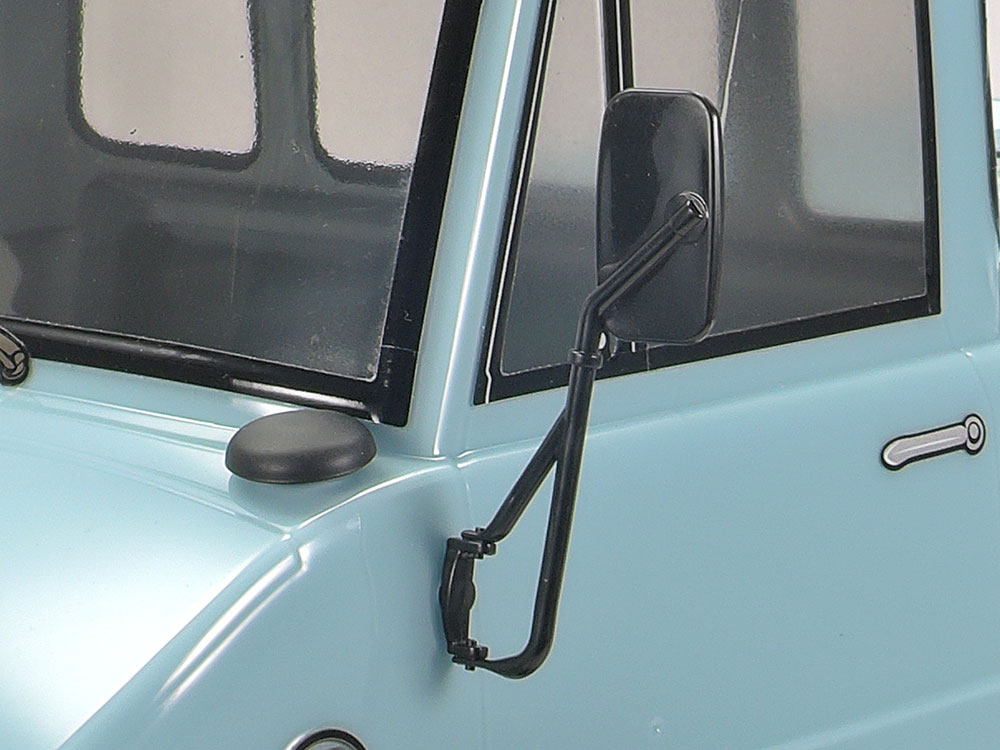

★Left: Separately molded parts are employed to depict side mirrors and distintive stalks, plus air intake.

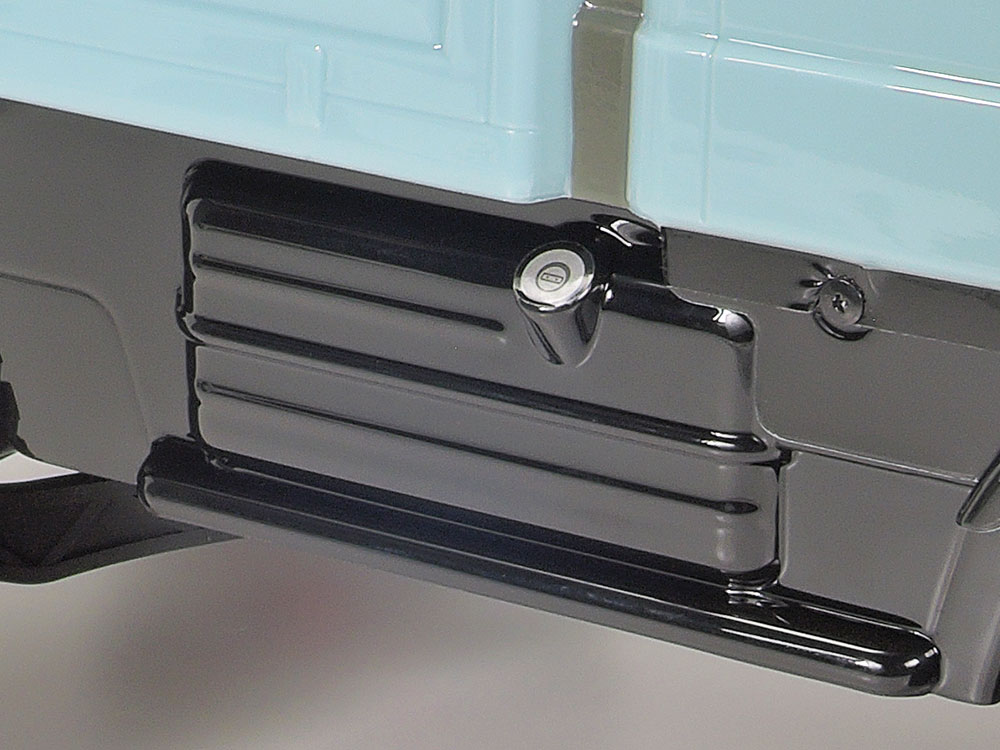

★Right: This image goes close up on the lower section of the body, captured by separate polycarbonate parts. |

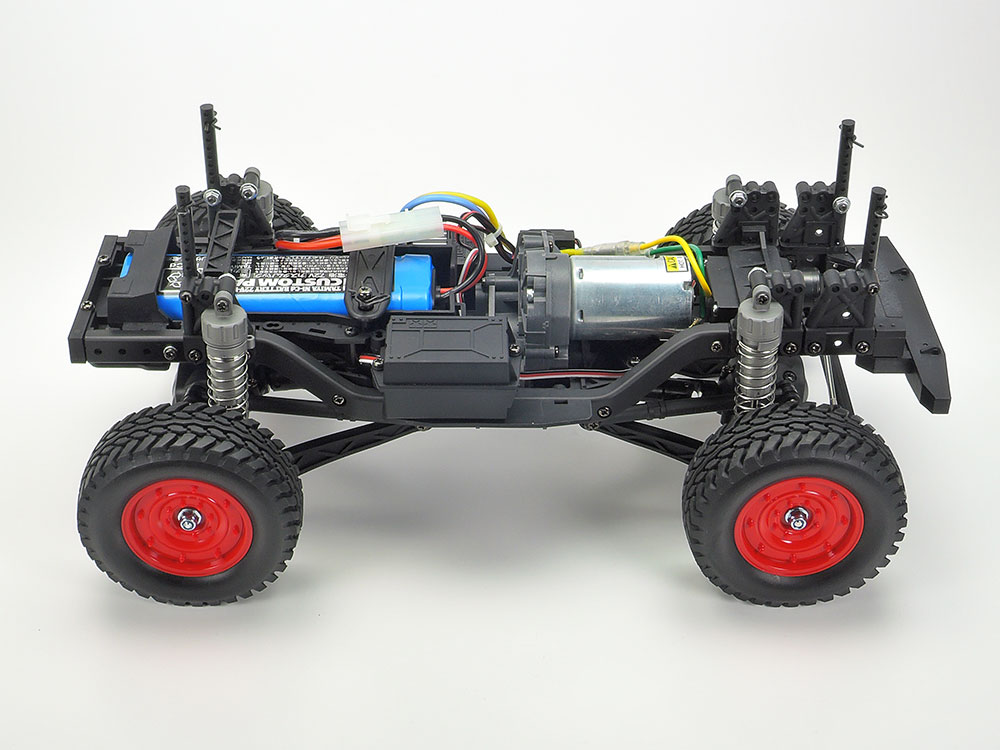

| CC-02 Chassis – Off Road, Evolved Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red dish design wheels and grippy block pattern tires. |
 |
 |
★Left: The ladder frame is modeled upon those employed by full-size cars, and offers excellent rigidity on this 1/10 scale vehicle.

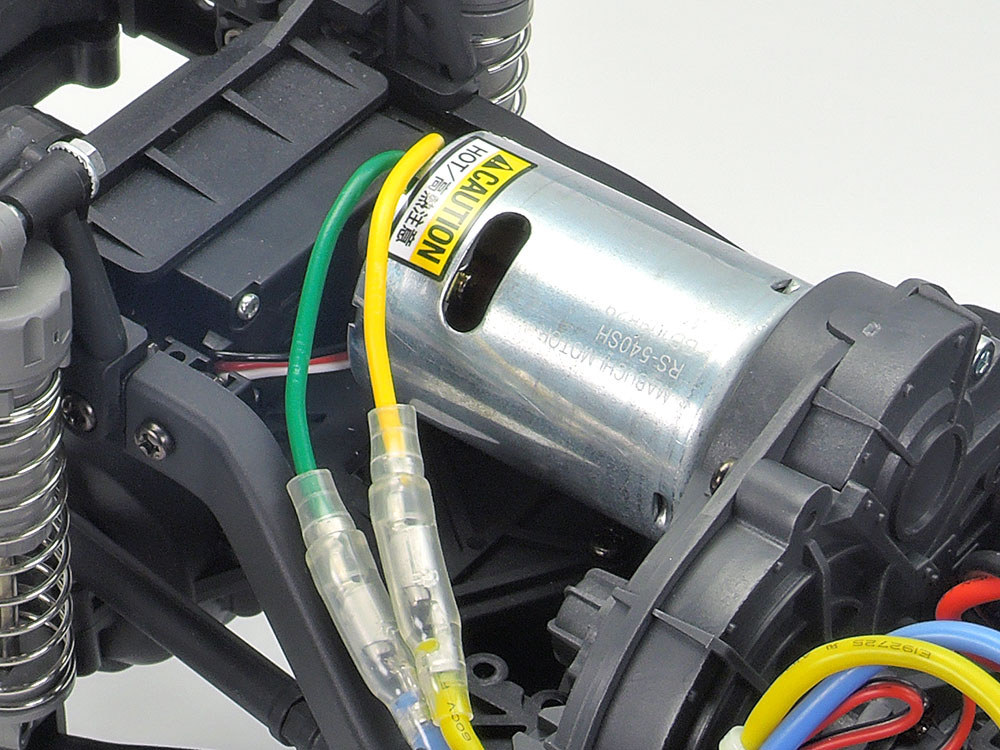

★Right: The front midship motor provides power via central gearbox and then propeller shafts to both front and rear axles. |
 |
 |

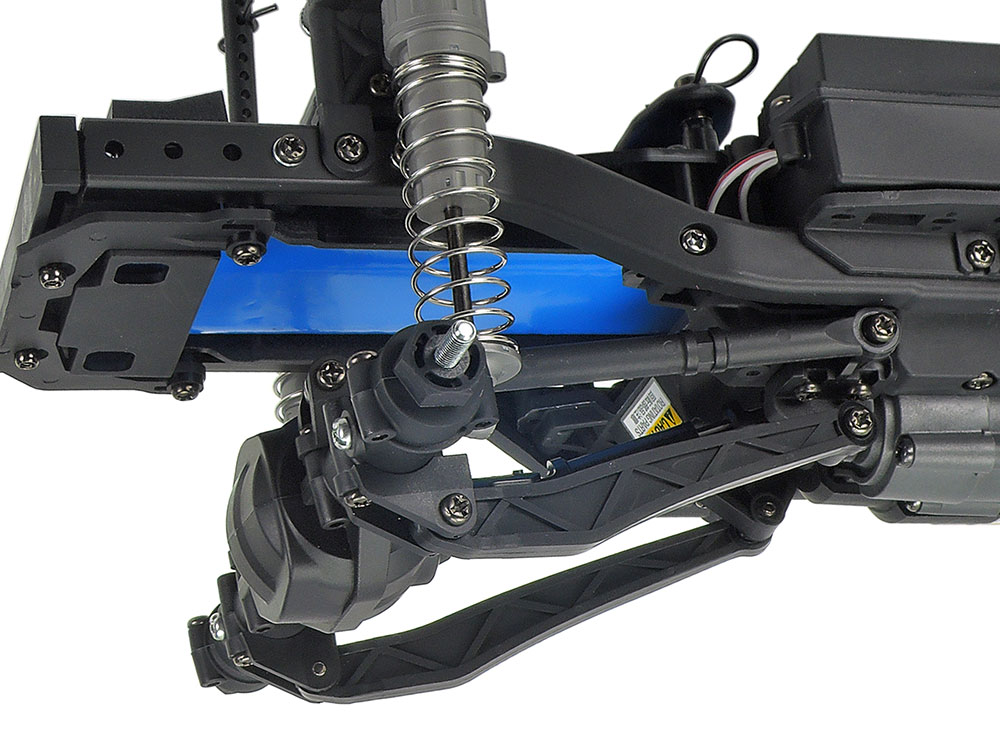

★Left: Metal chassis frame sections facilitate exemplary durability, while CVA oil damper ensure that you get the maximum off-road performance.

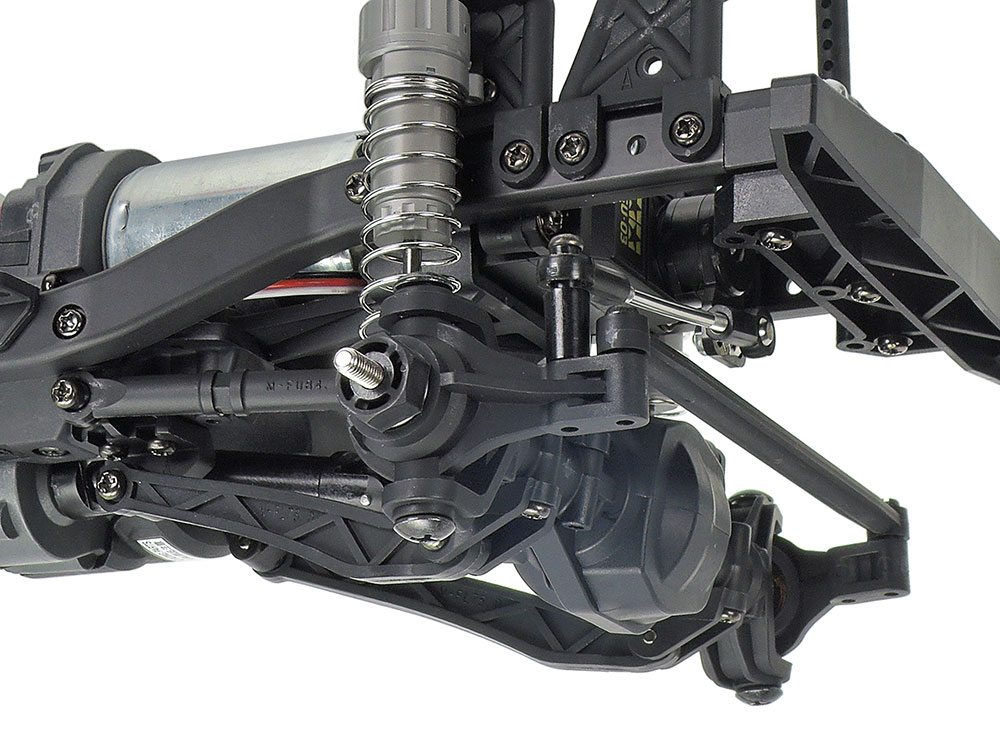

★Right: Axle housings are molded in reinforced plastic, and house 3-bevel differentials. They can be locked when running on lower-grip surfaces. |
Specifications
- Length: 384mm, Width: 196mm, Height: 224mm
- Wheelbase: 242mm
- Tread: 160mm (front), 163mm (rear)
- Tire width/diameter: 33/90mm (front & rear)
- Ladder frame
- Longitudinal motor, shaft-driven 4WD
- 3-Bevel differential gears
- 4-Link rigid suspension (front & rear)
- Gear ratio = 17.33:1 (using kit-standard 16T pinion)
- Type 540 motor
- Electronic speed controller (ESC) is sold separately
Separately Required Items
- 2-channel R/C system
- ESC
- servo
- Battery pack & charger
| Merke |
TAMIYA |
|---|---|
| Chassis |
CC-02 |
| Skala |
1:10 |
| Drift |
4WD |
| Leveres som |
KIT |
| Drivkraft |
ELEKTRO |
| Biltype |
CRAWLER |
