Produktinfo

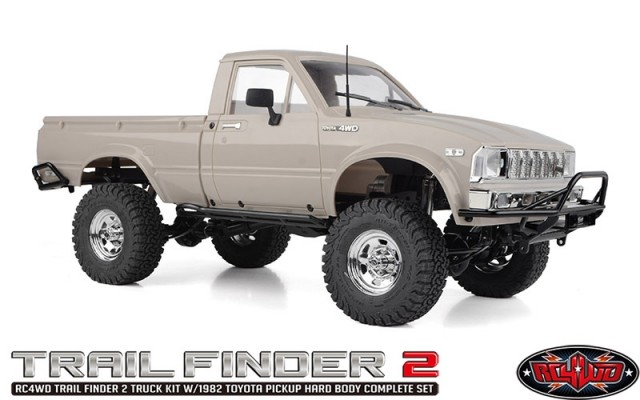

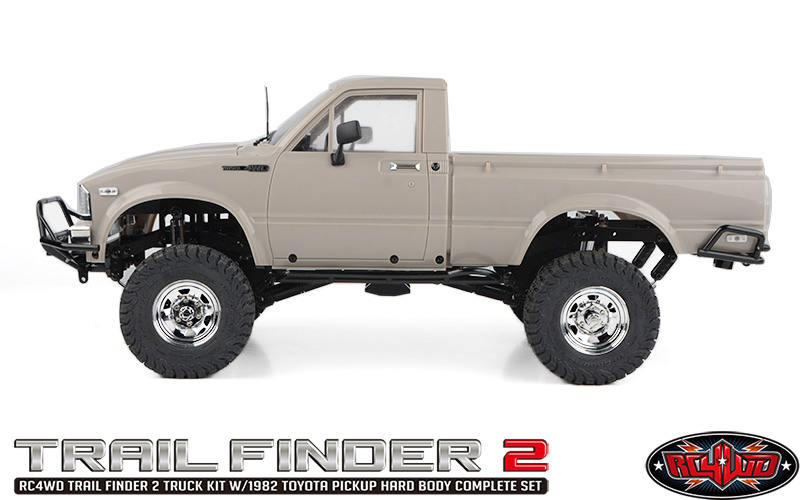

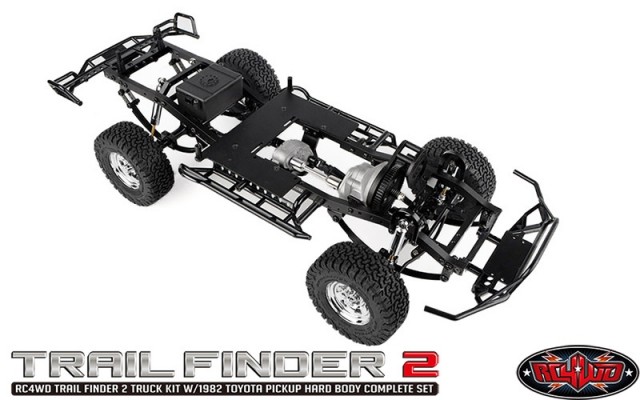

RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set

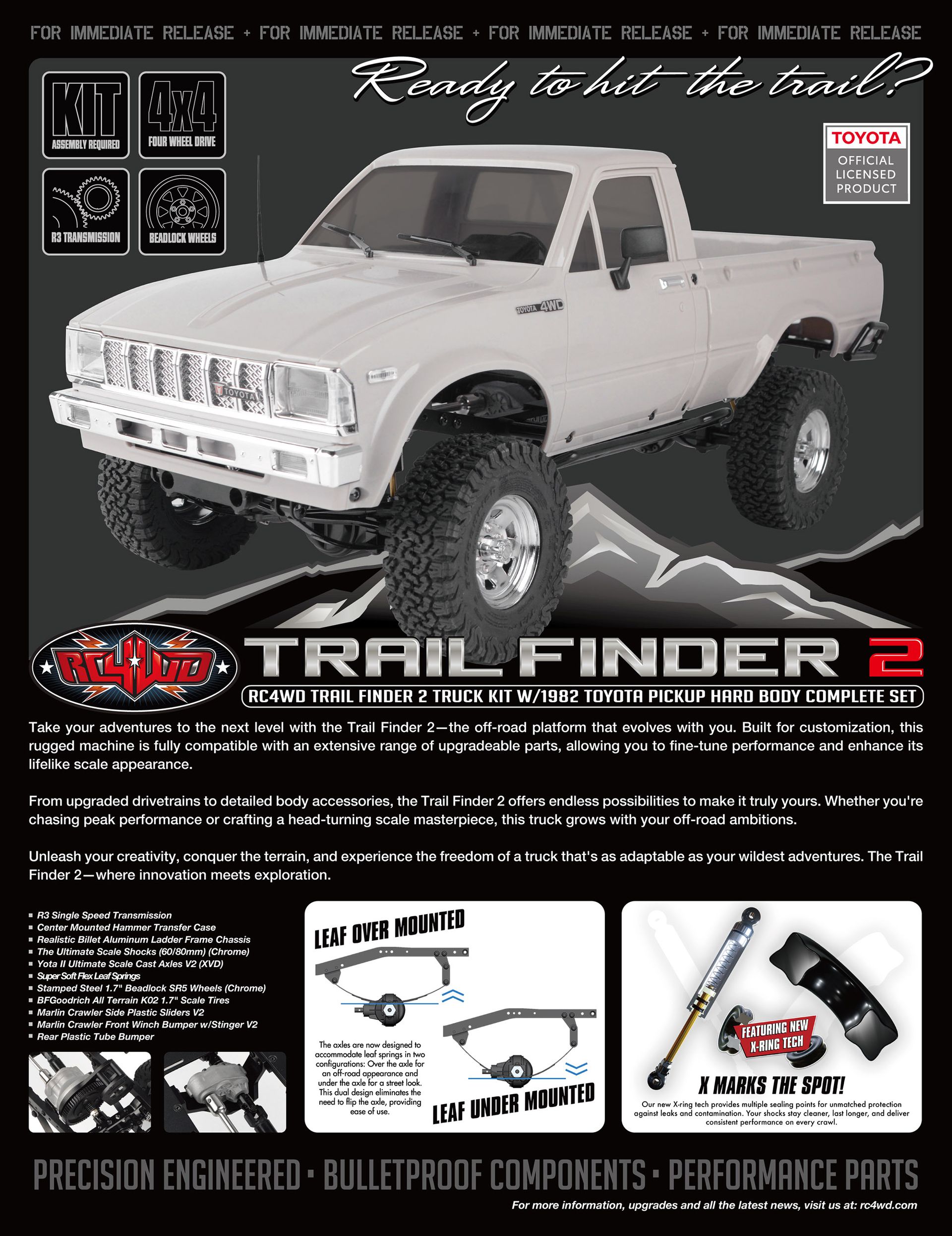

Take your adventures to the next level with the Trail Finder 2—the off-road platform that evolves with you. Built for customization, this rugged machine is fully compatible with an extensive range of upgradeable parts, allowing you to fine-tune performance and enhance its lifelike scale appearance.
From upgraded drivetrains to detailed body accessories, the Trail Finder 2 offers endless possibilities to make it truly yours. Whether you're chasing peak performance or crafting a head-turning scale masterpiece, this truck grows with your off-road ambitions.
Unleash your creativity, conquer the terrain, and experience the freedom of a truck that's as adaptable as your wildest adventures. The Trail Finder 2—where innovation meets exploration.
R3 Scale Single Speed Transmission
Center Mounted Hammer Transfer Case
Realistic Billet Aluminum Ladder Frame Chassis
The Ultimate Scale Shocks (60/80mm) (Chrome)
Yota II Ultimate Scale Cast Axles V2 (XVD)
Super Soft Flex Leaf Springs
Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)
BFGoodrich All Terrain K02 1.7" Scale Tires
Marlin Crawler Side Plastic Sliders V2
Marlin Crawler Front Winch Bumper w/Stinger V2
Rear Plastic Tube Bumper

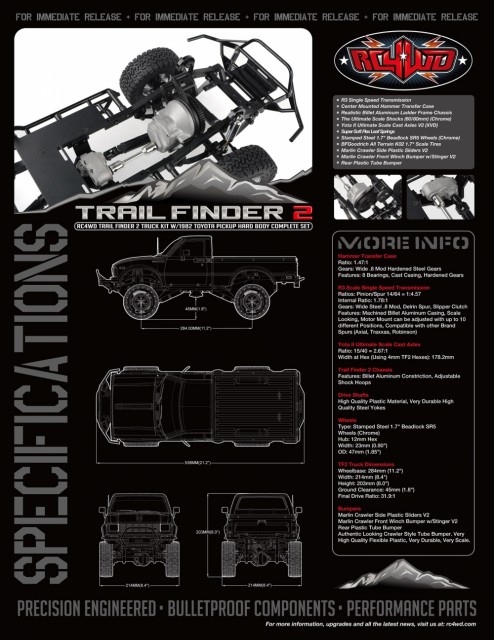

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Features: Machined Billet Aluminum Casing, Scale Looking, Motor Mount can be adjusted with up to 10 different Positions, Compatible with other Brand Spurs (Axial, Traxxas, Robinson)
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm (7.01")

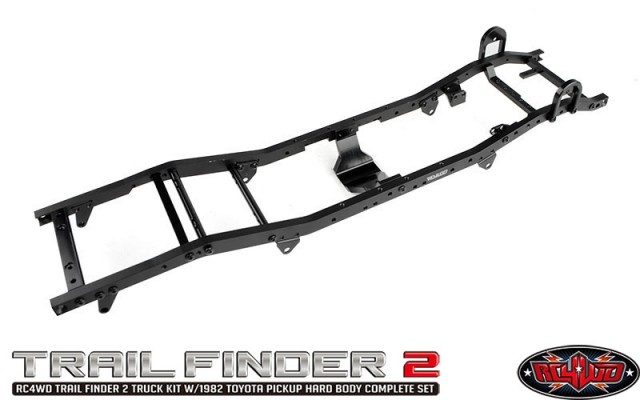

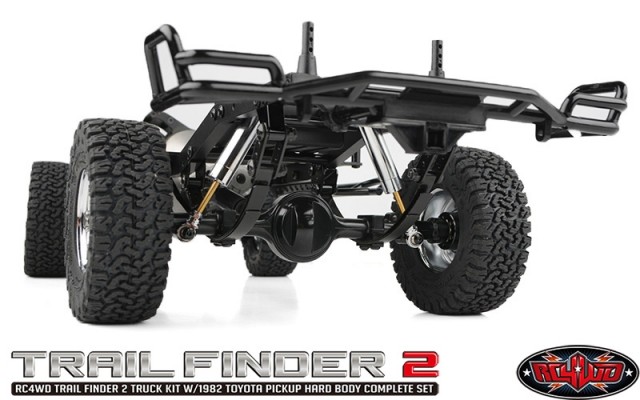

Trail Finder 2 Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Durable Steel Yokes
Wheels
Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)
Hub: 12mm Hex
Width: 23mm (0.90")
OD: 47mm (1.85")

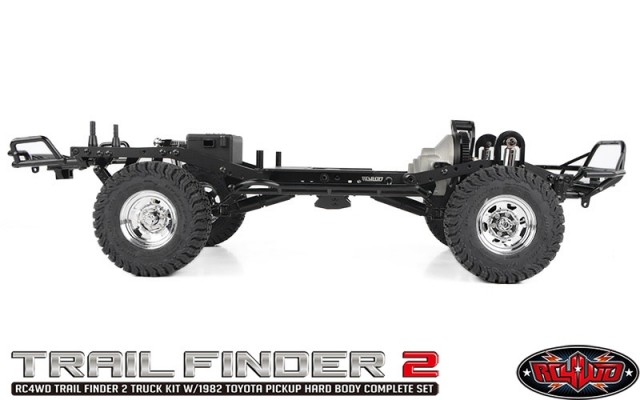

TF2 Truck Dimensions
Wheelbase: 284mm (11.2")
Width: 214mm (8.4")
Height: 203mm (8.0")
Ground Clearance: 45mm (1.8")
Final Drive Ratio: 31.9:1

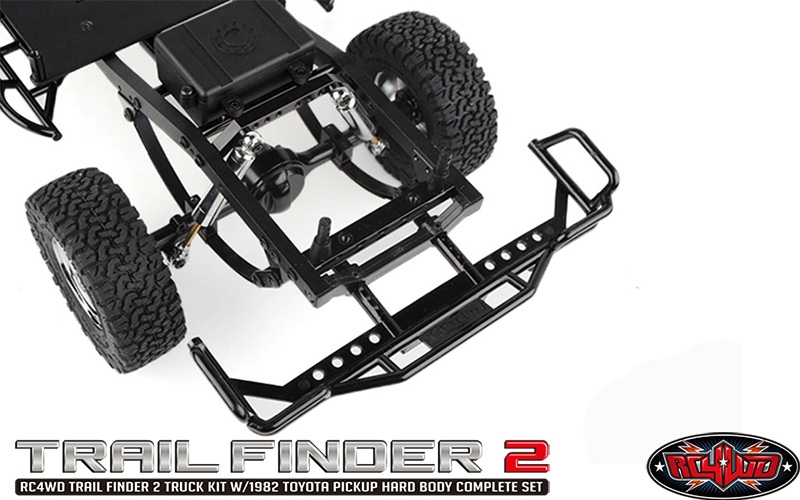

Bumpers
Marlin Crawler Side Plastic Sliders V2

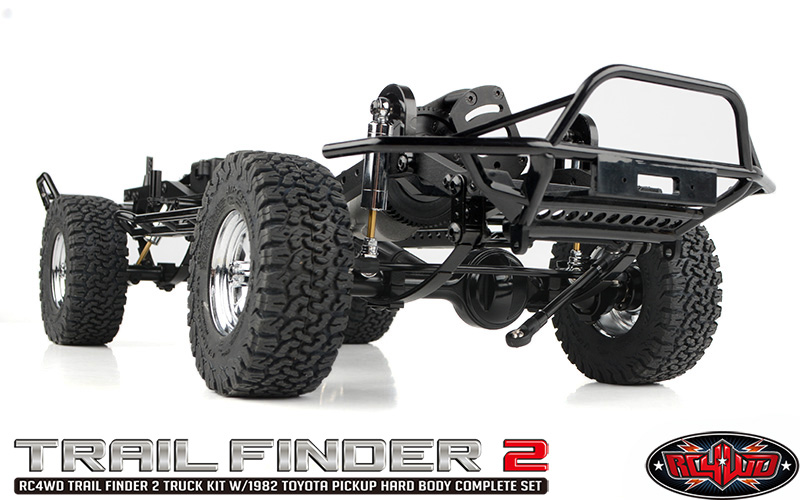

Marlin Crawler Front Winch Bumper w/Stinger V2
Rear Plastic Tube Bumper
Authentic Looking Crawler Style Tube Bumper. Very High Quality Flexible Plastic, Very Durable, Very Scale.
DRIVETRAIN

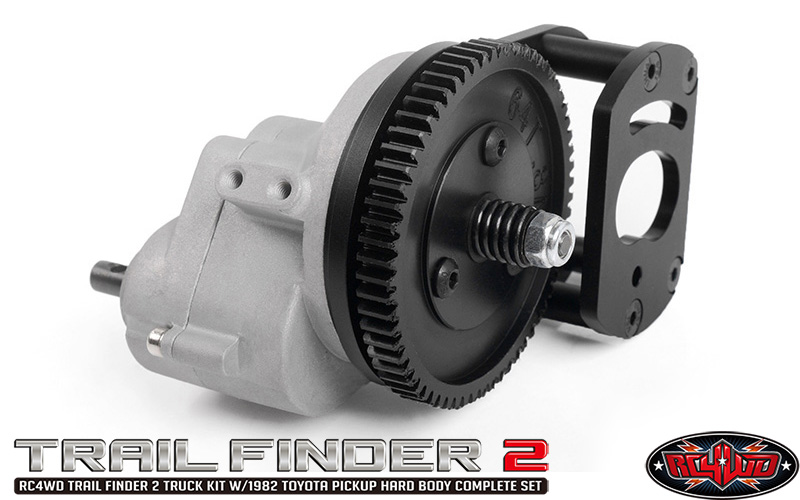

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.

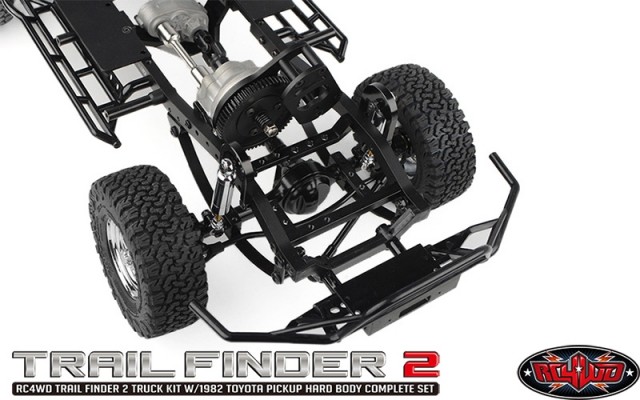

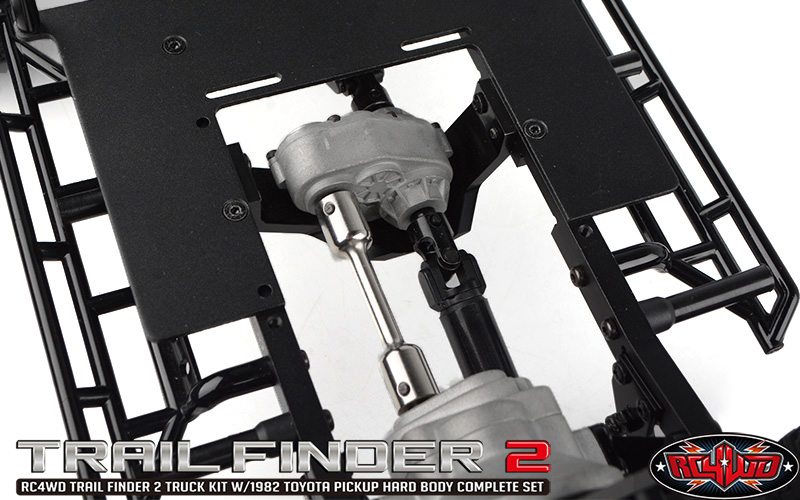

The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.
Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.
The RC4WD Yota II Ultimate Scale Cast Axles (XVD) are the most scale-accurate on the market, featuring 8-degree round knuckles, removable diff covers, lower mounting points, and a compact offset pumpkin. Designed for versatility, they accommodate leaf springs in over-axle and under-axle configurations, eliminating the need to flip the axle.
The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

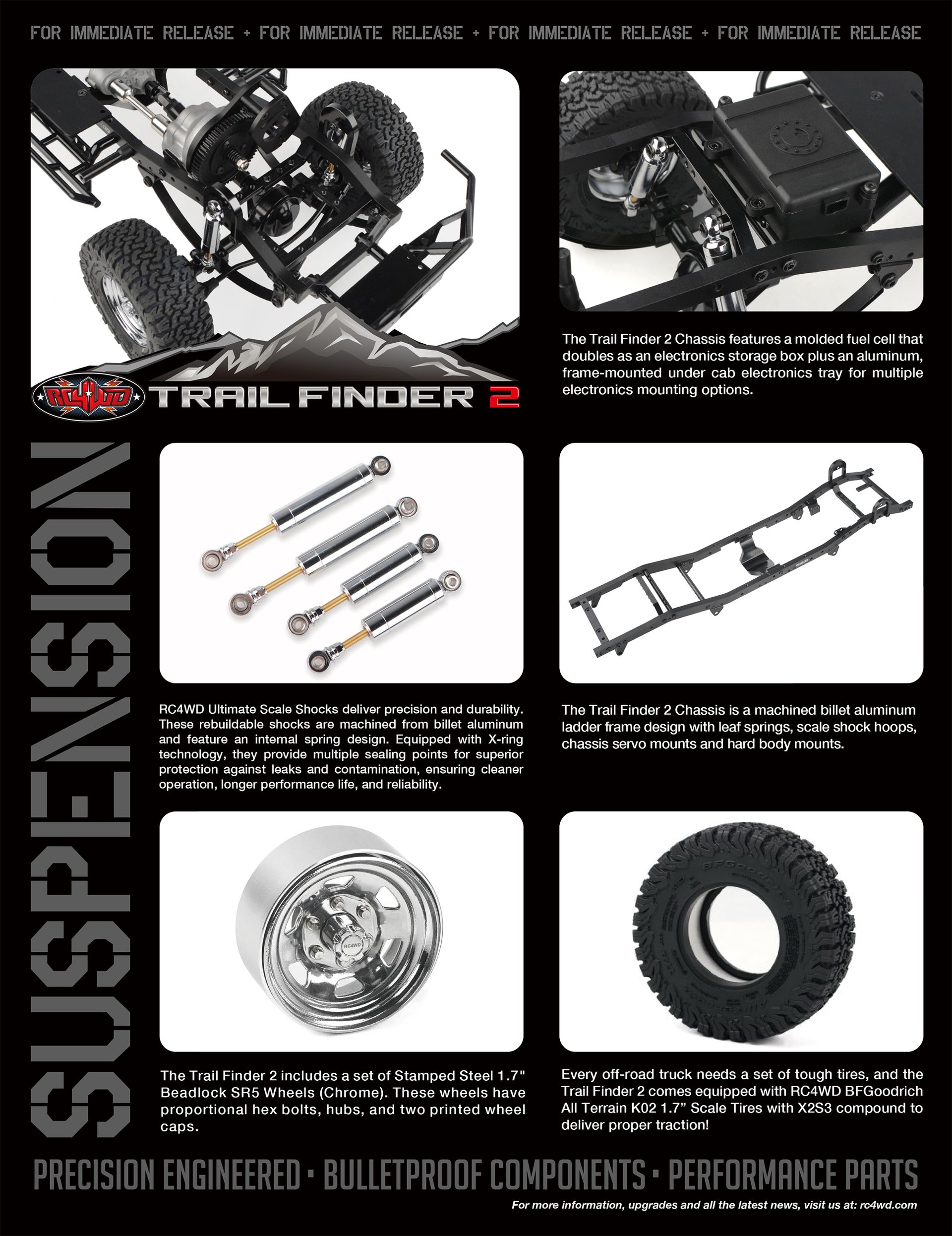

SUSPENSION

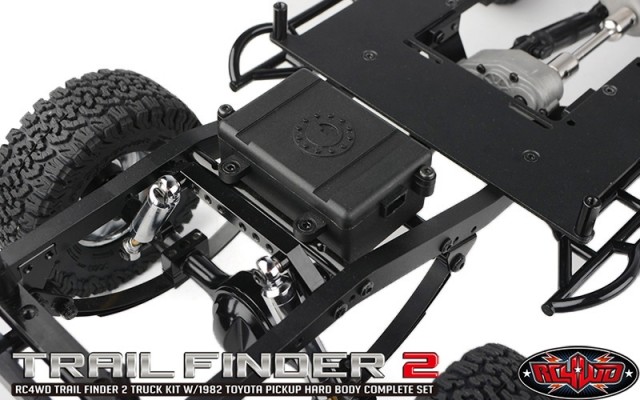

The Trail Finder 2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options.

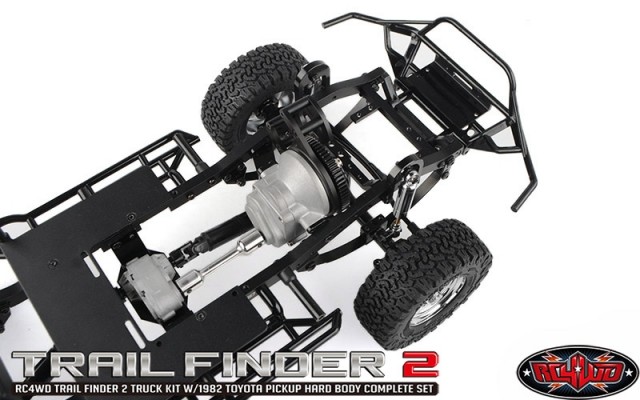

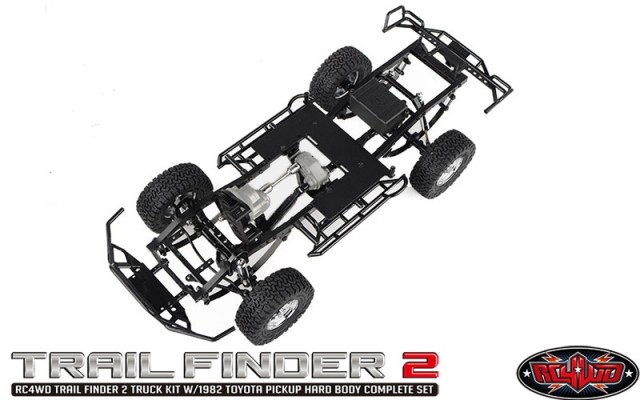

The Trail Finder 2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts.

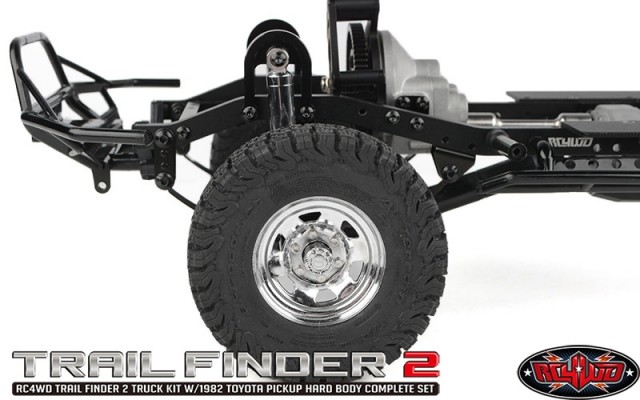

The Trail Finder 2 includes a set of Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome). These wheels have proportional hex bolts, hubs, and two printed wheel caps.
Every off-road truck needs a set of tough tires, and the Trail Finder 2 comes equipped with RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires with X2S3 compound to deliver proper traction!
DETAILS

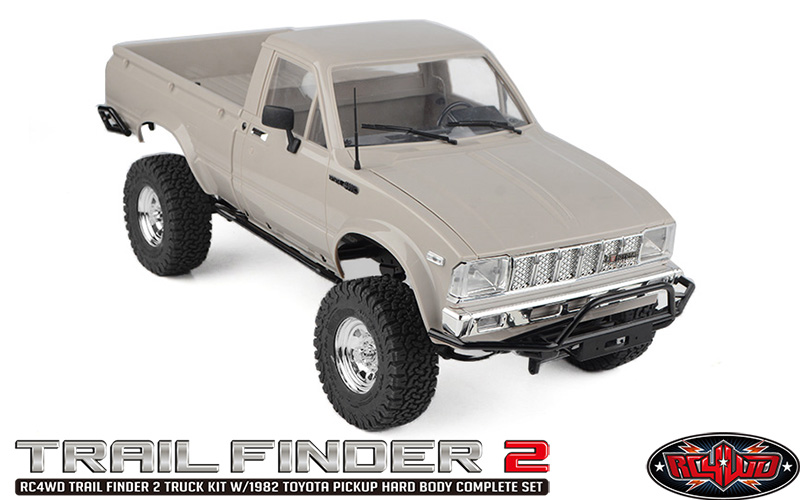

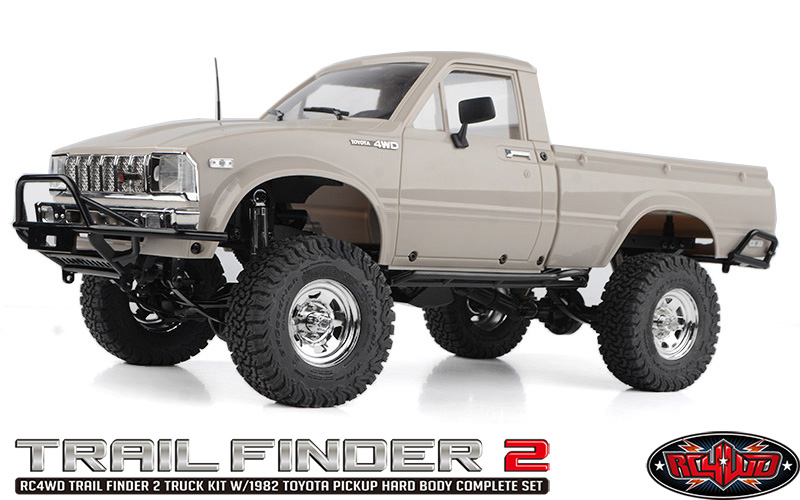

The 1982 Toyota pickup truck, recognized for its timeless design, is now an exciting addition to the RC4WD 1/10 ready-to-run line-up!
The 1982 Toyota pickup truck also includes scale rock rails plus front and rear tube rock guard bumpers. The front bumper has a winch mount built right in for an optional RC4WD winch.

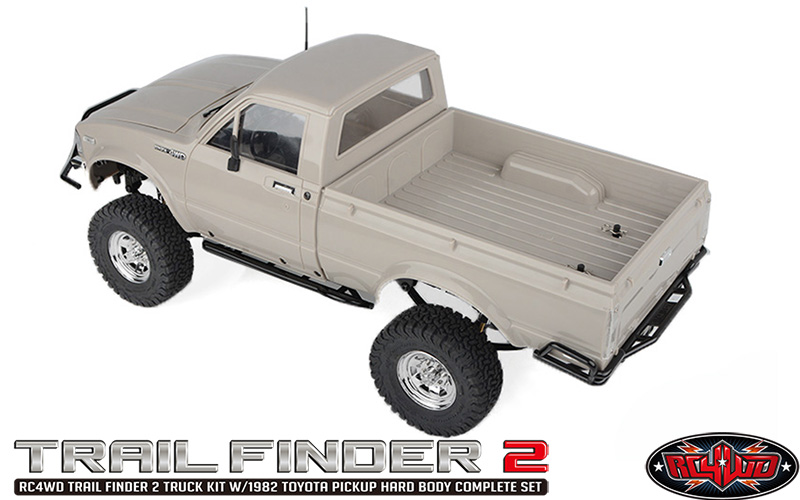

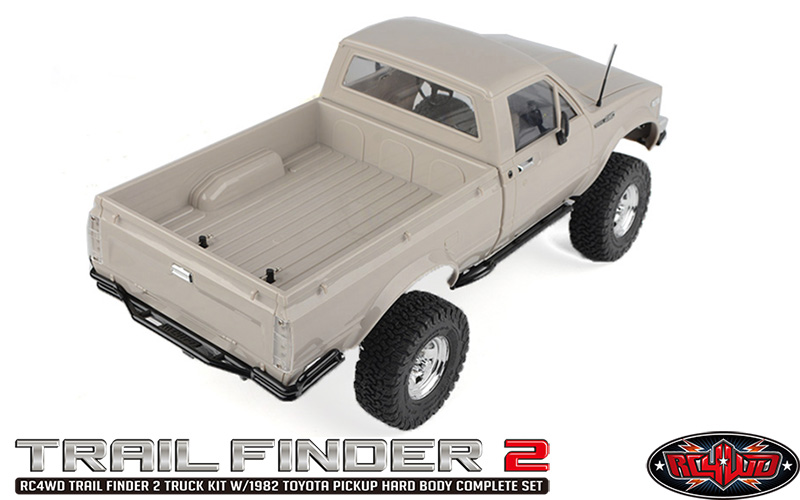

The 1982 Toyota pickup truck includes a great dropped bed molded directly into the body. It’s perfect for carrying all your scale accessories or spare wheel and tire!
The 1982 Toyota Pickup Truck features a fully functional hood and can be upgraded to showcase your personalized modification style. Its simple, durable design and retro charm make it a favorite for collectors and modification enthusiasts!
The 1982 Toyota pickup truck includes a bolt on, scale accurate molded cab back with every kit so you can use just the cab for a truggy style build.

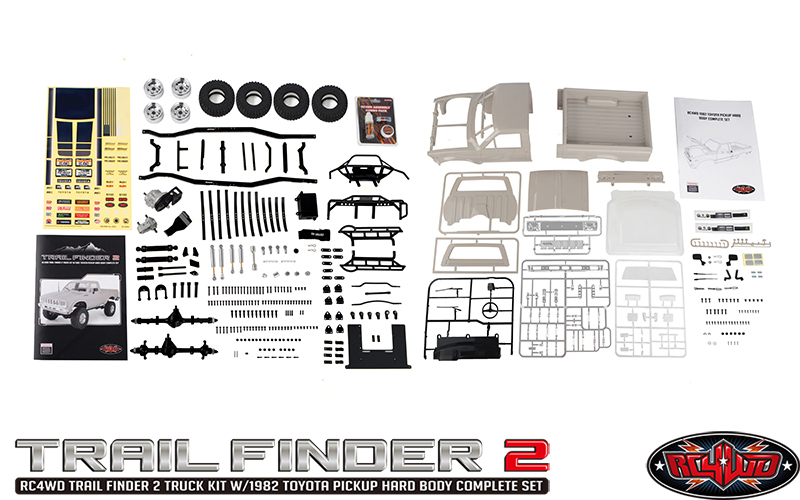

What's Included:
- 1x RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set
This is a kit that requires building time (appro. 2-3 hours)
Required to Complete:
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Associated Thread Locking Adhesive
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics
- Motor (35t, 45t, or 55t)
- Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
- 2x Twister High Torque Metal Gear Digital Servo (Z-E0035)
- Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
- Charger (Consult your battery guide) Chargers
Body Kit
- Modeling / Craft Knife
- Body Reamer
- Side Cutters
- Instant glue / Plastic Cement (prefer non whitening)
- Hex Drivers (1.5mm, 2mm)
- Cross Phillips Screwdrivers (small)
Replacements Parts:
- RC4WD Yota II Ultimate Scale Cast Axle V2 (Front) (Z-A0080)
- Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
- RC4WD 1982 Toyota Pickup and Mojave II Chrome Front Grille Parts Tree (Z-B0002)
- RC4WD Clear Lexan Windshield for Tamiya Hilux and RC4WD Mojave Body (Z-B0004)
- Trail Finder 2 Plastic Body Posts (Z-B0029)
- RC4WD 1982 Toyota Pickup and Mojave II Rear Bed (Primer Gray) (Z-B0072)
- RC4WD Mojave II Cab Back Panels and Grill Parts Tree (Primer Gray) (Z-B0074)
- RC4WD Mojave II Chrome Bumper and Parts Tree (Z-B0076)
- RC4WD 1982 Toyota Pickup and Mojave II Clear Parts Tree (Z-B0078)
- RC4WD 1982 Toyota Pickup and Mojave II Dash and Wiper Parts Tree (Z-B0080)
- RC4WD 1982 Toyota Pickup and Mojave II Rubber Mirror (Z-B0082)
- RC4WD 1982 Toyota Pickup Cab (Z-B0259)
- RC4WD 1982 Toyota Pickup Hood Parts (Z-B0260)
- Trail Finder 2 Chassis Set (Z-C0018)
- RC4WD Bilstein SZ Series Shock Absorbers (60mm) (Z-D0056)
- RC4WD Bilstein SZ Series Shock Absorbers (80mm) (Z-D0058)
- Leaf Spring Shackles & Mounts Kit (Z-S0047)
- RC4WD Plastic Punisher Shaft V2 (98mm - 103mm / 3.86" - 4.06") 5mm Hole (Z-S0149)
- RC4WD 120mm Hardened Steering Link (FOA) (Z-S0194)
- Scale Front Hub Installation Tool (Z-S0197)
- RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 V2 (Z-S0274)
- M3 Mini Plastic Rod End (20x) (Z-S0398)
- M3 Offset Short Plastic Rod End (20x) (Z-S0401)
- RC4WD Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0475)
- RC4WD 101mm Hardened Steering Link (Z-S0504)
- Heavy Duty Nylon Strap Lock (5) (Z-S0552)
- Fuel Cell Radio Box (Z-S0592)
- Trail Finder 2 Bumper Mounts (Z-S0593)
- RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 V2 (Z-S0852)
- TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
- RC4WD 1982 Toyota Pickup Hood Hinges (Z-S1010)
- Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
- Leaf Under Mounts for Yota 2 / K44 Axles (Z-S2135)
- RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires (Z-T0107)
- Hammer Transfer Case (1.47/1) (Z-U0024)
- R3 Scale Single Speed Transmission (Z-U0028)
- Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) (Z-W0065)
Optional Parts:
- RC4WD Yota II Ultimate Scale Cast Front Axle V2 (Chrome) (Z-A0071)
- RC4WD Yota II Ultimate Scale Cast Rear Axle (Chrome) (Z-A0072)
- K44 Ultimate Scale Cast Rear Axle (Z-A0096)
- K44 Ultimate Scale Cast Front Axle (Z-A0101)
- RC4WD Scale Bench Seat for 1982 Toyota Pickup/Mojave II (Z-B0032)
- RC4WD Tightfit Truck Topper for the Mojave and Hilux Bodies (Z-B0047)
- RC4WD Clean Stripes for 1982 Toyota Pickup/Mojave II Decal Sheet (Black) (Z-B0143)
- RC4WD Clean Stripes for 1982 Toyota Pickup/Mojave II Decal Sheet (White) (Z-B0168)
- RC4WD Complete Interior w/Metal Details for 1982 Toyota Pickup/Mojave II (Z-B0173)
- RC4WD Clean Stripes for 1982 Toyota Pickup/Mojave II Decal Sheet (Gray) (Z-B0174)
- The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
- The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
- The Ultimate Scale Shocks 80mm (Silver) (Z-D0005)
- RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
- RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
- RC4WD 70mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0034)
- RC4WD 80mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0036)
- RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0038)
- Super Scale 70mm White Shocks with Internal Springs (Z-D0045)
- RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
- RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
- 540 Crawler Brushed Motor 80T (Z-E0001)
- 540 Crawler Brushed Motor 65T (Z-E0002)
- 540 Crawler Brushed Motor 55T (Z-E0003)
- 540 Crawler Brushed Motor 45T (Z-E0004)
- 540 Crawler Brushed Motor 35T (Z-E0005)
- RC4WD LED Basic Lighting System for 1982 Toyota Pickup/Mojave II (Z-E0006)
- RC4WD 1/10 Mini Warn 9.5cti Winch (Z-E0009)
- RC4WD KC HiLiTES Daylighter Light Set V2 (Z-E0022)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- RC4WD KC HiLiTES KC Light Set V2 (Z-E0036)
- RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
- RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
- RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
- RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (100mm/4") (Z-E0059)
- RC4WD 1/10 Baja Designs S8 LED Light Bar (100mm) (Z-E0064)
- 540 Crawler Brushed Motor 20T (Z-E0065)
- RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
- 540 Crawler Brushed Motor 27T (Z-E0067)
- RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
- RC4WD 1/10 Warn 8274 Winch (Z-E0075)
- RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
- RC4WD Universal NIMH Peak Battery Charger (Z-E0106)
- RC4WD ARB Intensity LED Light Set (Z-E0112)
- Outcry III Waterproof ESC (Z-E0113)
- RC4WD 1/10 Warn 9.5cti-s Winch (Z-E0119)
- Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
- RC4WD KC HiLiTES Rectangle Lights with Covers (Z-E0132)
- XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
- XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
- #3 Aluminum Bumper Mount For Trail Finder 2 (Z-S0003)
- #2 Aluminum Bumper Mount for Trail Finder 2 (Z-S0004)
- #1 Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
- Tough Armor Side Steel Sliders for Trail Finder 2 (Z-S0056)
- King Kong Mini Tow Shackle (Z-S0075)
- King Kong Tow Shackle (Z-S0093)
- Scale Aisin/Yota Style Hubs (Z-S0196)
- RC4WD Front Inner Fender Set for 1982 Toyota Pickup (Z-S0256)
- RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
- RC4WD Tough Armor Double Steel Tube Rear Bumper for Trail Finder 2 (Z-S0477)
- RC4WD Lettering Kit for Mojave and Tamiya Hilux/Tundra Bodies (Z-S0551)
- 3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
- Red Super Soft Flex Leaf Springs (4) (Z-S0570)
- Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
- Big Boss Fender Flares for Tamiya Hilux and RC4WD Mojave Body (Z-S0590)
- 4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
- RC4WD Lift Kit for 1982 Toyota Pickup/Mojave II (Z-S0682)
- RC4WD Rebel Off Road Aluminum Hawse Fairlead (Z-S0702)
- RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
- RC4WD 1/10 Bed Mounted Tire Carrier (Z-S0759)
- Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 (Z-S0765)
- RC4WD Adjustable Rear Shock Mounts for Trail Finder 2 (Z-S0768)
- RC4WD Steel Roll Bar for 1982 Toyota Pickup/Mojave II (Z-S0771)
- Anti Wrap Bar for Yota 2 Axles (Z-S0782)
- Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
- Yota II Scale Diff Cover (Z-S0907)
- RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
- RC4WD Adjustable Drop Hitch (Short) (Z-S1095)
- Scale Steel Punisher Shaft V2 (90mm - 115mm / 3.54'' - 4.53'') (Z-S1118)
- RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
- King Kong Tow Shackle (Orange) (Z-S1237)
- RC4WD ARB Diff Cover For The Yota II Axle (Red) (Z-S1295)
- RC4WD 1/10 Warn Hawse Polished Aluminum Fairlead (Z-S1310)
- RC4WD 1/10 Warn Hawse Fairlead (Black) (Z-S1315)
- RC4WD Marlin Crawler Rear Steel Tube Bumper for Trail Finder 2 (Z-S1373)
- Super Scale Steel Leaf Springs for TF2 & Tamiya Bruiser (2) (Z-S1476)
- RC4WD Marlin Crawler Roll Bar for Mojave Body (Z-S1478)
- RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
- RC4WD 1/10 Viking Roller Fairlead for Warn 9.5cti Winch (Z-S1498)
- RC4WD Teraflex Revolver Z-Box for Trail Finder, F-350, Hilux, Tundra (Z-S1587)
- RC4WD Teraflex Revolver Shackle (Z-S1594)
- Motor Mount for R4 Transmission (Z-S1627)
- RC4WD AA Batteries (Z-S1718)
- Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
- RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 (Z-S1789)
- RC4WD 12mm Hex Wheel Widener Set (+7mm) (Z-S1825)
- RC4WD Safari Snorkel for 1982 Toyota Pickup/Mojave II (Z-S1826)
- Tough Armor Rear Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1827)
- Tough Armor Rear Steel Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1830)
- Tough Armor Front Winch Bumper for Mojave II 2/4 Door Body Set (Z-S1845)
- Low Profile Delrin Skid Plate for Std. TC (TF2) (Z-S1851)
- Hitch Mount for RC4WD TF2 (Z-S1870)
- Trail Finder 2 Aluminum Side Body Posts (Z-S1882)
- Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
- RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
- RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
- RC4WD Double Steel Tube Headache Rack for 1982 Toyota Pickup/1987 XtraCab and Mojave II (Z-S2140)
- Mud Thrashers 1.9" Scale Tires (Z-T0051)
- RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires (Z-T0107)
- Scrambler Offroad 1.55" Scale Tires (Z-T0152)
- RC4WD Goodyear Wrangler Duratrac 1.55" 4.19" Scale Tires (Z-T0177)
- RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
- RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
- RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
- RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
- RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
- RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires (Z-T0225)
- RC4WD Center Line 1.55" Scorpion Deep Dish Wheels (Z-W0014)
- RC4WD XD 1.7" XD849 Grenade 2 Deep Dish Beadlock Wheels (Z-W0041)
- RC4WD Warn 1.7" Epic Jack Hammer Wheels (Z-W0086)
- RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
- RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
- RC4WD Fuel Off-Road Maverick 1.9" Beadlock Wheels (Z-W0200)
- RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
- RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
- RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
- RC4WD Fuel Off-Road 1.55'' Zephyr Beadlock Wheels (Gunmetal) (Z-W0333)
- RC4WD Scale Rear Hitch Carrier (Z-X0027)
- RC4WD Type B Machine Front Winch Bumper for TF2 (Z-X0053)
- Steel Tube Rollbar Rack for RC4WD 1982 Toyota Pickup/Mojave II (Style A) (VVV-C0106)
- Steel Tube Rollbar Rack for RC4WD 1982 Toyota Pickup/Mojave II (Style B) (VVV-C0108)
- Tonneau Cover for RC4WD 1982 Toyota Pickup/Mojave II (VVV-C0207)
- Roll Bar/Roof Rack for RC4WD 1982 Toyota Pickup/Mojave II (VVV-C0294)
- Roll Bar/Roof Rack w/Light Bar Frame for RC4WD 1982 Toyota Pickup/Mojave II (VVV-C0295)
- Rear Bed Rack for Mojave II Body Set (VVV-C0373)
- Interior Package for RC4WD 1982 Toyota Pickup/Mojave II (VVV-C0378)
- 1/10 Rear Spare Tire Mount for RC4WD 1982 Toyota Pickup/Mojave II (VVV-C0387)
- Trifecta Front Bumper for Mojave II 2/4 Door Body Set (Black) (VVV-C0422)
- Malice Mini Roof Rack for RC4WD 1982 Toyota Pickup/Mojave II (VVV-C0424)
- Malice Mini Roof Rack w/Lights for RC4WD 1982 Toyota Pickup/Mojave II (VVV-C0425)
- Rear Mud Flaps for Mojave II 2/4 Door Body Set (VVV-C0429)
- Bed Soft Top w/Cage for RC4WD 1982 Toyota Pickup/Mojave II (Black) (VVV-C0430)
- Kangaroo Front Bumper for Mojave II 2/4 Door Body Set (Black) (VVV-C0432)
- Kangaroo Front Bumper w/Lights for Mojave II 2/4 Door Body Set (Black) (VVV-C0434)
- Wood Flatbed for TF2 Mojave Body (VVV-C0709)
- Wood Flatbed w/ Mudflaps for TF2 Mojave Body (VVV-C0710)
- Kober Rear Bed W/ Mud Flaps for TF2 Mojave Body (Black) (VVV-C0712)
- Diamond Plate Rear Bed for RC4WD 1982 Toyota Pickup/Mojave II (VVV-C0737)
Instruction Manuals:
Press Information:
Notes:
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock sparingly.
- Do not over tighten screws, otherwise you may strip the thread.
Skriv en produktanmeldelse og del dine erfaringer med dette produktet med andre kunder.
