RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Midnight Edition)

PrisNOK7 795,00 inkl. mva.
BESTILLINGSVARE - ta kontakt
Ønskeliste
Lagerstatus:
Utsolgt
Artikkelnr.:
Z-RTR0054
Produsent:
RC4WD
E-postvarsling Vi beklager, men produktet er midlertidig utsolgt. Legg igjen din e-postadresse og vi vil sende deg en melding så snart varen kommer tilbake på lager igjen.
vilkårene
  • Produktinfo
  • Produktanmeldelser (0)

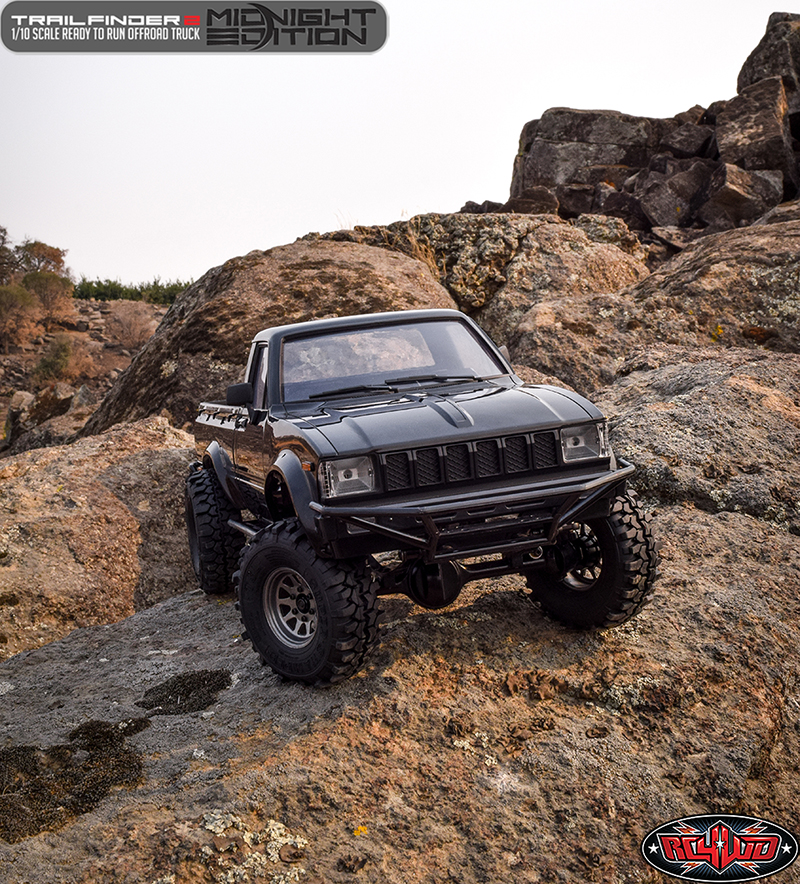

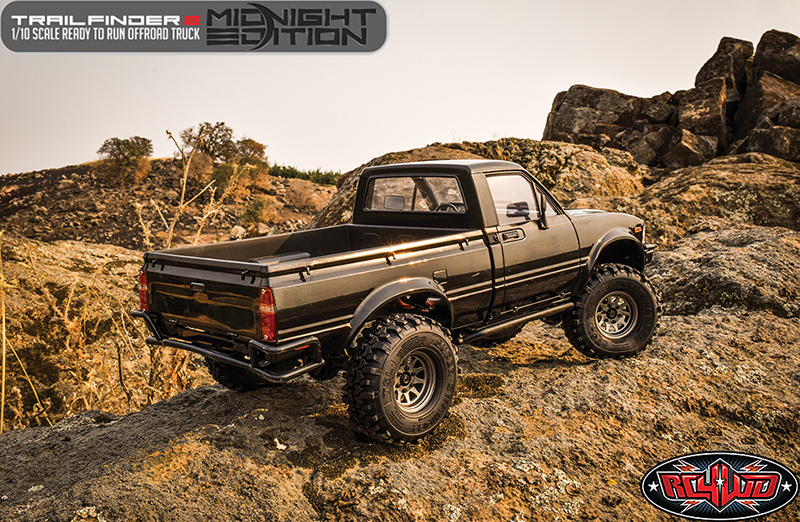

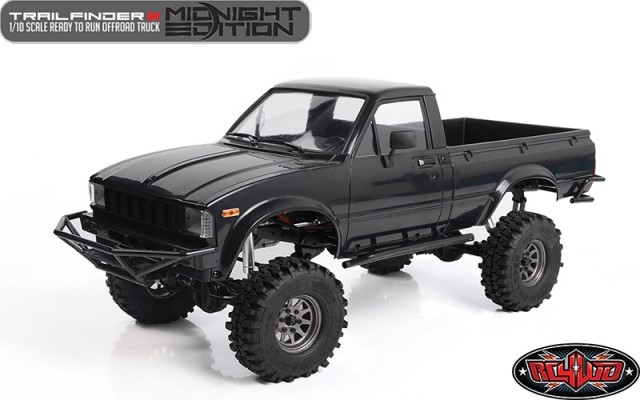

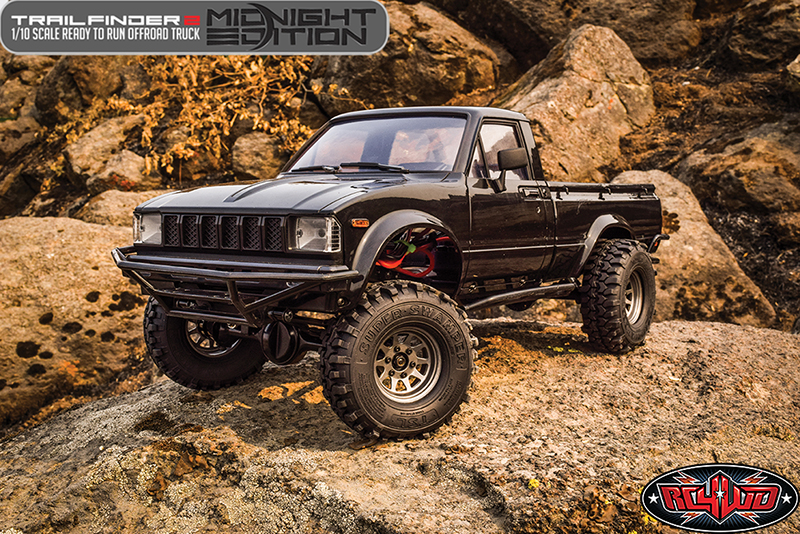

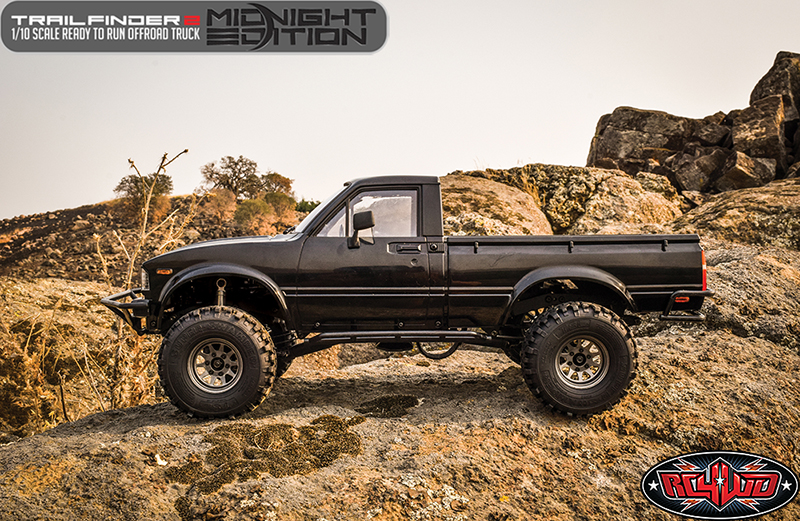

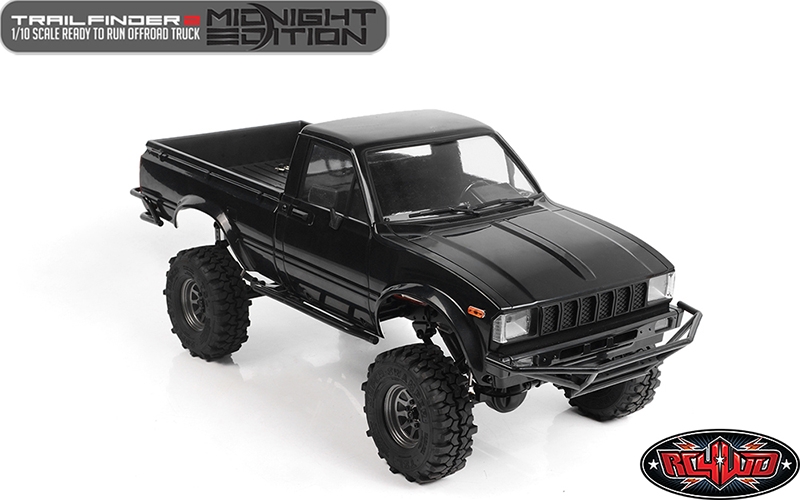

RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Midnight Edition)
https://www.rc4wd.com/ProductImages/Logos/Z-RTR0054logo.png

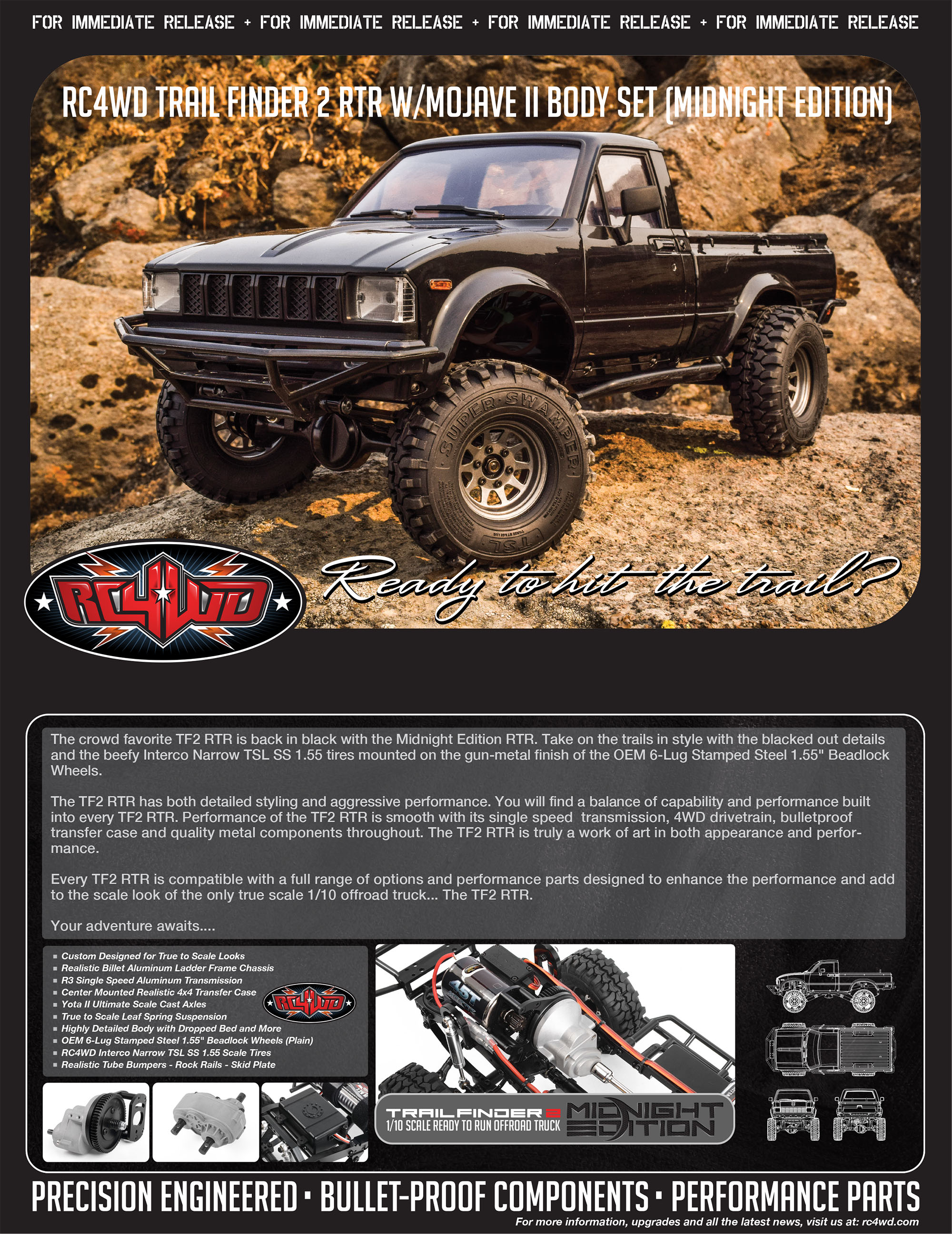

The crowd favorite TF2 RTR is back in black with the Midnight Edition RTR. Take on the trails in style with the blacked out details and the beefy Interco Narrow TSL SS 1.55 tires mounted on the gun-metal finish of the OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels.

The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 RTR is smooth with its single speed transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.

Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 RTR.

Your adventure awaits....

Custom Designed for True-to-Scale Looks
Realistic Billet Aluminum Ladder Frame Chassis
R3 Single Speed Aluminum Transmission
Center Mounted Realistic 4x4 Transfer Case
Yota II Ultimate Scale Cast Axles
True to Scale Leaf Spring Suspension
Highly Detailed Body with Dropped Bed and More
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain)
RC4WD Interco Narrow TSL SS 1.55 Scale Tires
Realistic Tube Bumper - Rock Rails - Skid Plate

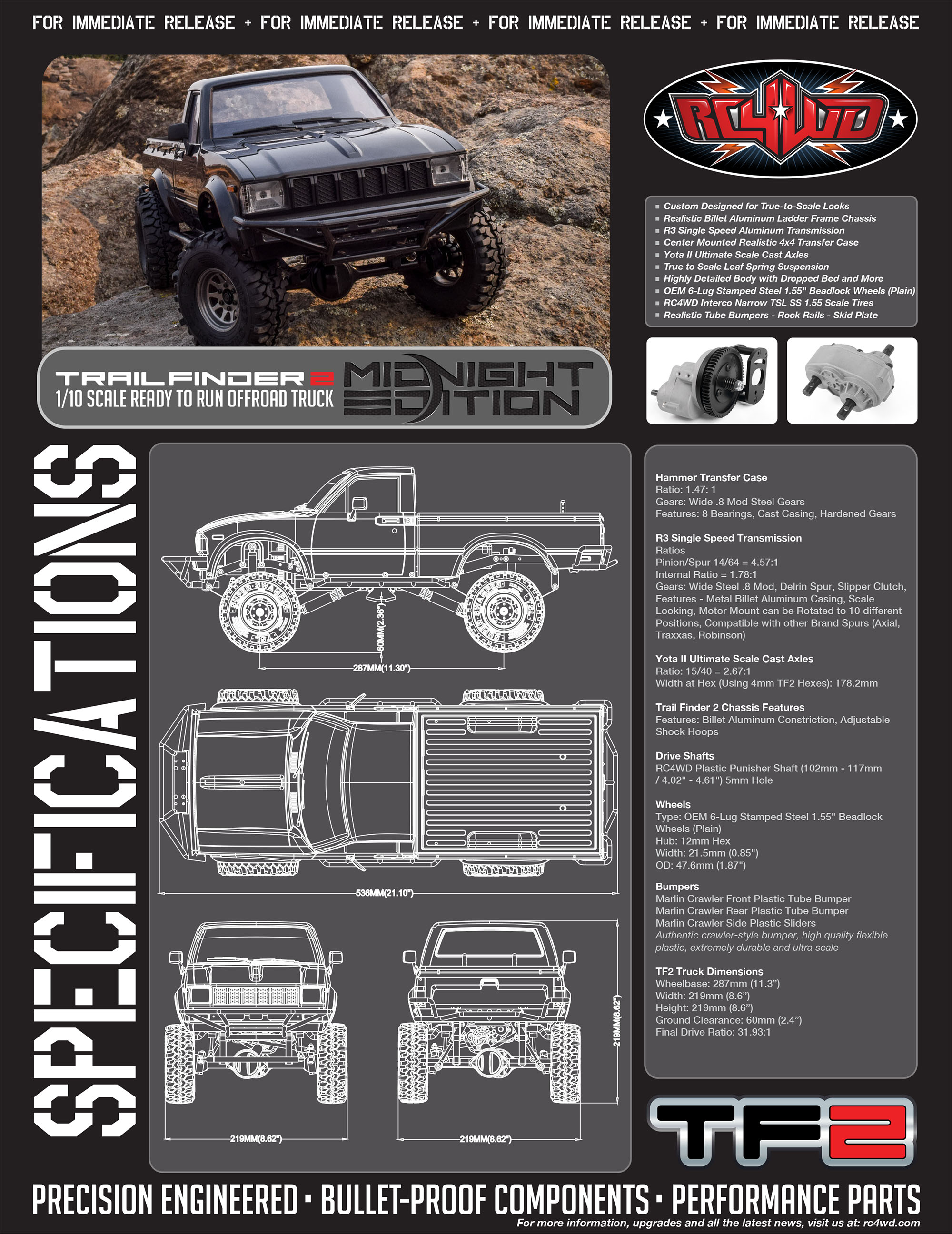

Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios
Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch,
Features - Metal Billet Aluminum Casing, Scale Looking, Motor Mount can be Rotated to 10 different Positions, Compatible with other Brand Spurs (Axial, Traxxas, Robinson)

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.2mm

Trail Finder 2 Chassis Features
Features: Billet Aluminum Constriction, Adjustable Shock Hoops

Drive Shafts
RC4WD Plastic Punisher Shaft (102mm - 117mm / 4.02" - 4.61") 5mm Hole

Wheels
Type: OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain)
Hub: 12mm Hex
Width: 21.5mm (0.85")
OD: 47.6mm (1.87")

Bumpers
Marlin Crawler Front Plastic Tube Bumper
Marlin Crawler Rear Plastic Tube Bumper
Marlin Crawler Side Plastic Sliders
Authentic crawler-style bumper, high quality flexible plastic, extremely durable and ultra scale

TF2 Truck Dimensions
Wheelbase: 287mm (11.3'')
Width: 219mm (8.6'')
Height: 219mm (8.6'')
Ground Clearance: 60mm (2.4'')
Final Drive Ratio: 31.93:1

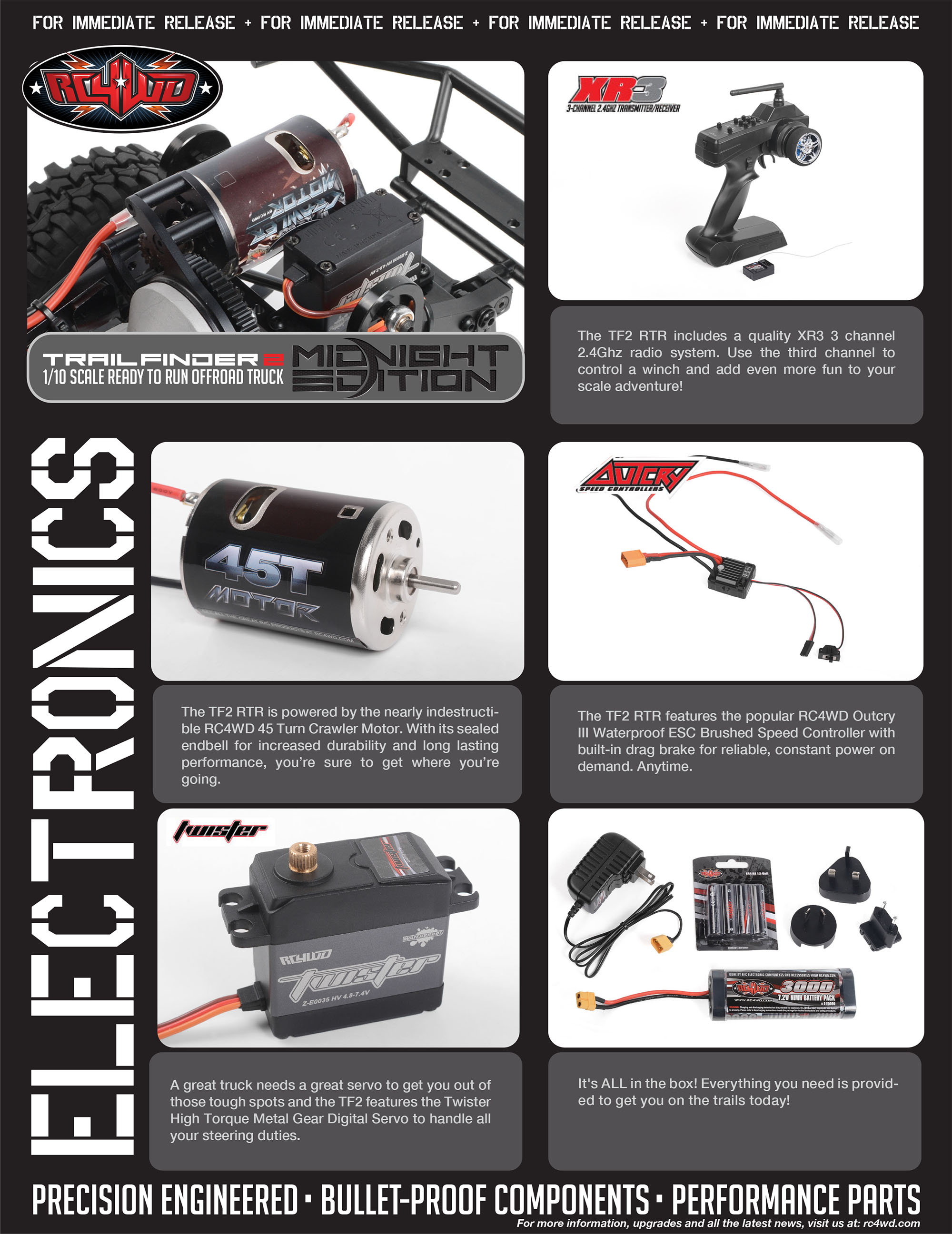

ELECTRONICS

The TF2 RTR includes a quality XR3 3 channel 2.4Ghz radio system. Use the third channel to control a winch and add even more fun to your scale adventure!

The TF2 RTR is powered by the nearly indestructible RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going.

The TF2 RTR features the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the TF2 features the Twister High Torque Metal Gear Digital Servo to handle all your steering duties.

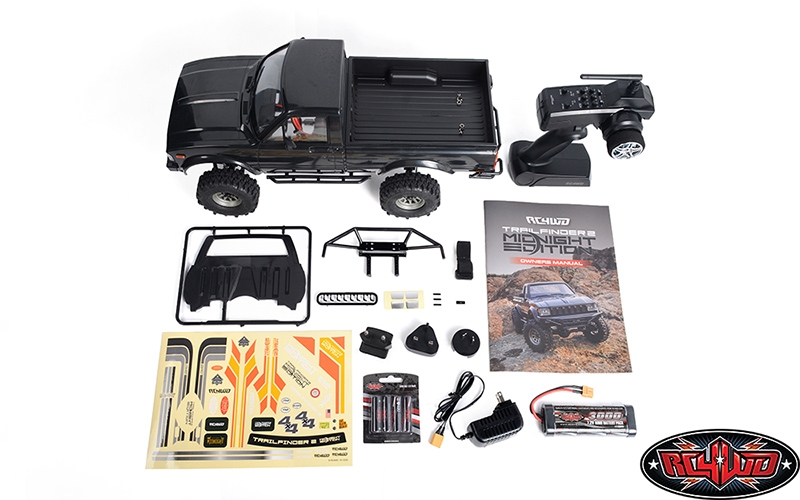

It's ALL in the box! Everything you need is provided to get you on the trails today!

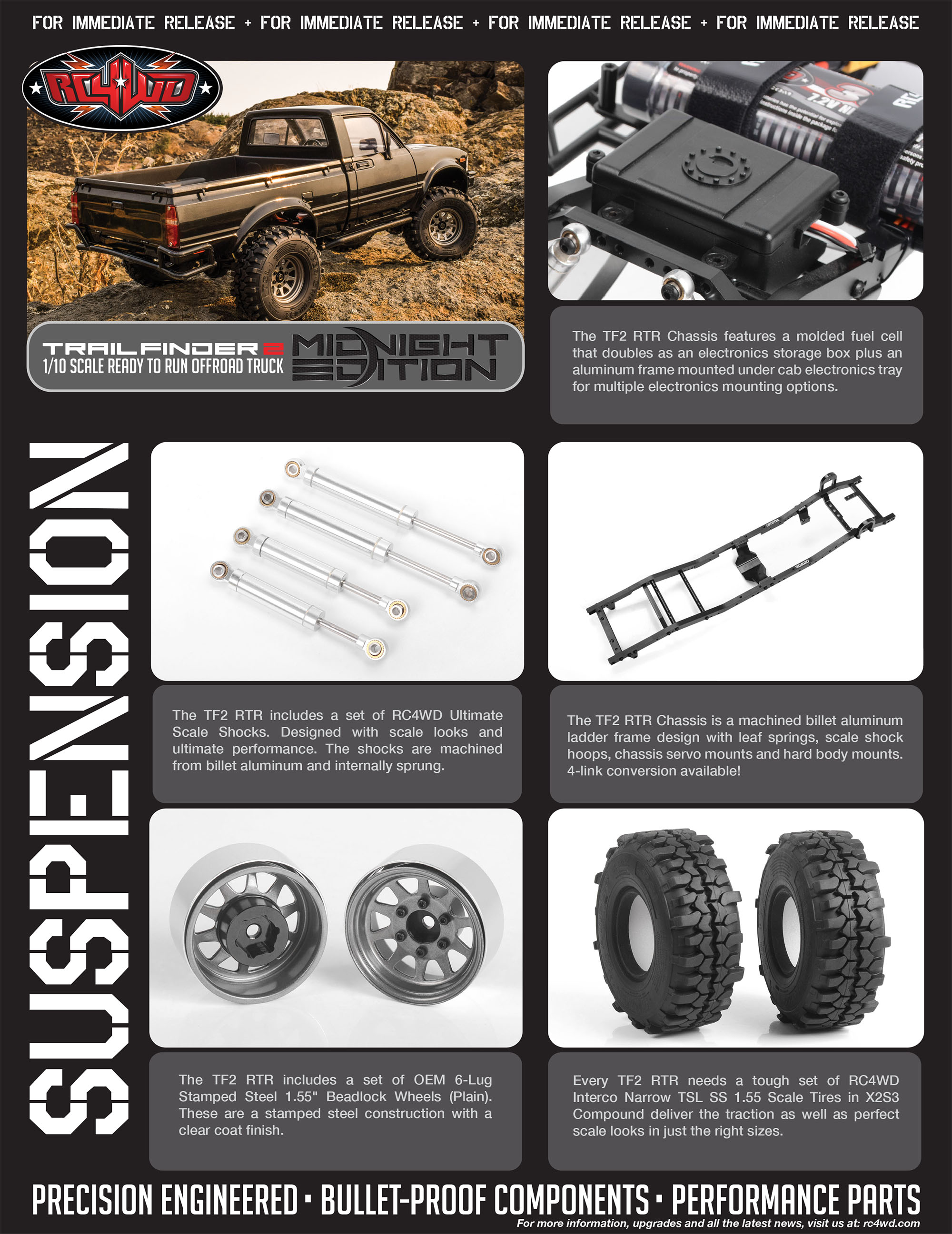

SUSPENSION

The TF2 RTR Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum frame mounted under cab electronics tray for multiple electronics mounting options.

The TF2 RTR includes a set of RC4WD Ultimate Scale Shocks. Designed with scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

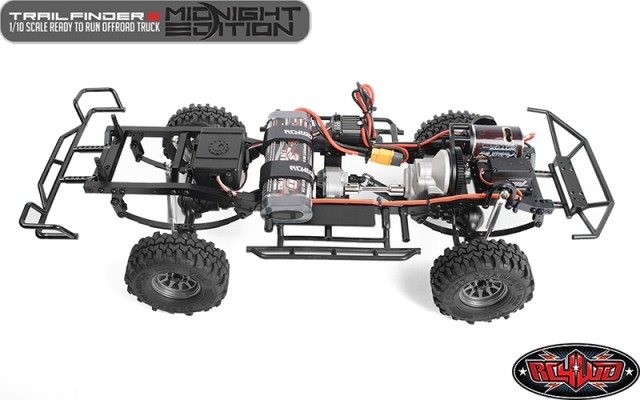

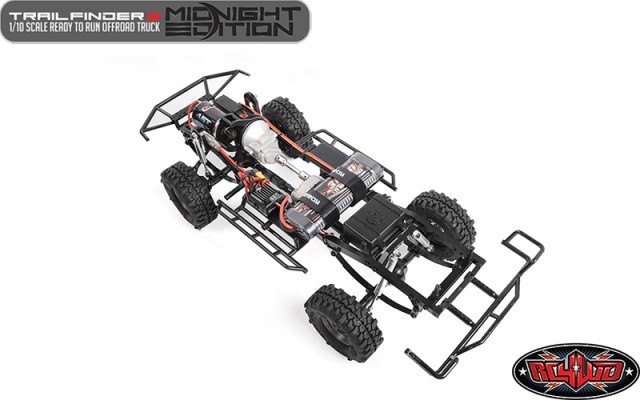

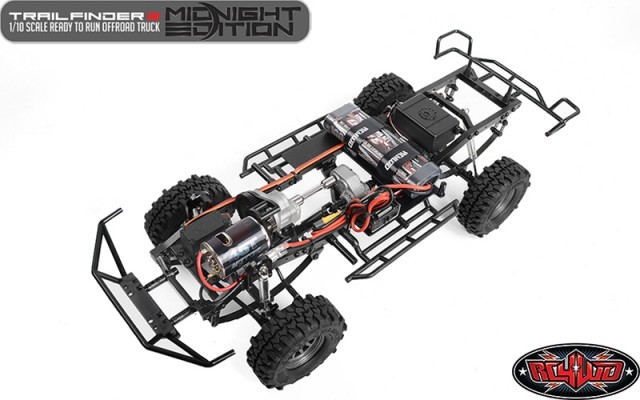

The TF2 RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available!

The TF2 RTR includes a set of OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain). These are a stamped steel construction with a clear coat finish.

Every TF2 RTR needs a tough set of tires, the RC4WD Interco Narrow TSL SS 1.55 Scale Tires in X2S3 Compound deliver the traction as well as perfect scale looks in just the right sizes.




DETAILS

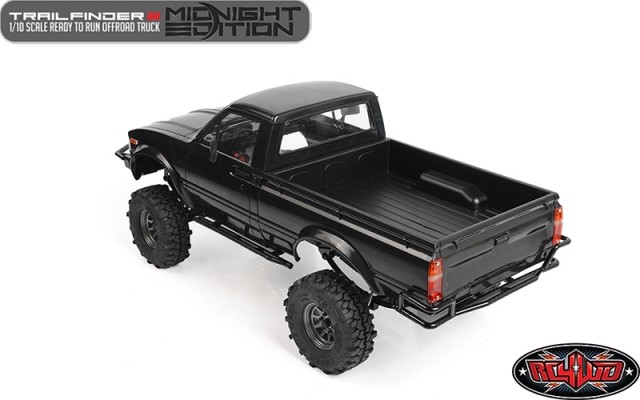

The Mojave Body Set features a Gloss Black injection molded ABS plastic body. The body has painted details around the windows and bed to enhance the looks.

The TF2 RTR Mojave Body Set included a great dropped bed molded directly into the body. Pre-painted black, it's perfect for carrying all your scale accessories or spare wheels and tires.

The TF2 RTR Mojave body features model style square headlights, chrome bumpers and a pre-painted grill and headlight reflectors. A chrome finish bumper is also included.

The TF2 RTR Mojave Body Set includes pre-paint- ed tail lights and side marker lights. For even more realism, it's easy to add LED lighting to your truck.

The TF2 RTR also includes all scale rock sliders, plus rear tube rock guard bumpers. These great accessories protect your truck from scrapes.

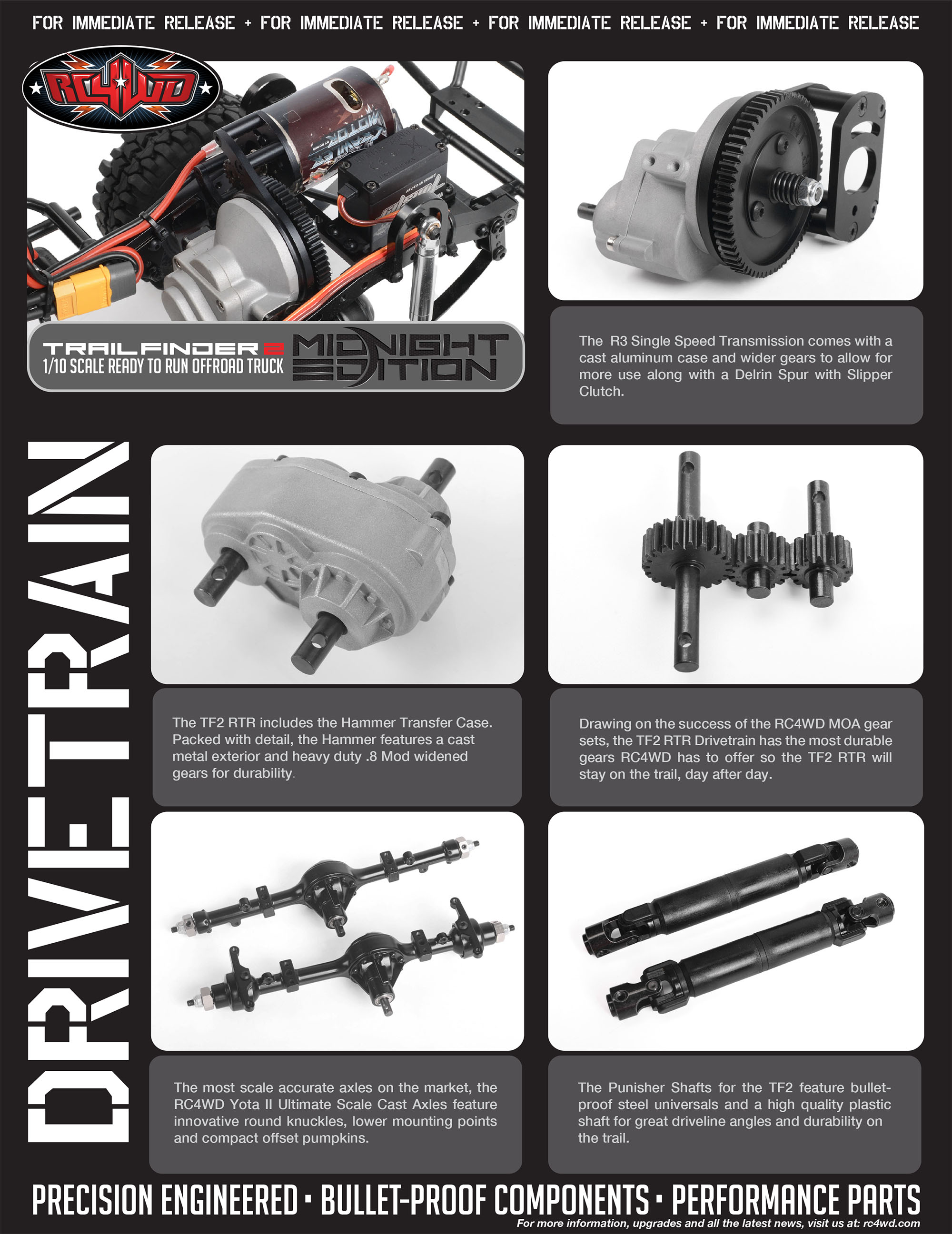

DRIVETRAIN

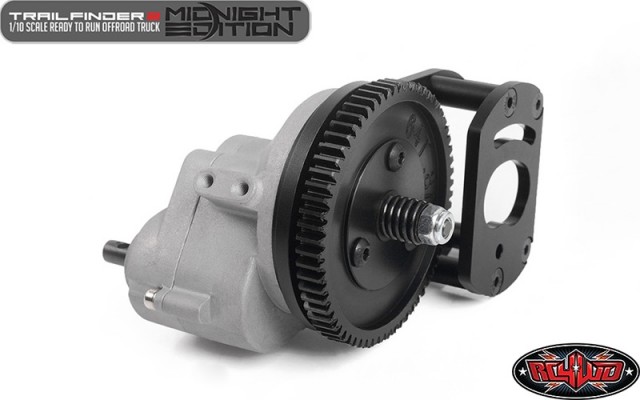

The R3 Single Speed Transmission comes with a cast aluminum case and wider gears to allow for more use along with a Delrin Spur with Slipper Clutch.

The TF2 RTR includes the Hammer Transfer Case. Packed with detail, the Hammer features a cast metal exterior and heavy duty .8 Mod widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer so the TF2 RTR will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative round knuckles, lower mounting points and compact offset pumpkins.

The Punisher Shafts for the TF2 feature bullet- proof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.






What's Included:
  • 1x RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Midnight Edition)

Replacements Parts:
  • The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
  • The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
  • 540 Crawler Brushed Motor 45T (Z-E0004)
  • XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
  • Twister High Torque Metal Gear Digital Servo (Z-E0035)
  • Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
  • Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
  • Outcry III Waterproof ESC (Z-E0113)
  • RC4WD Plastic Punisher shaft (102mm - 117mm / 4.02" - 4.61") 5mm Hole (Z-S2020)
  • OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0308)
  • RC4WD Interco Narrow TSL SS 1.55 Scale Tires (Z-T0182)

Optional Parts:
  • Trail Finder 2 V8 Engine Mounts (Z-S1239)
  • RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
  • RC4WD Skid Plate for Trail Finder 2 V8/R4 (Z-S1488)
  • BigDog 1/10 Dual Axle Scale Boat Trailer (Z-H0006)
  • Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
  • RC4WD 1/10 Holley® M/T Valve Covers for Scale V8 Motor (Z-S1748)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (120mm/4.72") (Z-E0095)
  • Bench Seat (Z-B0032)
  • 4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
  • 3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
  • XVD Axle for Ultimate Scale Yota II G2 Axle (Z-S0823)
  • Scale Aisin/Yota Style Hubs (Z-S0196)
  • RC4WD Marlin Crawler Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
  • Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
  • RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
  • Red Super Soft Flex Leaf Springs (Z-S0570)
  • Scale Steel Punisher Shaft (100mm - 130mm / 3.94" - 5.12") 5mm (Z-S0209)
  • LED Basic Lighting System For Mojave II 2/4 Door Body (Z-E0016)
  • RC4WD Type B Machine Front Winch Bumper for TF2 (Z-X0053)
  • Mojave Body Lift Kit for Trail Finder 2 (Z-S0682)
  • RC4WD King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
  • RC4WD King Off-Road Scale Dual Spring Shocks (90mm) (Z-D0033)
  • RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
  • RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
  • Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
  • The Ultimate Scale Shocks 80mm (Silver) (Z-D0005)
  • RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
  • RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
  • RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
  • RC4WD Bilstein SZ Series 100mm Scale Shock Absorbers (Z-D0074)
  • RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
  • Truck Bed Mount Angled Spare Tire Carrier (Z-S0358)
  • Big Boss Fender Flares (Z-S0590)
  • Front Inner Fender Set for Mojave / Hilux Body (Z-S1192)
  • Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 (Z-S0765)
  • RC4WD Marlin Crawler Rear Steel Tube Bumper for Trail Finder 2 (Z-S1373)
  • RC4WD Warn Rock Crawler Rear Bumper for Trail Finder 2 (Z-S1561)
  • RC4WD Safari Snorkel for Mojave II 2/4 Door Body Set (Z-S1826)
  • Low Profile Delrin Skid Plate for Std. TC (TF2) (Z-S1851)
  • Blade Snow Plow Mounting Kit for Trail Finder 2 / G2 (Z-S1859)
  • Tough Armor Front Winch Bumper for Mojave II 2/4 Door Body Set (Z-S1845)
  • Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
  • Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
  • Scale Steel Punisher Shaft (87mm - 110mm / 3.42" - 4.33") (Z-S1902)
  • Hitch Mount for RC4WD TF2 (Z-S1870)
  • Tough Armor Rear Steel Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1830)
  • Tough Armor Rear Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1827)
  • Hitch Mount for RC4WD TF2 (Z-S1870)
  • Tough Armor Rear Steel Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1830)
  • Tough Armor Rear Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1827)
  • Tough Armor Competition Stinger Bumper for Trail Finder 2 (Z-S1857)
  • RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
  • Trail Finder 2 Aluminum Side Body Posts (Z-S1882)
  • Trail Finder 2 Rear Leaf Spring Reverse Mount (Z-S0415)
  • Tough Armor Comp Series Flush Mount Bumper for TF2 (Z-S1874)
  • RC4WD N-Fab Roof Mounting Light Bracket for Mojave 2/4dr (Z-S0699)
  • Tough Armor Tube Winch Bumper for 1985 Toyota 4Runner (Z-S1904)
  • RC4WD Baja Designs Arc Series Light Bar (124mm) (Z-E0105)
  • RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
  • RC4WD ARB Intensity LED Light Set (Z-E0112)
  • RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
  • BigDog 1/10 Tri Axle Widebody Scale Boat Trailer (Z-H0016)
  • RC4WD Mojave II Two Door Complete Interior w/Metal Details (Z-B0173)
  • RC4WD Dirty Stripes for Mojave II 2/4 Door Decal Sheet (White) (Z-B0203)
  • RC4WD Chevrolet Blazer Hard Body Complete Set (Yellow) (Z-B0152)
  • RC4WD Chevrolet Blazer Hard Body Complete Set (Teal) (Z-B0150)
  • RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Z-B0167)
  • RC4WD Chevrolet Blazer Hard Body Complete Set (Light Blue) (Z-B0148)
  • RC4WD Chevrolet Blazer Hard Body Complete Set (Orange) (Z-B0146)
  • RC4WD Mickey Thompson 1.55" Baja MTZ P3 Scale Tires (Z-T0058)
  • RC4WD Mickey Thompson 1.55" Baja Claw TTC Scale Tires (Z-T0064)
  • RC4WD Goodyear Wrangler Duratrac 1.55" 4.19" Scale Tires (Z-T0177)
  • RC4WD Interco IROK ND 1.55" Scale Tires (Z-T0163)
  • RC4WD Interco IROK 1.55" Scale Tires (Z-T0056)
  • RC4WD Falken Wildpeak A/T3W 1.55 Scale Tires (Z-T0169)
  • RC4WD Interco Narrow TSL SS 1.55 Scale Tires (Z-T0182)
  • Mud Hogs 1.55" Scale Tires (Z-T0029)
  • Rocky Country 1.55" Truck Tires (Z-T0022)
  • RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
  • RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
  • RC4WD Milestar Patagonia A/T 1.7" Tires (Z-T0181)
  • RC4WD Dirty Life RoadKill 1.7" Beadlock Wheels (Silver) (Z-W0298)
  • RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
  • RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
  • RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
  • RC4WD Michelin LTX A-T2 1.7" Tires (Z-T0194)
  • RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)
  • RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)
  • RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
  • RC4WD Falken Wildpeak A/T Trail 1.9" Scale Tires (Z-T0195)
  • RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
  • TRunner Classic 1.55'' Beadlock Wheels (Z-W0121)
  • Stocker 1.55" Internal Beadlock Wheels (Z-W0276)
  • Ultra 1.55" Beadlock Wheels (Z-W0268)
  • Breaker 1.55" Beadlock Wheels (Z-W0273)
  • OEM Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0258)
  • OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0260)
  • OEM Stamped Steel 1.55" Beadlock Wheels (Black) (Z-W0262)
  • OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264)
  • Black Mesh 1.55" Beadlock Wheels (Z-W0103)
  • Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Black) (Z-W0281)
  • Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0288)
  • RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
  • OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0308)
  • RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
  • Stamped Steel 1.7" Beadlock Wagon Wheels (Clear) (Z-W0272)
  • Stamped Steel 1.7" Beadlock Wagon Wheels (Chrome) (Z-W0271)
  • Stamped Steel 1.7" Beadlock Wagon Wheels (White) (Z-W0269)
  • RC4WD Walker Evans 501 Legend 1.7" Beadlock Wheels (Z-W0320)
  • Stamped Steel 1.7" 10-Oval Hole Wheels (White) (Z-W0311)
  • Stamped Steel 1.7" 10-Oval Hole Wheels (Plain) (Z-W0312)
  • Stamped Steel 1.7" 10-Oval Hole Wheels (Black) (Z-W0313)
  • RC4WD Raceline Monster Deep Dish 1.7" Beadlock Wheels (Z-W0304)
  • RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
  • Stamped Steel 1.7" Beadlock Wagon Wheels (Black) (Z-W0270)
  • RC4WD Black Rhino Armory Internal Beadlock Deep Dish 1.9" Wheels (Z-W0293)
  • RC4WD Fuel Zephyr Beadlock Wheels 1.9" (Z-W0294)
  • Tango Down 1.9" Internal Beadlock Wheels (Gun Metal) (Z-W0297)
  • Classic 10-Hole Chrome 1.9" Beadlock Wheels (Z-W0296)
  • Breaker 1.9" Beadlock Wheels (Gold) (Z-W0325)
  • 1.9" 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
  • T-Runner Classic 1.9'' Beadlock Wheels (Z-W0250)
  • RC4WD Level 8 Bully Pro 6 1.9" Beadlock Wheels (Z-W0300)
  • RC4WD ION Style 71 1.9" Beadlock Wheels (Z-W0303)
  • RC4WD Dirty Life MB 1.9" Beadlock Wheels (Z-W0306）
  • RC4WD Ballistic Off Road Rage 1.9'' Beadlock Wheels (Z-W0261)
  • Rally 1.9" Beadlock Wheels (Gold) (Z-W0324）
  • RC4WD TUFF T21 1.9" Internal Beadlock Wheels (Z-W0307)
  • RC4WD Ridler 645 1.9" Internal Beadlock Wheels (Z-W0305)
  • RC4WD Enforcer 1.9" Beadlock Wheels (Red) (Z-W0323)
  • RC4WD Rogue 1.9" Beadlock Wheels (Z-W0314)
  • RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
  • RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
  • JK 1.9" Scale Beadlock Wheels (Z-W0151)
  • Tango Down 1.9" Internal Beadlock Wheels (Black) (Z-W0038)
  • RC4WD Yota Narrow Offset 1.9" Beadlock Wheels (Z-W0283)
  • Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
  • Helical Gear Set for 1/10 Yota Axle (Z-G0059)
  • Anti Wrap Bar for Yota 2 Axles (Z-S0782)

Recommended Tools/Supplies:
  • Hex Drivers (1.5mm, 2mm, 2.5mm)
  • Long Nose Pliers
  • Medium (Blue) Thread Lock
  • Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
  • Phillips Screwdrivers (small)
  • Grease and Lubrication (Z-S1199) (Z-S1197)

Instruction Manuals:

Press Information:

Notes:
  • While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require thread lock.
  • Use thread lock sparingly.
  • Do not over tighten screws otherwise you may strip the thread.

Skriv en produktanmeldelse og del dine erfaringer med dette produktet med andre kunder.
