RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)

PrisNOK8 995,00 inkl. mva.
Ønskeliste
Lagerstatus:
Utsolgt
Artikkelnr.:
Z-RTR0067
Produsent:
RC4WD
E-postvarsling Vi beklager, men produktet er midlertidig utsolgt. Legg igjen din e-postadresse og vi vil sende deg en melding så snart varen kommer tilbake på lager igjen.
vilkårene
  • Produktinfo
  • Produktanmeldelser (0)

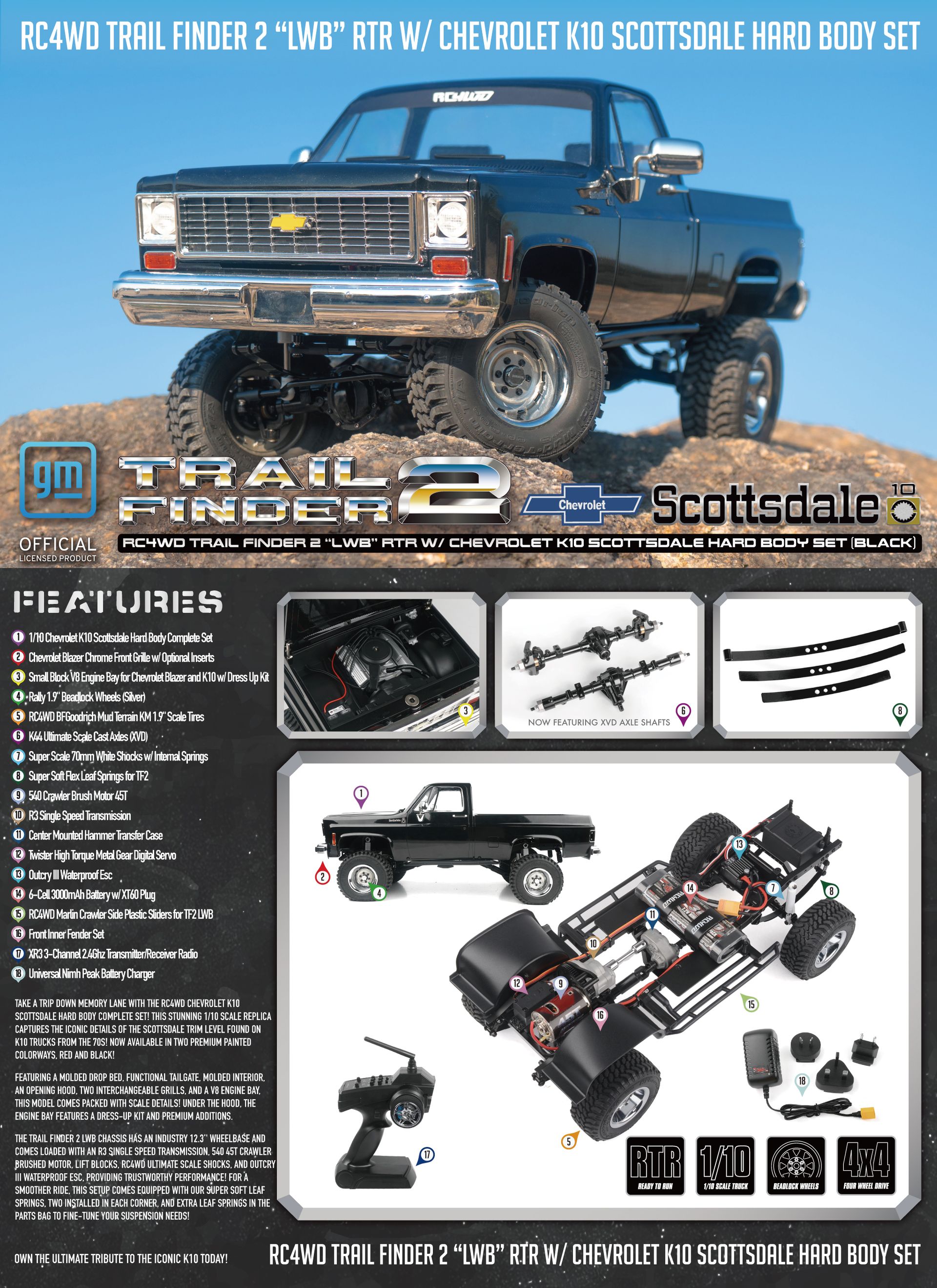

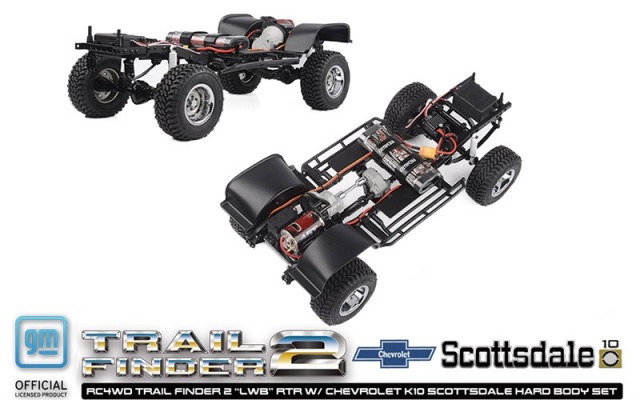

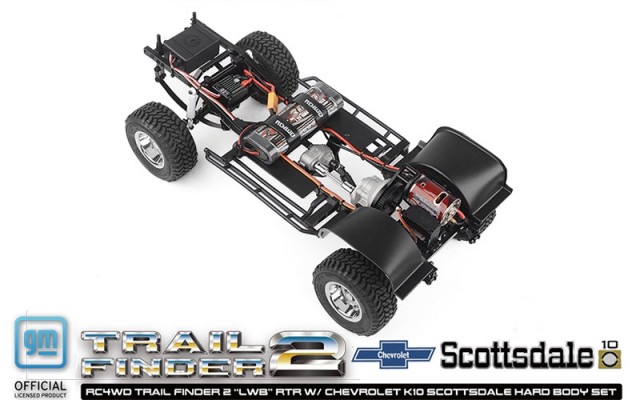

RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)

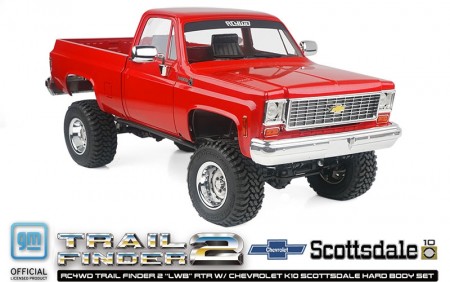

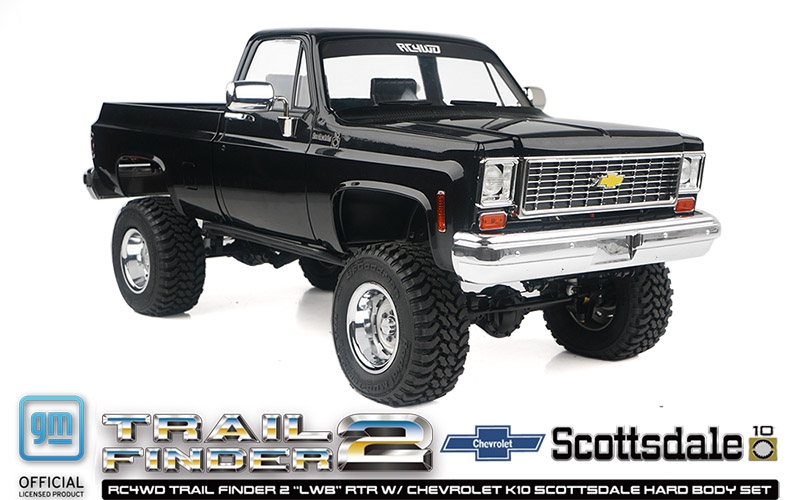

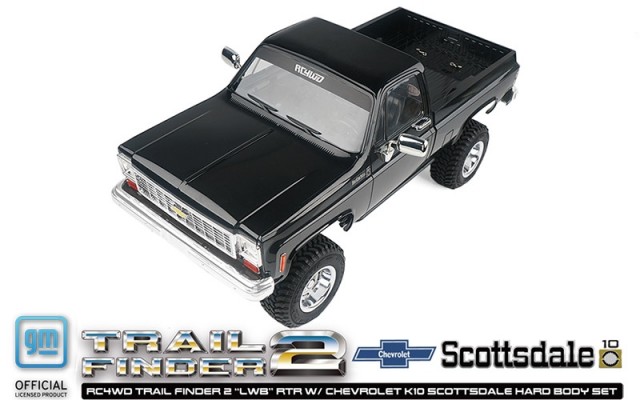

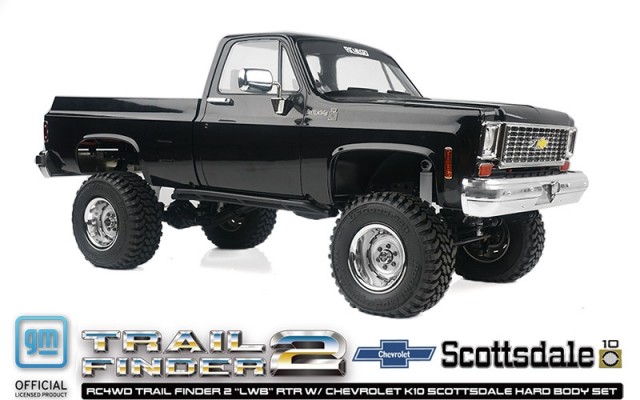

Take a trip down memory lane with the RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set! This stunning 1/10 scale replica captures the iconic details of the Scottsdale trim level found on K10 trucks from the 70s! Now available in two premium painted colorways, Red and Black!

Featuring a molded drop bed, functional tailgate, molded interior, an opening hood, two interchangeable grills, and a V8 engine bay, this model comes packed with scale details! Under the hood, the engine bay features a dress-up kit and premium additions.

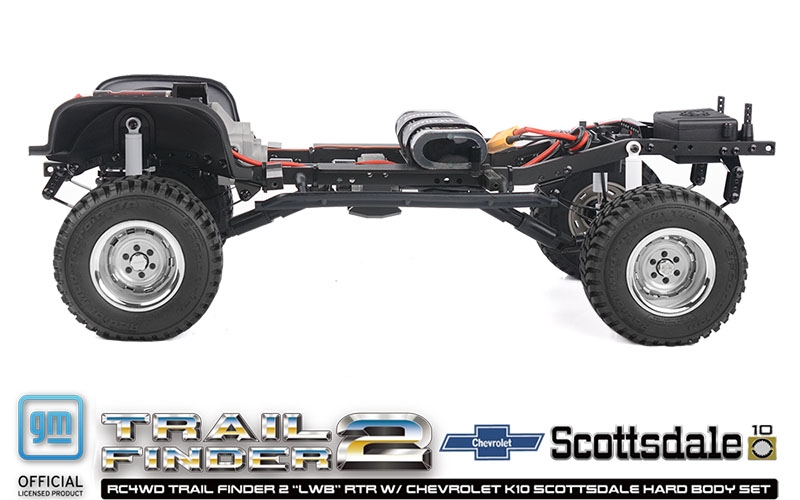

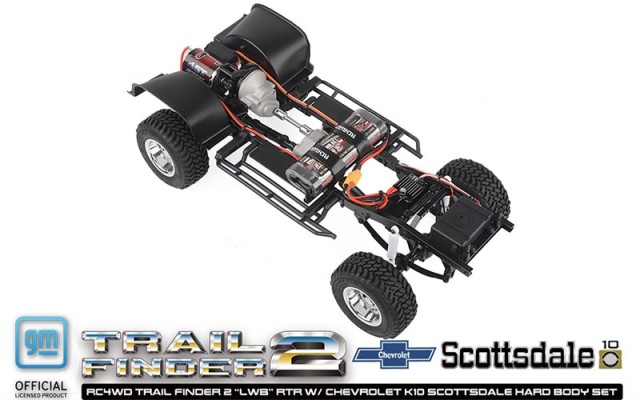

The Trail Finder 2 LWB chassis has an industry 12.3’' wheelbase and comes loaded with an R3 Single Speed Transmission, 540 45T Crawler Brushed Motor, Lift Blocks, RC4WD Ultimate Scale Shocks, and Outcry III Waterproof ESC, providing trustworthy performance! For a smoother ride, this setup comes equipped with our Super Soft Leaf Springs, two installed in each corner, and extra leaf springs in the parts bag to fine-tune your suspension needs!

1/10 Chevrolet K10 Scottsdale Hard Body Complete Set
Chevrolet Blazer Chrome Front Grille w/ Optional Inserts

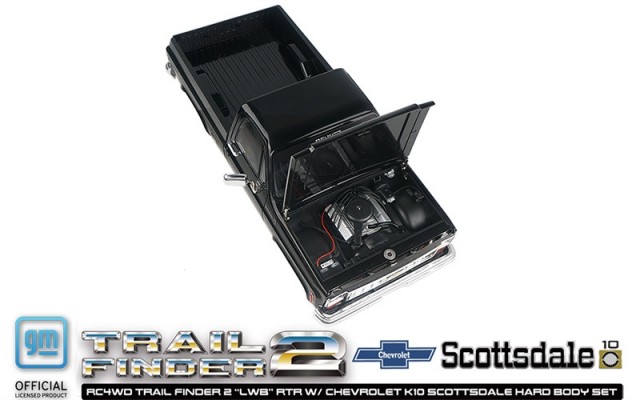

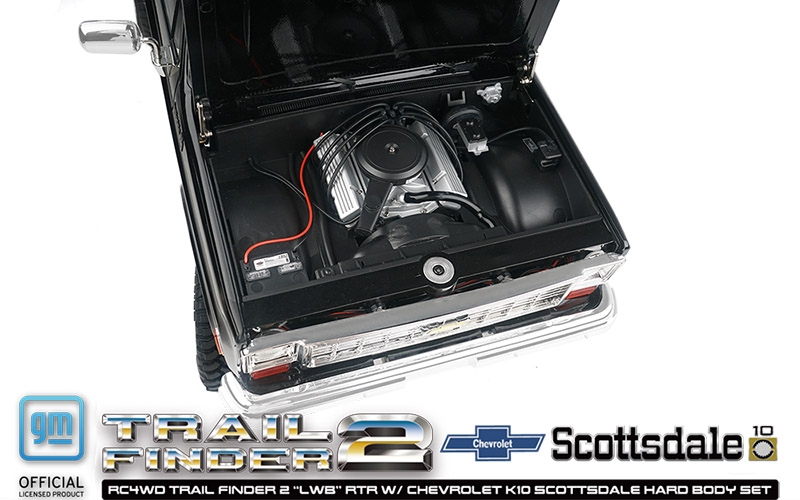

Small Block V8 Engine Bay for Chevrolet Blazer and K10 w/ Dress Up Kit
Rally 1.9" Beadlock Wheels (Silver)
RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires
K44 Ultimate Scale Cast Axles (XVD)
Super Scale 70mm White Shocks w/ Internal Springs
Super Soft Flex Leaf Springs for TF2
540 Crawler Brush Motor 45T
R3 Single Speed Transmission
Center Mounted Hammer Transfer Case
Twister High Torque Metal Gear Digital Servo
Outcry III Waterproof Esc
6-Cell 3000mAh Battery w/ XT60 Plug

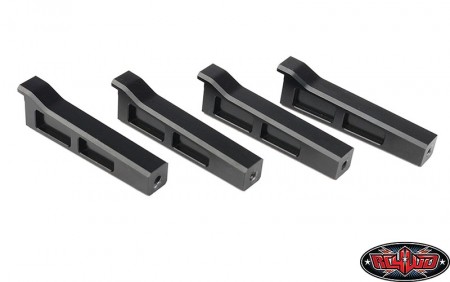

RC4WD Marlin Crawler Side Plastic Sliders for TF2 LWB

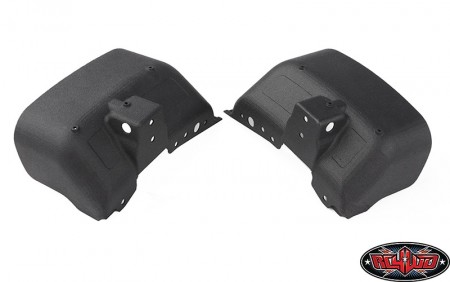

Front Inner Fender Set
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio
Universal Nimh Peak Battery Charger

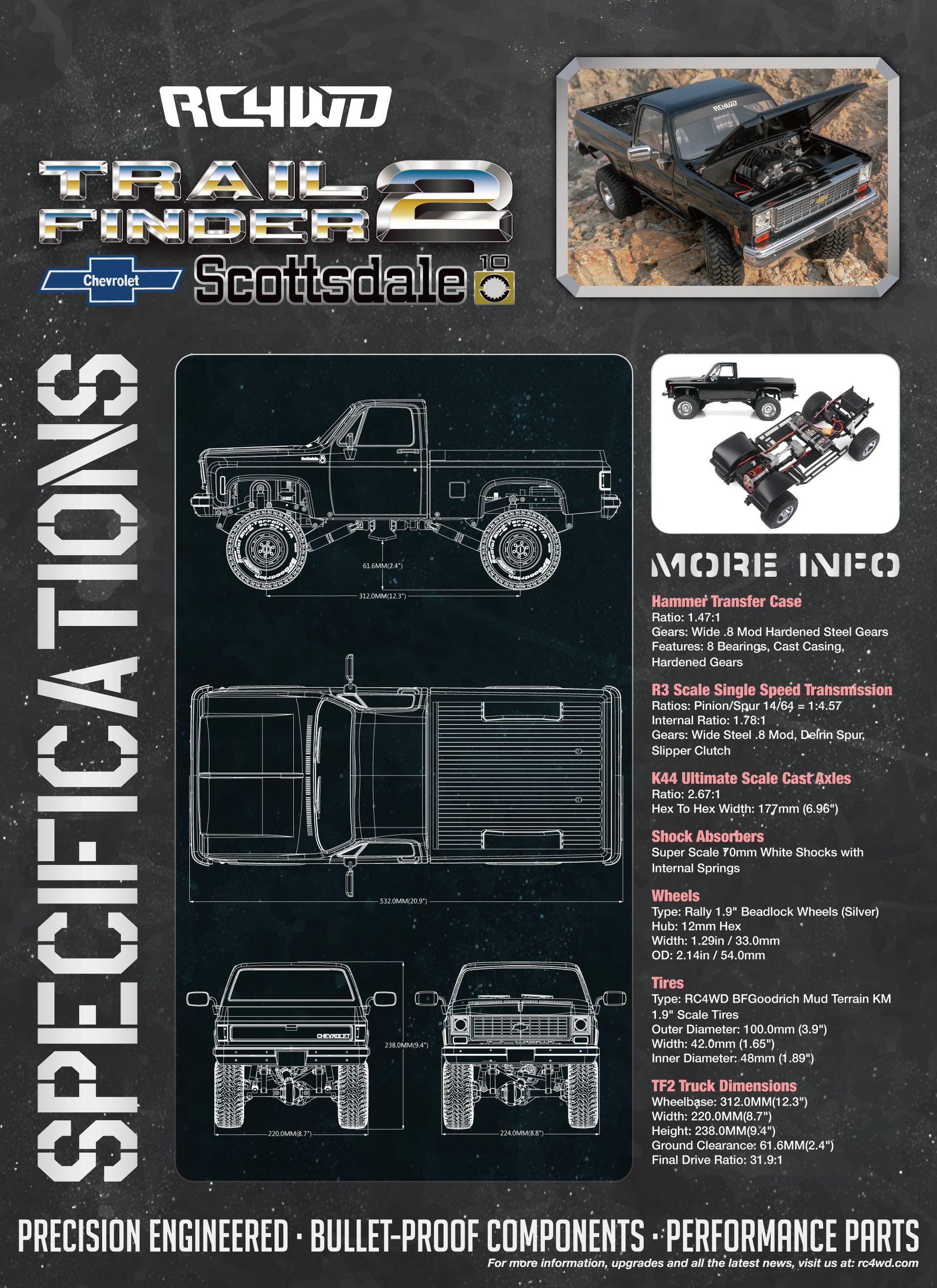

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")

Shock Absorbers
Super Scale 70mm White Shocks with Internal Springs

Wheels
Type: Rally 1.9" Beadlock Wheels (Silver)
Hub: 12mm Hex
Width: 1.29in / 33.0mm
OD: 2.14in / 54.0mm

Tires
Type: RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires
Outer Diameter: 100.0mm (3.9")
Width: 42.0mm (1.65")
Inner Diameter: 48mm (1.89")

TF2 Truck Dimensions
Wheelbase: 312mm (12.3")
Width: 220mm (8.7")
Height: 238mm (9.4")
Ground Clearance: 61.6mm (2.4")
Final Drive Ratio: 31.9:1

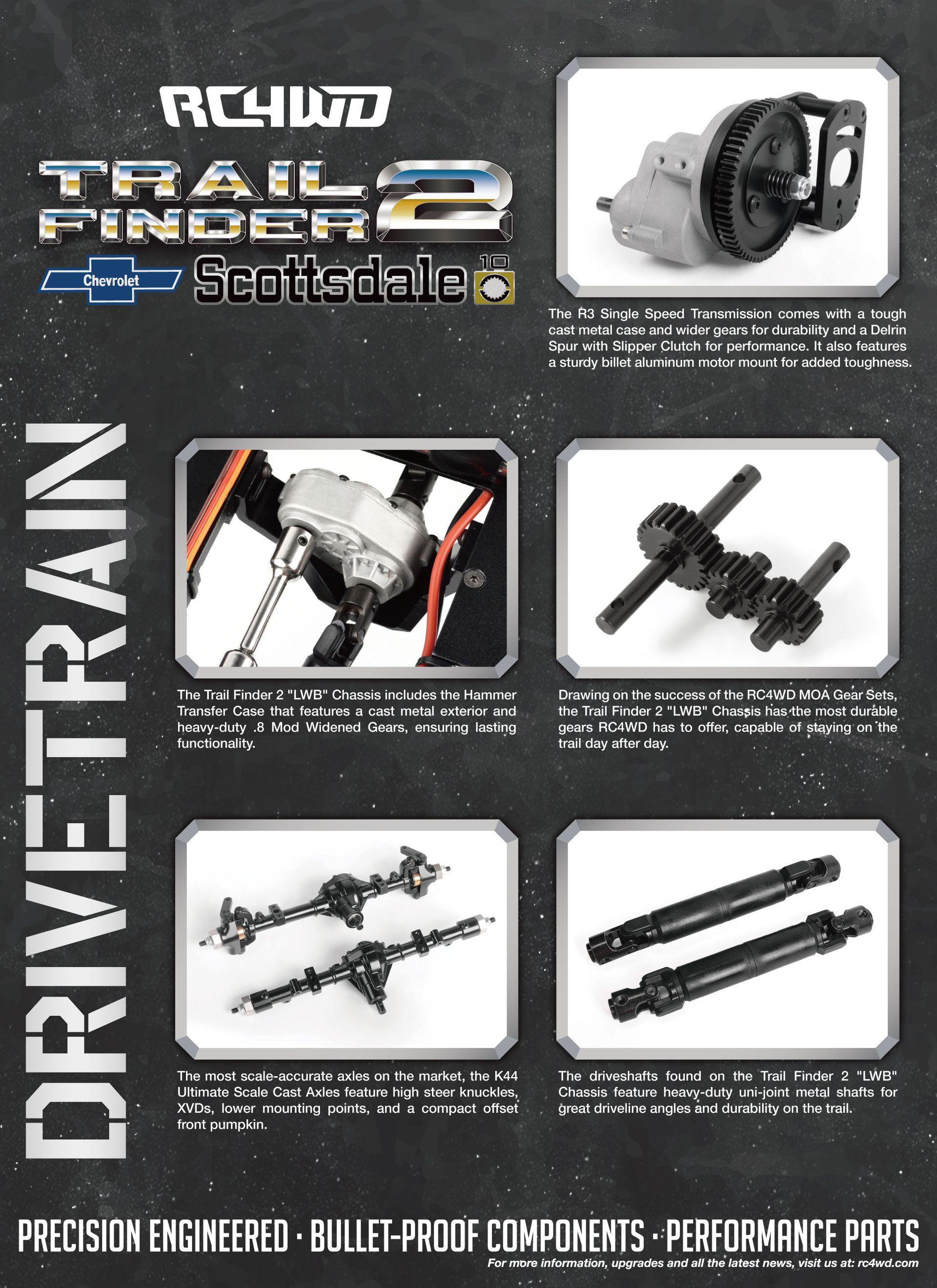

DRIVETRAIN

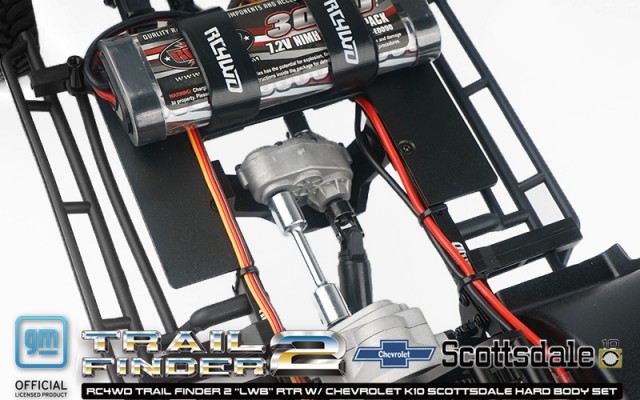

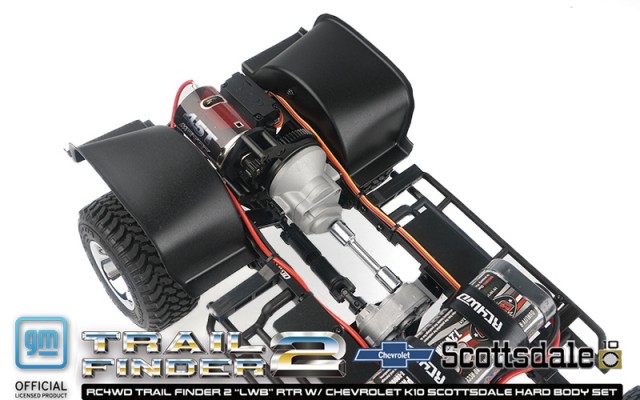

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.

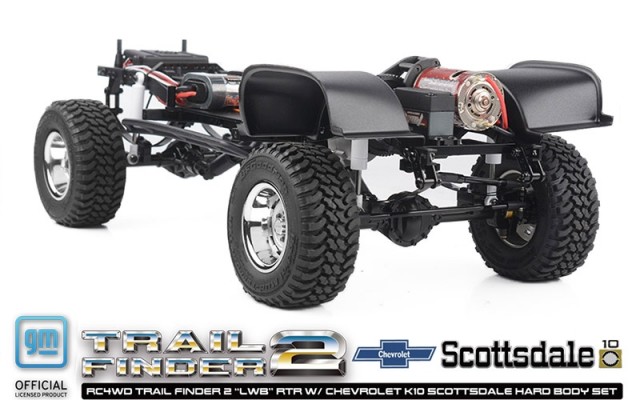

The Trail Finder 2 "LWB" Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 "LWB" Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

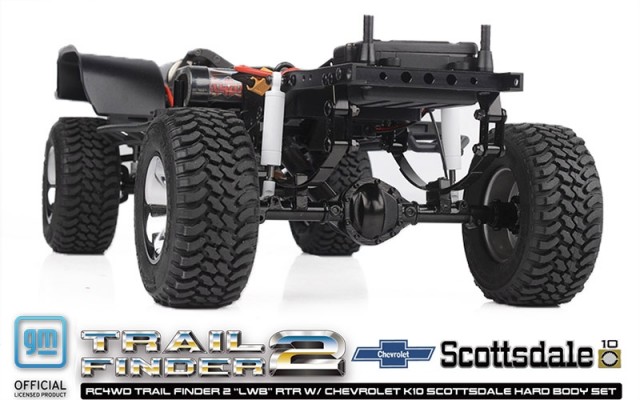

The most scale-accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, XVDs, lower mounting points, and a compact offset front pumpkin.

The driveshafts found on the Trail Finder 2 "LWB" Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

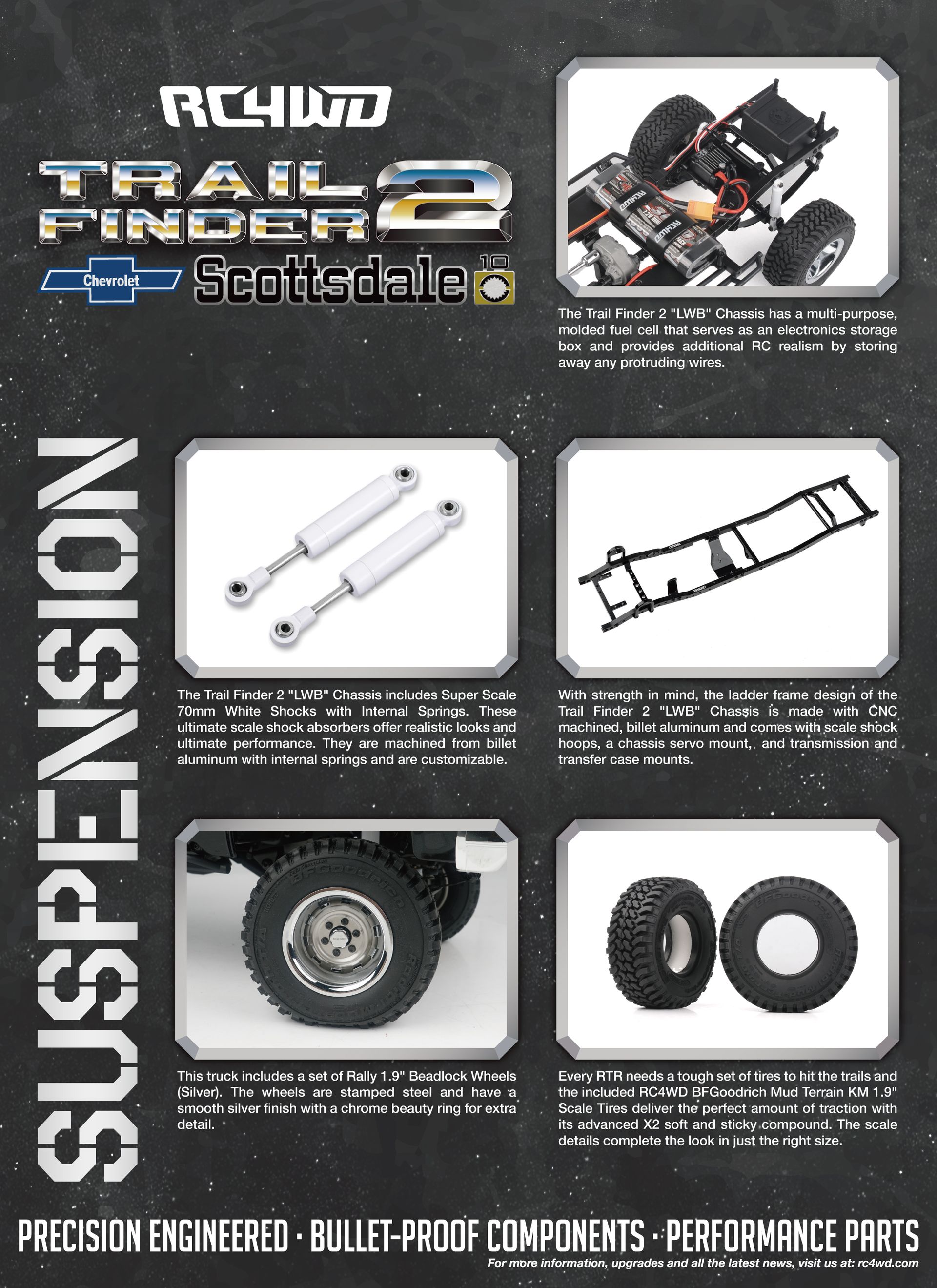

SUSPENSION
The Trail Finder 2 "LWB" Chassis has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away any protruding wires.

The Trail Finder 2 "LWB" Chassis includes Super Scale 70mm White Shocks with Internal Springs. These ultimate scale shock absorbers offer realistic looks and ultimate performance. They are machined from billet aluminum with internal springs and are customizable. Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 "LWB" Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

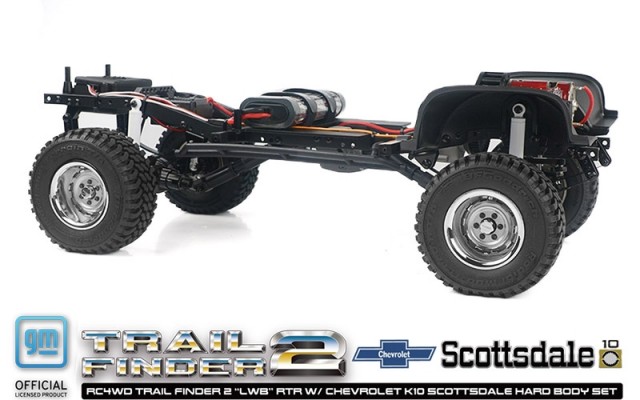

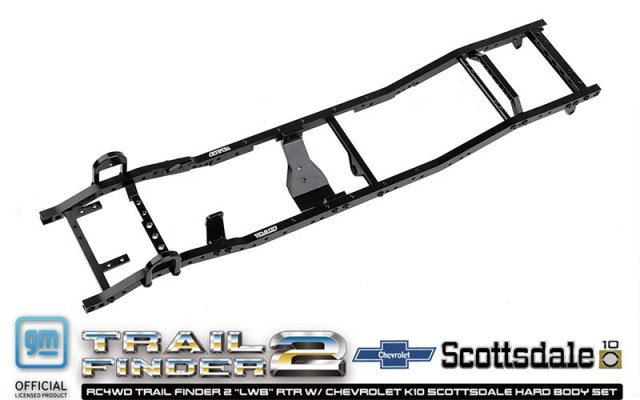

With strength in mind, the ladder frame design of the Trail Finder 2 "LWB" Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

This truck includes a set of Rally 1.9" Beadlock Wheels (Silver). The wheels are stamped steel and have a smooth silver finish with a chrome beauty ring for extra detail.

Every RTR needs a tough set of tires to hit the trails and the included RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires deliver the perfect amount of traction with its advanced X2 soft and sticky compound. The scale details complete the look in just the right size.
DETAILS

Get the look you want with 2 Interchangeable grille options that mimic the classic front style of Chevy trucks from the '70s and allow for extra user customization!

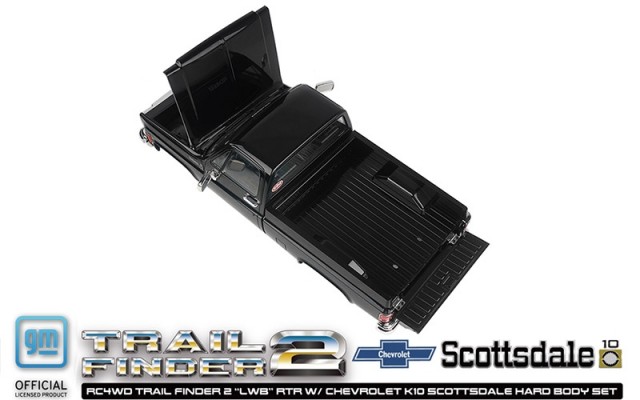

The Chevrolet K10 Scottsdale Hard Body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.

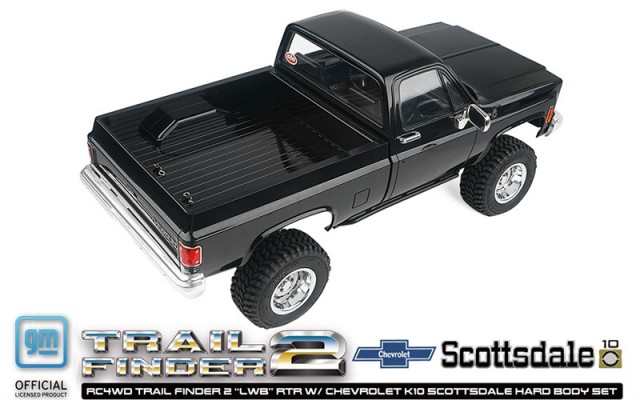

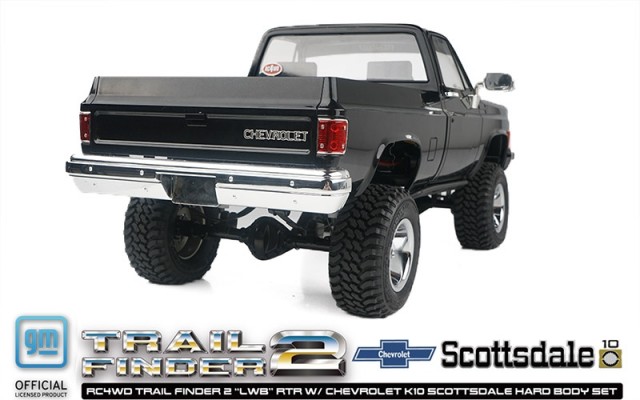

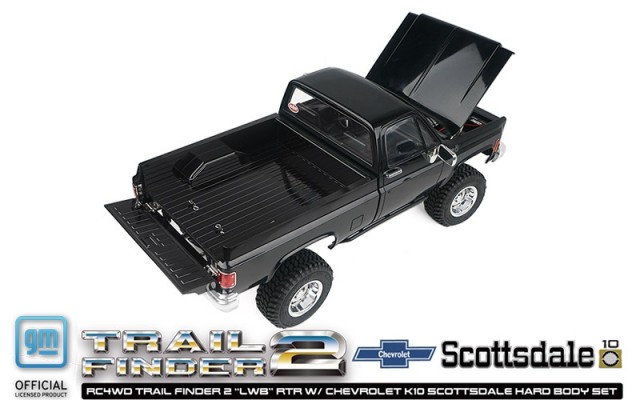

The Chevrolet K10 Scottsdale Hard Body features a molded, realistic drop bed and an opening hood and tailgate. The masters of scale are unmatched when it comes to details.

The Chevrolet K10 Scottsdale Hard Body set includes an improved dashboard with preinstalled, super-scale interior decals and door panels.

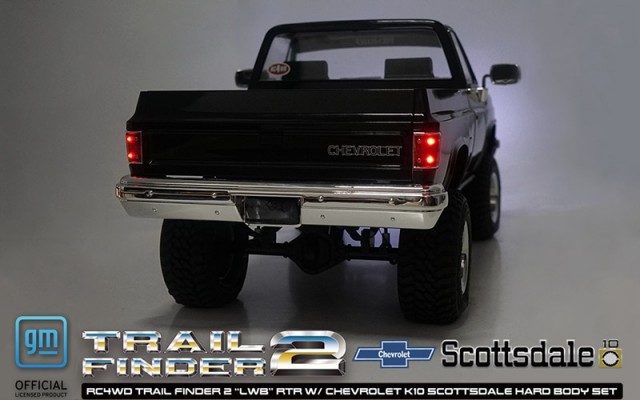

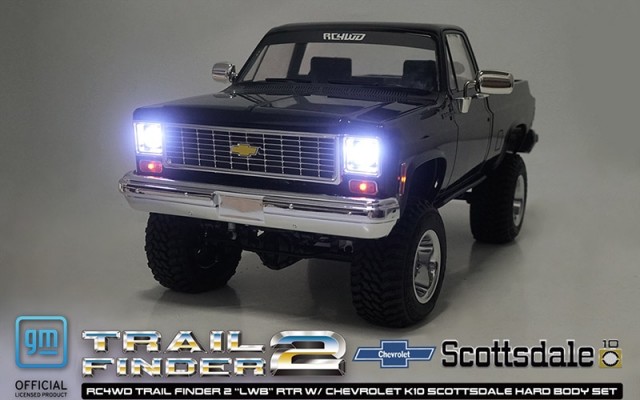

Included are Chrome-plated parts and colored lenses for all signal lights! Straight out of the box, an LED light set comes professionally installed and out of sight, keeping that realistic look.

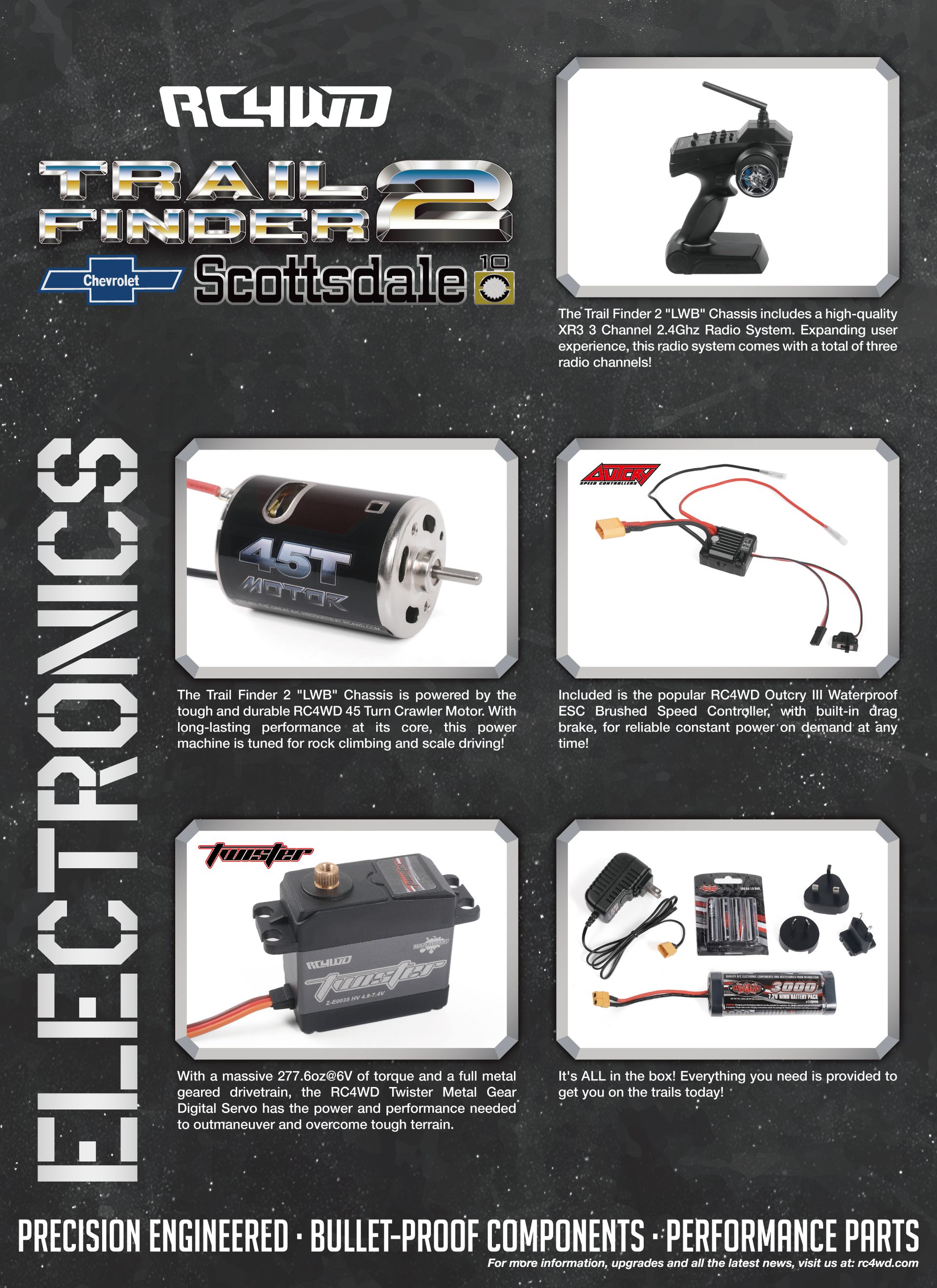

ELECTRONICS
The Trail Finder 2 "LWB" Chassis includes a high-quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio channels!

The Trail Finder 2 "LWB" Chassis is powered by the tough and durable RC4WD 45 Turn Crawler Motor. With long-lasting performance at its core, this power machine is tuned for rock climbing and scale driving!

Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time.

With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.

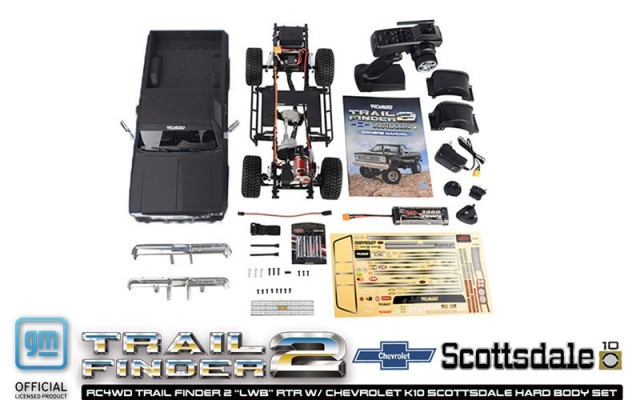

It's ALL in the box! Everything you need is provided to get you on the trails today!



What's Included:
  • 1x RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)

Replacements Parts:
  • K44 Ultimate Scale Cast Front Axle (Z-A0101)
  • K44 Ultimate Scale Cast Rear Axle (Z-A0096)
  • RC4WD Chevrolet Blazer and K10 Chrome Front Grill w/Optional Inserts (Z-B0124)
  • Trail Finder 2 Plastic Body Posts (Z-B0029)

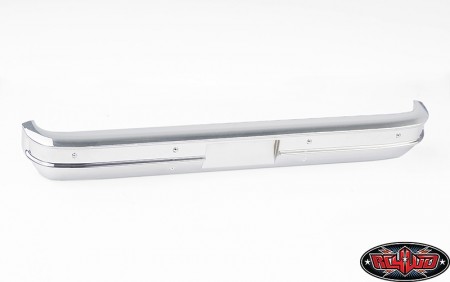

  • RC4WD Chevrolet Blazer and K10 Chrome Grill and Bumper Parts Tree (Z-B0094)
  • RC4WD Chevrolet Blazer and K10 Clear Lenses Parts Tree (Z-B0096)
  • RC4WD Chevrolet Blazer and K10 Hood and Tailgate Parts Tree (Z-B0098)
  • RC4WD Chevrolet Blazer and K10 Seats, Steering Column Parts Tree (Z-B0100)
  • RC4WD Chevrolet Blazer and K10 Interior Panels Parts Tree (Z-B0102)
  • RC4WD Chevrolet Blazer and K10 Chrome Handles and LED Holder Parts Tree (Z-B0104)
  • RC4WD Chevrolet Blazer and K10 Chrome Mirror and Rear Taillight Parts Assembly (Z-B0106)
  • RC4WD Chevrolet Blazer and K10 Accessory Parts Tree (Z-B0108)
  • RC4WD Chevrolet Blazer and K10 Main Cab Clear Window Parts Tree (Z-B0114)
  • Super Scale 70mm White Shocks with Internal Springs (Z-D0045)
  • 540 Crawler Brushed Motor 45T (Z-E0004)
  • RC4WD LED Basic Lighting System for Chevrolet Blazer and K10 (Z-E0020)
  • Twister High Torque Metal Gear Digital Servo (Z-E0035)
  • RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
  • RC4WD Universal NIMH Peak Battery Charger (Z-E0106)
  • Outcry III Waterproof ESC (Z-E0113)
  • XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
  • Leaf Spring Shackles & Mounts Kit (Z-S0047)
  • RC4WD Rally 1/10 Locking Wheel Hubs (Z-S0298)
  • M3 Mini Plastic Rod End (20x) (Z-S0398)
  • M3 Offset Short Plastic Rod End (20x) (Z-S0401)
  • 101mm Hardened Steering Link (Z-S0504)
  • Heavy Duty Nylon Strap Lock (5) (Z-S0552)
  • Fuel Cell Radio Box (Z-S0592)
  • Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
  • RC4WD AA Batteries (Z-S1718)
  • Front Inner Fender Set for Chevrolet Blazer and K10 (Z-S1729)
  • RC4WD Marlin Crawler Side Plastic Sliders for TF2 LWB (Z-S1730)
  • Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
  • RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole (Z-S2020)
  • RC4WD Small Block V8 Engine Bay for Chevrolet Blazer and K10 (Z-S0192)
  • Hammer Transfer Case (1.47/1) (Z-U0024)
  • R3 Scale Single Speed Transmission (Z-U0028)
  • Rally 1.9" Beadlock Wheels (Silver) (Z-W0257)

Optional Parts:
  • Winch (Winch Options)
  • Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
  • Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
  • RC4WD 70mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0034)
  • RC4WD Bilstein SZ Series 70mm Scale Shock Absorbers (Z-D0083)
  • 540 Crawler Brushed Motor 80T (Z-E0001)
  • 540 Crawler Brushed Motor 65T (Z-E0002)
  • 540 Crawler Brushed Motor 55T (Z-E0003)
  • 540 Crawler Brushed Motor 35T (Z-E0005)
  • RC4WD LED Basic Lighting System for Chevrolet Blazer and K10 (Z-E0020)
  • RC4WD KC HiLiTES Daylighter Light Set V2 (Z-E0022)
  • RC4WD KC HiLiTES KC Light Set V2 (Z-E0036)
  • RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
  • RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (20MM/0.75") (Z-E0052)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (40mm/1.5") (Z-E0054)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (100mm/4") (Z-E0059)
  • RC4WD 1/10 Baja Designs S8 LED Light Bar (100mm) (Z-E0064)
  • 540 Crawler Brushed Motor 20T (Z-E0065)
  • RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
  • 540 Crawler Brushed Motor 27T (Z-E0067)
  • RC4WD 1/10 Baja Designs S8 LED Light Bar (120mm) (Z-E0076)
  • RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (120mm/4.72") (Z-E0095)
  • RC4WD ARB Intensity LED Light Set (Z-E0112)
  • Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
  • Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
  • RC4WD KC HiLiTES Rectangle Lights with Covers (Z-E0132)
  • 15t 32p Hardened Steel Pinion Gear (Z-G0014)
  • 60t Delrin Spur Gear for AX2 2 Speed Transmission (Z-G0048)
  • Helical Gear Set for 1/10 Yota and K44 Axles (Z-G0059)
  • 56T 32P Delrin Spur Gear (Z-G0064)
  • 12t 32p Hardened Steel Pinion Gear (Z-G0065)
  • 18t 32p Hardened Steel Pinion Gear (Z-G0066)
  • 52T 32P Delrin Spur Gear (Z-G0068)
  • XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
  • RC4WD Roll Bar for Chevrolet Blazer and K10 (Z-S0013)
  • Truck Bed Mount Angled Spare Tire Carrier (Z-S0358)
  • RC4WD Tough Armor Double Tube Rear Bumper for Chevrolet Blazer and K10 (Z-S0451)
  • RC4WD Tough Armor Double Tube Front Bumper for Chevrolet Blazer and K10 (Z-S0456)
  • Soft Steel Leaf Springs for Trail Finder 2 (Z-S0518)
  • Punisher Shaft II (90mm - 120mm / 3.54" - 4.72") 5mm F-350 Hi-Lift (Z-S0522)
  • Chubby 6 TON Scale Jack Stands (Z-S0588)
  • 1/10 Bed Mounted Tire Carrier (Z-S0759)
  • RC4WD Mickey Thompson Metal Series 1/10 Wheel Center Caps (Z-S0850)
  • Scale Steel Punisher Shaft V2 (100mm - 130mm / 3.94'' - 5.12'') (Z-S1087)
  • RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
  • Scale Steel Punisher Shaft V2 (90mm - 115mm / 3.54'' - 4.53'') (Z-S1118)
  • RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
  • 1/10 Sleeping Mat w/Straps (Black) (Z-S1302)
  • RC4WD ARB 1/10 Fridge Freezer (Z-S1317)
  • RC4WD 1/10 Hi-Lift Jack (Z-S1526)
  • RC4WD Chevrolet Blazer and K10 Functional Hood and Tailgate Hardware (Z-S1564)
  • RC4WD Teraflex Revolver Z-Box for Trail Finder, F-350, Hilux, Tundra (Z-S1587)
  • RC4WD Teraflex Revolver Shackle (Z-S1594)
  • RC4WD 1/10 Wooden Shipping Case (Z-S1612)
  • Front Inner Fender Set for Chevrolet Blazer and K10 (Z-S1729)
  • Garage Series Cooler (Z-S1765)
  • RC4WD 1/10 Hi-Lift Extreme Jack (Z-S1774)
  • RC4WD MAXTRAX Vehicle Extraction and Recovery Boards 1/10 (Black) (Z-S1831)
  • RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
  • Tough Armor Rear Bumper with Hitch Mount for Chevy Blazer and K10 (Z-S1863)
  • Scale Garage Series 1/10 Chainsaw (Z-S1865)
  • Tough Armor Tube Roll Bar w/Rear Tire Mount for Chevrolet Blazer and K10 Body Sets (Z-S1872)
  • RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
  • Tough Armor Tube Rear Bumper for Chevrolet Blazer and K10 (Z-S1958)
  • Fender Flares for RC4WD Chevy Blazer and K10 Body Sets (Z-S2017)
  • RC4WD Poison Spyder RockBrawler II Rear Bumper W/ Tire Carrier for TRX-4 and RC4WD Blazer (Z-S2091)
  • Mud Plugger 1.9" Scale Tires (Z-T0004)
  • Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
  • RC4WD Dick Cepek 1.9" Mud Country Scale Tires (Z-T0034)
  • Rock Creepers 1.9" Scale Tires (Z-T0049)
  • Mud Thrashers 1.9" Scale Tires (Z-T0051)
  • RC4WD Mickey Thompson 1.9" Baja Claw 4.19" Scale Tires (Z-T0060)
  • RC4WD Mickey Thompson 1.9" Baja MTZ Scale Tires (Z-T0061)
  • Prowler XS Scale 1.9" Tires (Z-T0086)
  • RC4WD Dick Cepek FC-II 1.9" Tire (Z-T0119)
  • RC4WD Atturo Trail Blade X/T 1.9" Scale Tires (Z-T0154)
  • RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
  • RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
  • RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
  • 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (White) (Z-W0127)
  • JK 1.9" Scale Beadlock Wheels (Z-W0151)
  • RC4WD Fuel Off-Road Maverick 1.9" Beadlock Wheels (Z-W0200)
  • RC4WD Mickey Thompson MT Metal Series MM-164M 1.9" Wheels (Z-W0249)
  • RC4WD Ballistic Off Road Rage 1.9'' Beadlock Wheels (Z-W0261)
  • RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
  • RC4WD Fuel Zephyr Beadlock Wheels 1.9" (Z-W0294)
  • Classic 10-Hole Chrome 1.9" Beadlock Wheels (Z-W0296)
  • RC4WD Dirty Life MB 1.9" Beadlock Wheels (Z-W0306)
  • RC4WD TUFF T21 1.9" Internal Beadlock Wheels (Z-W0307)
  • Rock Tamer 1.9" Beadlock Wheels (Z-W0321)
  • OEM JK Internal Beadlock 1.9" Wheels (Z-W0336)
  • RC4WD Patriot Deepdish 1.9 Internal Beadlock Wheels (Z-W0343)
  • Tough Armor Front Winch Bumper for Chevy Blazer and K10 (Z-X0032)

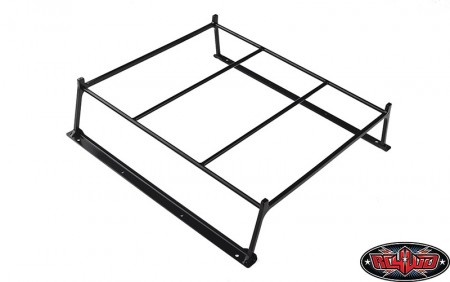

  • Roof Rack, Rollbar, Light Bar Combo for RC4WD Chevy Blazer Body (Black) (VVV-C0357)

Optional Colors:
  • RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Z-RTR0062)
  • RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)

Instruction Manuals:

Items of Interest: (not required for completion)
  • Grease and Lubrication (Z-S1199) (Z-S1197)
  • Double Sided Tape for ESC

Notes:
  • While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require thread lock.
  • Use thread lock sparingly.
  • Do not over tighten screws, otherwise you may strip the thread.

https://www.rc4wd.com/ProductImages/Logos/GM.jpg

Skriv en produktanmeldelse og del dine erfaringer med dette produktet med andre kunder.
