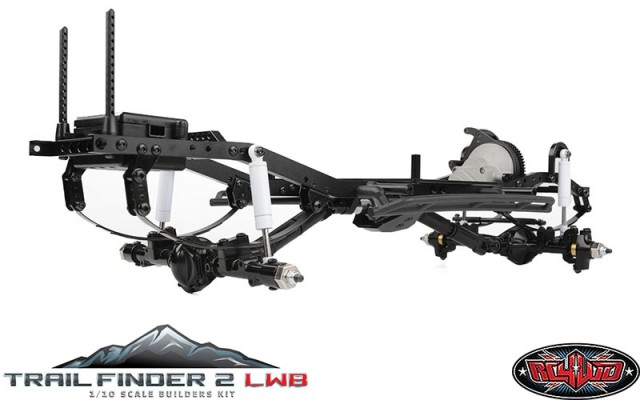

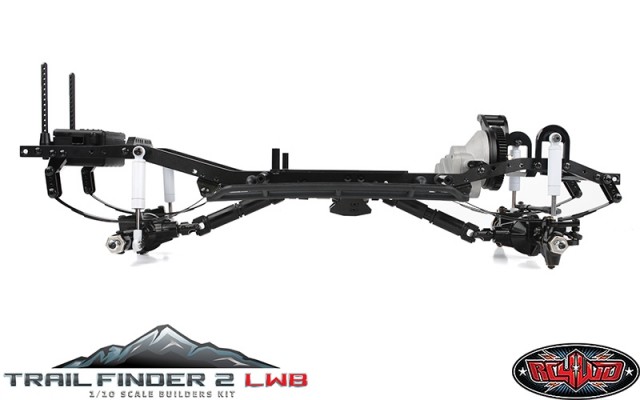

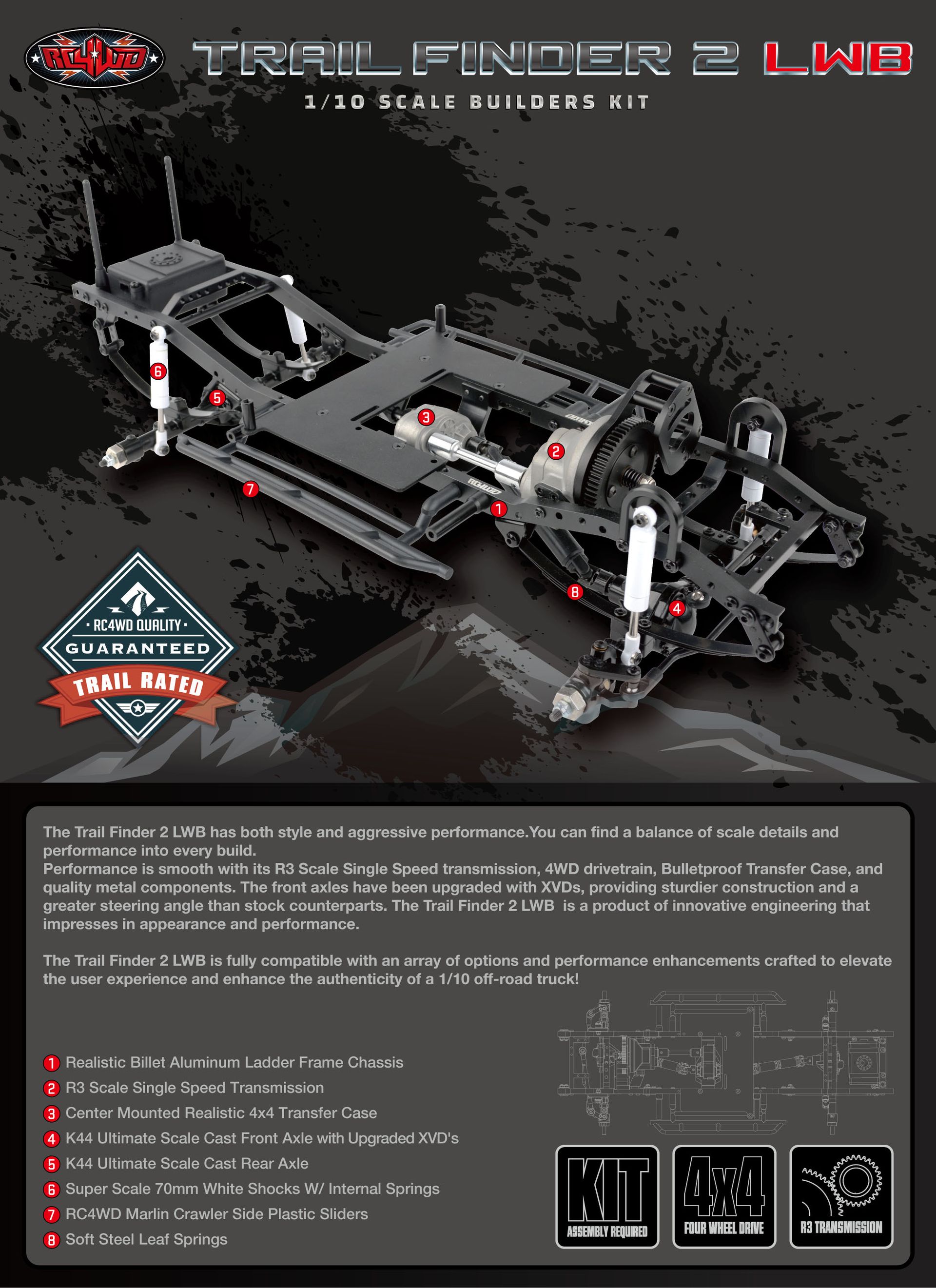

The Trail Finder 2 LWB has both style and aggressive performance.You can find a balance of scale details and performance into every build.
Performance is smooth with its R3 Scale Single Speed transmission, 4WD drivetrain, Bulletproof Transfer Case, and quality metal components. The front axles have been upgraded with XVDs, providing sturdier construction and a greater steering angle than stock counterparts. The Trail Finder 2 LWB is a product of innovative engineering that impresses in appearance and performance.
The Trail Finder 2 LWB is fully compatible with an array of options and performance enhancements crafted to elevate the user experience and enhance the authenticity of a 1/10 off-road truck!

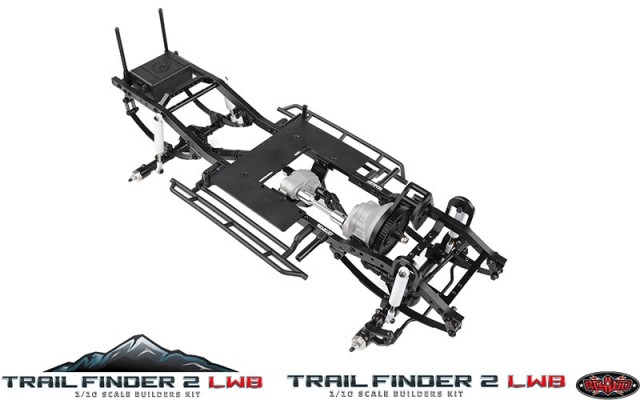

Realistic Billet Aluminum Ladder Frame Chassis
R3 Scale Single Speed Transmission
Center Mounted Realistic 4x4 Transfer Case
K44 Ultimate Scale Cast Front Axle with Upgraded XVD's
K44 Ultimate Scale Cast Rear Axle
Super Scale 70mm White Shocks W/ Internal Springs
RC4WD Marlin Crawler Side Plastic Sliders
Soft Steel Leaf Springs
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")
Trail Finder 2 “LWB” Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Durable Steel Yokes
Trail Finder 2 "LWB" Truck Dimensions
Wheelbase: 314mm(12.4")
Width: 193mm(7.6")
Height: 118mm (4.65")
Final Drive Ratios: 31.9:1
DRIVETRAIN

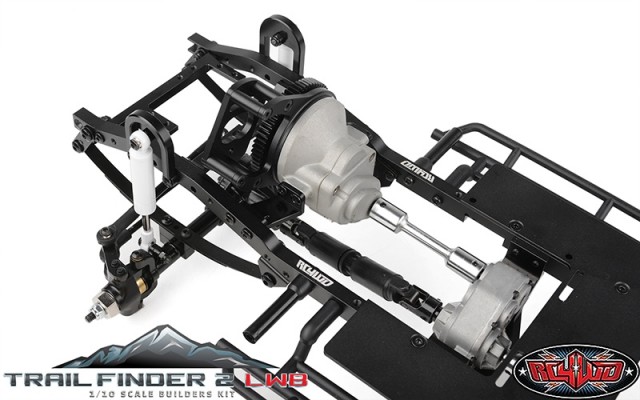

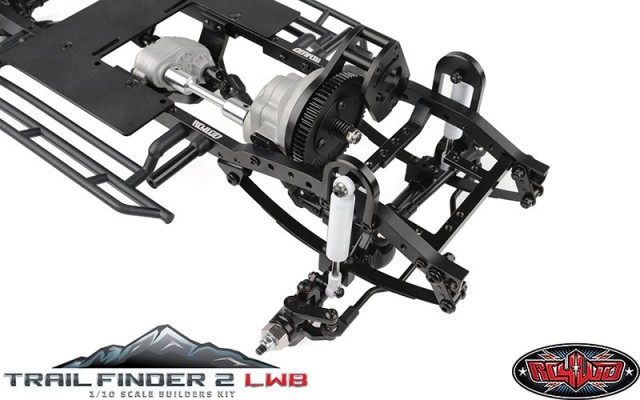

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.
The Trail Finder 2 LWB Kit includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same 0.8 Mod widened gears for durability.
Drawing on the success of the RC4WD MOA gear sets, the Trail Finder 2 LWB Kit Drivetrain has the most durable gears RC4WD has to offer so the Trail Finder 2 LWB Kit can stay on the trail, day after day.

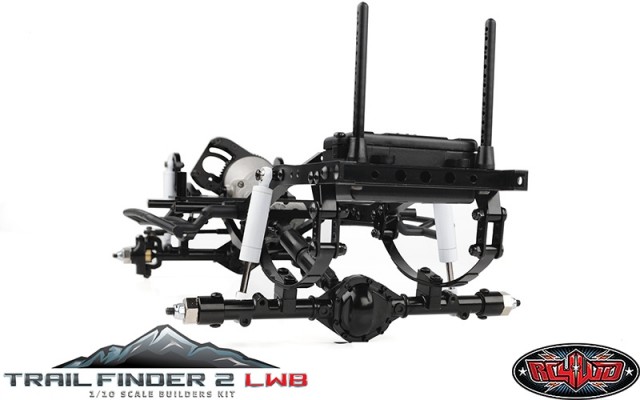

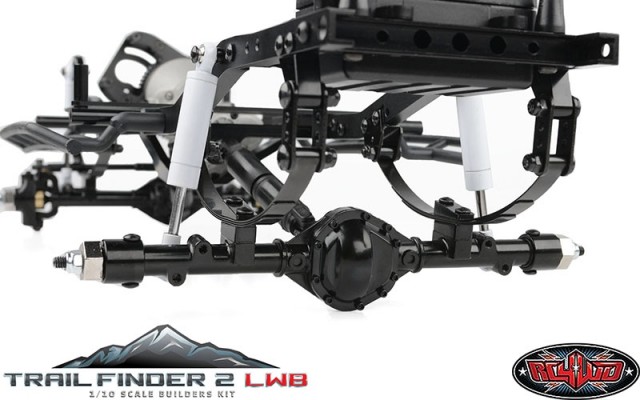

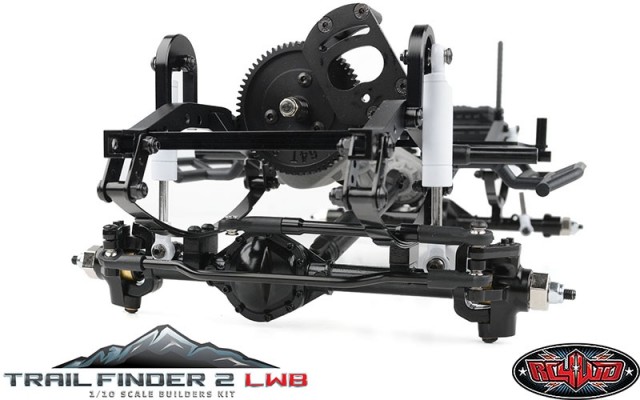

The most scale-accurate axles in the market, the RC4WD K44 Ultimate Scale Cast Axles feature innovative round knuckles, lower mounting points, XVDs for the front axles and compact offset pumpkins.

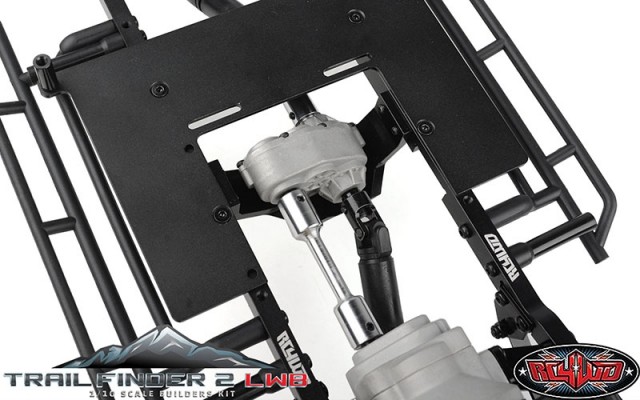

The Drive Shafts for the Trail Finder 2 LWB Kit are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.
SUSPENSION

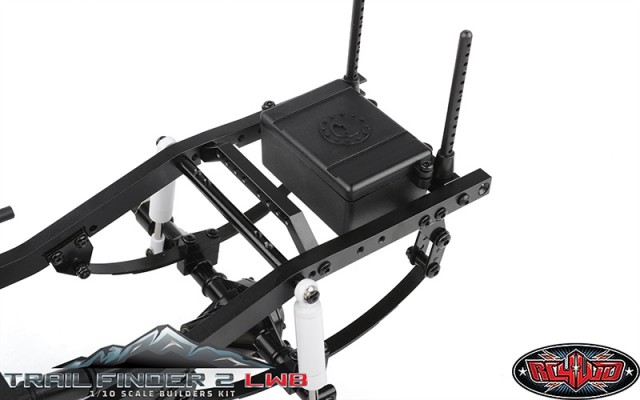

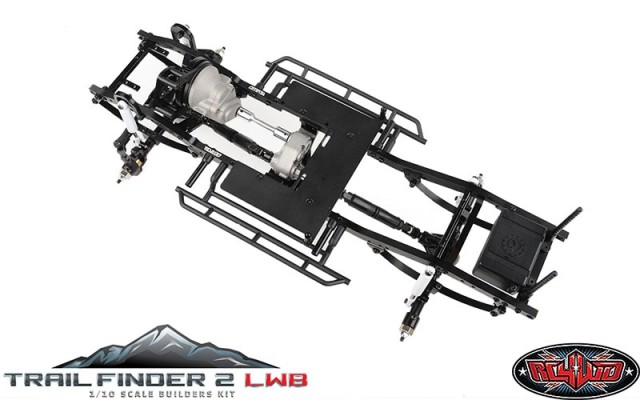

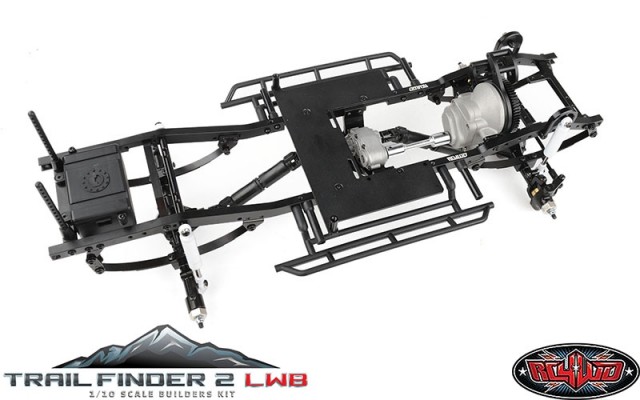

The Trail Finder 2 LWB Kit Chassis features a molded fuel cell that doubles as an electronics storage box and an aluminum, frame mounted under the cab electronics tray for multiple electronics tray for multiple mounting options for your electronics.
The Trail Finder 2 LWB Kit includes a set of RC4WD Ultimate Scale Shocks. These shocks are designed for ultimate scale looks and optimum performance. They’re machinedfrom billet aluminum, are internally sprung and are completely rebuildable!

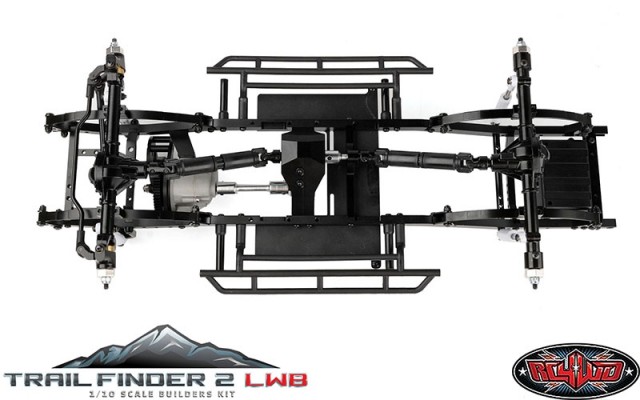

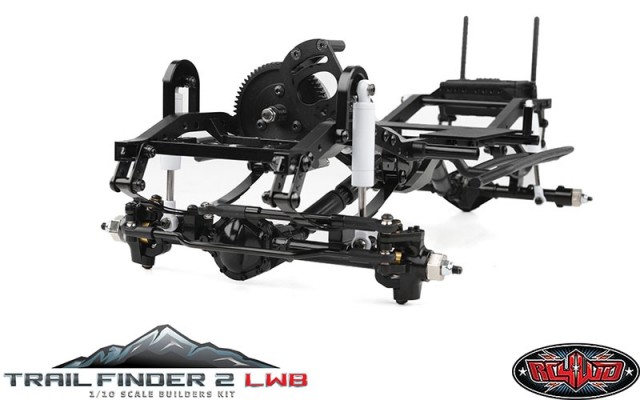

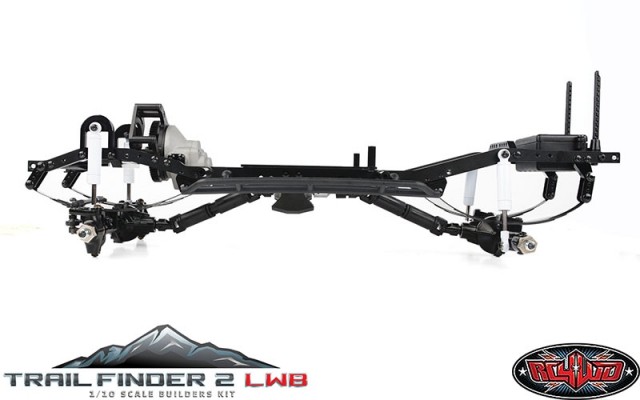

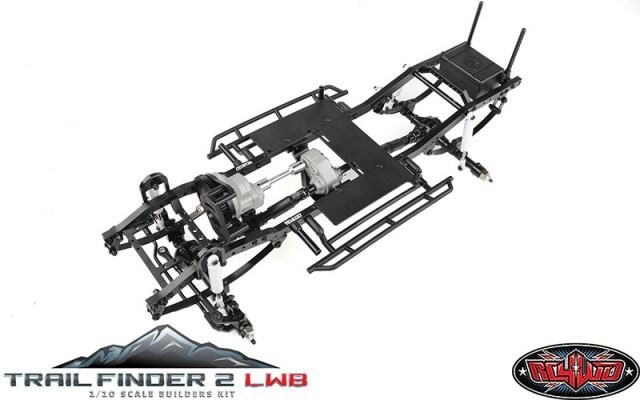

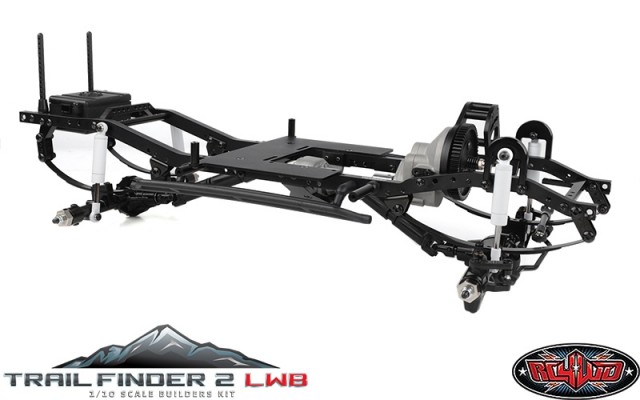

The Trail Finder 2 LWB Kit Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts hard body mounts for maximum strength.
Soft Steel Leaf Springs are constructed from high-quality material to reduce stiction. The unique sizing for this set is designed for a more finely tuned ride.
The RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 LWB are scale replicas designed to protect and mitigate the rough impacts of crawling over rocky terrain and trails!

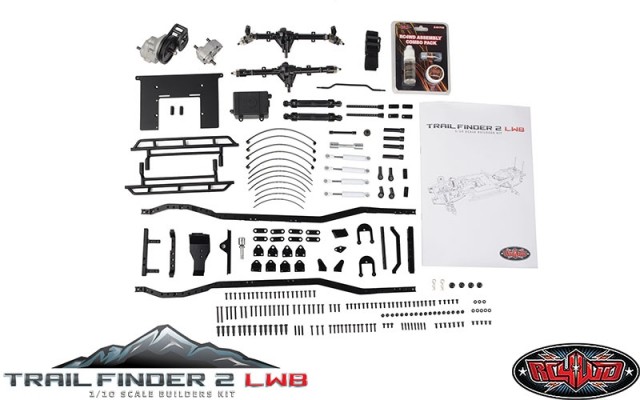

What's Included:
- 1x RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit
This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.
Required to Complete:
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Associated Thread Locking Adhesive
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics
- Motor (35t 45t or 55t)
- Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
- Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
- Charger (Consult your battery guide) Chargers

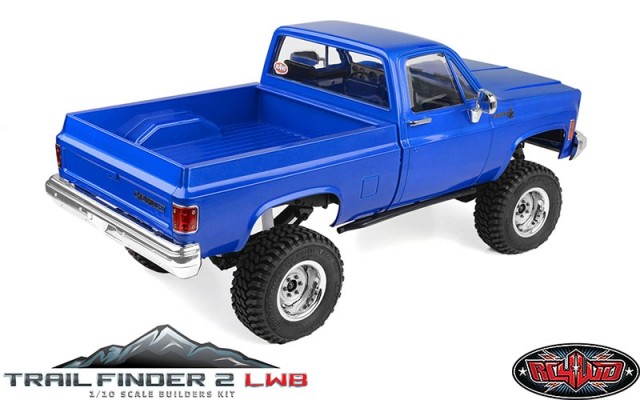

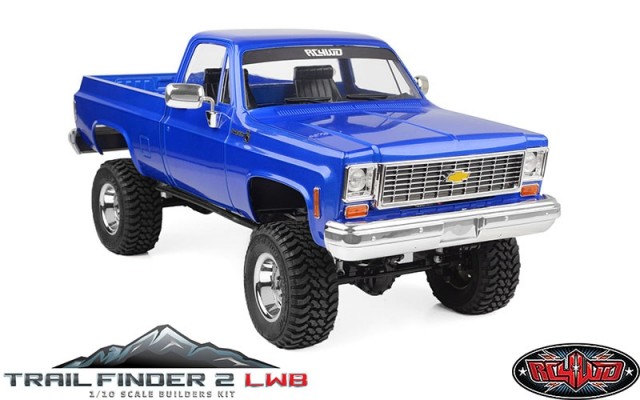

Suggested Bodies
- RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)
- RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set (Z-B0258)
Replacements Parts:
- K44 Ultimate Scale Cast Rear Axle (Z-A0096)
- K44 Ultimate Scale Cast Front Axle (Z-A0101)
- Trail Finder 2 Plastic Body Posts (Z-B0029)
- Trail Finder 2 "LWB" Chassis Set (Z-C0053)
- Super Scale 70mm White Shocks with Internal Springs (Z-D0045)
- Leaf Spring Shackles & Mounts Kit (Z-S0047)
- M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
- M3 Offset Short Plastic Rod End (20x) (Z-S0401)
- RC4WD 105mm Hardened Steering Link V2 (Z-S0461)
- Heavy Duty Nylon Strap Lock (5) (Z-S0552)
- Fuel Cell Radio Box (Z-S0592)
- RC4WD Marlin Crawler Side Plastic Sliders for TF2 LWB (Z-S1730)
- Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
- RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole (Z-S2020)
- Hammer Transfer Case (1.47/1) (Z-U0024)
- R3 Scale Single Speed Transmission (Z-U0028)
Optional Parts:
- Yota Ultimate Scale Cast Axle (Front) (Z-A0058)
- Yota Ultimate Scale Cast Straight Axle (Rear) (Z-A0061)
- Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
- Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
- RC4WD 1987 Toyota XtraCab Hard Body Complete Set (Z-B0216)
- The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
- RC4WD 70mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0034)
- RC4WD King Off-Road Scale Dual Spring Shocks (70mm) (Z-D0037)
- RC4WD Bilstein SZ Series 70mm Scale Shock Absorbers (Z-D0083)
- 540 Crawler Brushed Motor 80T (Z-E0001)
- 540 Crawler Brushed Motor 65T (Z-E0002)
- 540 Crawler Brushed Motor 55T (Z-E0003)
- 540 Crawler Brushed Motor 45T (Z-E0004)
- 540 Crawler Brushed Motor 35T (Z-E0005)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
- RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
- 540 Crawler Brushed Motor 20T (Z-E0065)
- 540 Crawler Brushed Motor 27T (Z-E0067)
- Outcry III Waterproof ESC (Z-E0113)
- Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
- Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
- 60t Delrin Spur Gear for AX2 2 Speed Transmission (Z-G0048)
- Helical Gear Set for 1/10 Yota and K44 Axles (Z-G0059)
- XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
- XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
- #3 Aluminum Bumper Mount For Trail Finder 2 (Z-S0003)
- #2 Aluminum Bumper Mount for Trail Finder 2 (Z-S0004)
- #1 Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
- Scale Aisin/Yota Style Hubs (Z-S0196)
- Soft Steel Leaf Springs for Trail Finder 2 (Z-S0518)
- 3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
- Red Super Soft Flex Leaf Springs (4) (Z-S0570)
- 4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
- Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
- RC4WD Wired Winch Control Unit (Z-S1089)
- RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
- RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
- Universal Front Bumper Mount for Trail Finder 2 (Z-S1264)
- 70mm Ultimate Scale Shocks Internal Spring Assortment (Z-S1345)
- Super Scale Steel Leaf Springs for TF2 & Tamiya Bruiser (2) (Z-S1476)
- RC4WD 1/10 Mini Warn 9.5cti Winch (Z-E0009)
- RC4WD Teraflex Revolver Z-Box for Trail Finder, F-350, Hilux, Tundra (Z-S1587)
- RC4WD Teraflex Revolver Shackle (Z-S1594)
- RC4WD 12mm Hex Wheel Widener Set (+7mm) (Z-S1825)
- RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
- RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
- Mojave Body Lift Kit for Trail Finder 2 LWB (Z-S1869)
- Trail Finder 2 Aluminum Side Body Posts (Z-S1882)
- Leaf Under Mounts for Yota 2 / K44 Axles (Z-2135)
- Mud Thrashers 1.9" Scale Tires (Z-T0051)
- RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires (Z-T0107)
- Scrambler Offroad 1.55" Scale Tires (Z-T0152)
- RC4WD Goodyear Wrangler Duratrac 1.55" 4.19" Scale Tires (Z-T0177)
- RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
- RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
- RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
- RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
- RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
- RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires (Z-T0225)
- RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
- RC4WD Centerline 1.55" Scorpion Deep Dish Wheels (Z-W0014)
- RC4WD XD 1.7" XD849 Grenade 2 Deep Dish Beadlock Wheels (Z-W0041)
- RC4WD Warn 1.7" Epic Jack Hammer Wheels (Z-W0086)
- RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
- RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
- RC4WD Fuel Off-Road Maverick 1.9" Beadlock Wheels (Z-W0200)
- RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
- RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
- RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
- RC4WD Fuel Off-Road 1.55” Zephyr Beadlock Wheels (Gunmetal) (Z-W0333)
- RC4WD R7 Crawler Transmission (Z-U0044)
- RC4WD Adjustable Rear Shock Mounts for Trail Finder 2 (Z-S0768)
Notes:
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock sparingly.
- Do not over tighten screws, otherwise you may strip the thread.
