INFRACTION BLX Radio Controlled Car
| SCALE |
1/7 |
| MAX SPEED POSSIBLE |
80+mph / 128+km/h |
| POWER TYPE |
Brushless |
| BUILD STATUS |
RTR |
| Saleable Part # |
ARA7615V2T1 |
| BUILD CONFIGURATION OPTIONS |
Mid Motor |
| DRIVE TYPE |
4WD |
| VEHICLE TYPE |
Resto-Mod Truck |
| SURFACE |
All-road |
| LENGTH |
695mm / 27.36" |
| WHEELBASE |
406mm / 15.98" |
| RIDE HEIGHT |
15mm / 0.59" |
| FRONT WIDTH |
308mm / 12.13" |
| REAR WIDTH |
305mm / 12.01" |
| HEIGHT |
200mm / 7.87" |
| NUMBER OF DIFFERENTIALS |
3 |
| WEIGHT (NO BATTERY) |
5kg / 11lbs |
| BATTERY RECOMMENDATIONS |
2x2S or 2x3S Lipo (Hard or soft-case) within dimensions 180 x 55 x 70mm or 7.08 x 2.16 x 2.76 inches |
| WARRANTY LEVEL |
2 Year Limited |

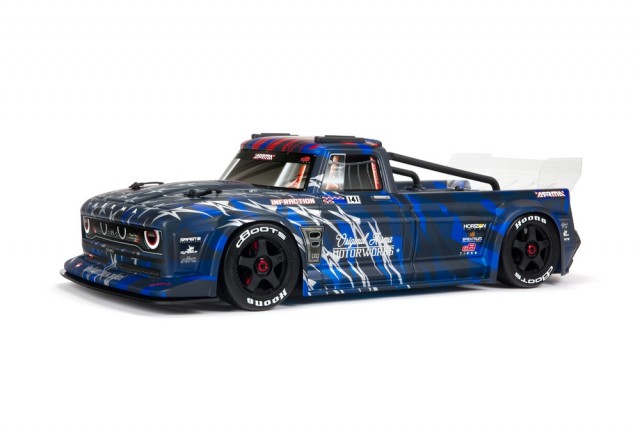

Take high-speed street bashing performance to another level with the 1/7 scale ARRMA INFRACTION 6S BLX 4WD RTR. Capable of 80+ MPH speeds out of the box over on-road, dirt, and oval tracks, it now includes a handbrake and Spektrum Smart electronics.

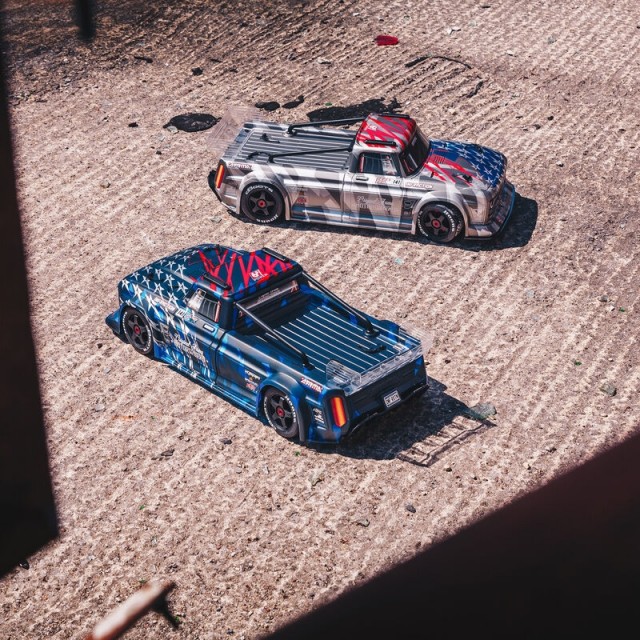

The ready-to-run INFRACTION 6S BLX 4WD 1/7 scale truck tops off a tough and powerful ARRMA brushless platform in style. You have the choice of two stunning new print schemes, both of which come with a matte and gloss effect finish and highly detailed decals.
With its 4WD traction, you can run the INFRACTION 6S BLX on all roads, in all conditions — over loose gravel, asphalt, smooth dirt and short grass, in the sun, rain and ice.

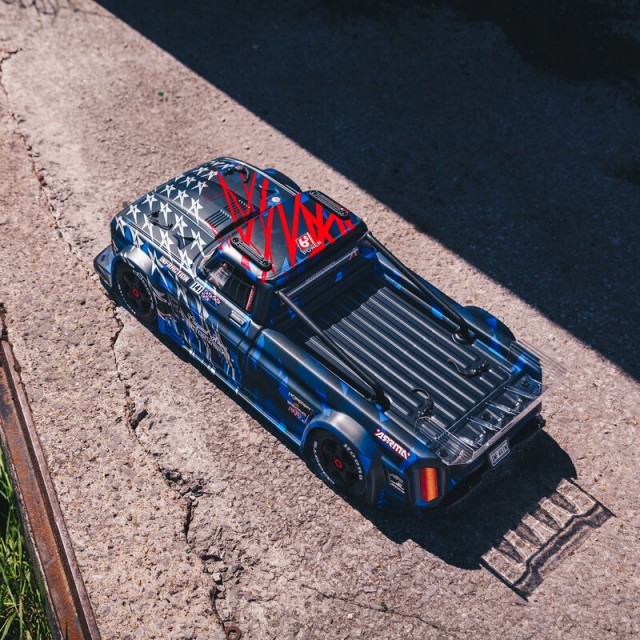

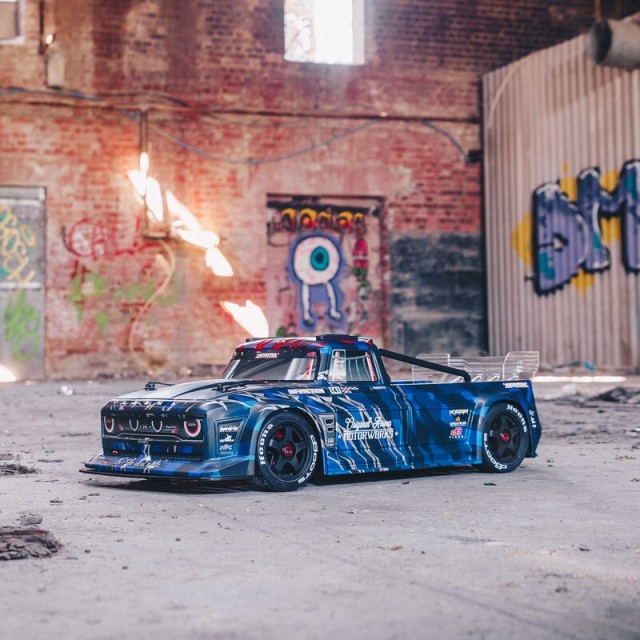

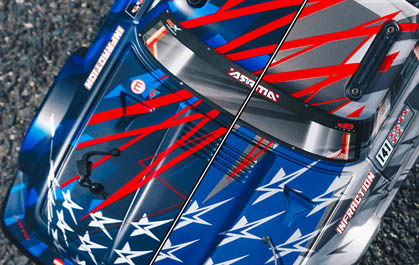

The Resto-Mod truck body arrives factory-finished with new matte gloss effect designs. Its included, tunable wing lets you customize the downforce just the way you want it.
The body features added roll protection. The roof rails and roll bars that are fitted to the body reduce scrapes and dents when the action gets extreme.

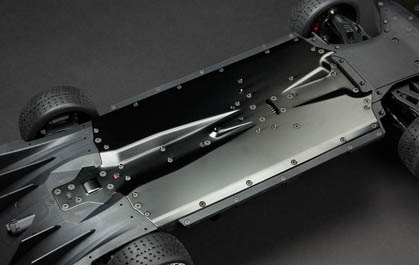

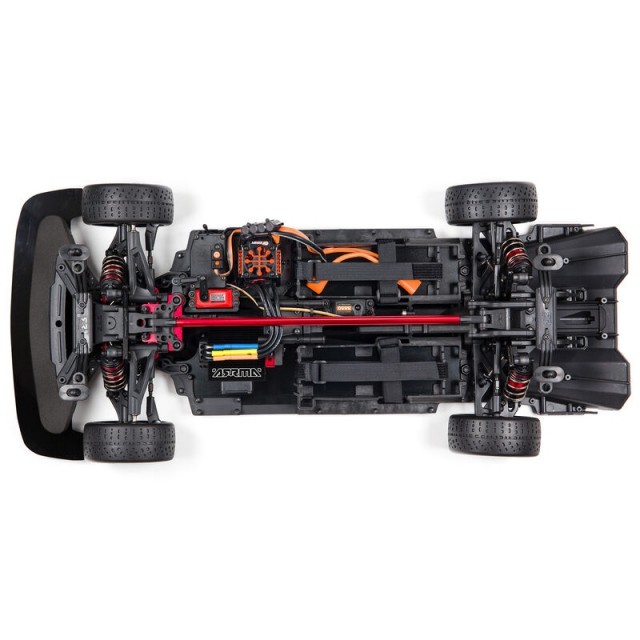

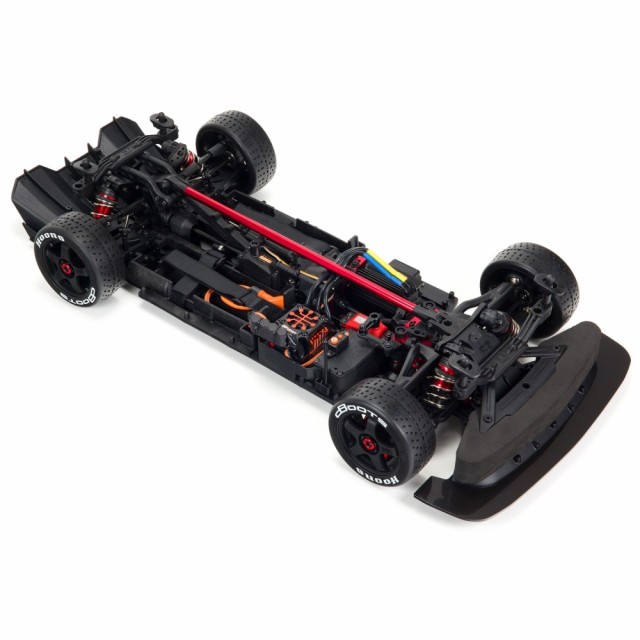

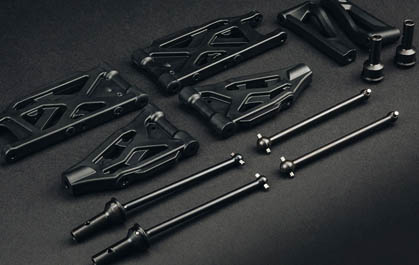

Underneath those streamlined Street Bash looks is a chassis which proves to the world, once again, that ARRMA builds the most durable bashers. The 6061-T6 anodized aluminum chassis houses a heavy-duty drivetrain with steel driveshafts, diff outdrives and gearbox internals. Chassis toughness is reinforced with a center brace.

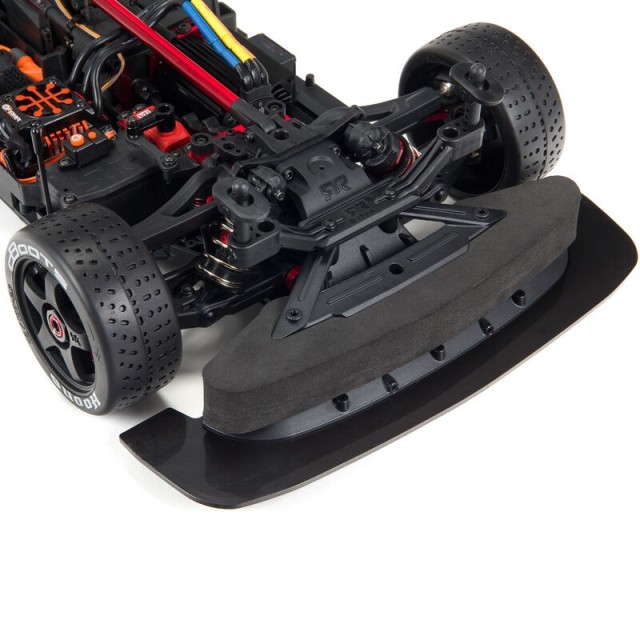

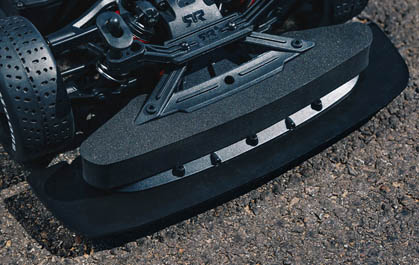

To further enhance the aerodynamics, the chassis includes a full-width front splitter to balance downforce distribution.
A lightweight foam front bumper adds protection and support to the front of the body.
To aid high-speed stability a rear diffuser increases downforce and grip, enabling you to corner faster and with confidence.

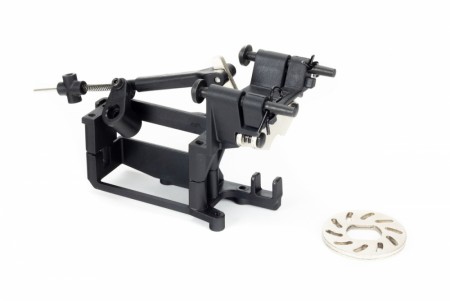

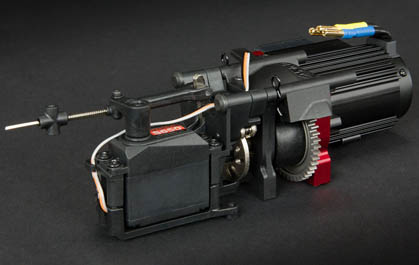

Another feature new to the INFRACTION 6S BLX 4WD is a handbrake. The chassis includes a module that includes a rear vented disc brake and a Spektrum SPMS650 servo to actuate the brake.
Control the handbrake from a convenient thumb switch on the DX3 transmitter for thrilling drifting, “hooning”, and stunt action.

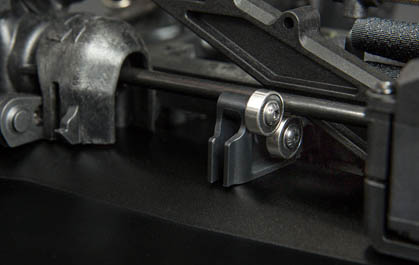

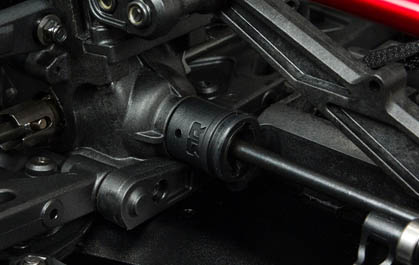

The rear center drive shaft high-speed support prevents vibration. This enhances the durability of the drivetrain and prolongs the life of the drivetrain bearings.
Gearbox input gears are keyed to the drive cups and have a molded composite sleeve that helps to retain the set screw in this area for increased reliability.
New All-Road specific gear ratios are used to better match the gearing requirements of the All-Road platform. The lower reduction gear ratios mean the center drivetrain components spin at a lower RPM increasing the durability in this area.
The INFRACTION 6S BLX uses the GP5 15/42 ratio in the front and rear gearboxes.
The FELONY 6S BLX uses the GP5 15/42 ratio in the front and GP6 14/45 ratio in the rear gearboxes. The different front and rear ratios are required due to the different diameter tires used on this model.
The Spektrum 4074 2050Kv motor provides the driving force for the INFRACTION 6S BLX. This motor features a 5mm shaft with a groove that accepts a pinion retaining e-clip. The included stock and optional speed pinions are ARRMA Safe-D design.

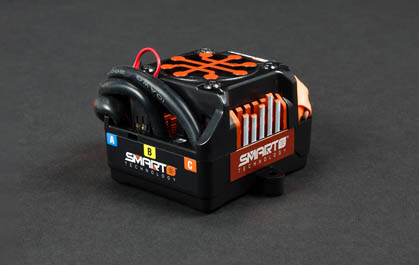

The Spektrum Firma 150 Smart ESC has an integrated heatsink and fan for reduced heat build-up during extreme bashing. This ESC features Spektrum Smart technology and user programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings.
A black anodized aluminum motor heatsink and fan add cooling for the motor when the action heats up.

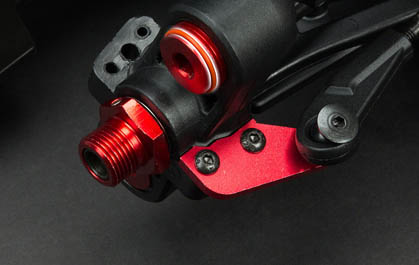

Anodized aluminum parts are used throughout, offering high strength, low weight and awesome looks.
16mm Big Bore shocks with coil-over springs are tuned to absorb bumps and jumps from all-road action.

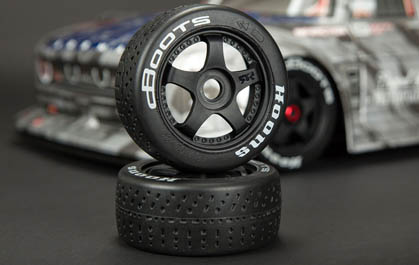

dBoots Hoons all-road tires are firmly planted for maximum traction. These tires are belted to prevent ballooning at high speeds and mounted on 5-spoke wheels with extra-durable hubs.
The included Spektrum Firma 150 waterproof ESC provides consistent power control and is 6S LiPo ready.
Fitted with reliable IC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the Spektrum Firma 150 ESC has over-voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three-mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
Recommended battery specification: LiPo 6S 5000mAh - 100C recommended, 35C minimum

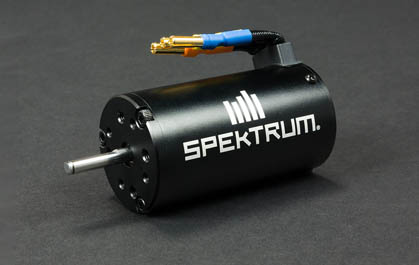

The Spektrum™ Firma™ 4074 2050kV brushless motor provides speed and torque and is perfectly balanced for use with the Spektrum™ Firma™ 150 ESC unit.
A beautifully etched black aluminum motor can provides a premium look, whilst a four-pole internal configuration keeps the power supply smooth and consistent.
Gold bullet connectors allow fast and easy wire removal when you need to clean your vehicle.
The aluminum motor can offers increased heat dissipation.

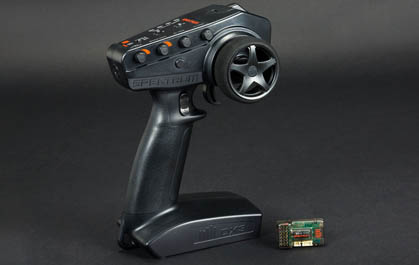

ARRMA has equipped the ready-to-run vehicle with the 3-channel Spektrum DX3 radio and an SR6110AT receiver featuring AVC (Active Vehicle Control) technology for high-speed stability. A convenient voltage level indicator is built into the transmitter which lets you easily track on-board Smart battery power.
The ADS-15M steering servo benefits from metal gears and is fully waterproof.
To provide fast and consistent steering response, the ADS-15M has 208oz-inch (15kg-cm) of torque at 7.2v.
At 1.6 x 0.8 x 1.5" (41 x 20 x 38mm) in size, this high-power steering servo is compact and highly capable.

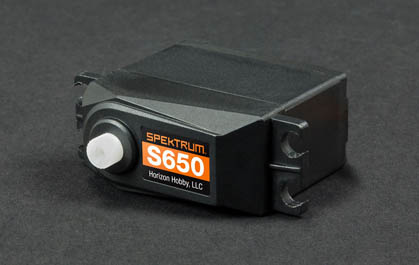

The Spektrum S650 Servo is utilized in the handbrake module. This servo produces 6kg.cm (84oz.in) of torque.
A waterproof servo case keeps the servo operating correctly when then action gets wet.
With 6kg (84oz) of torque at 6v, this Spektrum S650 Servo can reach full operating angle in just 0.12 seconds.
A full complement of high-quality rubber shielded bearings for enhanced protection against the elements. Keeping dirt, water, and dust out and lubrication in means more time bashing and less time wrenching.
IC5 connectors can handle the power required when the action gets furious. They provide a reliable connection between your ESC and your chosen battery packs.
Designed to be FAST, designed to be TOUGH. ARRMA want you to progress your RC experience by accessing more speed, resulting in enhanced performance.
With a high-speed option pinion included in the box, you can realize the inbuilt potential of your ARRMA vehicle; increasing your performance has never been easier. Follow our dedicated Speed Card information to better understand how you can keep getting faster.
Fully waterproof ESC, steering servo and radio receiver box are standard. This means that hitting the roughest terrains, in the most extreme conditions, will be no problem. Rain, mud, snow, dirt and anything else you want to bash your way through.
The included waterproof electronics are ready for action.
* For details on waterproof standards, please refer to the product instruction manuals
A high-quality 2.4Ghz radio transmitter and receiver, wheels and high-performance dBoots® tires, waterproof ESC and steering servo and a pre-painted bodyshell are all included, as standard.
Please check the vehicle specifications for exact details of what is included in the box and what is required to get your ARRMA® vehicle running.
ARRMA® will support your investment for two years. With our impressive, limited warranty helping to keep you running for longer.
