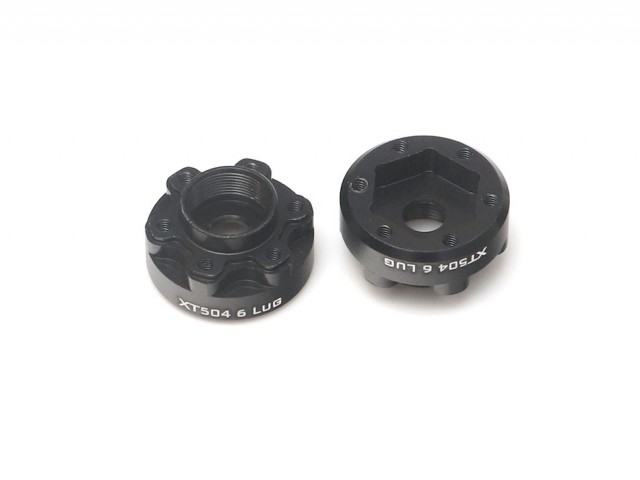

This is a pair of XT5-6Lug aluminum hubs, a six-lug hub specially designed for Boom Racing 1.55" ProBuild wheels. This hub uses the XT5 center cap system, with a six-lug bolt pattern. The XT5-6Lug hub bolts are less spaced out than the XT6 six-lug hub bolts for a more realistic scale look.

Made of billet CNC aluminum.

This hub does not require wheel hex, it uses a pin to secure directly on the drive shaft.

Note: This is not the same as the six lug XT6 wheel hubs. XT5-6LUG is smaller than XT6 made for 1.55 six lug faceplates.

Note: The XT5 hubs do not fit M5 wheel nuts or 8mm nut wrenches.

Specification:

• 6 Bolt Design
• Diameter: 20mm
• Offset: 4mm
• Hardware Type: M2
• Wheel Hub Type: Pin (No Hex)

Fits:

• All wheel shafts using M4 wheel nuts
• 1.55" ProBuild 6-Bolt faceplates

Includes:

• 2x XT504-6Lug Aluminum Hubs (4mm Offset)
• 10x M2x8mm
• 2x Nyloc
• 2x Spacer
• 2x M2x10 Wheel Pin #BRASPIN210

All XT5-6Lug Hub Size Options:

• XT500-6Lug 0mm Pin Wheel Hub BRXT500-6LUG
• XT504-6Lug 4mm Wheel Hub BRXT504-6LUG

Optional Parts:

• ProBuild™ Mag Seat Lug Nut M2x8mm Scale Hardware Set (20) BRPROB-11
