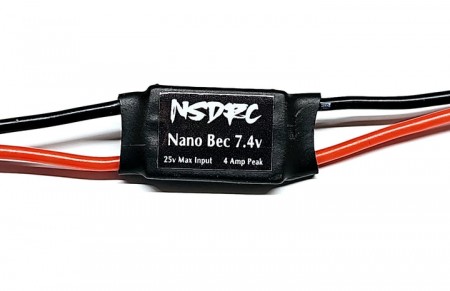

This is our Nano Bec we've made specifically for our micro servos and winches. Stock 1/24 and 1/18 rc electronics are typically pretty weak and need a boost when running high power products. We offer 3 voltage options, and 3 options for how to connect the bec to power. These also work great with some of the new 1/10 scale esc's on the market that do not have an internal bec in order to provide power to the receiver.

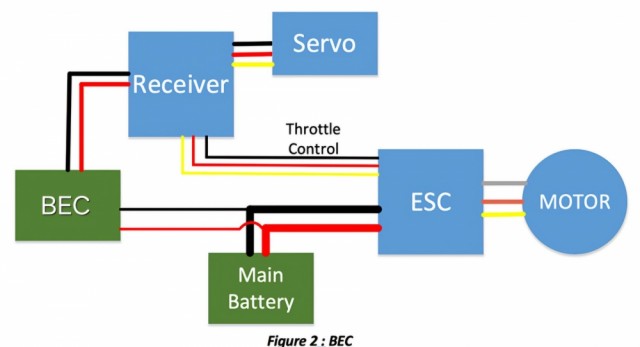

Simply connect the bec to power via solder/jst/balance plug connection, then connect the receiver plug from the bec to your receiver in any open channel.

Input Voltage: 2s - 6s lipo   25v Maximum

Output Voltage: 6v, 7.4v, 8.4v

Output Amperage: 3 amp continous, 4 amp peak

Dimensions: 11mm x 17mm

Splash proof, Not Waterproof

* Voltage is non adjustable

* Nano BECs are for Micro size servos, they are not sufficient to power standard size servos.

* Damage caused by water, Physical damage, Improper use, or tampering, will not be covered by warranty.

* We will not be held liable for any damage caused by use of this device.

* Be sure to abide by the maximum operating voltage of your electronics to avoid any damage.

Warranty: 90 Day
