CC BEC PRO 20A Max 12S LiPo (50.4V)

PrisNOK695,00 inkl. mva.
På lager: 6 stk.
Ønskeliste
Lagerstatus:
På lager: 6 stk.
Artikkelnr.:
CC010-0004-01
Produsent:
Castle Creations
  • Produktinfo
  • Produktanmeldelser (0)

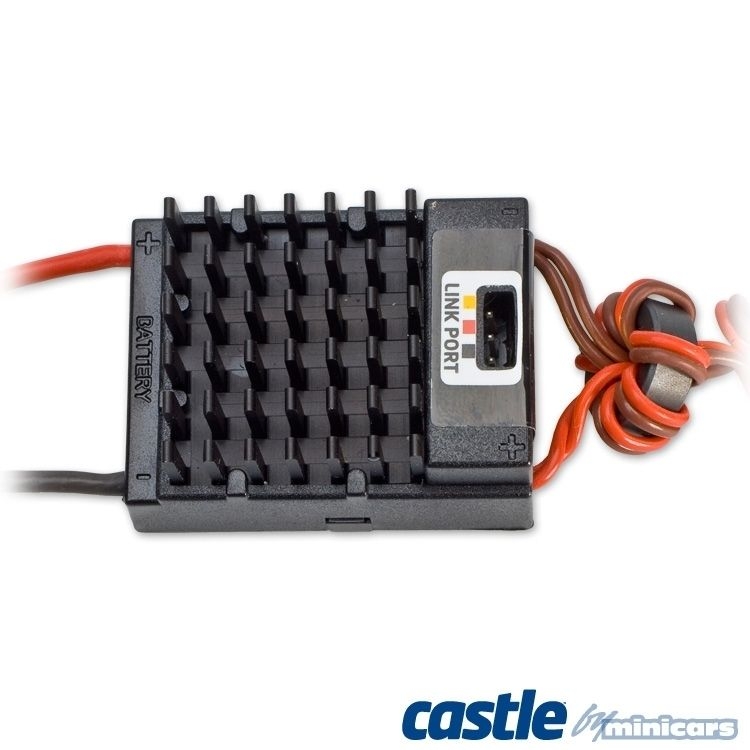

Our BEC´s are small devices that eliminate the need for a receiver battery pack. They draw higher voltage from the motor batteries and drop it to a volt that is suitable for your receiver and servos. This is required in applications that draw high power for multiple servos or more than 3S LiPo´s.


NOTE: CC BEC PRO should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.

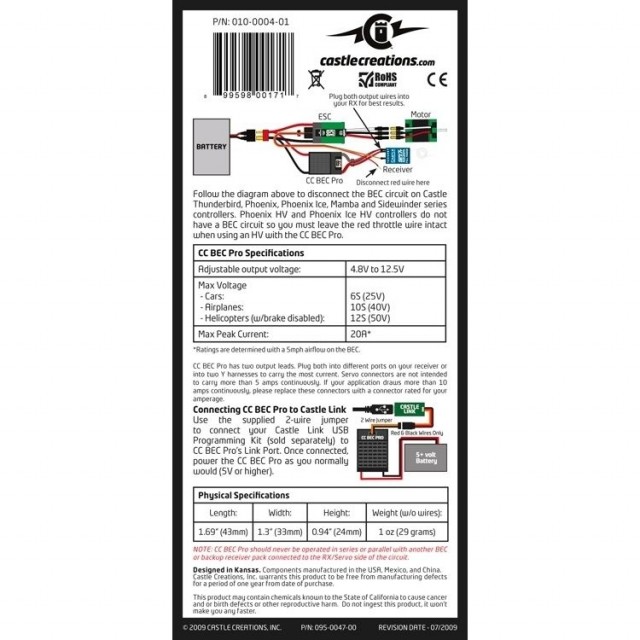

Specs:
  • Max load: 20A peak
    Max continuous current**
    16 volts input = 15 amps
    24 volts input = 13 amps
    32 volts input = 11 amps
    40 volts input = 9 amps
    48 volts input = 8 amps

  • Volts: Cars: 6S LiPo / Airplanes: 10S LiPo / Helicopters (with disabled brake): 12S
  • Adjustable output: 4.8-12.5V
  • Size: 43 x 33 x 24 mm
  • Weight: 29 g
*Weight without wires
**Ratings are determined with a 5mph airflow on the BEC.
