SH-0257MG Plus Servo 2,2Kg 0,09s Alu Metal Gear Micro

PrisNOK375,00 inkl. mva.
På lager: 1 stk.
Ønskeliste
Lagerstatus:
På lager: 1 stk.
Artikkelnr.:
SH-0257MG PLUS
Produsent:
Savöx
  • Produktinfo
  • Produktanmeldelser (0)

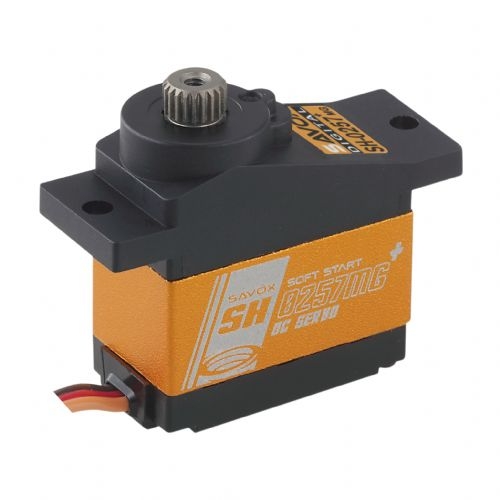

The Savox SH-0257MG+ is a micro digital servo with a metal gear that is suitable for the plate or tail of helicopters type 450 and parkflyer aircraft. It has a waterproof aluminum housing that can be used in wet or dusty conditions.

The servo produces as much output torque as larger servos, but without sacrificing speed. It has a speed of 0.09 Sec/60° and a torque of 2.2 Kg/cm at 6.0V.

The dimensions of the servo are 22.8 mm x 12.0 mm x 25.4 mm.

Item no.

Dimension

(mm)

Weight

(g)

 4.8V 6.0V 7.4V Gear Bearing
 Case
Speed: Torque: Speed:
 Torque: Speed:
 Torque:
sec/60°
 kg-cm/oz-in
 sec/60°
 kg-cm/oz-in sec/60° kg-cm/oz-in
SH-0257MG+ 22.8*12.0*25.4 14.0 0.13 1.8/25.0 0.09 2.2/30.6 N/A N/A Metal 2BB Aluminum
