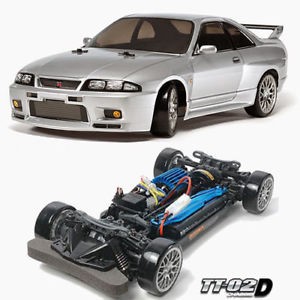

The TT-02 chassis is Tamiya´s standard entry level 4WD full independent suspension assembly kit that offers ease of assembly and easy maintenance. The TT-02D is the Drift Spec variant that includes special parts to make it a fun to drive drifting machine.

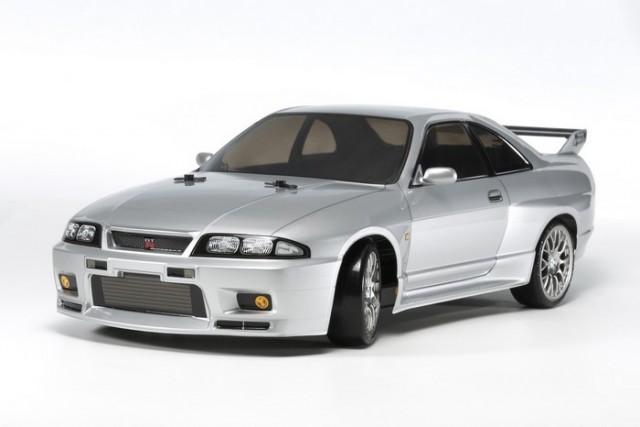

This kit includes the iconic R33, fourth generation Nissan Skyline GT-R body which sit atop the TT02D chassis. The full size Nissan vehicle was 13cm longer than its R32 predecessor, with a wheelbase extended by 10.5cm. The body was also widened and strengthened, and given an adjustable rear spoiler. Other features on this high-powered car included ATTESA E-TS 4-wheel drive system and Brembo brakes.
Product Specifications (Specifications subject to change)
| Type | Detail |
|---|
| Scale |
1/10 |
| Construction type |
Assembly kit |
| Terrain use |
On-Road |
| Drive-train |
4WD |
| Drive type |
Shaft |
| Drive line |
Dog bone |
| Differential type |
Gear |
| Suspension |
Fully independent double wishbone |
| Steering mechanism |
Bell-crank |
| Shock damper |
Oil-filled damper |
| Shock damper material |
Plastic |
| Tire type |
Rubber-drift type |
| Tire tread |
Slick |
| Body material |
Polycarbonate |
| Chassis material |
Plastic |
| Electronic Speed Control (ESC) |
Included |
| ESC model |
TBLE-02S |
| LED Light buckets |
No |
| LED lights |
No |
| Motor |
540-brushed type |
| Bearings |
Shielded ball bearing |
| Adjustable camber |
Fixed |
| Adjustable toe angles |
Front only |
| Adjustable ground clearance |
Yes |
| Adjustable gear ratio |
Yes |
| Adjustable wheelbase |
Yes |
| Adjustable track width |
Yes |
| Adjustable shock angle |
Yes |
| Special feature 1 |
The TT-02D is a drift spec version of the easy to build TT-02 chassis. |
| Special feature 2 |
Features CVA oil dampers, full ball bearings, a Sport-Tuned motor and aluminum motor heat sink. |
| Special feature 3 |
Stickers and window masking tape are included in the kit for easy painting. |
| Special feature 4 |
Mesh-type wheels are paired with Super Driftech tires. |
| Special feature 5 |
Includes Tamiya TBLE-02s speed control and brushed 540 sport tuned motor. |
| Requires A |
7.2 battery & charger |
| Requires B |
2-channel radio gear |
| Requires C |
|
Merk: Dette er et byggesett, du trenger radiosett, servo, batteri, lader og lakk i tillegg.
