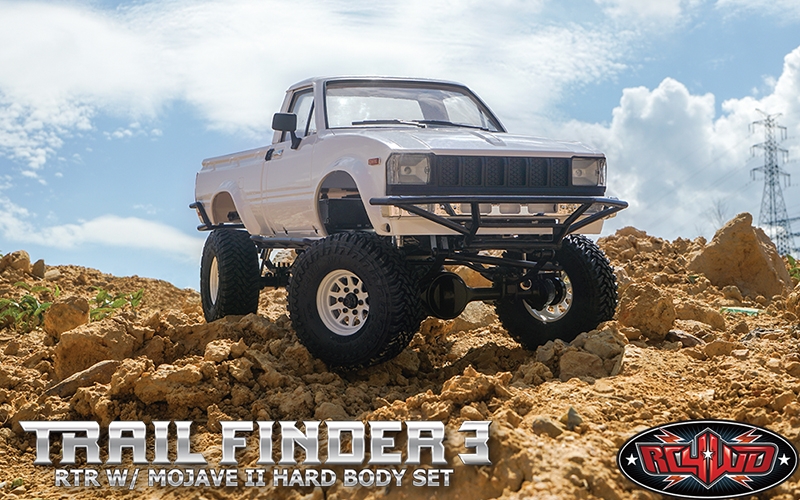

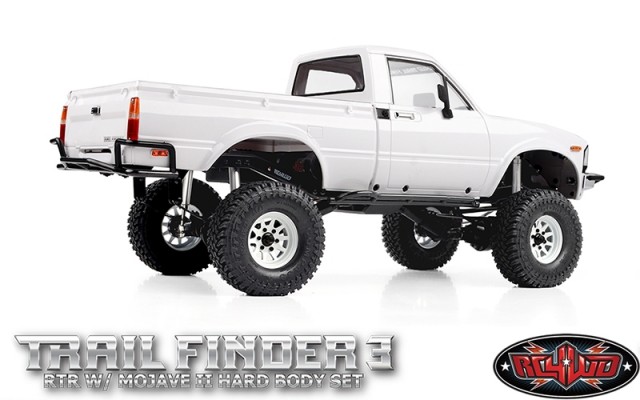

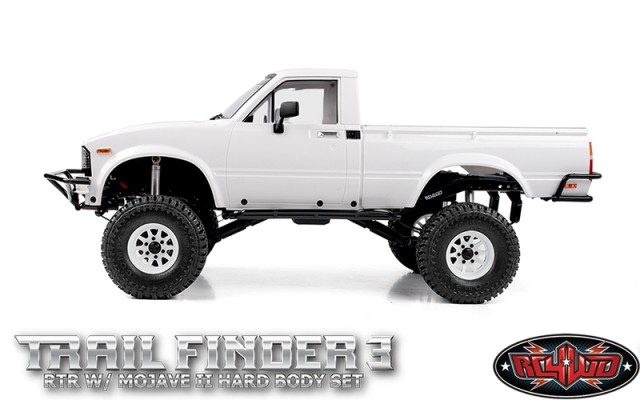

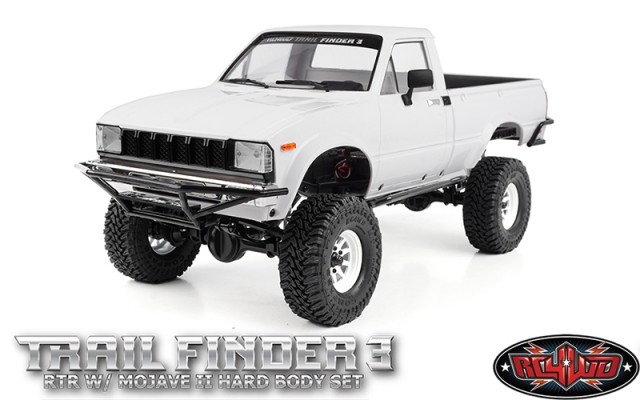

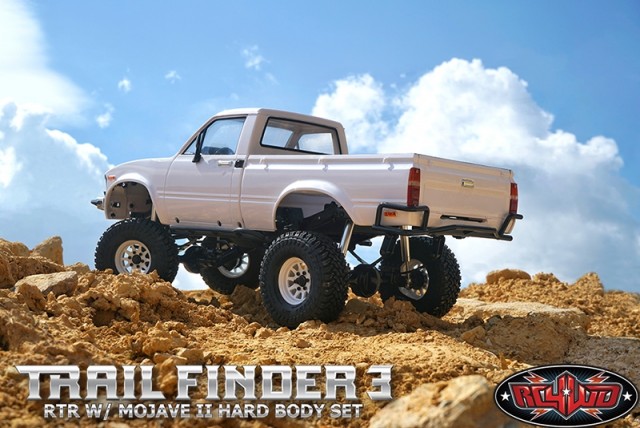

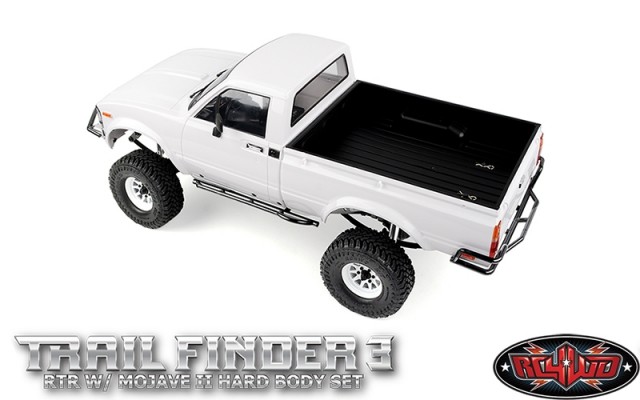

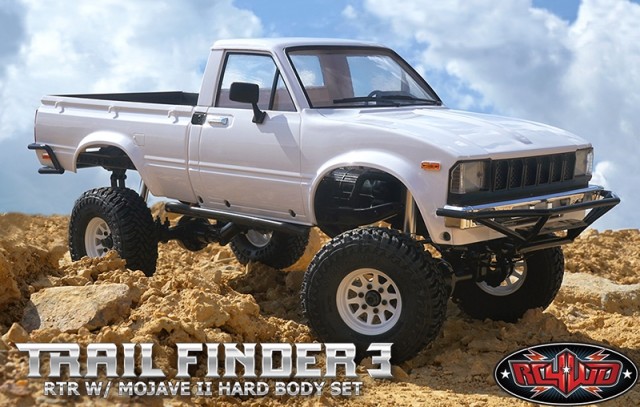

RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set

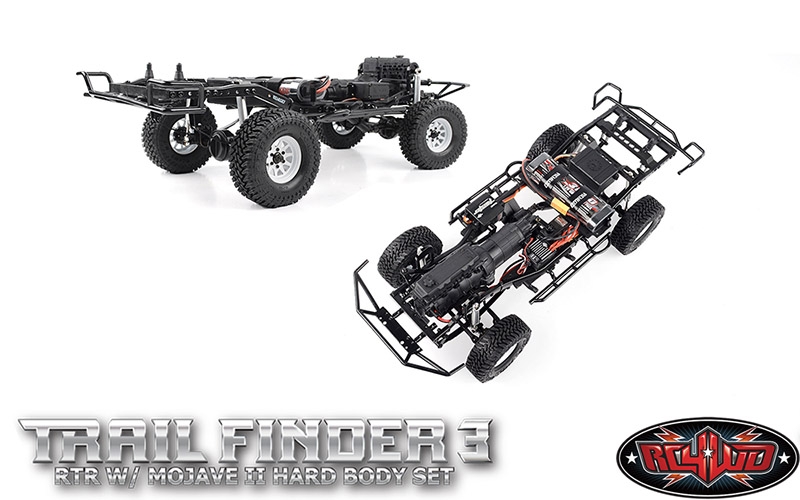

Experience one of the most realistic scale trucks on the market, The RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set. This model delivers authentic aesthetics and scale supremacy with our first ever steel, c-channel chassis rails on an RC Truck. These stamped steel chassis rails are strong and designed to accurately imitate a full-size truck frame! Featuring aluminum structural crossmembers and a black nylon center skid plate, this chassis comes built with an emphasis on durability. Discover the balanced driving experience on this model with its low center of gravity and tapered front to back chassis. Realistic, durable, and stable, this RC truck is sure to provide true trailing adventures!

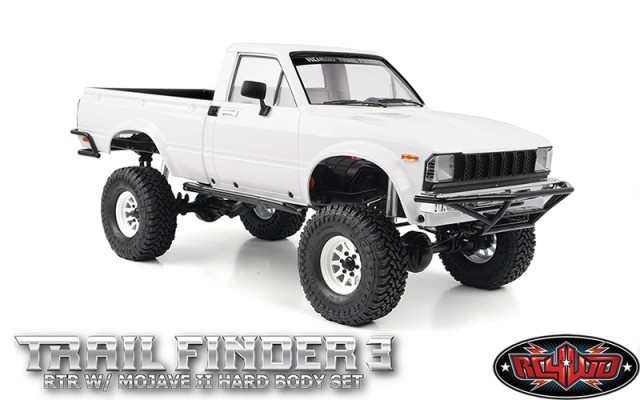

The Trail Finder 3 RTR W/ Mojave II Hard Body Set comes with a glossy white, plastic-injection molded body. Under the body, there´s an array of cosmetic engine details. The modular engine that houses the motor comes equipped with a bundle of molded engine parts. These molded parts include a water pump, valve cover, cylinder head, and even a removable oil cap! The engine housing features 3 different motor mounting positions, allowing for the installation of 3 different pinion gears: 11T, 12T, and 13T. Top it all off with a molded 22R engine code label adjacent to an RC4WD
logo for added authenticity.
The 2-speed transmission replicates the function of a true transmission, with the gearbox possessing a lower gear for greater torque and a higher gear for more speed. Hardened steel gears and stable shifting parts securely transmit power from the transmission to the driveline. This results in complete control when tackling obstacles and steep climbs. Near the axles, u-bolts attach the leaf springs, recreating the setup of a real truck.
Don´t miss out! Get your own Trail Finder 3 RTR W/ Mojave II Body and experience the exclusive chassis, engine, 2-speed transmission, and suspension now!
Mojave II Body in Gloss White

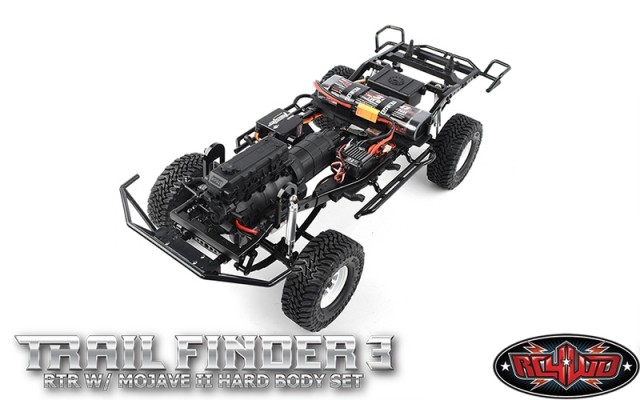

Realistic Steel C-channel Chassis
22R Scale Engine
W56 2-Speed Transmission With Transfer Case
Yota II Ultimate Scale Cast Axles
Twister High Torque Metal Gear Digital Servo
RC4WD Ultimate Scale Shocks
Marlin Crawler Side Plastic Sliders
RC4WD Marlin Crawler Front Plastic Tube Bumper
RC4WD Marlin Crawler Rear Plastic Tube Bumper
OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (White)
Compass M/T 1.55" Scale Tires
540 Crawler Brushed Motor 45T
Outcry III Waterproof ESC
6-Cell 3000mAh NIMH Battery Pack
NIMH Peak Battery Charger
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio
W56 Transmission Transfer Case
2 Speed
Wide Steel : 48 Pitch
Internal Gears
1st Gear Ratio = 3.47:1
2nd Gear Ratio = 1.27:1
Transfer Case Gears : 32 Pitch
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.2mm

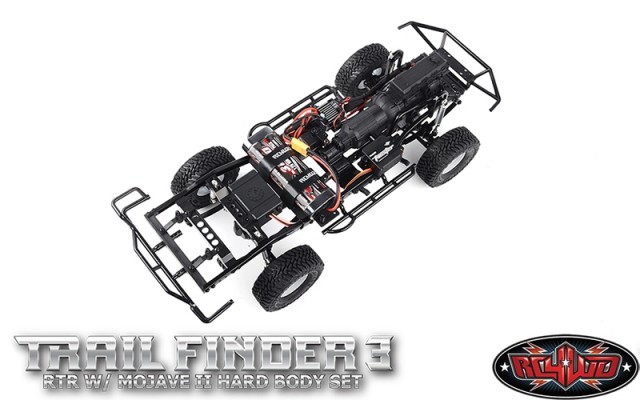

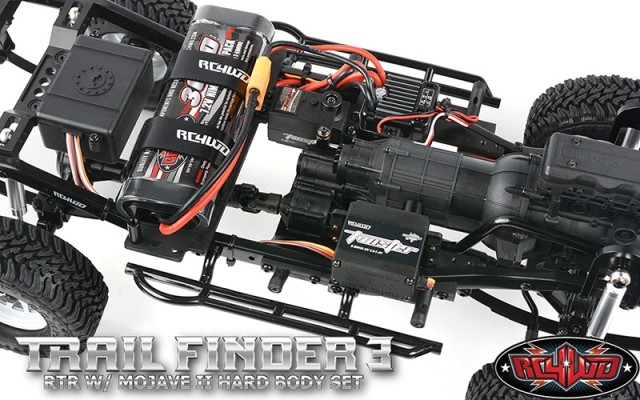

Trail Finder 3 Chassis
Features: Stamped Steel Construction

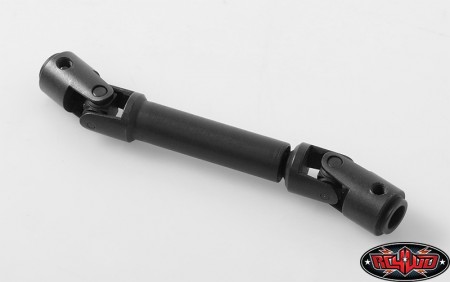

Drive Shafts
High Quality Plastic Material
High Quality Steel Yokes
Wheels
Type: OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels (White)
Hub: 12mm Hex
Width: 0.85in / 21.5mm
OD: 1.87in / 47.6mm
TF3 Truck Dimensions
Wheelbase: 287.00mm (11.30")
Width: 215.00mm (8.46")
Height: 217.48mm (8.56")
Ground Clearance: 66.63mm (2.62")
Final Drive Ratio
1st Gear: 9.27:1 2st
Gear: 3.40:1
DRIVETRAIN
The transfer case and transmission are a fully integrated system. This accurately imitates the powertrain layout of a full-size truck and is exclusive to the TF3! This transfer case is also fully compatible with our over/under transfer case gears.
The 2 speed transmission not only looks like a real transmission, but performs like one as well. With 2 operational speeds, this transmission will deliver terrain adaptability and increased control. Whether it’s low-speed technical mobility or high-speed forward power, this transmission comes fitted with versatility.
Expect smooth shifting and synchronization from the waterproof, low profile, Shifting Servo.

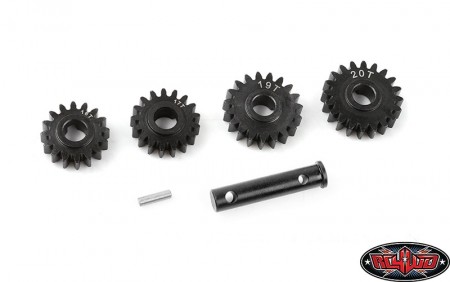

Hardened steel gears and high-quality shifting parts stabilize this RC Truck. This helps in climbing obstacles and provides lockdown grip on technical or steep terrains. Optional overdrive gears are available.

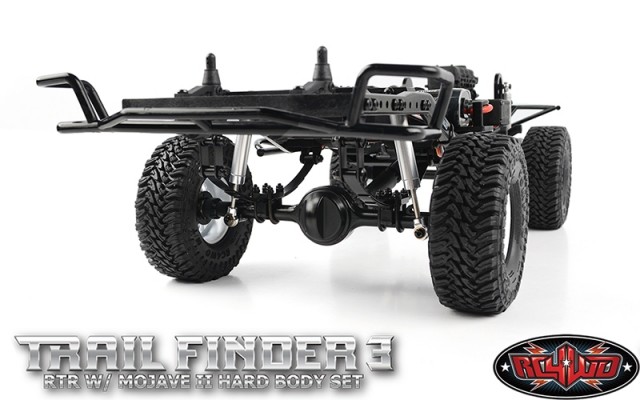

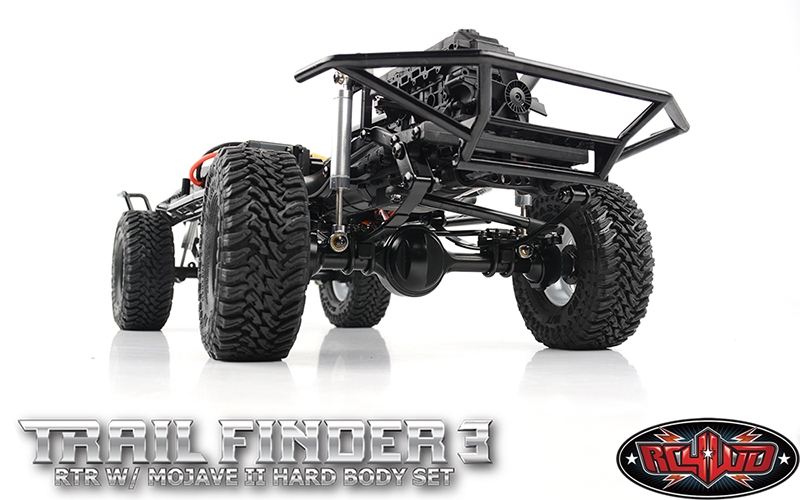

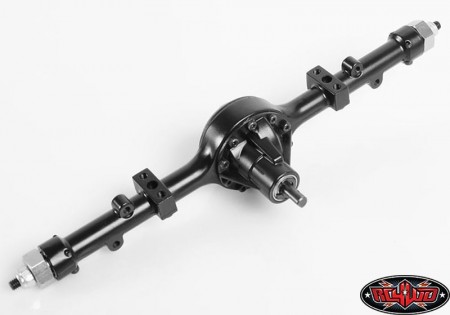

This 4x4 scale RC comes fitted with the Yota 2 axles, one of the most intricate scale axles we offer! These axles come with innovative details, like 8-degree knuckles, removable diff cover and a compact offset pumpkin.

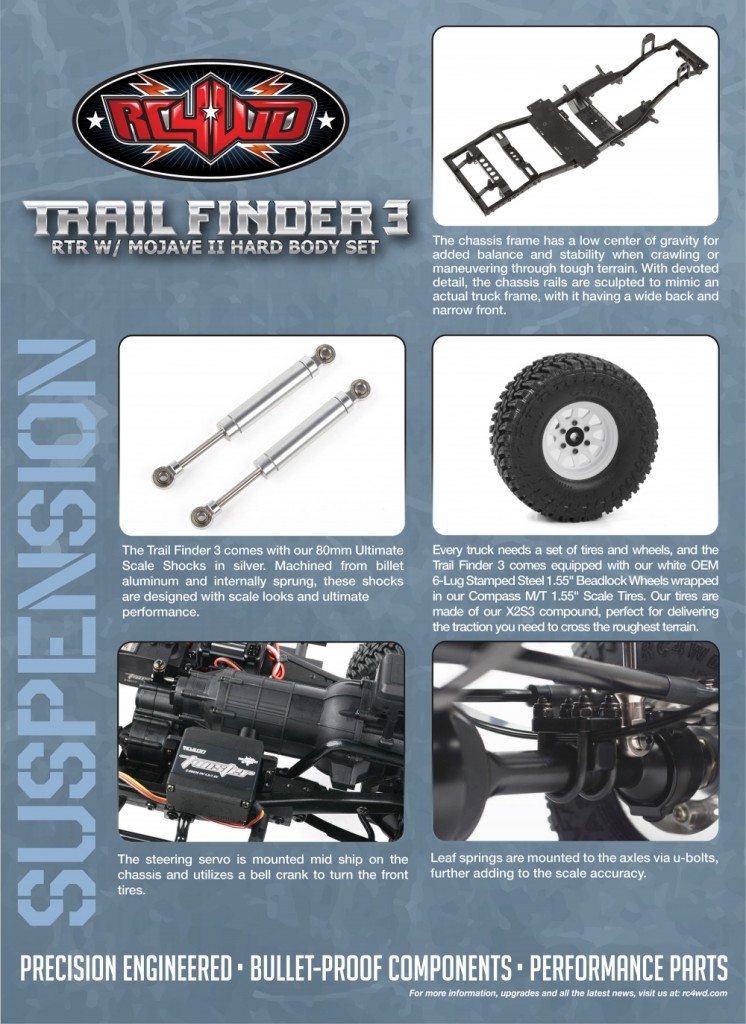

SUSPENSION

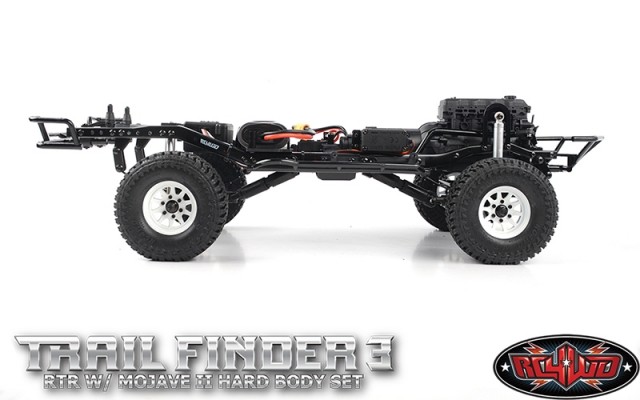

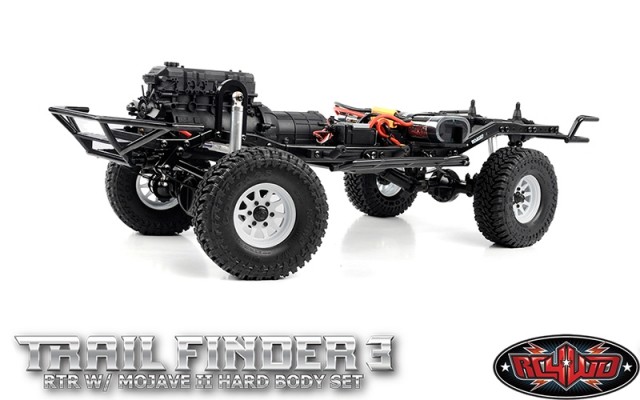

The chassis frame has a low center of gravity for added balance and stability when crawling or maneuvering through tough terrain. With devoted detail, the chassis rails are sculpted to mimic an actual truck frame, with it having a wide back and narrow front.
The Trail Finder 3 comes with our 80mm Ultimate Scale Shocks in silver. Machined from billet aluminum and internally sprung, these shocks are designed with scale looks and ultimate performance.
Every truck needs a set of tires and wheels, and the Trail Finder 3 comes equipped with our white OEM 6-Lug Stamped Steel 1.55" Beadlock Wheels wrapped in our Compass M/T 1.55" Scale Tires. Our tires are made of our X2S3 compound, perfect for delivering the traction you need to cross the roughest terrain.
The steering servo is mounted mid ship on the chassis and utilizes a bell crank to turn the front tires.
Leaf springs are mounted to the axles via u-bolts, further adding to the scale accuracy.

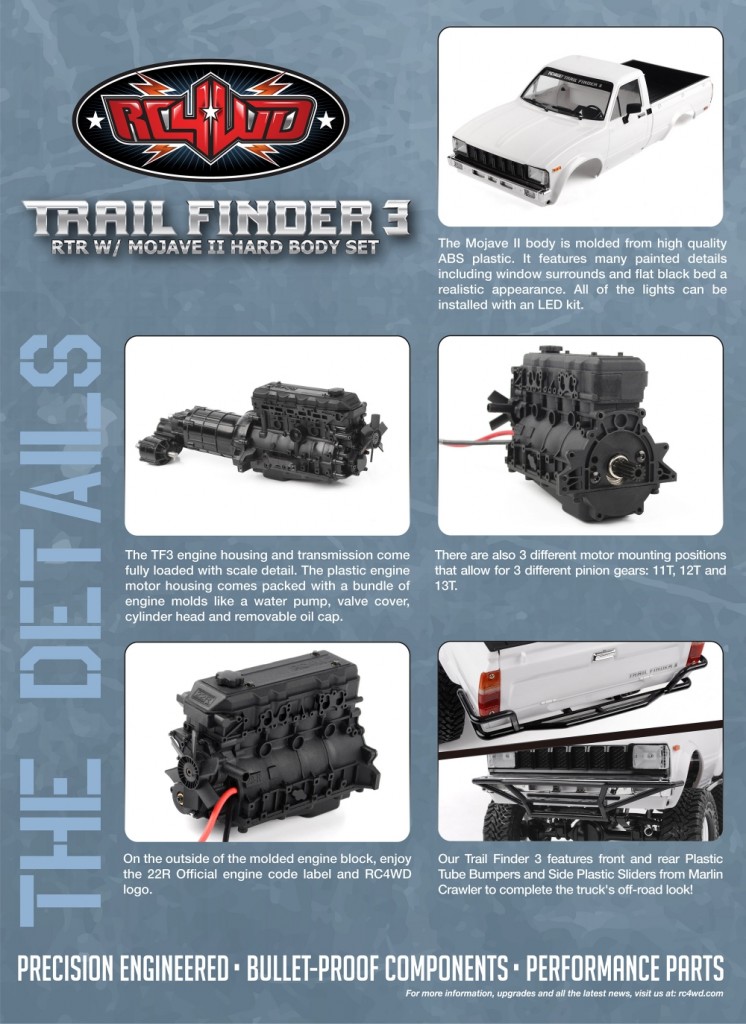

DETAILS

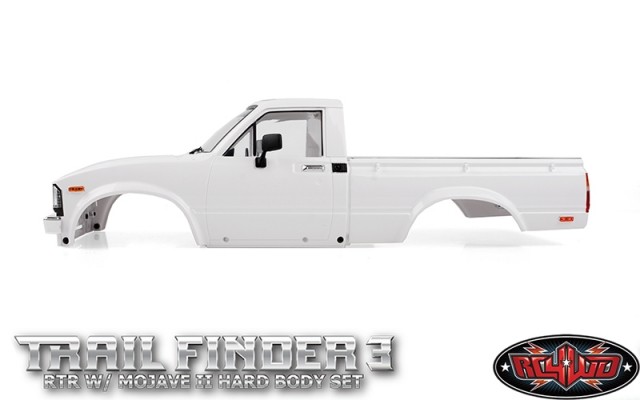

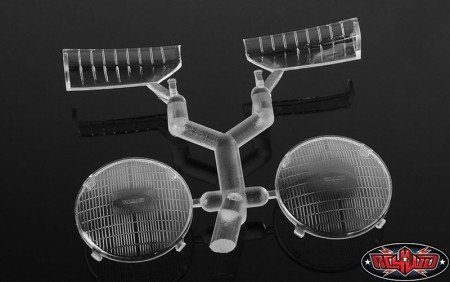

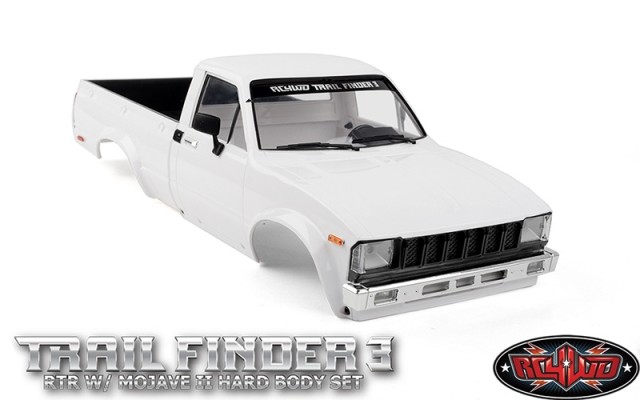

The Mojave II body is molded from high quality ABS plastic. It features many painted details including window surrounds and flat black bed a realistic appearance. All of the lights can be installed with an LED kit.

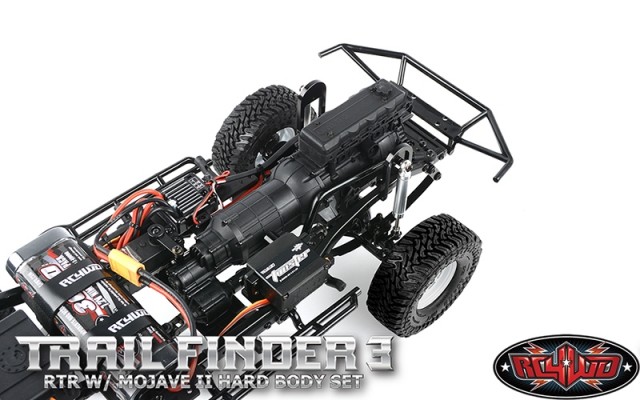

The TF3 engine housing and transmission come fully loaded with scale detail. The plastic engine motor housing comes packed with a bundle of engine molds like a water pump, valve cover, cylinder head and removable oil cap.
There are also 3 different motor mounting positions that allow for 3 different pinion gears: 11T, 12T and 13T.
On the outside of the molded engine block, enjoy the 22R Official engine code label and RC4WD logo.
Our Trail Finder 3 features front and rear Plastic Tube Bumpers and Side Plastic Sliders from Marlin Crawler to complete the truck´s off-road look!

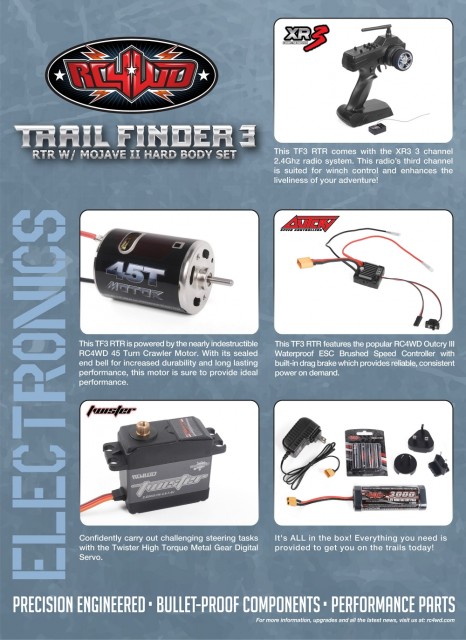

ELECTRONICS
This TF3 RTR comes with the XR3 3 channel 2.4Ghz radio system. This radio’s third channel is suited for winch control and enhances the liveliness of your adventure!
This TF3 RTR is powered by the nearly indestructible RC4WD 45 Turn Crawler Motor. With its sealed end bell for increased durability and long lasting performance, this motor is sure to provide ideal performance.
This TF3 RTR features the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake which provides reliable, consistent power on demand.
Confidently carry out challenging steering tasks with the Twister High Torque Metal Gear Digital Servo.

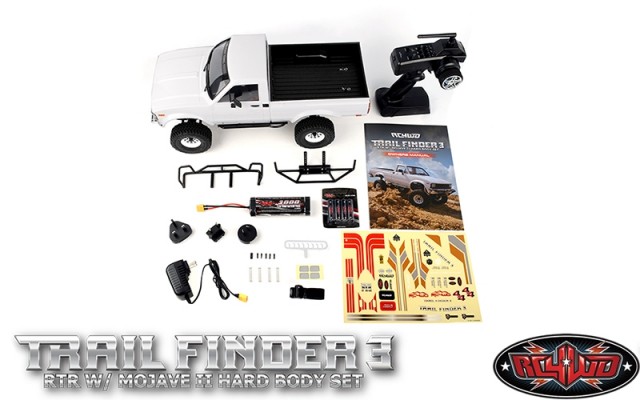

It´s ALL in the box! Everything you need is provided to get you on the trails today!
What´s Included:
- 1x RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set
Recommended Tools/Supplies:
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Medium (Blue) Thread Lock
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
- Phillips Screwdrivers (small)
- Grease and Lubrication (Z-S1199) (Z-S1197)
Instruction Manuals:
Notes:
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require thread lock.
- Use thread lock sparingly.
- Do not over tighten screws otherwise you may strip the thread.
