Produktinfo
| Weight | 0.2 kg |
|---|---|
| Brand |
PROCRAWLER® |
| Product Line |
Grind™ |
| Transmission Type |

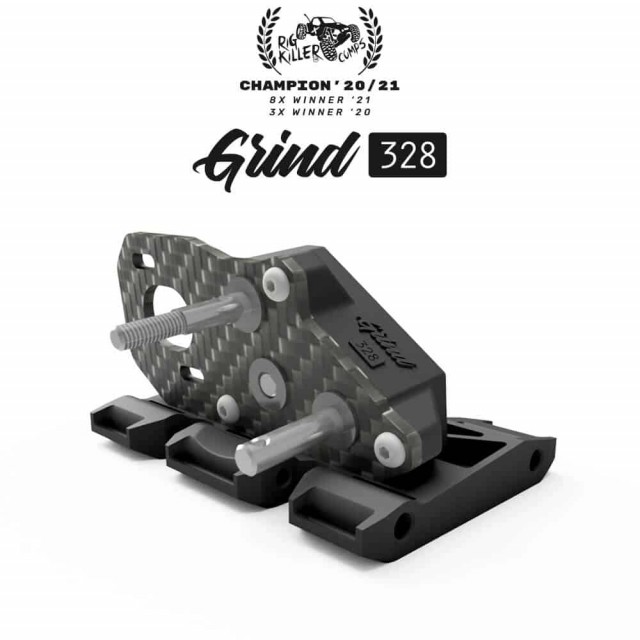

328 LCG OD Transmission |
| Skid Plate |
C23 V1/V2/V2R Grind 431/328™ Skid Plate, FS1 V1 Grind™ 431/328 Skid Plate, 431/328 6º Re-Angled Skid Plate |
| Motor Gears |
No Pinion/Spur Gears |
| Overdrive |
28% Front Overdrive |
| Front Drive Ratio |
45.50:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & AR45P/F10/Capra Rear Axles Or Clone, 45.50:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & TRX-4 Rear Axles Or Clone |
| Rear Drive Ratio |
59.72:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & TRX-4 Rear Axles Or Clone, 60.38:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & AR45P/F10/Capra Rear Axles Or Clone |
| Material |
Hardened Chromoly, PA12, Stainless Steel, Toray® Premium High-Grade Graphite |
| Net Weight |
56g, 77g /w skid |
| Length |
18mm |
| Width |
80mm |
| Height |
35mm |
| Hardware |
2x M3 Stainless Steel Square Nut, 2x M3x14 Flat Head Hex Socket Stainless Steel Screw, 3x M3x8 Button Head Hex Socket Stainless Steel Screw, 3x M4x3 Hex Socket Stainless Steel Set Screw |
| Included |
1x Chosen Motor Gears (Optional), 1x Chosen Skid, 1x Grind™ 328 LCG OD Transmission, Stainless Steel Hardware |
| Delivered As |
Assembled, Pre-Greased /w PROCRAWLER® G2 Waterproof Premium Graphite Silicone Grease |
Gearing
| Grind 328™ Overdrive |
|---|
| 28% Front Overdrive |
| Grind™ 328 Front Transmission Output Ratio |
|---|
| 1.95:1 |
| Grind™ 328 Rear Transmission Output Ratio |
|---|
| 1.35:1 |
| Grind™ 328 Front Transmission Output Ratio /w Final Drive |
|---|
| 12.13:1 /w 9T/56T Pinion/Spur |
| Grind™ 328 Rear Transmission Output Ratio /w Final Drive |
|---|
| 8.40:1 /w 9T/56T Pinion/Spur |
| Grind™ 328 Front Drive Ratio |
|---|
| 45.50:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & AR45P/F10/Capra Rear Axles Or Clone |
| 45.50:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & TRX-4 Rear Axles Or Clone |
| Grind™ 328 Rear Drive Ratio |
|---|
| 60.38:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & AR45P/F10/Capra Rear Axles Or Clone |
| 59.72:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Front & TRX-4 Rear Axles Or Clone |
