FrSky R9M 2019 module and R9 MM receiver with mounted Super 8 and T antenna

PrisNOK895,00 inkl. mva.
På lager: 1 stk.
Lagerstatus:
På lager: 1 stk.
Artikkelnr.:
FRS03081839
Produsent:
FrSky
  • Produktinfo
  • Produktanmeldelser (0)

Pakke med følgende produkter:

  • 1 stk R9M 2019 modul med påmontert Super 8 antenne
  • 1 stk R9 MM mottaker med påmontert Ipex4 T antenne

Overview

FrSky R9 and R9M radio control system is the first FrSky long range system which works in the frequency of 900MHz. The R9M module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.

The FrSky R9 MM is the latest 900MHz mini receiver in the long-range series. It carries on most of the features from the previous R9 Mini receiver, like it’s super low latency, high precision performance in an extremely compact design. A new feature incorporating an inverted S.Port output makes it compatible with more devices.

Features

Module
  • 868MHz working mode
  • Long range, low latency and high precision RC system
  • Telemetry mode(25mW)/non-telemetry mode(200mW / 500mW)
  • RF Power (Flex): 10mW/100mW/500mW/1W (telemetry supported for all levels)
  • Smart Port enabled and support telemetry data transmission
Receiver
  • 868MHz
  • Mini size and superlight weight
  • Inverted S.Port enabled
  • S.Port enabled and support telemetry data transmission
    (Support F.Port, download firmware to support the function)
  • Low latency and high precision
  • With RSSI output in SBUS
  • Battery voltage detection supported
  • Detachable Ipex connector antenna

Specifications

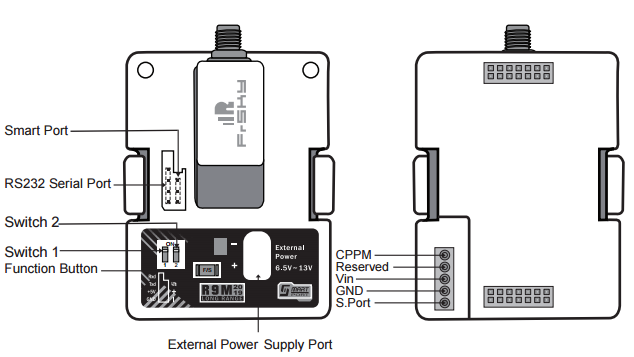

Module
  • Compatibility: R9 series
  • Vin Voltage Range: 6.5V~13V
  • External Power Supply: 6.5V~13V
  • Telemetry Interface: Smart Port
  • Upgrade Interface: Smart Port
  • Modulations: PXX or CPPM (auto-detected)
Receiver
  • Dimension: 16*10*2.8mm (L×W×H)
  • Weight: 0.7g (without antenna)
  • Number of Channels:
    4/8CH (Telemetry) / 4/16CH (Telemetry) / 4/16CH (No Telemetry)
  • Operating Voltage Range: DC 3.5V – 10V
  • Operating Current: 100mA@5V
  • Operating Range: Up to 10km or above
  • Compatibility: R9M and R9M Lite
