A True Legend

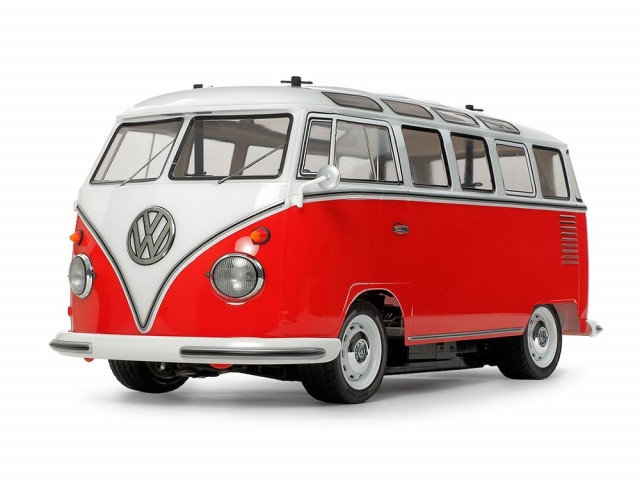

This R/C model assembly kit recreates the “23-window” type of the much-loved first generation (T1) Volkswagen Type 2, known as the Volkswagen Bus to many of its legions of fans, with an accurate polycarbonate body in detailed 1/10 scale. Combined with classic style wheels and tread patterned tires, it is mounted on the rear-wheel drive M-06 chassis. |
Great RR Performance from the M-06

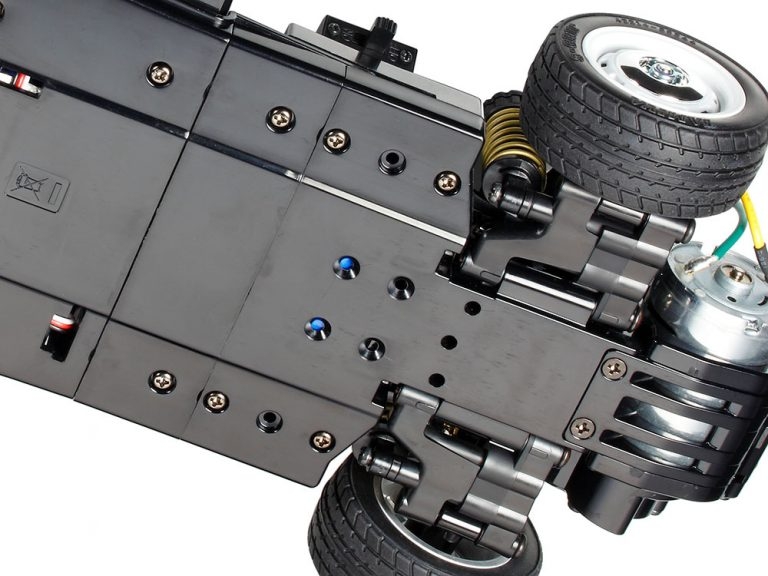

The M-06 chassis features a rear-mounted motor, rear-drive setup and features a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses metal-plated wheels, equipped with 60D radial tires at the front and 60D super grip tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. A large bumper is included. |

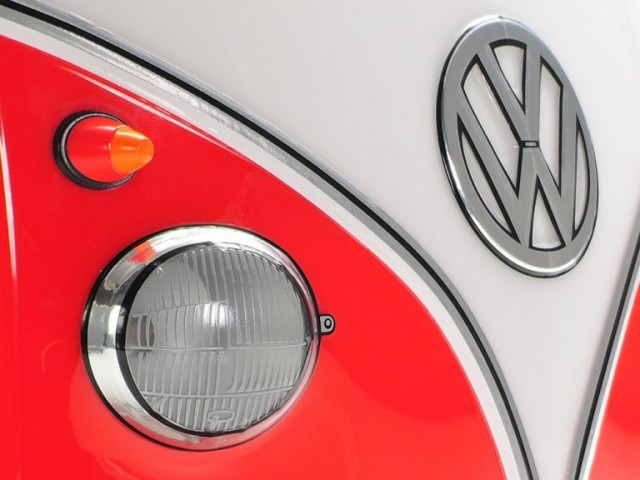

★Intall separately sold LEDs in the front and rear lights for super realism! Turn signals are separate parts.
★Separate parts are also employed to depict the distinctive round side mirrors and their slimline stalks.
★The rear of the model also shows off excellent attention to detail, including a separate bumper part
★Dish wheels feature gleaming plated components. Paint the rim sections with TS-26 Pure white to finish.

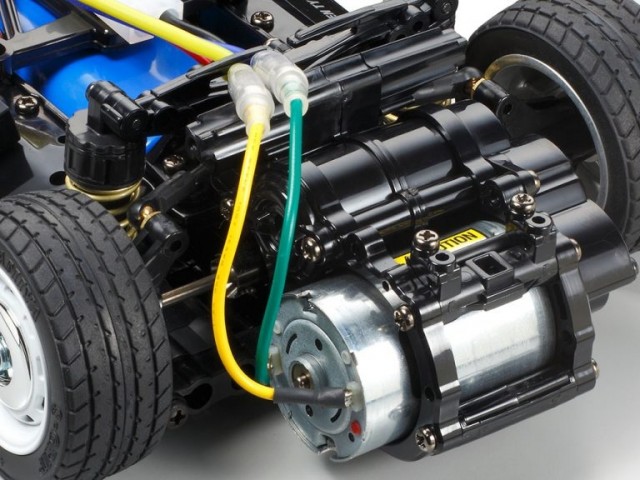

★The rear-mounted motor, rear-wheel drive setup provides the model with excellent traction at the rear.
★Three different wheelbase lengths are accessible by switching the position of rear section parts.
Specifications
★Length: 426mm, Width: 195mm, Height: 177mm
★Wheelbase: 239mm
★Tread (F/R): 138mm
★Rear-Motor, Rear-Wheel Drive
★3-Bevel Differential Gear
★3-Piece Steering Tie-Rod
★4-Wheel Independent Double Wishbone Suspension
★F/R Friction Dampers
★Gear Ratio = 5.8:1
★Tire Width/Diameter (F/R): 25mm/59mm
★Type 540 Motor |
Separately Required Items
★2-Channel R/C Transmitter/Receiver System
★Steering servo

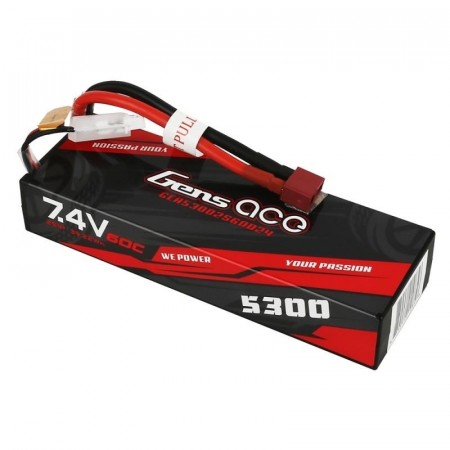

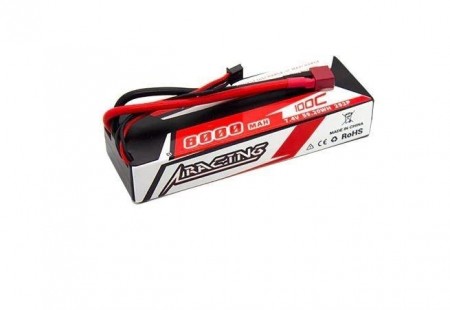

★Battery pack & charger
★Electronic Speed Controller
★Paint for polycarbonate body |
