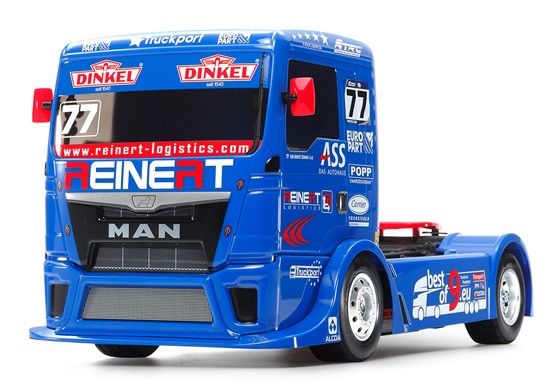

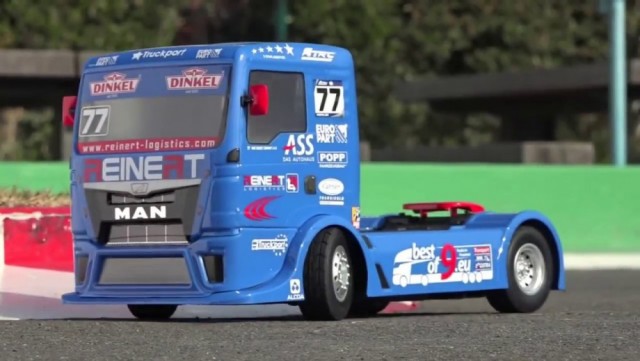

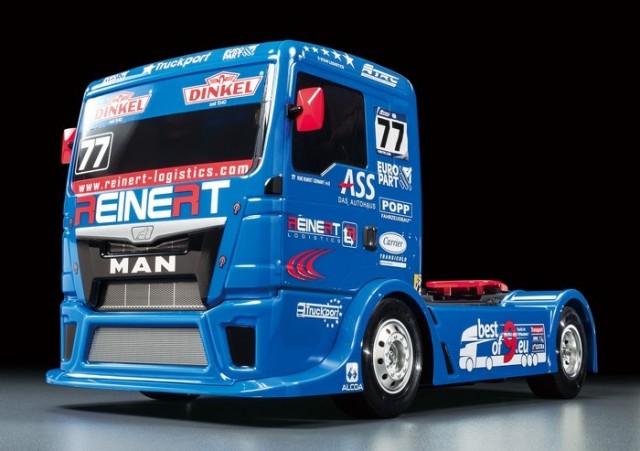

Weighing in at a colossal 5,400kg, the trucks in the European Truck Racing Championship are truly the heavyweights of motorsport. But size isn´t the only thing that´s extreme about these incredible machines. The Team Reinert Racing MAN TGS truck is powered by a huge 1,100hp turbocharged diesel engine. To get that phenomenal power from the engine to the tarmac is no easy task, which is why the truck takes advantage of a Mechanical 16-speed ZF gearbox to get it up to speed. This Tamiya radio control replica faithfully captures the giant race truck of the Team Reinert Racing Team. It competed in the 2016 running of the FIA European Truck Racing Championship. The polycarbonate body sits atop the TT-01 E chassis, which is designed for easy assembly and maintenance.
Product Specifications (Specifications subject to change)
Type | Detail |
Scale |
1/14 |
Construction type |
Assembly kit |
Terrain use |
On-Road |
Drive-train |
4WD |
Drive type |
Gearbox |
Drive line |
Dog bone |
Differential type |
Gear |
Suspension |
Fully independent double wishbone |
Steering mechanism |
Bell-crank |
Shock damper |
Friction damper |
Shock damper material |
Plastic |
Tire type |
Rubber |
Tire tread |
Radial |
Body material |
Polycarbonate |
Chassis material |
Plastic |
Electronic Speed Control (ESC) |
Included |
ESC model |
TBLE-02S |
LED Light buckets |
Yes |
LED lights |
Sold separately |
Motor |
540-brushed type |
Bearings |
Plastic bushing |
Adjustable camber |
Fixed |
Adjustable toe angles |
Front only |
Adjustable ground clearance |
Yes |
Adjustable gear ratio |
Yes |
Adjustable wheelbase |
Fixed |
Adjustable track width |
Fixed |
Adjustable shock angle |
Yes |
Special feature 1 |
4-piece durable and lightweight polycarbonate body. |
Special feature 2 |
Details such as engine, turbocharger and frame are faithfully reproduced on the polycarbonate body. |
Special feature 3 |
Separately molded ABS plastic parts recreate side mirror, coupler and rear bumper. |
Special feature 4 |
Included marking stickers recreate the sponsor livery of the #77 Team Reinert Racing truck from the 2016 FIA season. |
Special feature 5 |
Wheels and 70mm diameter radial tires are specifically designed for racing truck models. |
Special feature 6 |
Features molded parts to make the model compatible with LED lights. (Tamiya LED Light Unit sold separately) |
Special feature 7 |
Includes a Tamiya TBLE-02S ESC and Torque Tuned motor. ESC features brushless motor mode for easy expandability for brushless motor power. Note: Do not exceed a 21.5 turn motor when upgrading to a brushless motor. |
Requires A |
2-channel radio gear |
Requires B |
Polycarbonate paint |
Requires C |
|
