PRODUCT INFORMATION:

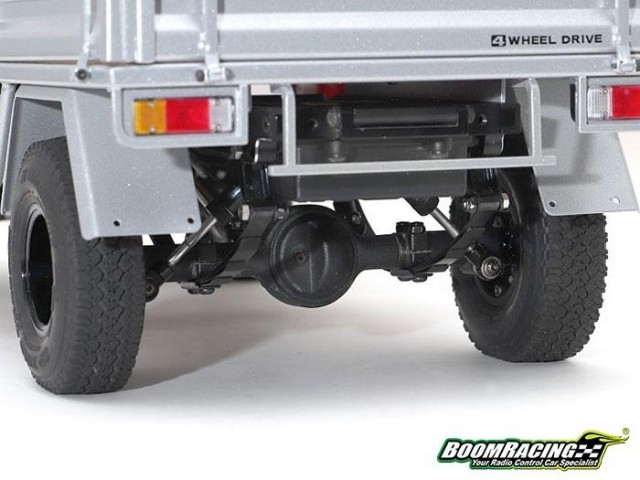

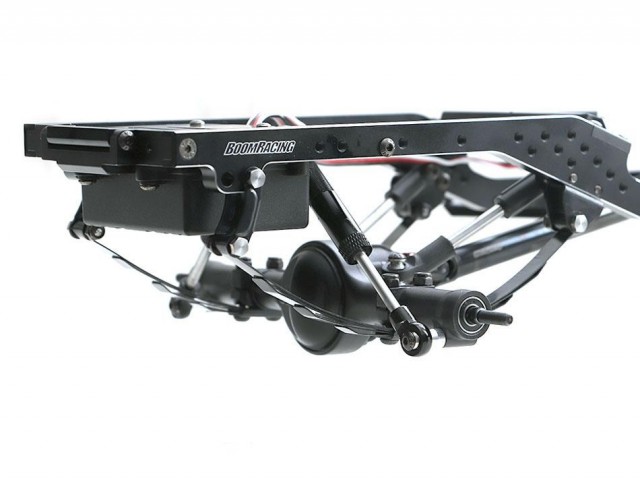

• The new leaf spring unit has a master leaf and three graduated leafs for adjustability. The leafs have an all-new shape design and use a new proprietary steel material for durability and strength. You may use up to four leafs for adjusting the rebound strength.

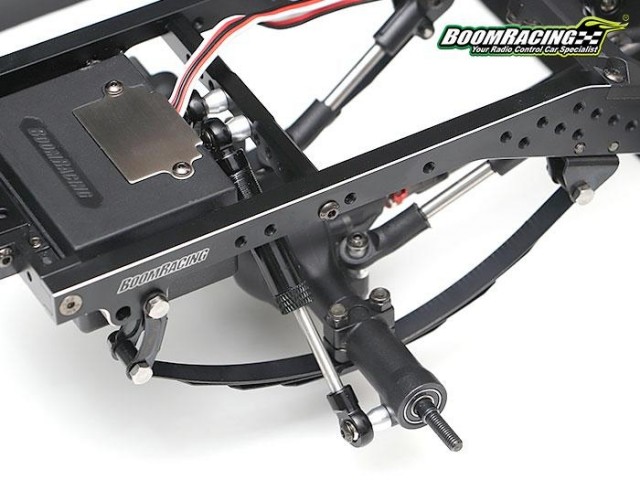

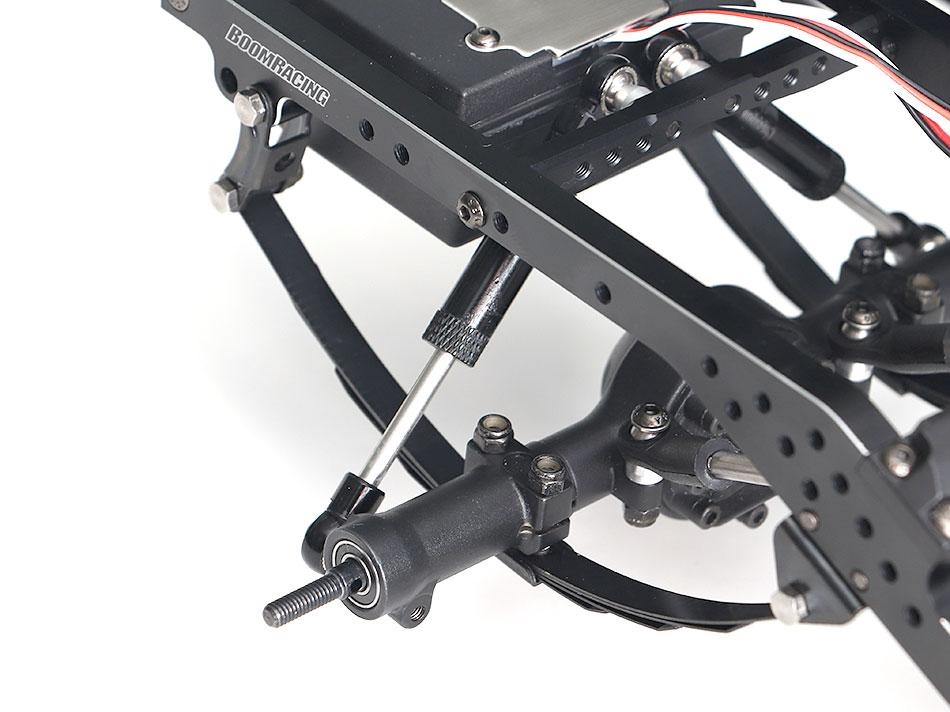

  The Aluminum Rear Shock Crossmember has multiple mounting positions for adjustments. You may use the original shocks from the BRX01 for this leaf spring setup.

  Two Aluminum Antiwrap bars are included. Axle wrap is a problem that plagues leaf sprung vehicles, even in tiny trucks. It is unwanted suspension movement that allows the pinion angle to change, which can cause drivelines to bind and break. The bars will prevent this.

  Realistic shackle bolts for ultimate scale realism, included!

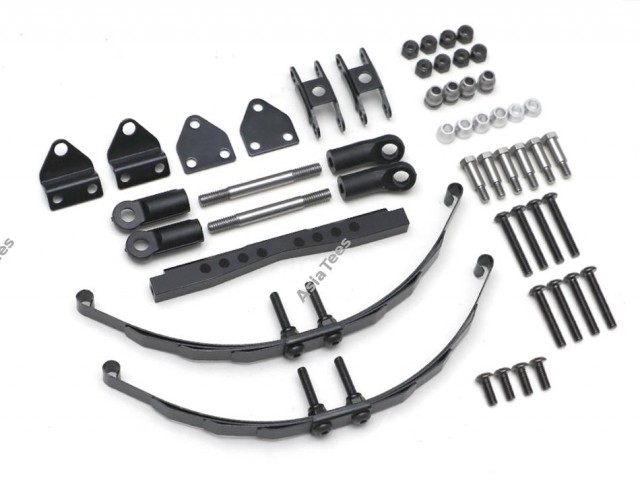

  Includes:
  • Aluminum Rear Shock Crossmember (fits BRX01 only)
  • Shackle
  • Leaf Retainer
  • Master & Graduated Leafs (4 Total)
  • Steel Leaf Channel
  • Antiwrap Bar
  • Spacer
  • Stainless Steel Bolts
  • Hardware

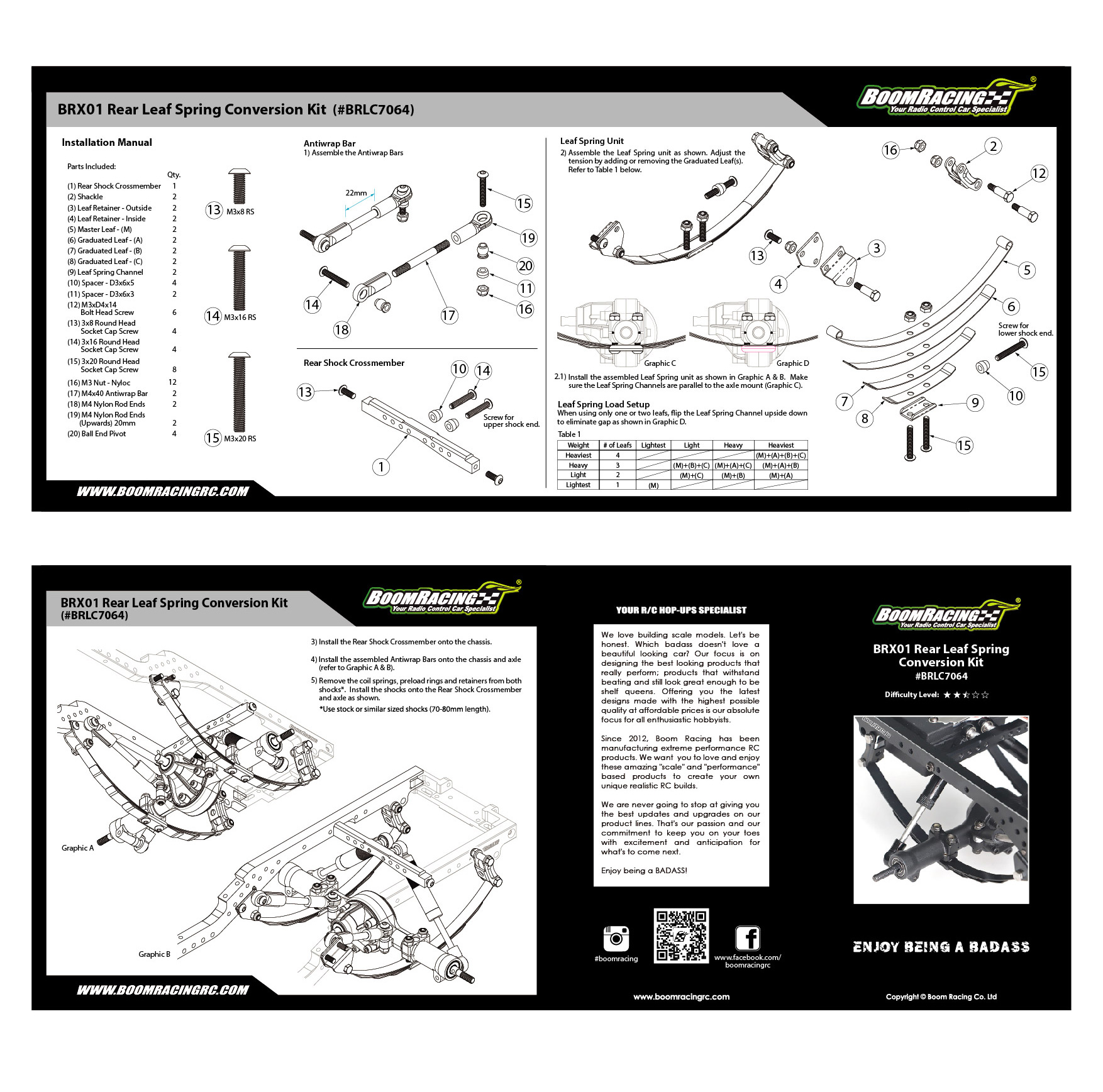

  Installation Tip:
  The receive box should be installed first. Use a long nose plier to hold the nut between the chassis and the receiver box.

Note: the rear shock crossmember does not fit the BRX02.
