SSD 2 Speed Transmission Kit for Wraith

PrisNOK1 599,00 inkl. mva.
Lagerstatus:
Utsolgt
Artikkelnr.:
SSD00085
Produsent:
SSD-RC

E-postvarsling Vi beklager, men produktet er midlertidig utsolgt. Legg igjen din e-postadresse og vi vil sende deg en melding så snart varen kommer tilbake på lager igjen.
vilkårene
  • Produktinfo
  • Produktanmeldelser (0)

DESCRIPTION

Part No. SSD00085

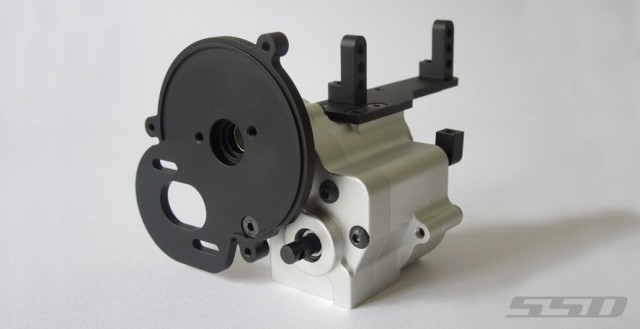

2 Speed Transmission Kit for Wraith

FEATURES

Direct fit into Axial SMT10
CNC machined aluminum transmission case

CNC machined aluminum 3mm thick motor mount

Wide hardened steel 48 pitch gears

Hardened steel output shaft

Shift servo mount fits standard and mini servos

Same mounting as stock Axial Wraith & SCX10 transmission

Fits stock Axial transmission input shaft

Fits stock Axial transmission gear cover

Direct fit into Axial Wraith



Note:

This is a conversion kit, not a complete transmission.

To complete the assembly it requires:

Axial transmission input shaft (AX31149)

Axial 20T drive gear + pin (AX30394, AX30162)

Axial Slipper plates + pads (AX31026, AX31068)

Axial 56T 32P Spur gear (AX31027)

Axial 13T 32P Pinion gear (AX30724)

Axial Slpper spring (AX30413)

Axial Gear cover (AX80078)



Will require shifters to be removed from Wraith interior.



This can be used on an SCX10 but shorter driveshafts are required.



Assembly instructions can be found HERE



Replacement output shaft is available (SSD00088)

SPECIFICATION

Internal 1st gear ratio:  4.91:1   (stock Axial is 2.6:1)

Internal 2nd gear ratio:   1.8:1

Output shaft OD:  5mm

Weight (when fully assembled with shift servo) :  335g

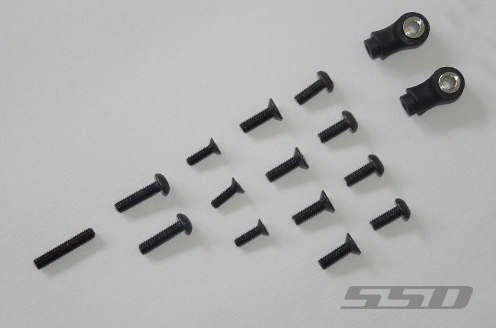

WHAT'S INCLUDED

1 X  2 Speed Transmission assembled  with motor mount

4 X  M3 x 10mm flat head screws

3 X  M2.5 x 6mm flat head screws

4 X  M3 x  8mm  button head screws

2 X  M3 x 12mm button head screws

1 X  M3 x 15mm threaded set screw

2 X  3mm mini plastic rod ends
