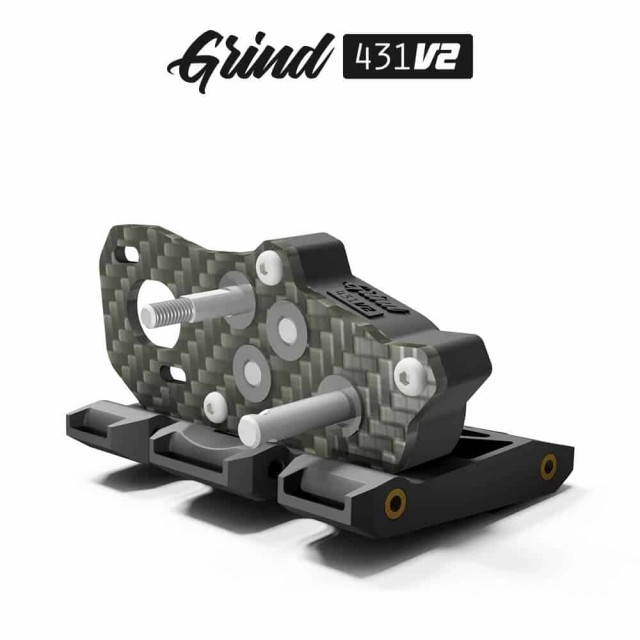

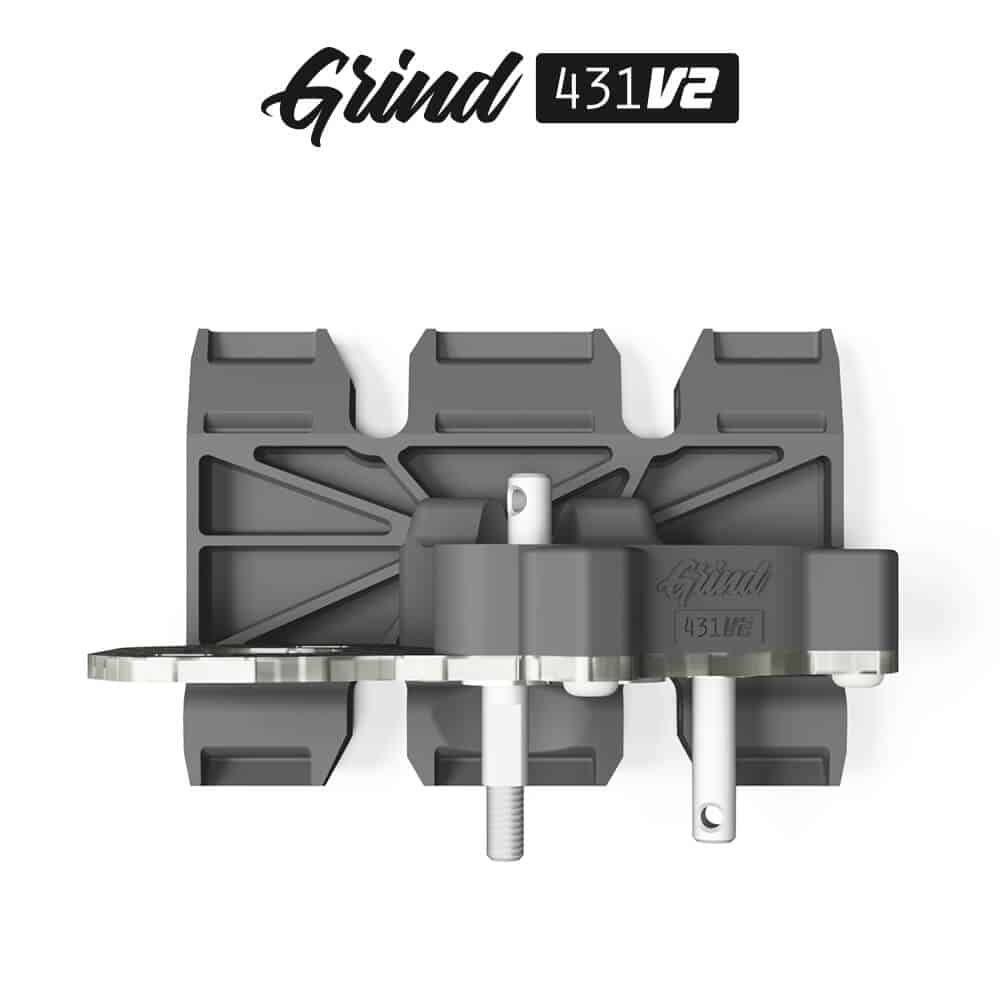

ProCrawler Grind™ 431 V2 LCG OD Transmission w/6º Re-Angled Skid Plate

Kommer med skid plate som passer til Flatgekko™ C23 og Yuuki™ FS1 Erstatter valgt skid plate hvis denne kjøpes sammen med et ProCrawler kit!

PrisNOK2 695,00 inkl. mva.
Lagerstatus:
Utsolgt
Artikkelnr.:
TKH2B3200000
Produsent:
ProCrawler

E-postvarsling Vi beklager, men produktet er midlertidig utsolgt. Legg igjen din e-postadresse og vi vil sende deg en melding så snart varen kommer tilbake på lager igjen.
vilkårene
  • Produktinfo
  • Produktanmeldelser (0)
Weight 0.2 kg
Brand

PROCRAWLER®

Product Line

Grind™

Transmission Type

431 V2 LCG OD Transmission

Skid Plate

C23 V1/V2/V2R Grind 431/328™ Skid Plate, FS1 V1 Grind™ 431/328 Skid Plate, 431/328 6º Re-Angled Skid Plate

Motor Gears

No Pinion/Spur Gears

Overdrive

31% Front Overdrive

Front Drive Ratio

42.78:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Axles Or Clone, 42.93:1 /w 17T/56T Pinion/Spur + TRX-4 Axles Or Clone, 46.79:1 /w 13T/56T Pinion/Spur + AR45P/Capra Axles Or Clone

Rear Drive Ratio

58.33:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Axles Or Clone, 58.55:1 /w 17T/56T Pinion/Spur + TRX-4 Axles Or Clone, 63.80:1 /w 13T/56T Pinion/Spur + AR45P/Capra Axles Or Clone

Material

Hardened Chromoly, PA12, Stainless Steel, Toray® Premium High-Grade Graphite

Net Weight

49g, 69g /w skid

Length

14.5mm

Width

87mm

Height

35mm

Hardware

2x M3 Stainless Steel Square Nut, 2x M3x14 Flat Head Hex Socket Stainless Steel Screw, 3x M3x8 Button Head Hex Socket Stainless Steel Screw, 4x M3x35 Button Head Hex Socket Stainless Steel Screw

Included

1x 431 V2 LCG OD Transmission, 1x Chosen Motor Gears (Optional), 1x Chosen Skid, Stainless Steel Hardware

Delivered As

Assembled, Pre-Greased /w PROCRAWLER® G2 Waterproof Premium Graphite Silicone Grease



Gearing

Grind 431™ V2 Overdrive
31% Front Overdrive

Grind 431™ V2 Front Transmission Output Ratio
1.83:1

Grind 431™ V2 Rear Transmission Output Ratio
2.50:1

Grind 431™ V2 Front Transmission Output Ratio /w Final Drive
11.40:1 /w 9T/56T Pinion/Spur
7.90:1 /w 13T/56T Pinion/Spur
6.04:1 /w 17T/56T Pinion/Spur

Grind 431™ V2 Rear Transmission Output Ratio /w Final Drive
15.55:1 /w 9T/56T Pinion/Spur
10.77:1 /w 13T/56T Pinion/Spur
8.24:1 /w 17T/56T Pinion/Spur

Grind 431™ V2 Front Drive Ratio
42.78:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Axles Or Clone
46.79:1 /w 13T/56T Pinion/Spur + AR45P/Capra/F10 Axles Or Clone
42.93:1 /w 17T/56T Pinion/Spur + TRX-4 Axles Or Clone

Grind 431™ V2 Rear Drive Ratio
58.33:1 /w 9T/56T Pinion/Spur + AR44/AR45/Enduro Axles Or Clone
63.80:1 /w 13T/56T Pinion/Spur + AR45P/Capra/F10 Axles Or Clone
58.55:1 /w 17T/56T Pinion/Spur + TRX-4 Axles Or Clone
