AD-RC03+ is a 4-Channel LED Lighting & Control System. The users can fully utilize all the advanced functions of AD-RC03 using a 4-channel gun-style RC system.
NEW FEATURES AND FUNCTIONS
Besides the original AD-RC03 features and functions, there are some new features and functions as follows.
Programmable Supported Sound Module
- Sound Module E (ESS One+ series) by default (originally supported in RC03)
- ServoNaut SMX / 3T sound module using gun style or stick style transmitter
For ServoNaut SMX / 3T sound module using gun style transmitter
- Connect TH and Horn to TH and 4-1 of the socket board respectively
- One CH4 button to control the sound module
- Press and hold CH4 button to enable horn sound
- Press CH4 button once to start or stop engine
- Press CH4 button three times to change gear in sequence of 2-1-3-2
Features:
- Fully remote operated via a 4 channel transmitter basis
- 5V~6V BEC operate
- Channel 3 (VR / 3-step switch / push button) for LED programming to turn on/off LEDs ---- Individual RC switch: Night Mode, Hazard Light, Socket A+B, Pilot Mode, Headlight Half Brightness, Parking Light
- Channel 3 or Steering: Auto / Manual Indicators
- Simulation of real vehicle braking, Indicators light effects
- Reverse sound and lights effects are included
- Brake: Normal / Crawler (Brake light will turn ON 3 seconds whenever the throttle resumes to centre)
- User Define "ON" Mode: All the user selected LEDs will be turned on after powering up automatically (Default :All off)
- Support channel 4 (push button) for 4 receiver output signals to control AD-RC Smoke, winch (need an extra controller), light bar (with receiver signal decoder) and ESS One+ horn (press and hold on).
- Advanced features of channel 4: flash headlight, clutch mode (activate throttle without movement)
- User friendly setup mode to program Manual Indicators, Crawler Brake, Beep Selection (backward, beep on/off), Throttle Normal/Reverse, Ch4 Remote Toggle/Hold and Ch4-4 Clutch Setting

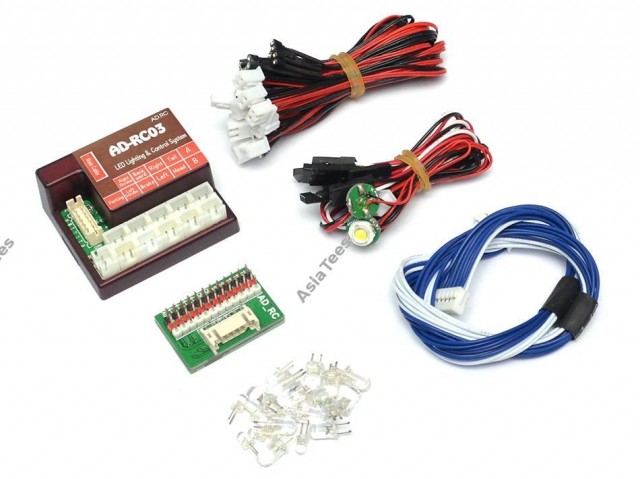

PACKING Includes:

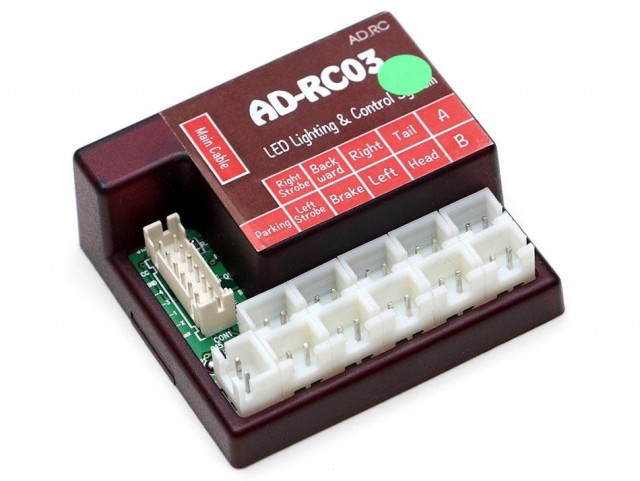

- Main Unit x1
- Y-Cable x1
- User Manual x1

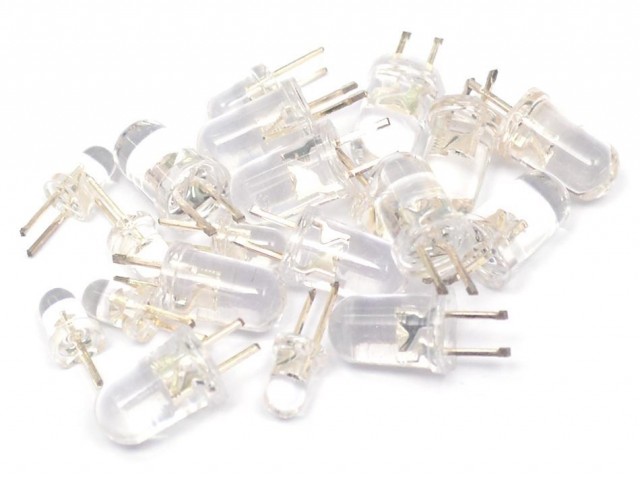

- LED Wire Assembly x10 (1 Wire with 2 LED)

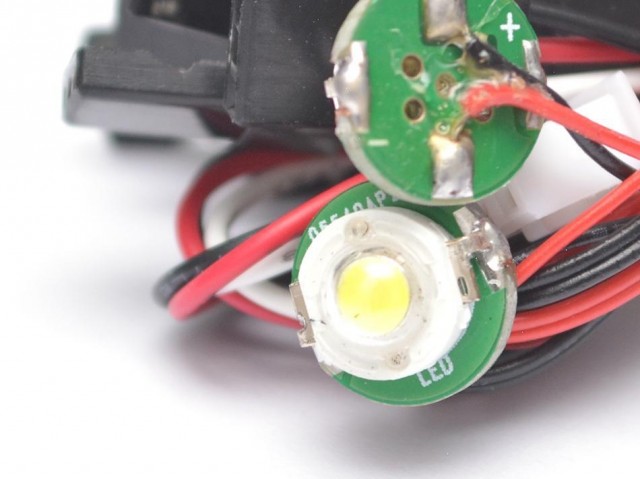

- High Power LED x 1 (1 Wire with 2 LED)
Dimensions
- Main Unit Size: length 50mm width 46mm height 20mm
