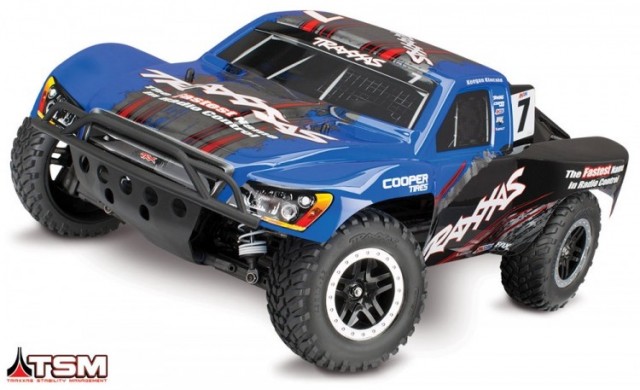

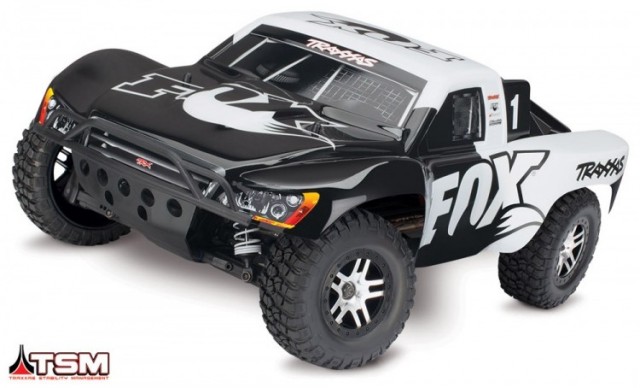

Short Course Performance on a Whole New Level

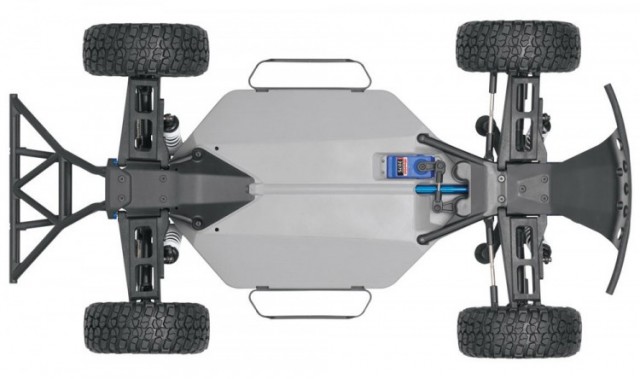

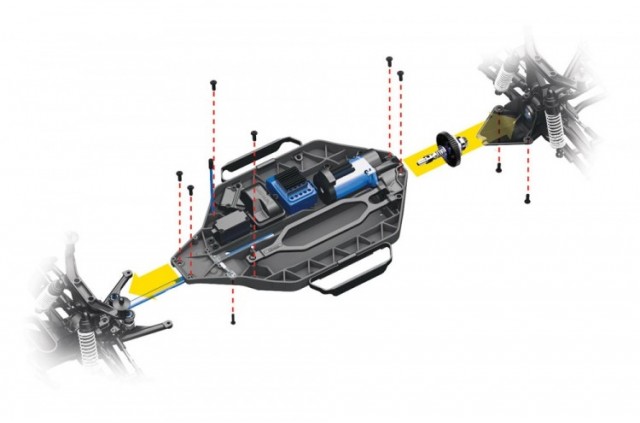

The Traxxas Slash defines the Short Course truck segment and sets the standard for durability, performance, and technology. Innovative features like Traxxas Stability Management (TSM), modular chassis design, and ultra-efficient shaft drive complement Slash’s track-tested precision and rock-solid durability. Slash 4X4’s extreme Velineon brushless power provides screaming 60+mph speed while the TQi radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash 4X4 elevates Short Course performance to a whole new level.

Class-Leading Brushless Power

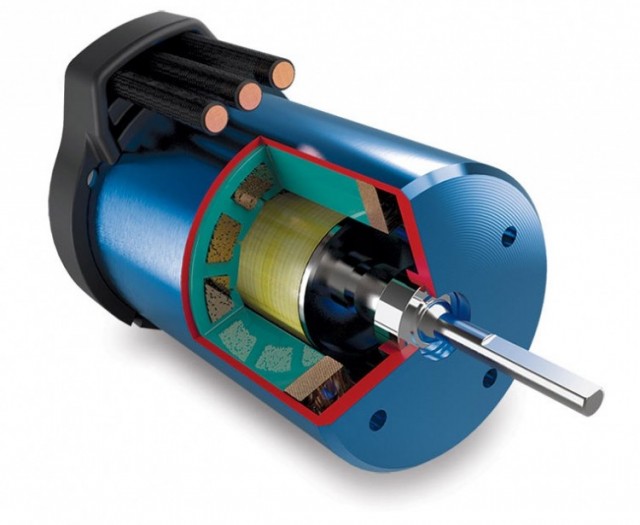

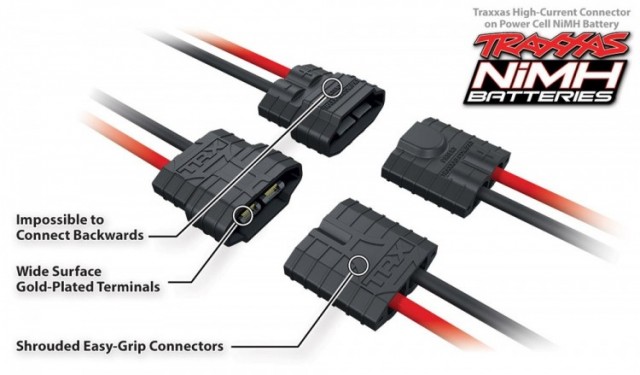

Slash 4X4´s Traxxas Velineon Brushless Power system defines a whole new generation of outrageous electric power that doesn´t know limitations and boundaries. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precision throttle control. For the uninitiated, prepare yourself... the sheer brutal power combined with the Slash 4X4´s four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s Brushless Power System features system components that work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. It´s engineered together from the start to deliver the ultimate in efficiency, speed, and run-time along with precision throttle response and refined control. It´s brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required.

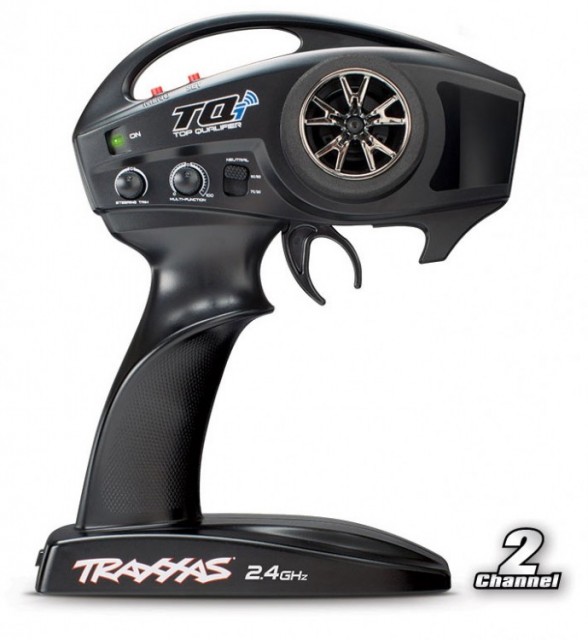

Precision 2.4GHz Control
Traxxas Slash 4X4 equipped with the world´s most advanced Ready-To-Race® radio system. The all-new Traxxas® TQi™ arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology—but that´s just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely and the Multi-Function knob can be programmed to control Traxxas Stability Management (TSM), Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi´s ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

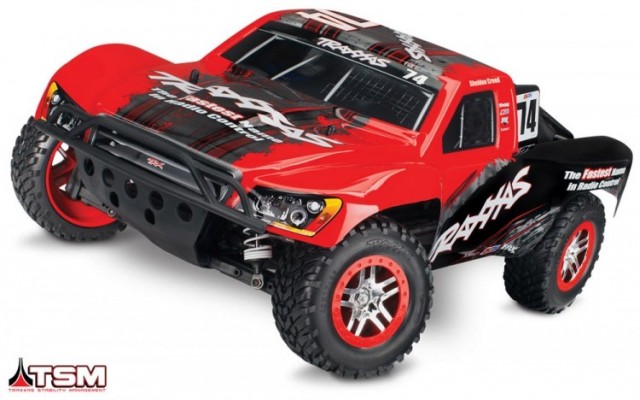

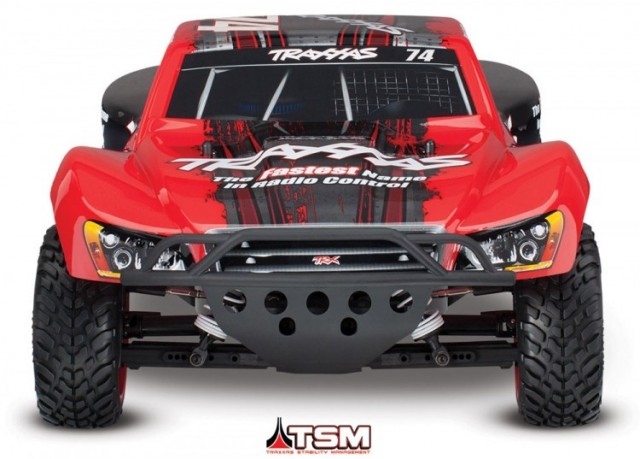

Traxxas Stability Management

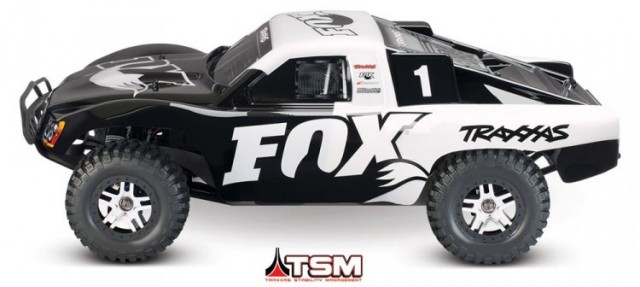

Traxxas Stability Management™ (TSM) allows you to experience your Slash’s extreme power, speed, and acceleration by making it much easier to control on slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Go ahead, punch it off the line! TSM senses the vehicle’s direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the vehicle’s line for faster exit speeds. TSM even improves braking by keeping the truck arrow straight until you reach a complete stop. TSM does all this without intruding on driving fun or introducing unexpected side effects. TSM can be fine-tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. Drive faster and have more fun with TSM. You may not even realize how much it is helping until you try to drive without it.

Features	Traxxas Stability ManagementTM	Other Systems
Engineered to work seamlessly in the background
Unrestricted throttle control
Unrestricted turning radius
Arrow straight braking control to a complete stop
Allows user to adjust assistance or turn off during driving
Connected driver feel

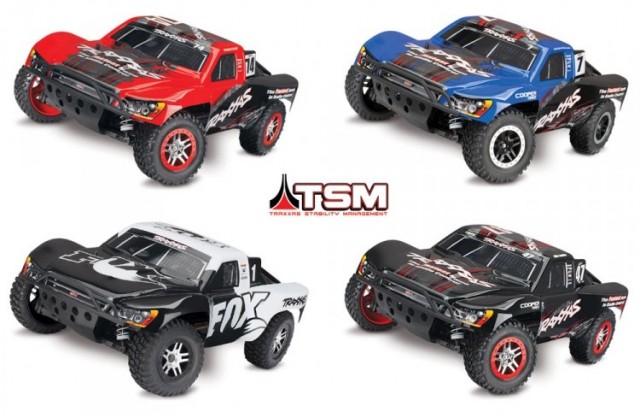

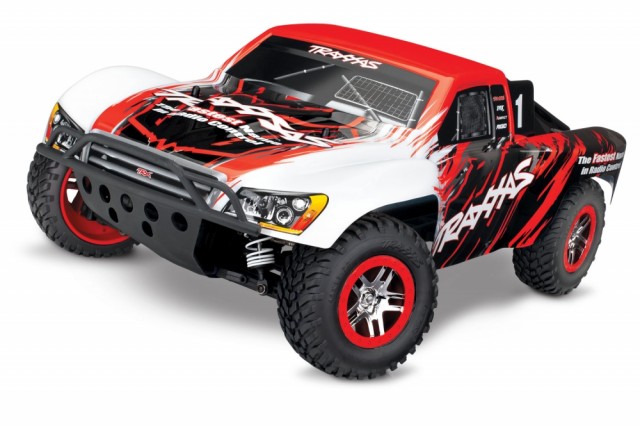

Authentic Short-Course Style

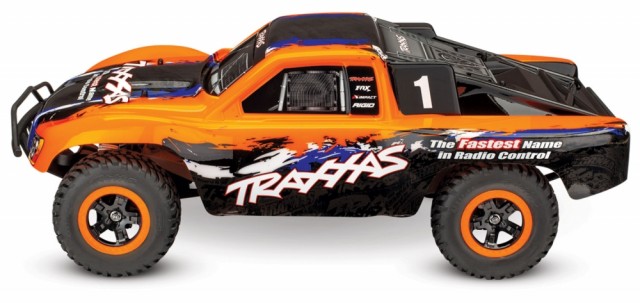

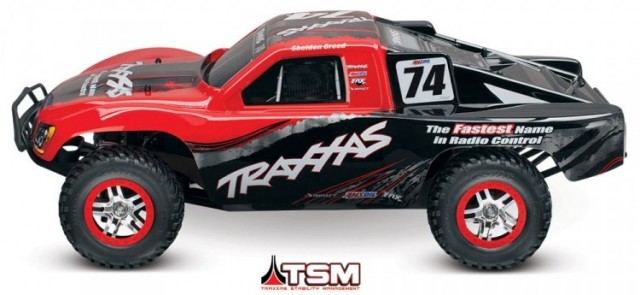

Slash 4X4´s Race Replica bodies are fully decorated with licensed logos and graphics for total authenticity. In addition to the no. Each truck is equipped with an accurate representation of the full-size tire, giving Slash 4X4 the ultimate in realistic performance and control. Wheels complete the look; offering equal parts style and strength, Slash 4X4 features a new SCT Split Spoke design and color-molded "beadlock" detail. Fully compatible with factory Traxxas and aftermarket tires, the wheels also feature 12mm hexes and the same offset as Slash 2WD rear wheels.

100% Fully Assembled and Ready-To-Race®
Slash 4X4 comes fully-assembled and Ready-To-Race® with the TQi 2.4GHz radio system installed and adjusted, Velineon brushless power system, a painted and decaled body, pre-glued tires, and detailed instructions. Simply add the right battery and charger to suit your needs and you´re all set. Traxxas backs Slash 4X4 and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows Slash 4X4 to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun (and fast!). Follow the details link above to go in depth on all the Slash 4X4 performance benefits and also be sure to check out the videos page to see Slash 4X4 in action for yourself.



SLASH 4X4 (#68086-4) SPECS

• Length: 568 mm
• Front Track: 296 mm
• Rear Track: 296 mm
• Center Ground Clearance: 72 mm
• Weight: 2.64 kg
• Height (overall): 193 mm
• Wheelbase: 324 mm
• Shock Length: Long (front), XXLong (rear)
• Tires: Traxxas 2.2" Pre-Glued with Foam Inserts
• Tire Diameter:  109.5 mm (front and rear)
• Wheels (front/rear): 2.2" Split-Spoke, Black or Red Beadlock
• Wheel Diameter: 2.2 Inches (56 mm) Outer / 3.0 Inches (76 mm) Inner
• Speed Control Type: VXL-3s™ Electronic Speed Control
• Motor (electric): Velineon® 3500 Brushless
• Overall Drive Ratio: 11.82 (stock, out-of-box)

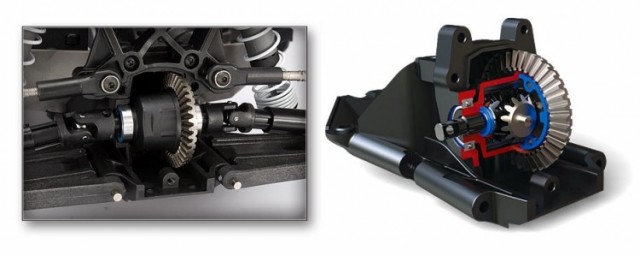

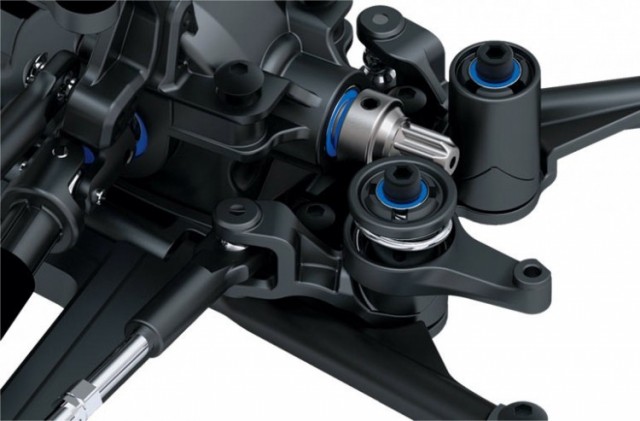

• Differential Type: Hardened Steel Bevel, Sealed, Limited Slip

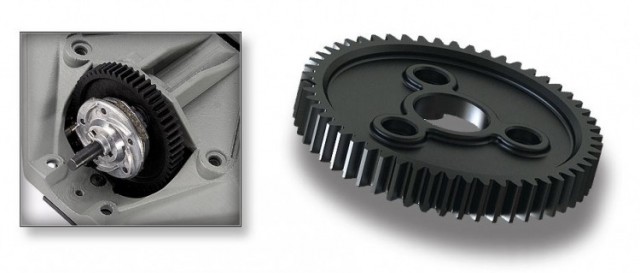

• Gear Pitch: 32
• Chassis Structure/Material: Molded Tub / Nylon Composite

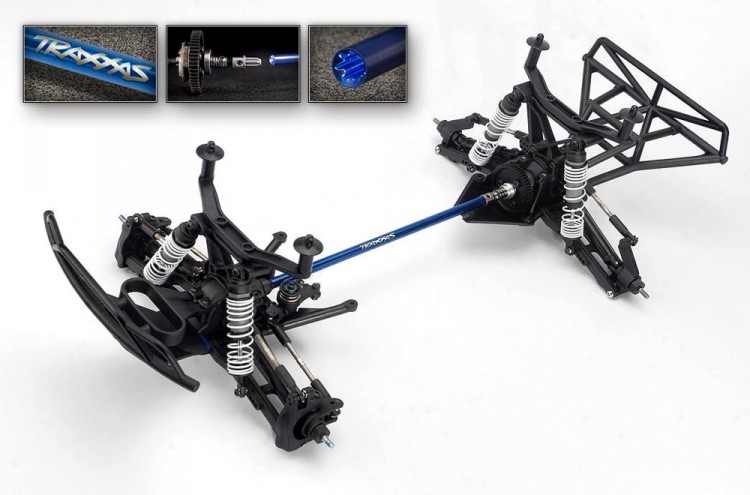

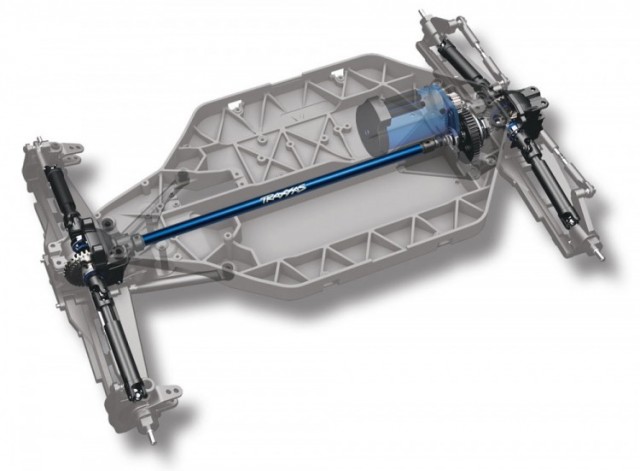

• Drive System: Shaft-Driven, Direct Drive 4WD
• Steering: Dual-Bellcrank with Integrated Servo Saver
• Radio System (transmitter): TQi™ 2.4GHz (2-channel)

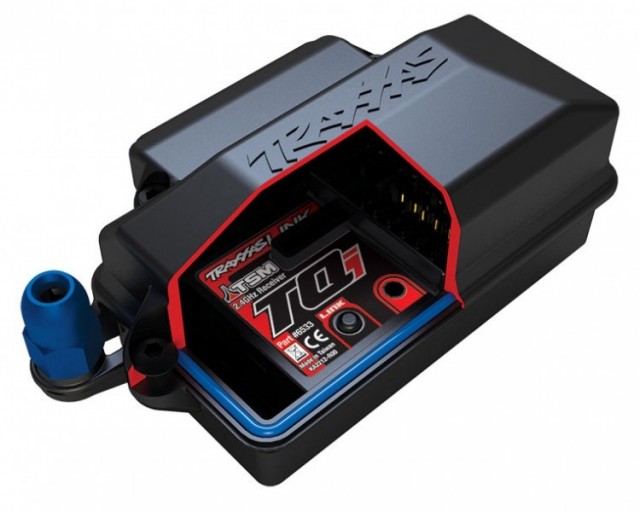

• Radio System (receiver): Traxxas Stability Management™ (#6533)
• Top Speed: 96+kmh*
• Skill Level: 1
• Included Accessories: Precision Tool Set

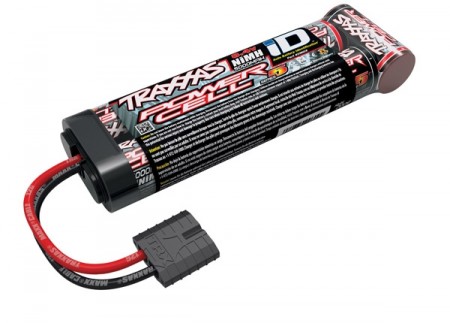

• Required Items: NiMh or LiPo Battery, Charger, and 4 "AA" Batteries (for transmitter)

*With optional gearing and 3S LiPo battery (items sold separately)

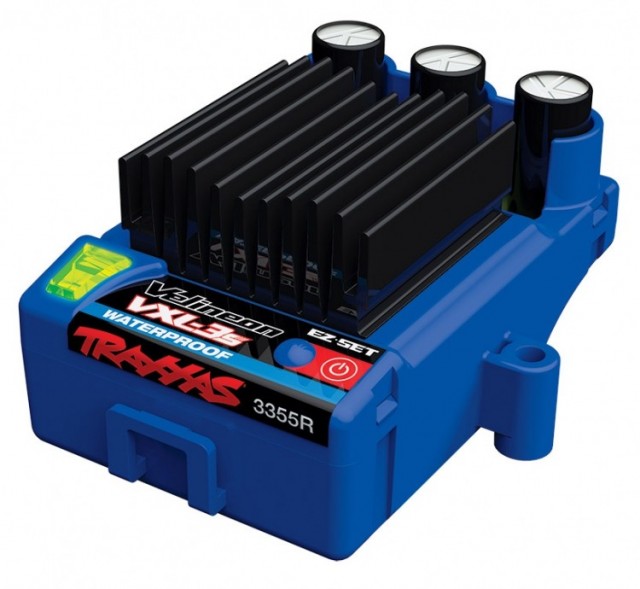

VXL-3s ESC SPECIFICATIONS

• Input Voltage: NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
• Case Size: W39 x D55 x H33 mm
• Weight: 90 gr
• Motor Limit (Brushless): No motor limit
• On Resistance Forward: 0.00075 Ohms
• On Resistance Reverse: 0.00075 Ohms
• Peak Current - Forward: 320A
• Peak Current - Reverse: 320A
• Braking Current: 320A
• Continuous Current: 200A
• BEC Voltage: 6.0 V
• BEC Current: 2.5A (with 6-cell NiMH)
• Power Wire: 12-Gauge Maxx® Cable
• Input Harness Wire: 26 Gauge / 100 mm
• Transistor Type: MOSFET
• Low Voltage Detection: 2-Stage indicators, switchable (on or off)
• Thermal Protection: 2-Stage thermal shutdown
• Single-Button Setup: Yes, Traxxas EZ-Set®
• Battery Input Connector: Traxxas High-Current iD™ Connector**
• Motor Type: Brushless
• Ports: RX Input, auxiliary fan

Profile selection:

• Sport Mode: 100% FWD, 100% BRAKES, 100% REV
• Race Mode: 100% FWD, 100% BRAKES, NO REV
• Training Mode**: 50% FWD, 100% BRAKES, 50% REV

*Properly geared  **Patented
